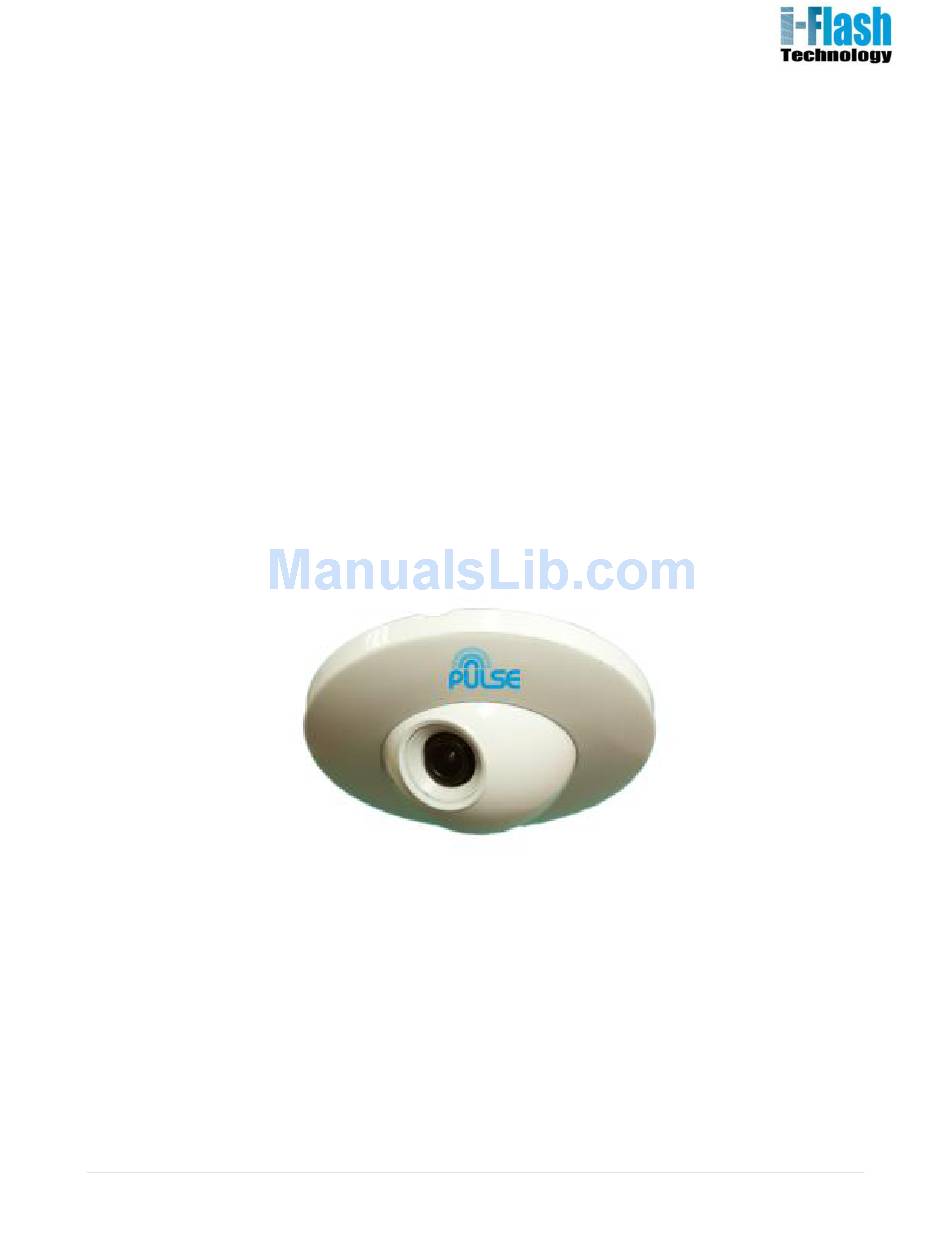

- Page 1 Pulse PFD-2000 Series User Manual Pulse IP Camera User Manual Model Number: PFD-2000 Series Revision: 3.0.1.2 P a g e...
-
Page 2: Safety Instruction
Pulse PFD-2000 Series User Manual Safety Instruction These instructions are intended to assist users with the operation of the PFD-2000DV and also to instruct on how to avoid dangerous situations or damage to the device. Warnings: Serious injury or death may be caused if any of the warnings below are neglected. - Page 3 Pulse PFD-2000 Series User Manual Notice： Make sure that the power supply voltage is correct before using the camera. Do not drop the device or expose it to physical shock. Do not expose the device to temperatures outside the range of -10 C to +50C when the device is in operation.
-
Page 4: Table Of Contents
Pulse PFD-2000 Series User Manual Contents Welcome ………………………………………………………………………………………………………………… Package Contents ………………………………………………………………………………………………… Product Overview ………………………………………………………………………………………………… Configuring the PFD-2000DV via Web Browser ……………………………………………………… Access PFD-2000DV Web Configuration Menu ……………………………………………… Connect The Camera to DHCP server …………………………………………………………… Connect to the Camera using Static IP ……………………………………………………………... -
Page 5: Welcome
Pulse PFD-2000 Series User Manual Welcome is a next generation mini IP dome camera for remote monitoring and PFD-2000DV surveillance over your LAN or internet. combines best in class IP video technology and SIP protocols for a robust IP PFD-2000DV surveillance solution. -
Page 6: Package Contents
Pulse PFD-2000 Series User Manual Package Contents Items in the package: PFD-2000DV IP Camera Quick Installation Guide and Software CD PFD-2000DV IP Camera Quick Installation Guide and Software CD P a g e... -
Page 7: Product Overview
Pulse PFD-2000 Series User Manual Product Overview PFD-2000DV Camera Connectors and Cables Network: 10/100 Switch LAN Port for connecting to Ethernet Power – 12V DC Power Jack Video – BNC connector to Analogue Video P a g e... - Page 8 Pulse PFD-2000 Series User Manual PFD-2000DV Key Features Video Compression H.264 HP、JPEG, Motion JPEG Image Sensor 1/3.2”, 2-Megapixel CMOS, 1,600Hx1,200V Lens 1/3", M12 MEGA, f=3.6 mm, F=1.8 (Selectable） Day/Night IR Light and IR-CUT control (Optional) Min. illumination 0.5Lux Min. illumination Response 1.0V/lux-sec (550nm)
-
Page 9: Installation Guide
Pulse PFD-2000 Series User Manual Installation Guide Minimum Recommended System Requirement • Windows 2000 Server Professional, Windows XP, Windows Vista, Windows 7 • CPU: Intel Pentium 4 or higher, 2 GHz. • RAM: 1 GB (4 GB recommended for larger systems). -
Page 10: Configuring The Pfd-2000Dv Via Web Browser
Pulse PFD-2000 Series User Manual Configuring the PFD-2000DV via Web Browser The PFD-2000DV’s embedded Web server responds to HTTP/HTTPS GET/POST requests. Embedded HTML pages allow you to configure your IP camera through Microsoft Internet Explorer. Access PFD-2000DV Web Configuration Menu Connect the Camera to DHCP server. -
Page 11: Connect To The Camera Using Static Ip
Pulse PFD-2000 Series User Manual Connect to the Camera using Static IP If the camera does not get response from DHCP server after 3 minutes, it can be accessed by the default IP 192.168.1.168. 1. Connect your PC to the same network as the PFD-2000DV. -
Page 12: Home Web Page
Pulse PFD-2000 Series User Manual PFD-2000DV Home Web Page Motion Detection If the motion detection alarm is triggered, the indicator will flash red. Click on the indicator to turn off the alarm. Control Console PTZ Console controller. PTZ device needs to be connected. - Page 13 Pulse PFD-2000 Series User Manual home scream Configuration Camera Configuration Setting Language Select language – English or Chinese Play / Stop Plays/Stops the video. Capture Captures the image displayed and saves it to C:\GS_Capture (default directory). Record Records the video and saves it to C:\GS_Record (default directory).
-
Page 14: System Page
Pulse PFD-2000 Series User Manual PFD-2000DV System Page The page allows you to configure the system setting on PFD-2000DV Current System Time - displays the current date and time (24h clock). Set the System Time Update via NTP Server - the camera will obtain the time from an NTP server Specify the NTP server's IP address or host name. -
Page 15: Video & Audio Page
Pulse PFD-2000 Series User Manual Device Name Setting –This field lets you configure the name of the PFD-2000DV, which helps “Search” and “Surveillance” Software to identify the device in the same subnet. Video & Audio Page On Screen Display (OSD) Settings OSD Time/ Text –... -
Page 16: Video Settings
Pulse PFD-2000 Series User Manual Video Settings Preferred Video Codec – The PFD-2000DV supports the H.264 video codec. Resolution – The higher the resolution is, the better the video quality is, and higher bandwidth is required. Bit Rate – The number of bits that are conveyed or processed per unit of time. - Page 17 Pulse PFD-2000 Series User Manual NOTE: The users might need to configure the Primary Stream and Secondary Stream properly. Sometimes, the user might like to watch the live video stream from the web GUI in low resolution mode while recording a copy via “Surveillance System” software in high resolution due to the limitation of internet bandwidth.
-
Page 18: Networking Page
Pulse PFD-2000 Series User Manual Networking Page – Assign an IP to PFD-2000DV PFD-2000DV supports IP version 4. The IP address can set automatically via DHCP, or a static IP address can be set manually. To make PFD-2000DV work properly, the user needs to set the DNS configuration properly. -
Page 19: Ddns Page
Pulse PFD-2000 Series User Manual HTTP Port The PFD-2000DV supports user configured http ports. If the HTTP port is changed, the port number is needed to access the web GUI, for instance: http://192.168.1.168:8080. NOTE: If the HTTP Port is 80, when you add this device to Surveillance Software, the RTSP port is 554. If the HTTP Port is changed, when you add this device to Surveillance Software, please make sure the RTSP port number equals HTTP Port plus 2000. - Page 20 Pulse PFD-2000 Series User Manual Set up DDNS 1. Apply for a domain name from your service provider. 2. Login to the web configuration page, click Basic Settings > DDNS. 3. Enter the required information DDNS Active – If you want to use DDNS, please set this field to “Enabled” .
-
Page 21: Sip Page
Pulse PFD-2000 Series User Manual SIP Page The PFD-2000DV has the ability to receive phone calls and make phone calls when an alarm event is triggered through motion detection or alarm input. Register the PFD-2000DV to a SIP server to enable the product to make and receive phone calls. - Page 22 Pulse PFD-2000 Series User Manual Register PFD-2000DV to a SIP Server 1. From the PFD-2000DV home page, click Basic Settings > SIP. 2. Go to SIP Settings Tab. 3. General Phone Settings. Registered – The field shows the registration status of the account with the SIP server.
-
Page 23: Status Page
Pulse PFD-2000 Series User Manual Configure Phone List Page To make sure the PFD-2000DV can make phone calls to the number you preferred when alarm is triggered. You need to add number to the phone list. Steps to add phone number: 1. - Page 24 Pulse PFD-2000 Series User Manual Network Status MAC Address – The device ID, in HEXADECIMAL format. LAN IP Address – This field shows the LAN IP address of the PFD-2000DV. LAN Subnet Mask – This field shows the LAN subnet mask of the PFD-2000DV.
-
Page 25: User Management Page
Pulse PFD-2000 Series User Manual PFD-2000DV User Management Page All current users will be list in the User List section of this page. You can also add and remove users here. Existing User Name –The field lists all of the current users. You can insert or remove users from the list by click on the Add or Update or Delete button. -
Page 26: Maintenance Page
Pulse PFD-2000 Series User Manual PFD-2000DV Maintenance Page Server Maintenance Restart – Click this button to restart the PFD-2000DV. Restore – Click this button to perform a partial factory reset (The IP address will not be cleared) . Restore the Device Click “Restore”... -
Page 27: Smtp Page
Pulse PFD-2000 Series User Manual Performing a firmware upgrade: 1. Download the firmware package from www.i-flashtech.com 2. Unzip the firmware package and copy the files to the firmware upgrade server directory. Upgrades are supported via TFTP, HTTP and HTTPS. 3. Log in to the Maintenance page of the PFD-2000DV. Select the server type from the dropdown list under the “Upgrade Via”... -
Page 28: Ftp Page
Pulse PFD-2000 Series User Manual SMTP Server Settings Enable SMTP – Checked to enable SMTP SMTP Server – The IP or hostname of the SMTP server, for example, smtp.gmail.com. SMTP Server Port – The port of the SMTP server. The PFD-2000DV supports port 25 and SSL port 465, which is for SMTP with an encrypted connection. -
Page 29: Alarm Http Server Setting
Pulse PFD-2000 Series User Manual Test FTP Account Settings – Click the Test button to upload a sample file to make sure that FTP is properly configured. PTZ Settings This setting is not supported in PFD-2000DV Alarm HTTP Server Settings... -
Page 30: Motion Detection Page
Pulse PFD-2000 Series User Manual Motion Detection Page The PFD-2000DV supports Motion Detection. To utilize this feature, please follow the below steps: 1. Setup the motion detection monitored area. 2. Configure the motion detection time schedule. 3. Configure alarm action properly. - Page 31 Pulse PFD-2000 Series User Manual Configure Motion Detection Time Schedule & Alarm Actions This section allows you to configure the time during which the PFD-2000DV will monitor the motion detection. The PFD-2000DV not only can monitor your settings but also can take actions when the alarm is triggered.
-
Page 32: System Log
Pulse PFD-2000 Series User Manual PFD-2000DV System Log This page is used to set up the system log server path and system log level. Once they are correctly configured, the device will send out system log messages to the system log server, which will help perform troubleshooting.
