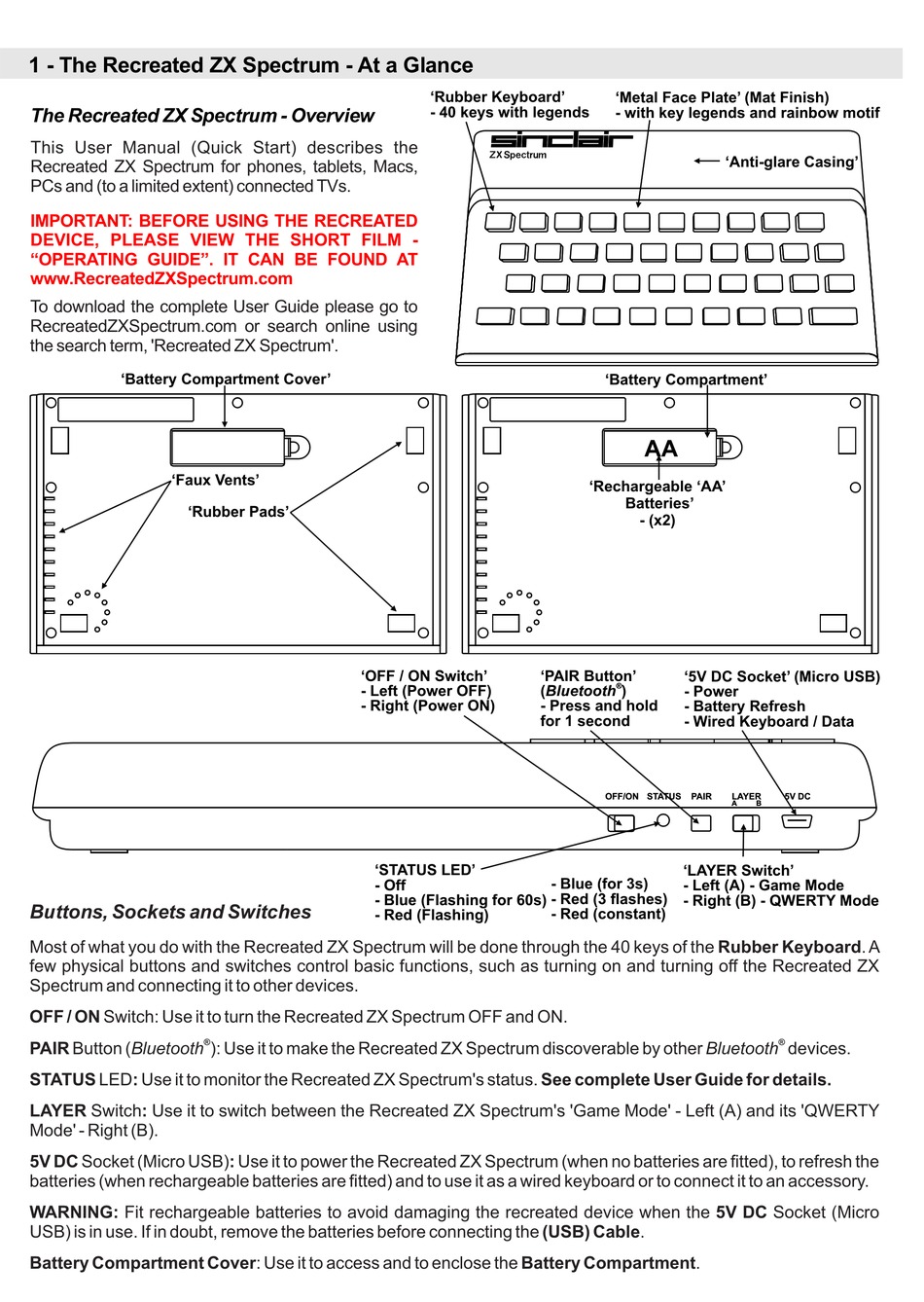

1 - The Recreated ZX Spectrum - At a Glance

The Recreated ZX Spectrum - Overview

This User Manual (Quick Start) describes the
Recreated ZX Spectrum for phones, tablets, Macs,
PCs and (to a limited extent) connected TVs.
IMPORTANT: BEFORE USING THE RECREATED
DEVICE, PLEASE VIEW THE SHORT FILM -
"OPERATING GUIDE". IT CAN BE FOUND AT
www.RecreatedZXSpectrum.com
To download the complete User Guide please go to
RecreatedZXSpectrum.com or search online using
the search term, 'Recreated ZX Spectrum'.
'Battery Compartment Cover'
'Faux Vents'
'Rubber Pads'

Buttons, Sockets and Switches

Most of what you do with the Recreated ZX Spectrum will be done through the 40 keys of the Rubber Keyboard. A
few physical buttons and switches control basic functions, such as turning on and turning off the Recreated ZX
Spectrum and connecting it to other devices.
OFF / ON Switch: Use it to turn the Recreated ZX Spectrum OFF and ON.
PAIR Button (Bluetooth ): Use it to make the Recreated ZX Spectrum discoverable by other Bluetooth devices.
STATUS LED: Use it to monitor the Recreated ZX Spectrum's status. See complete User Guide for details.
LAYER Switch: Use it to switch between the Recreated ZX Spectrum's 'Game Mode' - Left (A) and its 'QWERTY
Mode' - Right (B).
5V DC Socket (Micro USB): Use it to power the Recreated ZX Spectrum (when no batteries are tted), to refresh the
batteries (when rechargeable batteries are tted) and to use it as a wired keyboard or to connect it to an accessory.
WARNING: Fit rechargeable batteries to avoid damaging the recreated device when the 5V DC Socket (Micro
USB) is in use. If in doubt, remove the batteries before connecting the (USB) Cable.
Battery Compartment Cover: Use it to access and to enclose the Battery Compartment.
'OFF / ON Switch'
- Left (Power OFF)
- Right (Power ON)
'STATUS LED'
- Off
- Blue (Flashing for 60s)
- Red (Flashing)
®
'Rubber Keyboard'
- 40 keys with legends
'Rechargeable 'AA'
'PAIR Button'
(Bluetooth )
- Press and hold
for 1 second
- Blue (for 3s)
- Red (3 ashes)
- Red (constant)
'Metal Face Plate' (Mat Finish)
- with key legends and rainbow motif
'Anti-glare Casing'
'Battery Compartment'
AA
Batteries'
- (x2)
'5V DC Socket' (Micro USB)
®
- Power
- Battery Refresh
- Wired Keyboard / Data
OFF/ON STATUS
PAIR LAYER
A B
'LAYER Switch'
- Left (A) - Game Mode
- Right (B) - QWERTY Mode
®
5V DC
