  • Page 1: User Manual

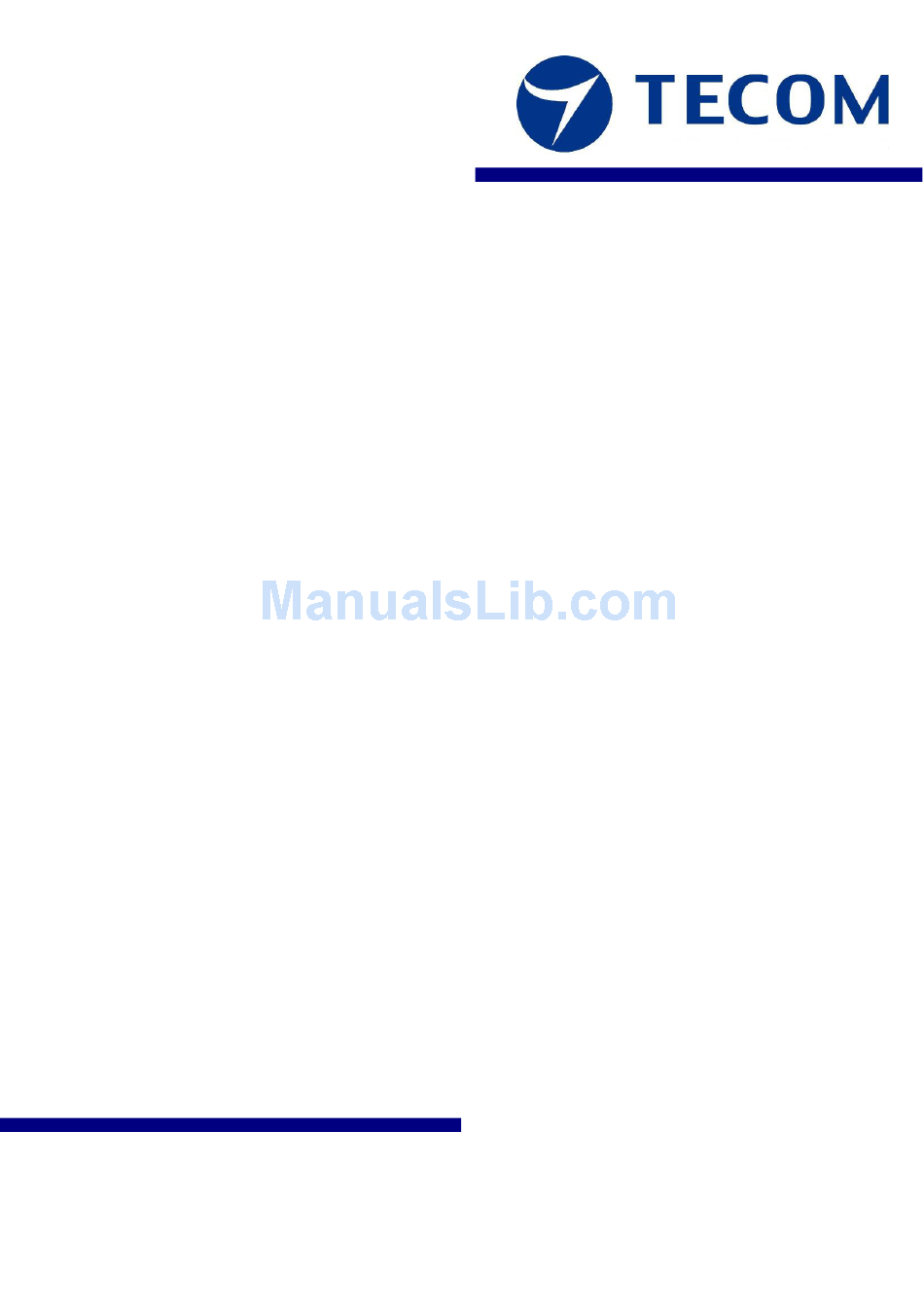

    IP5815 Door Phone User Manual V1.0 2015/10/15...

  • Page 2: Table Of Contents

    2. Operation guidelines ..................4 3. Product Overview..................5 3.1 Product intended use ................5 3.2 Functions of the system ..............5 3.3 IP5815 Video door phone features .............5 3.4 Video Door Phone Specification ............6 3.5 eGateway Specification ..............6 3.6 System architecture ................7 3.7 System components identification ............8 3.8 Description of functions...............8...

  • Page 3: Gift Box Content

    1 x Video Door Phone IP5815 unit 1 x Power adapter for Video Door Phone 1 x eGateway IP5858 1 x 14 pin connector for Video Door Phone IP5815 unit 1 x mounting bracket Video Door Phone IP5815 unit 1x mounting kit...

  • Page 4: Operation Guidelines

    Thank you for selecting Smart Bell for your communication and security needs. . Please read this manual carefully before installation and keep it in a safe place for future reference 2. Operation guidelines 1. The unit is damaged if dropped. Handle with care. 2.

  • Page 5: Product Overview

    Remote door release: works with electronic locks that can be released via mobile App 3.3 IP5815 Video door phone features IP addressable video door station Monitoring of view of the front (rear) door or a visitor at any time of day and...

  • Page 6: Video Door Phone Specification

    2-Way audio DI / DO dry control for door release Taking snapshots of the visitor automatically once the call button is pressed Night vision Built-in RFID sensor module 3.4 Video Door Phone Specification Camera 1M pixel CMOS sensor Night Light 2 x LED HW Specific 1 * ISO14443 Card Reader, support RFID card...

  • Page 7: System Architecture

    3.6 System architecture...

  • Page 8: System Components Identification

    3.7 System components identification Door phone unit 3.8 Description of functions The figure below illustrates the front view of the IP5815. Follow the point numbers to find the description of the door phone components’ functions...
  • Page 9 Front view of the IP5815 Video door phone Part name Description of functions Card reader RFID card reader control White LED Night vision to make sure that the user gets clear image Camera Seeing the video of the visitor once the door...

  • Page 10: Led Colors Indication

    Back view of the IP5815 Video door phone 3.9 LED colors indication LED colors are associated with the door phone button and follow this guideline: Color Status Description Steady Choose to emergency upgrade or reset default when you see this LED status.

  • Page 11: Installation

    4. Installation 4.1 Selecting a location for Video Door Phone Areas to avoid when mounting the Video Door Phone Unit: 1. Avoid areas that are subject to vibration or shock 2. Avoid areas where rain or water may directly hit the unit. Unit is not water-resistant and can be damaged if sprayed with high pressure water.

  • Page 12: Installing Video Door Phone

    4.2 Installing Video Door Phone NOTE: Verify transformer power rating. Power must be supplied in the range 13V ~ 20 AC. 1. Make sure that outlet’s power (AC 13V ~ 20V) is off when wiring Doorphone. Keep power off until the wire connection has been complete. 2.

  • Page 13: Preparation For Wiring

    4.3 Preparation for wiring 1. Please prepare your own CAT5e cable and follow the operation guidelines as below: Make sure that the resistance of CAT5e < 0.094 Ohm/m. Use a straight-through cable for connecting units. Do not bend the cables to an extent where the radius is less than 25 mm (1”).
  • Page 14 4. Color of Wire and Identification 5. Conventional rule Power supply by e-Gateway for 12V/2A DC, distance is less or equal than 30 meters. Power supply by e-Gateway for 24V/1A DC, distance is less or equal than 100 meters.
  • Page 15 NOTE: When the link distance is over 100 meters, power must be provided by external power adapter, and an individual switch/hub is required for connection between Video Door Phone and e-Gateway.

  • Page 16: Connecting Video Door Phone And Egateway

    4.4 Connecting Video Door Phone and eGateway Use the CAT5e cable to link Video door phone to e-Gateway. Connect one end of CAT5e cable to the OUTDOOR port of eGateway. Connect another end of CAT5e cable to 14 pin connecter. outdoor 4.5 Wiring of the electric strike/lock 1.
  • Page 17 New back panel With RJ45 connector & wire set NOTE: Do not use the unoccupied terminals and ports for other purposes...

  • Page 18: Setting Wifi Router And Egateway

    5. Setting WiFi router and eGateway NOTE: to ensure the smooth operation of the product, we highly recommend the required characteristics as presented below 5.1 Recommended characteristics for the WiFi router Standard: 802.11 b/g/n Wireless Signal Rate: 300 Mbps Antenna Gain: 2 dBi QoS Management DDNS Support Reference models: TP-Link TL-WR841N(D), D-Link DIR-615...

  • Page 19: Connection Diagram

    5.4 Connection diagram Connect Wi-Fi router WAN to ADSL modem Connect e-Gateway (eGW) WAN to Wi-Fi router LAN 5.5 Internet/WAN Connection Setting 1. On your computer, login to the administration page of the Wi-Fi router and proceed with setting. 2. Set up WAN / Internet connection in accordance with the ISP provider Internet connection information.
  • Page 20 Dynamic IP (DHCP/PPPoE) connection setting NOTE: For the details of DDNS settings please refer to the Wi-Fi router Instructions. When the Internet connection type is Dynamic IP, it is also required to setup the DDNS. 1. Select DDNS provider 2. Input your account, password and registered domain name...

  • Page 21: Lan Connection Setting

    5.6 LAN Connection Setting 1. Please enable DHCP Server and set different IP segment with e-Gateway’s. 2. The current e-Gateway default LAN IP segment is 192.168.0.xxx; avoid using this IP segment for DHCP setting of the Wi-Fi router. 3. Reserve a fixed IP address to e-Gateway 4.

  • Page 22: E-Gateway Setting

    NOTE: This table lists TCP / UDP ports used by Tecom’s system. Do not use these ports for other network applications. Port TCP / UDP Direction Description HTTPS port of web management, open it when remote security http access is...
  • Page 23 3. To secure your system against unwanted outside intrusion (hacking), we strongly recommend that you do is change all of the System’s Passwords! NOTE: Make sure to make a note of your new password!

  • Page 24: Mobile Device Pairing And Setting

    6. Mobile device pairing and setting 6.1 Mobile device paring with eGateway 1. Connect PC to the LAN1 or LAN2 Port of e-Gateway, 2. Open the browser to log in to the e-Gateway Web page (the default IP: 192.168.0.10, Account: admin, Password: admin) 3.

  • Page 26: Setting Android Device To Work With Mobile2Door

    6.2 Setting Android device to work with Mobile2Door 1. Follow the steps below to connect your mobile device to the intercom system WiFi Enable WiFi by tapping mobile device’s “Settings” “WiFi settings” In the “Wi-Fi networks” list, choose SSID of Wi-Fi AP (For Example, the SSID is “Intercom Wi-Fi”) 2.
  • Page 27 3. Tap “Mobile2Door” icon to start using the App. The following registration screen will appear. 4. Fill out the required items, then tap the “Registration” button to start the registration procedure. “Extension No”: equal to “Account” information of eGateway - admin by default or the account number that you used for eGateway pairing with mobile device “Registration No”: equal to “Password”...
  • Page 28 5. Enabling the mobile device to be registered to e-GW via 3G/WAN, user is required to fill-in account/password, IP address/WAN of e-GW. “Default Server Address”: Enter the e-GW WAN IP assigned by Wi-Fi Router. When the WAN connection type of eGW set as DHCP, the WAN IP address of eGW is dynamic IP address.
  • Page 29 Setting iOS device to work with Mobile2Door 1. Follow the steps below to connect your mobile device to the intercom system WiFi Click on “Settings” then select “ Wi-Fi”. In the “Choose A Network” list, choose the SSID of Wi-Fi AP (For Example, the SSID is Intercom Wi-Fi) Identify the system as connected, the SSID displayed above the “Choose A Network”.
  • Page 30 3. Tap “Settings” and choose “Mobile2door” in the Settings screen. 4. Fill in the correct registration information “Account”: enter account as inputted in e-gateway (admin by default). “Password”: enter password as inputted in e-gateway (admin by default). “Intranet Server IP”: enter the e-GW WAN IP assigned by Wi-Fi Router. “Internet Server IP”: enter the Wi-Fi Router WAN IP...
  • Page 31 5. Enabling the mobile device to be registered to e-GW via 3G/WAN, user is required to fill-in account/password, IP address/WAN of e-GW. WAN connection type set as DHCP on Wi-Fi router, the IP address will be acquired a dynamic IP address from DDNS. 6.
