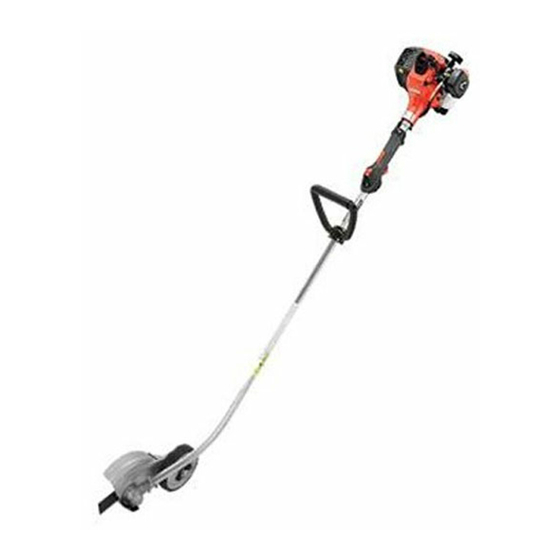

Echo PE-230 Operator's Manual

Power edger
Hide thumbs Also See for PE-230:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
Power Edger
Operator's Manual
MODEL
Read rules for safe operation and instructions carefully. ECHO provides an
Operator's Manual and a Safety Manual. Both must be read and understood for
proper and safe operation.
X7532096901
PE-230
WARNING
DANGER
X753002321
08/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PE-230 and is the answer not in the manual?

Questions and answers

Related Manuals for Echo PE-230

Summary of Contents for Echo PE-230

  • Page 1 Power Edger Operator's Manual MODEL PE-230 WARNING DANGER Read rules for safe operation and instructions carefully. ECHO provides an Operator's Manual and a Safety Manual. Both must be read and understood for proper and safe operation. X753002321 X7532096901 08/06...

  • Page 2: Table Of Contents

    NTRODUCTION Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-job- dependability. Read and understand this manual and the SAFETY MANUAL you found in the same package. You will find both easy to use and full of helpful operations tips and SAFETY messages.

  • Page 3: Safety

    OWER DGER PERATOR ANUAL AFETY MANUAL SAFETY SYMBOLS AND IMPORTANT INFORMATION Throughout this manual and on the product itself, you will find safety alerts and helpful informational messages preceded by symbols or key words. The following is an explanation of those symbols and key words and what they mean to you.
  • Page 4 Wear no-slip, heavy duty work gloves to improve your grip on the edger handles. Gloves also reduce the transmission of machine vibration to your hands. Hearing Protection ECHO recommends wearing hearing protection whenever unit is used. Proper Clothing Wear snug fitting, durable clothing;...
  • Page 5 OWER DGER PERATOR ANUAL Repetitive Stress Injuries It is believed that overusing the muscles and tendons of the fingers, hands, arms, and shoulders may cause soreness, swelling, numbness, weakness, and extreme pain in those areas. Certain repetitive hand activities may put you at a high risk for developing a Repetitive Stress Injury (RSI).

  • Page 6: Equipment

    Use only ECHO approved attachments. Serious injury may result from the use of a non approved attachment combination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual and safety manual.

  • Page 7: Description

    Locate these safety decals on your unit. Make sure the decals are legible and that you understand and follow the instructions on them. If a decal cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDER- ING instructions for specific information.
  • Page 8 POWER HEAD - Factory assembled. Includes the engine, clutch, fuel system, ignition system and starter. THROTTLE TRIGGER LOCKOUT - This lever must be held during starting. Operation of the throttle trigger is prevented unless throttle trigger lockout lever is engaged. STOP SWITCH - "Slide Switch"...

  • Page 9: Contents

    The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions, shield installation and other assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts.

  • Page 10: Throttle Linkage And Ignition Leads

    / low idle extremes are adjusted properly. The throttle linkage must be adjusted by moving the adjustment fixture (D). Consult with your Echo Dealer for correct adjustment procedure. Bundle and secure ignition leads against engine housing with clip (F).

  • Page 11: Operation

    Echo premium Power Blend Universal 2-Stroke Oil may be mixed hydrocarbon emissions. Some states at 50:1 ratio for application in all Echo engines sold in the past may require the use of automatic fuel regardless of ratio specified in those manuals.

  • Page 12: Starting Cold Engine

    STARTING COLD ENGINE WARNING DANGER The attachment will operate immediately when the engine starts and could result in loss of control and possible serious injury. Keep movable parts of the attachment off the ground and away from objects that could become entangled or thrown. Stop Switch Move stop switch button (A) forward away from the STOP position.

  • Page 13: Starting Warm Engine

    The attachment should not move at idle, otherwise serious personal injury may result. NOTE If attachment moves, readjust carburetor according to “Carburetor Adjustment” instructions in this manual or see your ECHO Dealer. Stop Switch Move stop switch button (A) away from the STOP position. Purge Bulb Pump purge bulb (C) until fuel is visible in the "Clear"...

  • Page 14: Operating Techniques

    OPERATING TECHNIQUES 1. Before edging, water the area to soften the ground to make edging easier. Before edging, check the area and remove all obstacles and objects that could be thrown. Plan to edge regularly to make it easier to keep a neat edge and to avoid having to make more than one pass.

  • Page 15: Maintenance

    ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO Dealer do it, each maintenance task has been graded. If the task is not listed, see your ECHO Dealer for repairs.

  • Page 16: Air Filter

    AIR FILTER Level 1. Tools required: 25 or 50 mm (1 or 2 in.) Cleaning brush Parts required: 90008 REPOWER Air & Fuel Filter Kit. Close choke (Cold Start Position [ ]). This prevents dirt from entering the carburetor throat when the air filter is removed. Brush accumulated dirt from air cleaner area.

  • Page 17: Spark Plug

    OWER DGER PERATOR ANUAL SPARK PLUG Level 2. Tools Required: T-Wrench, feeler gauge, soft metal brush. Parts Required: REPOWER Tune-Up Kit P/N 90074 IMPORTANT Use only NGK BPM-8Y spark plug (BPMR-8Y in Canada) otherwise severe engine damage may occur. Remove spark plug and check for fouling, worn and rounded center electrode.

  • Page 18: Exhaust System

    Remove spark plug lead. Remove two (2) muffler cover screws and muffler cover (A). Remove screw and arm rest (B). Remove cylinder cover (C). IMPORTANT DO NOT use a metal scraper to remove dirt from the cylinder fins. 5. Use brush to remove dirt from the cylinder fins. Remove grass and leaves from the grid between the recoil starter and fuel tank.

  • Page 19: Carburetor Adjustment

    The cylinder exhaust port must be inspected and cleaned of excess carbon every 3 months or 90 hours of operation in order to maintain this engine within the emissions durability period. ECHO strongly recommends that you return your unit to your ECHO dealer for this important maintenance service. CARBURETOR ADJUSTMENT...

  • Page 20: Drive Shaft Lubrication

    DRIVE SHAFT LUBRICATION Level 1. Tools required: 8 mm Open End Wrench, 4 mm Hex Wrench, Clean rag Parts Required: ECHO LUBE 8 oz. (P/N 91014) or Lithium Base ® Grease. Loosen two (2) screws (A) and remove center locating screw (B).

  • Page 21: Blade Replacement/Lubrication

    ANUAL BLADE REPLACEMENT LUBRICATION Level 1. Tools Required: T-Wrench, Locking Tool, Needle Nose Pliers, 13 mm Open End Wrench Parts Required: ECHO LUBE 8 oz. (P/N 91014) or Lithium Base ® Grease, Blade P/N 69601552632, split pin P/N 90030020022 NOTE Grease gear case every 50 hours of use.

  • Page 22: Troubleshooting

    ROUBLESHOOTING t l i f l f f t ' n t n I t l i f t l i f t l i f t l i f / y t t r i WARNING DANGER Fuel vapors are extremely flammable and may cause fire and/or explosion. Never test for ignition spark by grounding spark plug near cylinder plug hole, otherwise serious personal injury may result.

  • Page 23: Storage

    OWER DGER PERATOR ANUAL TORAGE WARNING DANGER During operation the muffler or catalytic muffler and surrounding cover become hot. Always keep exhaust area clear of flammable debris during transportation or when storing, otherwise serious property damage or personal injury may result. Long Term Storage (over 30 days) Do not store your unit for a prolonged period of time (30 days or longer) without performing protective storage mainte- nance which includes the following:...

  • Page 24: Specifications

    PECIFICATIONS MODEL ----------------------------------------------------- PE-230 Length ------------------------------------------------------- 1755 mm (69.1 in.) Width -------------------------------------------------------- 315 mm (12.4 in.) Height ------------------------------------------------------- 285 mm (11.2 in.) Weight (dry w/cutter head) ------------------------------- 6.35 kg (14.0 lb.) Engine Type ------------------------------------------------ Air cooled, two-stroke, single cylinder gasoline engine Bore ---------------------------------------------------------- 32.2 mm (1.27 in.)
  • Page 25 OWER DGER PERATOR ANUAL NOTES...
  • Page 26 NOTES...
  • Page 27 OWER DGER PERATOR ANUAL NOTES...

  • Page 28: Servicing Information

    • Purchasing from your Echo Dealer. • Manuals are available by sending a written request stating the model number and serial number of your Echo unit, part number of the manual, your name and address, and mail to the address below.
