robatherm AR3 Operating Instructions Manual

Autofill boiling water unit

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Proudly Distributed By

ROBAND AUSTRALIA PTY LTD

OPERATING INSTRUCTIONS

ROBATHERM AUTOFILL BOILING WATER UNIT

Models

AR3, AR5, AR7, AR10,

Version 1

AR15,AR25, AR40

These instructions cover the models of Robatherm Boiling Water Units listed above, Although

there are slight variances between models, the installation, operation, care and maintenance

procedure is the same for all.

31/10/2013

Table of Contents

Need help?

Do you have a question about the AR3 and is the answer not in the manual?

Questions and answers

Summary of Contents for robatherm AR3

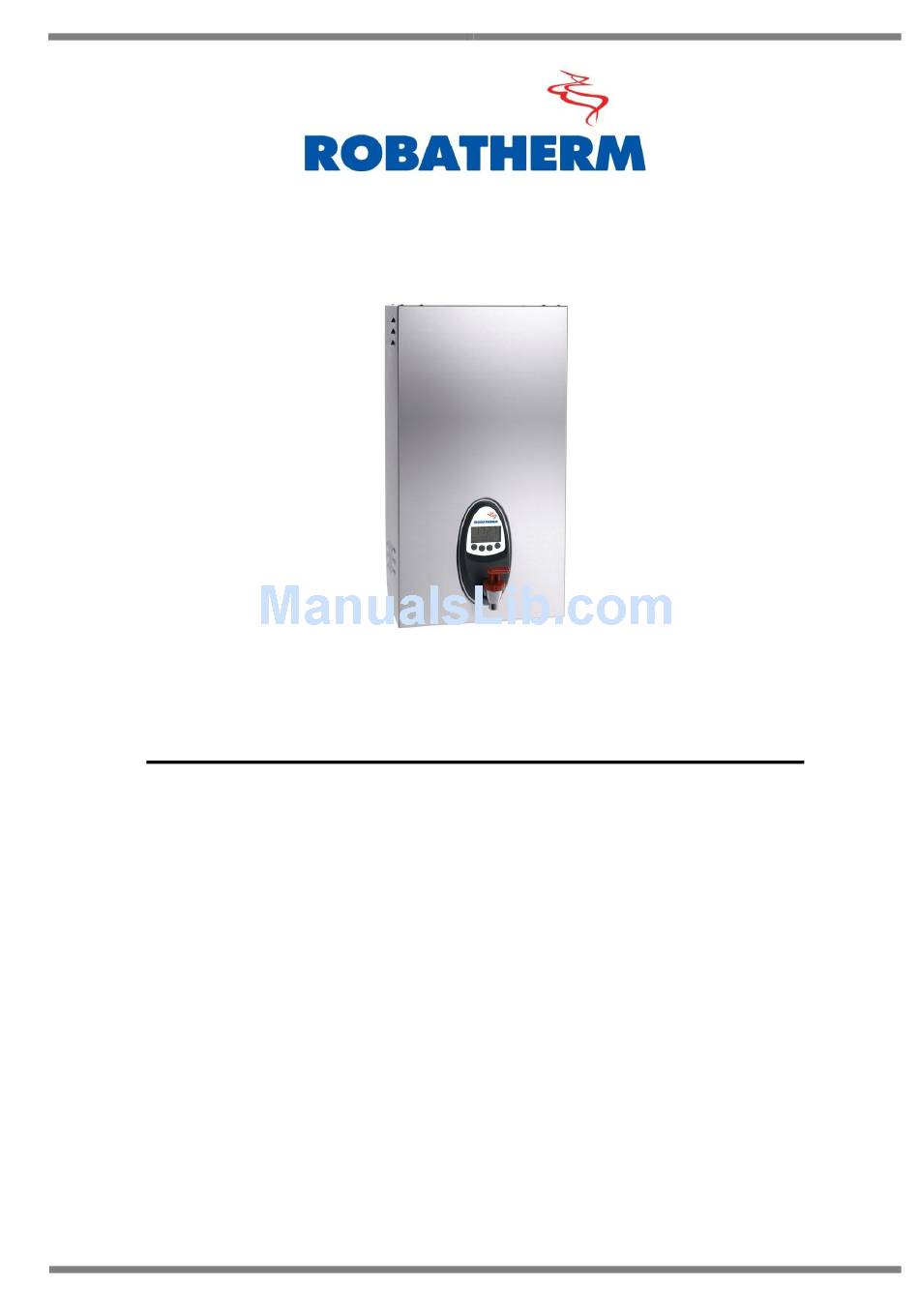

Page 1: Operating Instructions
AR3, AR5, AR7, AR10, Version 1 AR15,AR25, AR40 These instructions cover the models of Robatherm Boiling Water Units listed above, Although there are slight variances between models, the installation, operation, care and maintenance procedure is the same for all. 31/10/2013...
Page 2 Meat Slicers, Ryno Stainless Benching, Ceado Juicers, F Cookware, Robalec ö ® Soup/Rice Warmers, Robatherm Urns, Austheat Fryers, Dipo Induction & Autofry Machines. Roband also has its own line of commercial cookware and cutlery under the ® Robinox brand name.
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 COMPLIANCE ......................2 INSTALLATION ....................... 3 OPERATION......................7 GENERAL SAFETY ....................12 CLEANING, CARE & MAINTENANCE ..............12 TROUBLESHOOTING ................... 13 PRODUCT ERROR CODES .................. 14 SPECIFICATIONS ....................15 CIRCUIT DIAGRAM....................
Page 4: Introduction
INTRODUCTION Congratulations on your purchase of this quality Robatherm product. With proper care and management your new purchase will give you years of trouble free service. By reading these instructions carefully you can ensure that this machine is used and maintained properly, helping your new investment to perform well for you now, and to continue performing in the many years to come.
Page 5: Packaging
To prevent damage during transport, the tap is packed inside the unit housing. For the AR3, AR5 and AR10 units, remove the four screws located on the top and bottom of the unit and slide the housing toward you. For AR15, AR25 and AR40 models, unscrew and remove the access panel on the left hand side of the unit.
Page 6: Installation
This unit is designed for interior installation only. OPENING THE UNIT To remove the cover from models AR3, AR5, AR7 & AR10 remove the 4 retaining screws at the top and bottom and pull the jacket forward. For models AR15, AR25 and AR40, unscrew the service plate on the left hand side and lid at the top.
Page 7 Model 7.5 L 10 L 15 L 25 L 40 L J mm K mm L mm Figure 1: Mounting Dimension Specification WATER SUPPLY CONNECTION Cold mains pressure water (refer to specification table for minimum water pressures) must be piped and connected to the ½” BSP inlet fitting located on the left hand side underneath the unit.
Page 8 Overflow / Vent Connection Figure 2: Water Connection & Overflow/Vent Connection For rear entry connection on 3-10 Litre models, we recommend that you use a braided flexible hose with a 90 elbow for ease of connection. An isolating valve should be installed in the system to enable water to the unit to be turned off in the event of any fault.
Page 9 To prevent damage during transport, the tap is packed inside the unit housing. For the AR3, AR5 and AR10 units, remove the four screws located on the top and bottom of the unit and slide the housing toward you. For AR15, AR25 and AR40 models, unscrew and remove the access panel on the left hand side of the unit.
Page 10: Operation
OPERATION Once the installation is complete, turn the water supply on before switching on the power. The unit is programmed to automatically operate 24 hours a day, 7 days a week. It is highly recommended for the user to program the timer (if the unit supplied has one), as this will increase the life of the unit and consume less power (see below for instructions detailing how to program the timer).
Page 11 FOR UNITS WITH TIMER Timer Functions A. Clock B. Timer STD/AUTO C. Set Sleep Delay Time* D. Set ON/OFF Times* E. Filter Life Remaining Life Filter Reset Service Menu iii. * ON/OFF times & Sleep Delay Time only operate in AUTO Mode. To select a Timer Mode Press the (Prog) button until the desired mode is displayed on the screen.
Page 12 pre set times on the timer. Press the (Accept) button to confirm selection and the display reverts to the main menu. If the timer is in AUTO mode, pushing any Timer key will reactivate the unit. The unit will operate normally until the next programmed “Off”...
Page 13 i) To Select Remaining Life mode (Prog>Filter Life>Accept>Remaining Life) Display Shows: “Remaining Life” “XXXX litres“ Press the (Cancel) or (Accept) button to revert back to the main menu. ii) To Select the Filter Reset mode (Prog> Filter Life >Accept>filter reset>Accept) Display Shows: “Filter Reset”...
Page 14 iii) Not Used Display Shows: “XXX ˚C“ Press the (Cancel) button to revert back to the main menu. iv) For Calibration Reset mode (Prog>Service>Accept>Calib.Reset>Accept) Display Shows: “Calib. Reset“ This function recalibrates the boiling water unit to boiling point. Press the (Accept) button to recalibrate the boiling point.
Page 15: General Safety
  SAFETY GENERAL SAFETY This machine contains no user-serviceable parts. Roband Australia, one of our agents, or a similarly qualified person(s) should carry out any and all repairs. Any repair person(s) should be instructed to read the Safety warnings within this manual before commencing work on these units.
Page 16: Troubleshooting
TROUBLESHOOTING If the Boiling Water Unit does not function, check the following points before calling for service. SYMPTOM POSSIBLE CAUSE REMEDY Check the electrical supply – Check There is no power supply that the unit is plugged in. There is no water supply Check the water supply.
Page 17: Product Error Codes
PRODUCT ERROR CODES Error Code Hot Thermistor O/C, S/C Heating Triac S/C – uncontrolled temperature rise Expired Filter Calibration Time Out Low Level Probe Fault High Level Probe Fault Water Heating Fault Internal Software Reset – No action req’d. Rapid Temperature Rise – i.e. Empty Tank Page: 14...
Page 18: Specifications
SPECIFICATIONS Drawing Applies To All Models Page: 15...
Page 19 SPECIFICATIONS continued Key to Drawing Dimensions: Dimension 3 Litre 5 Litre 7.5 Litre 10 Litre 15 Litre 25 Litre 40 Litre A mm B mm C mm D mm E mm F mm G mm H mm N mm M mm Table 3: Dimension Specification Specifications: Size (L)
Page 20: Circuit Diagram
CIRCUIT DIAGRAM 3 – 15L MODELS 25 & 40L MODELS NOTE: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should person’s not suitably qualified attempt repairs to any electrical equipment. Page: 17...
Page 21 NOTES Page: 18...
Page 22 NOTES Page: 19...
Page 23: Warranty
WARRANTY Every care is taken to ensure that no defective equipment leaves our factory and all goods manufactured by us are guaranteed against faulty workmanship and materials for a period of 12 months from the date of purchase. Glass, lamps and Teflon coatings are NOT included in this warranty.
Page 24 OTHER LEADING PRODUCTS AVAILABLE:  -PLUS DRINK MIXERS PIE & FOOD WARMERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS GRILLMAX TOASTERS NOAW Slicers Manufactured/Imported in Australia by: Authorised Distributor/Agent...

This manual is also suitable for:

Ar7 Ar10 Ar5 Ar15 Ar25 Ar40
