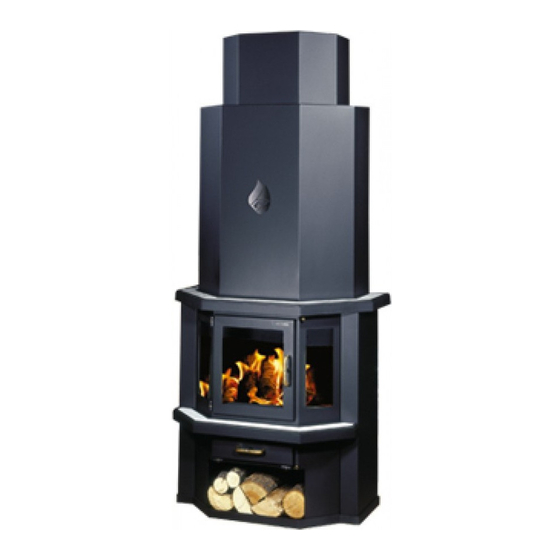

Summary of Contents for SKLADOVA TEHNIKA Mini Lux Diplomat

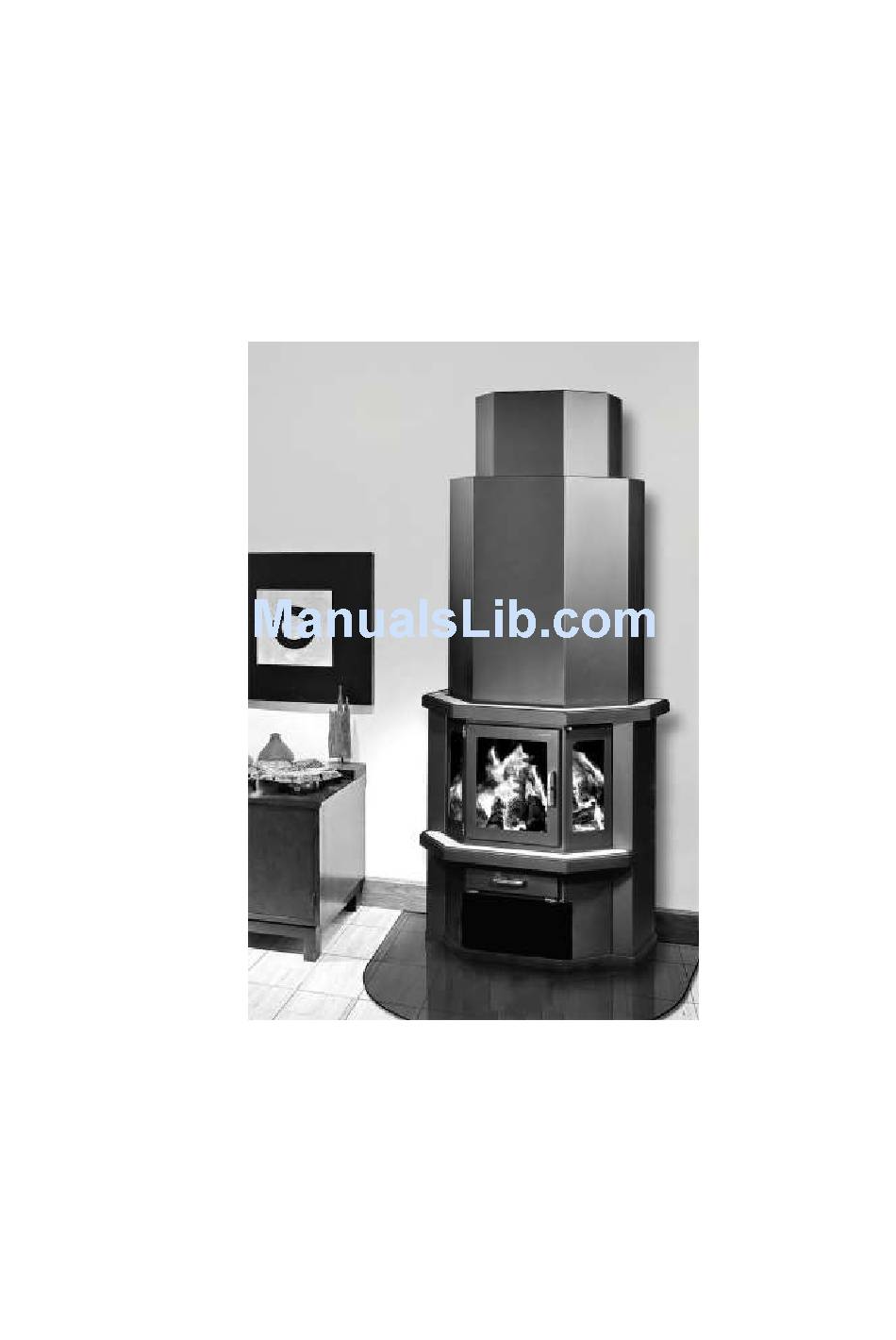

- Page 1 INSTRUCTION MANUAL for installation and operation of room heaters and inset appliances fired by solid fuel SKLADOVA TEHNIKA 25 Sveti Knyaz Boris I St. 5100 Gorna Oryahovitsa Republic of Bulgaria phone: +359 618 60576 e-mail: info@st-bg.com www.st-bg.com...
-
Page 2: Table Of Contents
CONTENTS 1. Introduction ........................... 3 2. Appliance assembling ........................3 3. Appliance operation ........................4 4. Important directions for fire-precaution and safety regulations ..........6 5. Cleaning ............................7 6. Possible defects and their causes ....................7 Appendix 1 ............................8 Appendix 2 ............................ -
Page 3: Introduction
1. Introduction. The fireplaces (appliances) are designed and tested in accordance with the requirements of European standard EN 13240:2001 and the fireboxes (appliances) according to the European standard EN 13229:2001 and conform to the approved technical documentation. They are designed for intermittent burning and operate with fire doors closed. -
Page 4: Appliance Operation
sheet and obligatory foiled). The foil serves as a deflector of the beam heat and reduces the heat loss. Despite wadding round the fire chamber it is compulsory to enable 5 cm air flow for heat exchange and cooling. By means of suitable decorative ventilation grilles ensure the flow of cold air in the bottom of the firebox and outflow of hot air in the upper part of the decorative lining. - Page 5 Bottom grate The lower part of the firebox is supplied with a cast-iron grate. This grate could be blocked up by nails in the wooden material, small wooden parts, the residue etc. You are advised to clean regularly the grate in order to keep its functionality.
-
Page 6: Important Directions For Fire-Precaution And Safety Regulations
the fuel consumption. This leads to limitation of the flow of oxygen, which bothers the combustion and the glass is covered with soot. Also there are harmful emissions which may cause burning in the chimney. Adjusting the primary and secondary air is made manually, by moving the handle of the particular regulator. 3.4. -
Page 7: Cleaning
Don’t try to extinguish the fire with water by yourself! All easily inflammable materials to be away from the chimney! When the appliance is set to work again it is necessary the chimney to be checked by a competent person for eventual damages. - Page 8 (cm) wood coals wood coals wood coals wood coals side back front wood coals В Н Mini Lux Diplomat 65,82 66,94 275 º/ 9,1/12 296º /10,9/12 75,64 280º/6,16/12 2,35 Lux 2В 69,36 68,94 252 º/8,87/12 276 º/10,5/12 Capri 75,81 305º/6,09/12 2,76 Тoledo...
- Page 9 Appendix 1 Distance to close combustible Space heating output Water heating output Triple values Fuel quantity Overall dimensions Efficiency (%) materials Weight (kW) (kW) °C–g/s-Pa (kg/h) (mm) Fireplace / Firebox (cm) (kg) wood coals wood coals wood coals wood coals side back front...
-
Page 10: Appendix 2
Appendix 2 INSTRUCTION for assembling and operation of room heaters and inset appliances fired by solid fuel with integral boilers Attention! The design and connection of the heating installation should be obligatory made by an authorized organization. The installation should conform to all standard documents which are in force (in reference with the operation and safety). - Page 11 INSTALLATION DIAGRAM for connecting of room heaters and inset appliances fired by solid fuel with integral boilers type “B” (open heating system) 1. Blocking Valve 7. Pump thermo regulator 13. Pump 2. Deaerator 8. Opened Expander tank 14. Filter 3. Radiator 9.
