Page 1: Operating Instructions

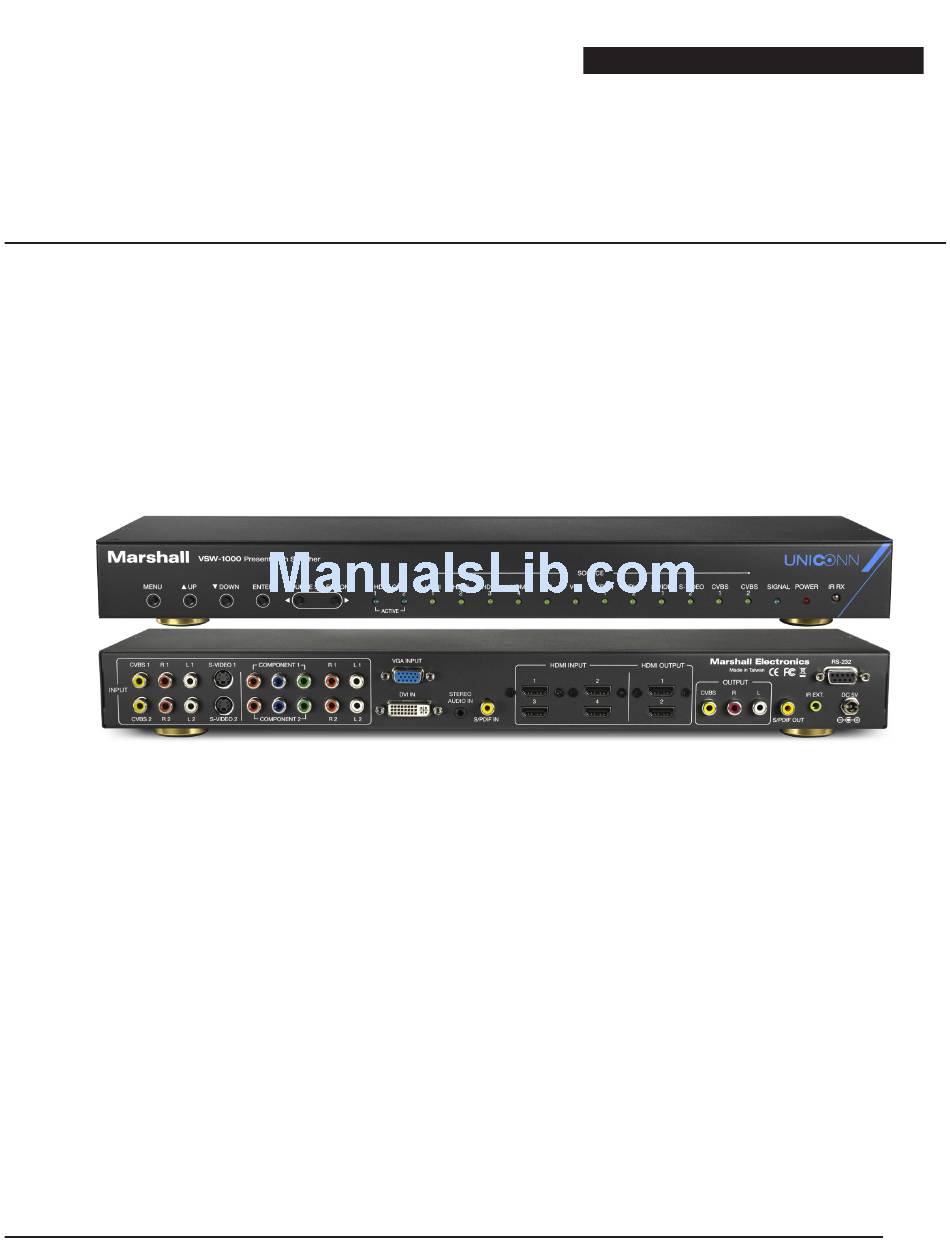

Marshall Electronics B r o a d c a s t A / V D i v i s i o n Model No. VSW-1000 Presentation Switcher (HDMI/DVI/VGA/Composite/Component Input & HDMI Output) Operating Instructions V.1.0... - Page 2 6. Panel Descriptions ............6 audio HDMI ready. With IR remote control and push button controls, the VSW-1000 offers easy 7. IR Remote Control ............7 conversion, routing and scaling of videos as needed.
-
Page 3: Specifi Cations
Marshall Electronics VSW-1000 / connectIon dIaGraM 4. Specifi cations 5. Connection Diagram Model Name VSW-1000 / Video Switcher Input Video Bandwidth HDMI:225 MHz DVI/VGA:165 MHz Component: 74.25MHz Game Console Camera Set-top box 1 Laptop Output Video Bandwidth 297MHz Audio Support... -
Page 4: Panel Descriptions
Marshall Electronics VSW-1000 / Ir reMote controL 6. Quick Access Keys 6. Panel Descriptions 7. IR Remote Control Front Panel Power On/Off EXIT Exit Menu MENU Menu ON STATUS Source and Resolution information ENTER Enter Key Rear Panel MUTE Mute Master Output Audio... -
Page 5: Osd Menu
Marshall Electronics VSW-1000 / Software procedureS 8. OSD Menu 9. SOFTWARE PROCEDURES Software Interface: Contrast 0~255 of Contrast Level • Select Com Port. Contrast 0~255 of Contrast Level Enter to find com port Brightness 0~255 of Brightness Level Saturation 0~255 of Saturation Level • Select Source... - Page 6 If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer.
- Page 7 Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDracks.com support@marshall-usa.com...
