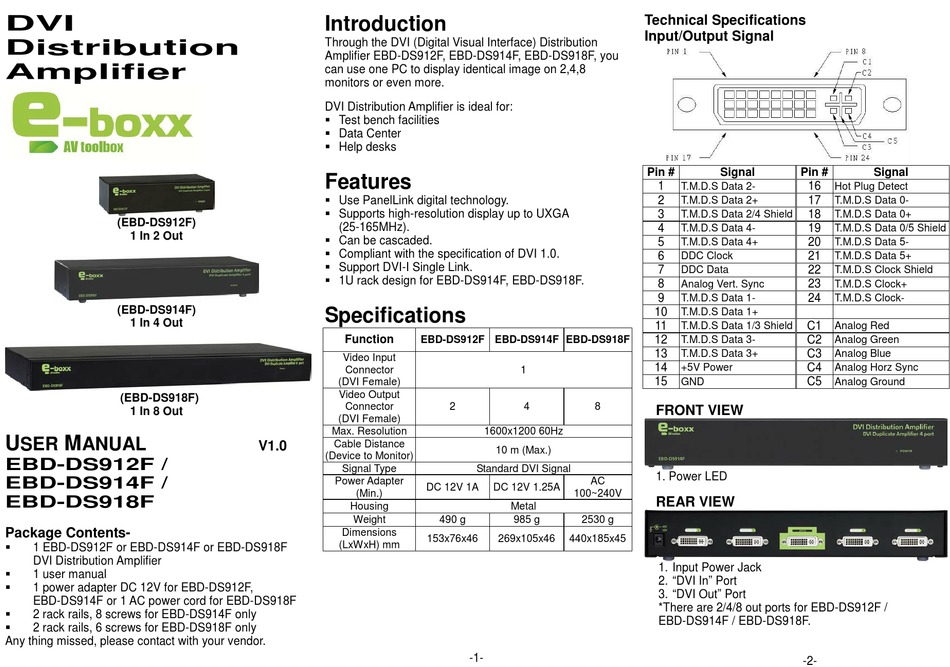

e-boxx EBD-DS912F User Manual

DVI
Distribution
Amplifier
(EBD-DS912F)
1 In 2 Out
(EBD-DS914F)
1 In 4 Out
(EBD-DS918F)
1 In 8 Out
U M
SER ANUAL
EBD-DS912F /
EBD-DS914F /
EBD-DS918F
Package Contents-

1 EBD-DS912F or EBD-DS914F or EBD-DS918F
DVI Distribution Amplifier

1 user manual

1 power adapter DC 12V for EBD-DS912F,
EBD-DS914F or 1 AC power cord for EBD-DS918F

2 rack rails, 8 screws for EBD-DS914F only

2 rack rails, 6 screws for EBD-DS918F only
Any thing missed, please contact with your vendor.

Introduction

Through the DVI (Digital Visual Interface) Distribution
Amplifier EBD-DS912F, EBD-DS914F, EBD-DS918F, you
can use one PC to display identical image on 2,4,8
monitors or even more.
DVI Distribution Amplifier is ideal for:
 Test bench facilities
 Data Center
 Help desks

Features

 Use PanelLink digital technology.
 Supports high-resolution display up to UXGA
(25-165MHz).
 Can be cascaded.
 Compliant with the specification of DVI 1.0.
 Support DVI-I Single Link.
 1U rack design for EBD-DS914F, EBD-DS918F.

Specifications

Function EBD-DS912F EBD-DS914F EBD-DS918F
Video Input
Connector
(DVI Female)
Video Output
Connector
(DVI Female)
Max. Resolution
V1.0 Cable Distance
(Device to Monitor)
Signal Type
Power Adapter
DC 12V 1A
(Min.)
Housing
Weight
Dimensions
153x76x46
(LxWxH) mm
1
2 4 8
1600x1200 60Hz
10 m (Max.)
Standard DVI Signal
AC
DC 12V 1.25A
100~240V
Metal
490 g 985 g 2530 g
269x105x46 440x185x45
-1-

Technical Specifications

Input/Output Signal
Pin # Signal Pin #
1 16
T.M.D.S Data 2-
2 T.M.D.S Data 2+ 17
3 T.M.D.S Data 2/4 Shield 18
4 T.M.D.S Data 4- 19
5 T.M.D.S Data 4+ 20
6 21
DDC Clock
7 22
DDC Data
8 Analog Vert. Sync 23
9 T.M.D.S Data 1- 24
10 T.M.D.S Data 1+
11 C1
T.M.D.S Data 1/3 Shield
12 C2
T.M.D.S Data 3-
13 T.M.D.S Data 3+ C3
14 +5V Power C4
15 GND C5
FRONT VIEW
1. Power LED
REAR VIEW
1. Input Power Jack
2. "DVI In" Port
3. "DVI Out" Port
*There are 2/4/8 out ports for EBD-DS912F /
EBD-DS914F / EBD-DS918F.
-2-
Signal
Hot Plug Detect
T.M.D.S Data 0-
T.M.D.S Data 0+
T.M.D.S Data 0/5 Shield
T.M.D.S Data 5-
T.M.D.S Data 5+
T.M.D.S Clock Shield
T.M.D.S Clock+
T.M.D.S Clock-
Analog Red
Analog Green
Analog Blue
Analog Horz Sync
Analog Ground
