network DynaGuard 600 Series Setup Manual

network DynaGuard™ 600 Series DVR

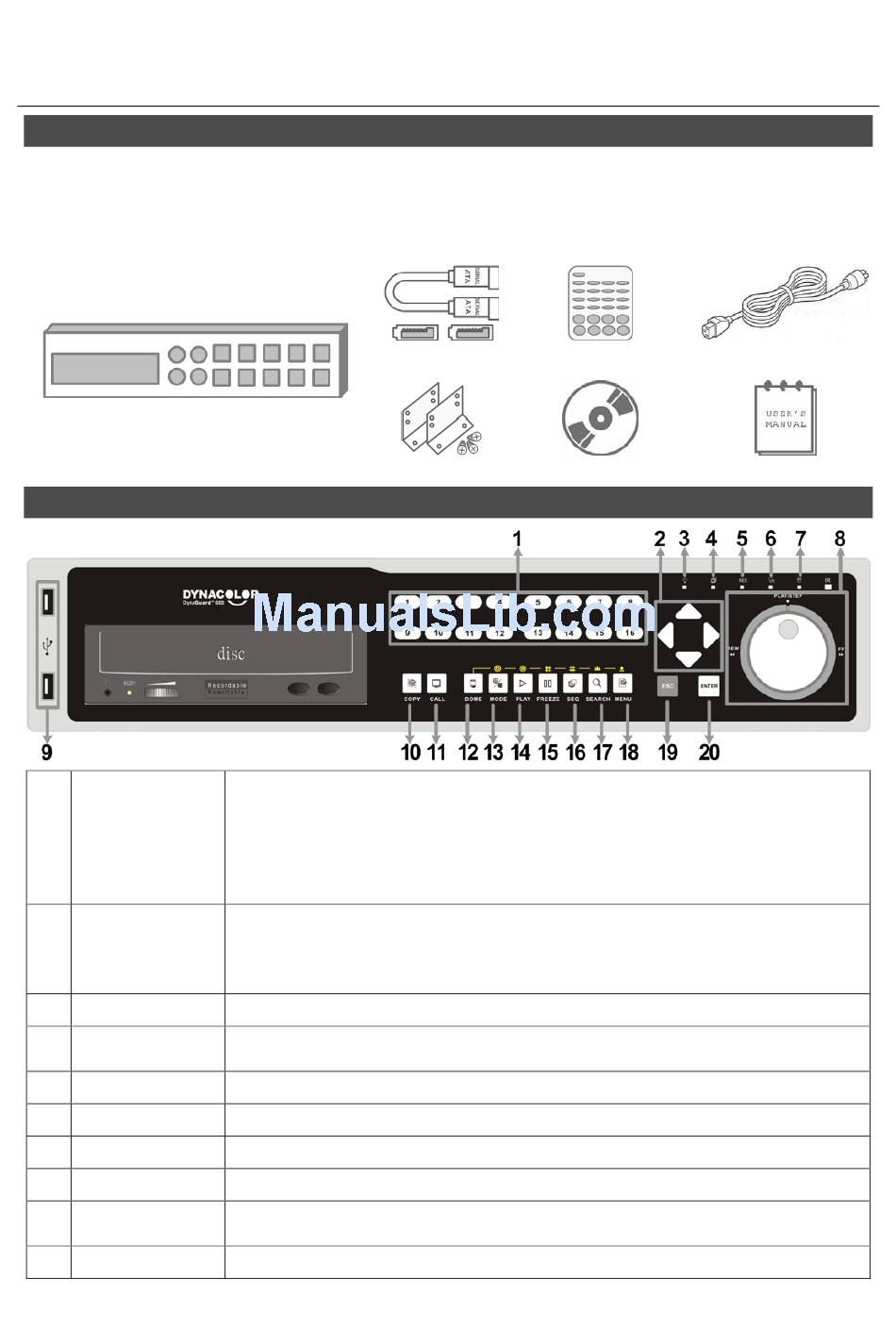

Package Content
Inspect the packaging carton. Make sure the network DynaGuard™ 600 Series DVR is properly
delivered. Remove all items from the box and make sure the box contains the following items.
network DynaGuard™ 600 Series DVR
Front Panel
1 Channels
2 Direction Keys
3 Power LED
4 Network LED
5 Record LED
6 Alarm LED
7 HDD LED
8 Shuttle/ Jog
9 USB 2.0 Port
10 COPY
00P5DG600DGSEA3
Setup Guide
SATA Cable
Mounting Kit
1. In Live and Playback modes, press any key to view the corresponding
video in full-screen.
2. In input interface, 1~10 can be used for direct input of numbers 0~9.
3. In Dome Camera Control mode, 1 is for entering the Set/ Go preset
menu; 2 is for hiding or displaying the hint screen; 11~16 is for quick
access of preset points 1~6.
1. In Zoom mode, these keys function as normal direction keys.
2. In the OSD setup menu, the direction keys are used to move the
cursor to previous or next fields. To change the value in the selected
field, press UP / DOWN keys.
It lights up when power source is connected.
It lights up when network is connected. In addition, it blinks when data is
being transmitted via the network.
It blinks when videos are being recorded.
It lights up when an alarm is triggered.
It lights up when data is processed to or from the connected HDD(s).
This is used to control playback operations.
The USB 2.0 port allows users to connect an external USB device to the
unit, such as a USB ThumbDrive© or a USB mouse.
This key is used for marking time in quick video export function.
Remote Controller
Software CD-CMS
Power Cord
User's Manual
1
