Page 7: Chapter 1 Overview Of Ts-109 Turbo Station

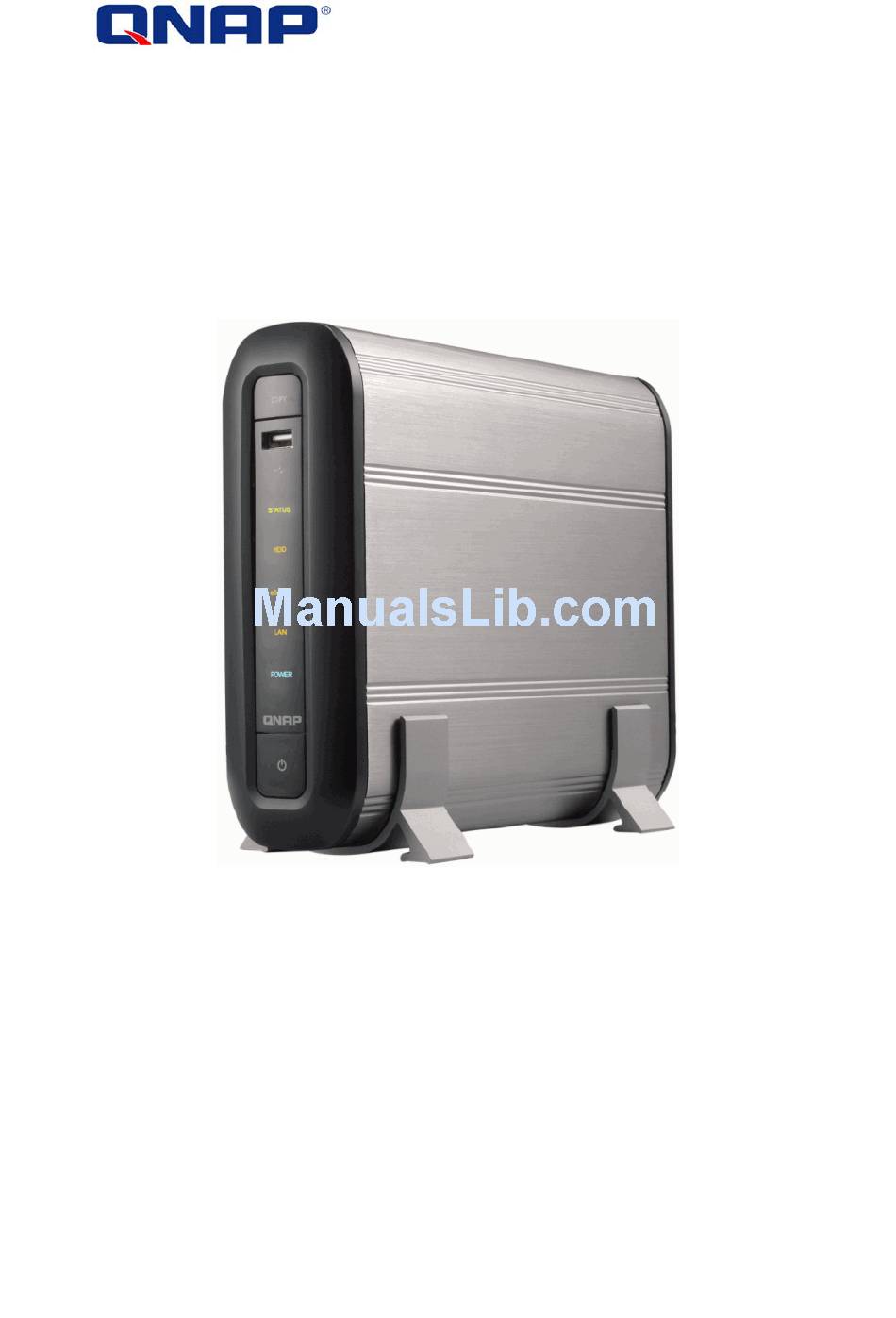

Chapter 1 Overview of TS-109 Turbo Station Introduction Thank you for choosing TS-109 Turbo Station. This product has the following key features: 9-in-1 server: Multimedia Station, Download Station, Mirror Station, Disaster Recovery, Web Server, Backup Server, File Server, FTP Server, and Printer Server.
Page 8: Package Contents
Package Contents Your TS-109 package contains: TS-109 Turbo Station Adaptor Power cord CD-ROM (user manual, Quick Installation Screws Quick Install Wizard Guide and software inclusive) Ethernet cable x 1 Stand x 2 - 8 -...
Page 9: Hardware Illustration
Hardware Illustration One Touch Copy Button USB 2.0 Port LED Indicators Power Button USB 2.0 Ports eSATA Port Giga LAN Port Configuration Reset Switch Power Cord Hook 10. Power Connector 11. K-lock Security Slot - 9 -...
Page 10: Chapter 2 Install Ts-109
1. Pull out the front case of TS-109 as shown below: 2. Install a hard disk in TS-109 drive plate. Make sure the disk holes of the disk match the holes of drive plate. Lock the disk with the provided flathead screws.
Page 11 3. After installing the disk, cover TS-109 with the front case and fasten the round head screws. Then place TS-109 vertically on the stands. - 11 -...
Page 12: Hard Disk Recommendation List
The following HDD models are verified by QNAP that are compatible with TS-109. It is recommended to use the disk models listed here. Other HDD brands that are not tested by QNAP may or may not work properly with TS-109. For more updated compatible hard disk information, please visit QNAP website at http://www.qnap.com.
Page 13 WD Caviar RE2 WD4000YS SATA/300 WD Caviar RE WD3200YS SATA/300 WD Caviar RE WD2500YS SATA/300 WD Caviar RE WD1600YS SATA/300 WD Caviar SE16 WD5000AAKS SATA/300 WD Caviar SE16 WD4000AAKS SATA/300 WD Caviar SE16 WD3200AAKS SATA/300 WD Caviar SE16 WD2500AAKS SATA/300 WD Caviar SE16 WD5000KS SATA/300...
Page 14: Set Up Ts-109
Please check your network environment and select the appropriate installation method before installing TS-109. 1. Office/ Home Connect TS-109 and PC to the same hub/ switch/ router. 2. Individual Connect TS-109 directly to your PC by a network cable. - 14 -...
Page 15 When you have verified your network environment, please follow the steps below to install TS-109. Note: Please connect a USB printer to the server after the software configuration is completed. - 15 -...
Page 16: Check System Status
Check System Status TS-109 provides LED indicators for you to indicate system status and information easily. Front USB Status Status Hard disk eSATA Network Power LED Display & System Status Overview LED Display & System Status Blue: You can press the copy button to copy data...
Page 17 Other Status Action Process Finish Blink in blue Blue Power Update firmware Blink in green and Green (long beep Status red alternatively thrice) Blink in blue Power System shut down Off (short beep once) Status - 17 -...
Page 18: Configure Software Settings
Windows Users Insert TS-109 CD-ROM in your PC. Wait for a few seconds until the following screen shows up. Then start to configure the software settings of TS-109. 1. Execute the product CD, a model selection menu will be shown. Select your Turbo Station model to continue.
Page 19 2. The following menu will be shown. Select “Install QNAP Finder” to continue. - 19 -...
Page 20 3. Follow screen instructions to install QNAP Finder. QNAP Finder will run automatically. If you are using Windows XP SP2, the following screen will be shown. Please select “Unblock＂ - 20 -...
Page 21 4. QNAP Finder will detect the Turbo Station in the network and ask if you want to perform quick setup. Click Yes to continue. Note: If the server is not found, click Refresh to try again. 5. Enter the default user name and password.
Page 22 6. The first page of the Quick Setup Wizard will be shown. Click Next to continue and complete the configuration. Note: Please make sure that you have installed a hard disk drive on the Turbo Station. - 22 -...
Page 23 7. Follow the on-screen instructions to complete the configuration. Please wait patiently while changing the system settings. Turbo Station will restart after changing the settings. Note: The configuration process may take up to twenty minutes if you are using a hard disk drive with capacity larger than 500GB. - 23 -...
Page 24 8. After quick setup is completed, click Finish to continue. - 24 -...
Page 25 9. To map the share folder on Turbo Station as your drive, check the option “Continue to map network drive for me” and follow the steps below to proceed. a. Turbo Station provides several default share folders for sharing and access. Select the share folder to be mapped as the local drive and click Map Network Drive.
Page 26 c. Select the drive letter for the connection and click Finish. d. Upon successful connection, you can start to use the share folder on TS- 109. You can access these folders by opening My Computer. - 26 -...
Page 27 10. QNAP Finder will appear when all configurations are completed. Choose the name of Turbo Station on the list, and click the Connect button. - 27 -...
Page 28 11. When the administration page of TS-109 is shown, you can start to use the services. If you have any questions during web administration, please click the help button on the top right hand corner of the page. To modify system settings, click Administration. Enter the user name and password to login.
Page 29: Mac Users
2.5.2 Mac Users Insert TS-109 CD-ROM in your Mac and find the directory MacWizard. Then run MacWizard.dmg. You can find and run the QIW image file on desktop after MacWizard.dmg is opened. Run Quick Install Wizard. - 29 -...
Page 30 2. The Map Drive function of Windows QNAP Finder is replaced as “Quick Setup” in Mac Quick Install Wizard. 3. It is recommended to access TS-109 by Mozilla Firefox in Mac. Safari does not support Download Station of TS-109. - 30 -...
Page 31: Start To Enjoy The Powerful Services Of Ts-109
A. Use network share-Public folder 1. You can access the public folder of TS-109 by the following means: a. Open My Network Places and find the workgroup of TS-109. If you cannot find the server, please browse the whole network to search for TS-109.
Page 32 B. Manage TS-109 ® Manage TS-109 using web browser by Windows or Mac 1. You can access TS-109 web administration page by the following methods: a. Use Quick Install Wizard to find TS-109. b. Open a web browser and enter http://[TS-109 IP]:8080# Note: ®...
Page 33 Note: If your TS-109 is placed behind an NAT gateway and you want to access TS-109 by secure login from the Internet, you must open the port 443 on your NAT and forward this port to TS-109 LAN - 33 -...
Page 34 PC, you can restore all backup data. Please refer to Chapter 3.8.7. Web Server TS-109 enables you to create your own website easily. It also supports PHP and MySQL/SQLite to establish interactive websites. Please refer to Chapter 7.
Page 35 Please refer to Chapter 10. File Server TS-109 provides convenient and secure file server functions that support central data management. Users can be granted with the right to access network share and share important files. Please refer to Chapter 3.7 and Chapter 9.
Page 36: Server Administration
Server Administration There are 8 main sections in server administration: - 36 -...
Page 37: Quick Configuration
Quick Configuration Please follow the step-by-step guide in Quick Configuration to complete the settings of TS-109. If you have any questions during web administration, please click the help button on the top right hand corner of the page. Other buttons...
Page 38 Step 2. Change the administrator password or select to use the original password. Step 3. Enter the date, time and select the time zone for the server. Step 4. Select the language the server uses to display files and directories. The default setting is English.
Page 39 2. If you select to obtain IP address via DHCP, there is no need to configure the primary and secondary DNS servers. You can enter “0.0.0.0” in the settings. Step 6. Initialize disk volume in TS-109 for the first time configuration. - 39 -...
Page 40 Step 7. When TS-109 is initialized, the basic settings will be shown. - 40 -...
Page 41: System Settings
3.3.1 Server Name Enter the name of TS-109. The server name can be 14 characters long at maximum, which supports alphabets, numbers and hyphen (-). The server does not accept names with space, period (.), or names in pure number.
Page 42: Date & Time
3.3.2 Date & Time Set the date, time, and time zone according to your location. If the settings are incorrect, the following problems may occur: When using a web browser to access the server or save a file, the display time of the action will be incorrect.
Page 43: Filename Encoding Setting
Filename Encoding Setting Select the language TS-109 uses to display files and directories. Note: All files and directories on TS-109 will be created using Unicode encoding. If your FTP clients or the OS of your PC does not support ®...
Page 44: Network Settings
You can select one of the following two methods to configure the TCP/IP settings of TS-109. • Obtain IP address settings automatically via DHCP If your network supports DHCP, TS-109 will use DHCP protocol to retrieve the IP address and related information automatically. • Use static IP address To use fixed IP address for network connection, enter fixed IP address, subnet mask and default gateway.
Page 45 “0.0.0.0” in the settings. Enable DHCP Server If no DHCP is available in the LAN where TS-109 locates, you can enable this function to enable TS-109 as a DHCP server and allocate dynamic IP address to DHCP clients in LAN.
Page 46 Maximum Transmission Unit (MTU) refers to the size (in bytes) of the largest packet that a given layer of a communications protocol can transmit. TS-109 uses standard Ethernet frames: 1500 bytes by default. If your network appliances support Jumbo Frame setting, select the appropriate MTU value for your network environment.
Page 47: Microsoft Networking
IT maintenance cost by automatic configuration procedure. Server Description Describe TS-109 for users to identify the server. To use TS-109 on the Microsoft Windows OS, you must enable Microsoft Network Services. Workgroup Specify the workgroup TS-109 belongs to. The workgroup is a computer group unit in Microsoft Windows network for network sharing.
Page 48 If there is no master browser in your network, you can check the box Domain Master in this section to configure TS-109 as the master browser to enhance the speed of accessing information on Network Neighborhood.
Page 49: Apple Network
If your AppleTalk network uses extended networks, and is assigned with multiple zones, assign a zone name to TS-109. If you do not want to assign a network zone, enter an asterisk (*) to use the default setting. This setting is disabled by default.
Page 50: Web File Manager
3.4.5 Web File Manager To access files on TS-109 via web browser, enable Web File Manager. If TS-109 is connected to the Internet and uses a valid IP address, you can access files on the server by web browser from anywhere. For more information, please refer to Chapter 9.
Page 51: Ftp Service
OS in “System Settings—Encoding Setting” page so that the folders and files on FTP can be properly shown (please refer to Chapter 3.3.3). If your FTP client supports Unicode, make sure you have enabled Unicode support for both your client and TS-109. - 51 -...
Page 52 Unicode Support You can enable anonymous login to allow users to access the FTP server of TS-109 anonymously. The users can access the folders and files which are opened for public access. If this option is disabled, users must enter an authorized user name and password to access the server.
Page 53: Multimedia Station
3.4.7 Multimedia Station To share multimedia files like photos, music or video files on the network, please enable Multimedia Station. For further information of Multimedia Station, iTunes service and UPnP Media Server, please refer to Chapter 5. - 53 -...
Page 54: Download Station
3.4.8 Download Station TS-109 supports BT, HTTP and FTP download independent of PC/notebook. To use download function of TS-109, please enable Download Station. For further information, please refer to Chapter 6. Warning: Please be warned against illegal downloading of copyrighted materials.
Page 55: Web Server
3.4.9 Web Server You can publish your own server by enabling Web Server function of TS-109. Enter the port number for web server service, the default number is 80. For further information, please refer to Chapter 7. Configure register_globals Select to enable or disable register_globals. The setting is disabled by default.
Page 56 check this option. php.ini Maintenance Check the box “php.ini Maintenance” to select to upload, edit or restore php.ini. Edit: Edit the current php.ini file. Upload: Upload a new php.ini file to replace the current file. Restore: Restore the php.ini file to system default. - 56 -...
Page 57: Ddns Service
After enabling DDNS service of TS-109, whenever TS-109 restarts or the IP address is changed, TS-109 will notify the DDNS provider immediately to record the new IP address. When the user tries to connect TS-109 via the host name, DDNS will transfer the recorded IP address to the user.
Page 58: Mysql Server
3.4.11 MySQL Server You can enable MySQL Server as the website database.. Enable remote connection of MySQL Server You can enable this option to configure your Turbo Station’s MySQL Server as a database server of another web server in remote site through Internet connection. When you disable this option, your MySQL Server will only be configured as local database server for Turbo Station’s web server.
Page 59: Protocol Management
3.4.12 Protocol Management Assign a protocol for the system management. The default port is 8080. The services of this protocol include: System Management, Web File Manager, Multimedia Station, and Download Station. The system will restart after clicking Apply. Please wait. The website will automatically change to the homepage of the new protocol system.
Page 60: View Network Settings
3.4.13 View Network Settings You can view current network settings and status of TS-109 in this section. - 60 -...
Page 61 - 61 -...
Page 62: Device Configuration
3.5.1 SATA Disk This page shows the model, size and current status of the SATA disk on TS-109. You can format and check disk, and scan bad blocks on the disk. When the SATA disk is formatted, TS-109 will create the following default share folders:...
Page 63: Usb Disk
SATA disk in TS-109 as Q-RAID 1 configuration. When backup is executed once, data can be automatically backed up by connecting the external disk to TS-109 directly. There is no need to configure the settings in administration interface. Manual operation is required for the first time backup to enhance secure data protection.
Page 64 *This button will appear when the following conditions are all met: a. The usage of the plugged in USB disk has been configured as Q-RAID 1. b. The SATA disk in TS-109 has been changed or the plugged in USB disk has been configured as Q-RAID 1 in other servers.
Page 65: Usb Printer
USB Printer 1. To provide printer sharing function for network users, you can simply connect a USB printer to the USB port of TS-109. TS-109 will detect the printer automatically. 2. A printer icon should be shown in the share folder of the server. Double click the icon.
Page 66 3. Install the printer driver. 4. When finished, you can start to use network printer service of TS-109. Note: 1. TS-109 supports general USB printer only but not multifunction printer. 2. TS-109 printer service is only supported in Windows OS but not Mac 3.
Page 67: Esata Disk
Disk TS-109 supports eSATA disk for extended storage and Q-RAID 1 function. You can connect an eSATA disk to the eSATA port of TS-109. You can select one of the following two settings for the disk: a. Data Sharing: Select this option to use the selected eSATA disk as a network share of TS-109.
Page 68 *This button will appear when the following conditions are all met: a. The usage of the plugged in USB disk has been configured as Q-RAID 1. b. The SATA disk in TS-109 has been changed or the plugged in USB disk has been configured as Q-RAID 1 in other servers.
Page 69: User Management
User Management The files on TS-109 can be shared among multiple users. For easier management and better control of users’ access right, you have to organize users, user groups and their access right control. 3.6.1 Users The system has created the following users by default:...
Page 70 256 users can be created at maximum (including system default users). You can create a new user according to your needs. The following information is required to create a new user: User name The user name must not exceed 32 characters. It is case-insensitive and supports double-byte characters, such as Chinese, Japanese, and Korean except: "...
Page 71: User Groups
User Groups User group is a collection of users with the same access right to files or folders. TS-109 has created the following user groups by default: Administrators All members in this group have administration right. You cannot delete this group.
Page 72 Department and Ms. Jane Wu for Sales Department. The IT Department therefore needs to create two user accounts for them to access company data on TS-109. To create a user account, go to User Management-Users. Click Create. Enter the user name (Jones Lee/ Jane Wu) and password. Check the box “Continue to set the user groups to which this user belongs”...
Page 73 iii. Select the user groups the users belong to on the right list, i.e. Mr. Jones Lee for Administration Dept and Ms. Jane Wu for Sales Dept, and click Add. Then click Close. The user names will appear on the list on Create User Page. - 73 -...
Page 74 Create Private Network Share for User Groups You can create particular network share for each user group. The procedure is described as below: 1. To create a network share called media accessible by Administration Department only, please go to “User Management—User Groups” page. Select the user group Administration Dept and click Create Private Network Share on the right.
Page 75 3. You can see the folder media in Network Share Management page. 4. Enter Access Control. You can see that only Administration Dept has full access right to the folder. - 75 -...
Page 76: Quota
The IT department is planning to set the disk quota of Mr. Jones Lee from Administration Department and Ms. Jane Wu from Sales Department on TS-109. The disk quota is 2000MB for Mr. Jones Lee and 4000MB for Ms. Jane Wu.
Page 77 2. Select Jones Lee on User page and click Quota Settings on the right. 3. Enter the quota size 2000MB and click OK. 4. Follow the same steps and enter the quota size 4000MB for Jane Wu and click OK. The quota setting is successfully applied. - 77 -...
Page 78: Network Share Management
Network Share Management The primary purpose of network storage is file sharing. You can create different network share folders for various types of files, and provide different file access rights to users or user groups. The following options are supported in Network Share Management: - 78 -...
Page 79: Create
3.7.1 Create To create a network share, enter the following information: Network share name The share name can be 32 characters long at maximum and cannot contain the following characters: " . + = / \ : | * ? < > ; [ ] % Disk volume This area shows the disk volume status.
Page 80: Property
3.7.2 Property To edit the property of an existing network share, select a share and click Property. You can then edit the content of that share. - 80 -...
Page 81: Access Control
3.7.3 Access Control When a network share is created, you can assign access rights to users or user groups: Deny access Access to the network share will be denied. Read only Users can read the files only on the network share. Full access Users can read, write, create, or delete files and folders on the network share.
Page 82: Nfs Access Control
3.7.5 NFS Access Control You can set the NFS access right of the network share. The Public folder is for open access while access is denied for other default network shares. For detailed configuration, please click on the link “Click here for more detailed description”. - 82 -...
Page 83: System Tools
System Tools System Tools enable you to optimize the maintenance and management of TS- 109. - 83 -...
Page 84: Alert Notification
If your mailbox requires SMTP authentication, enter the user name and password. Note: It is recommended to send a test e-mail to make sure you can receive the alert mails. 3.8.2 Restart/ Shutdown Select to restart or shut down TS-109. - 84 -...
Page 85: Hardware Settings
SATA disk is less than the value. The range of the value is 1-51200 MB. iv. Auto power on when power resumes after power loss When this function is enabled, TS-109 will turn on automatically when power resumes after improper shutdown or power loss. - 85 -...
Page 86: Ups
3.8.4 If your UPS device provides USB interface, you can enable UPS (uninterruptible power supply) support to protect your system from abnormal system shutdown caused by power outage. In case of utility power failure, the system will shut down automatically by probing the power status of the connected UPS unit. Enable UPS support To activate the UPS support, you can select this option.
Page 87 Note: Before enabling this option, please make sure the UPS model you select here is identical as the one you use. Otherwise it may lead to server error and automatic shutdown. When UPS support is not enabled, the Test button will not function. - 87 -...
Page 88: System Update
Follow the steps below to update firmware: Step 1: Download the release notes of the same version as the firmware from QNAP website http://www.qnap.com. Read the release notes carefully to make sure you need to upgrade the firmware.
Page 89: Change Logo
3.8.6 Change Logo You can choose your own picture to display on the login page of TS-109. The size of the picture cannot exceed 20K bytes. - 89 -...
Page 90: Remote Replication (Disaster Recovery)
3.8.7 Remote Replication (Disaster Recovery) Remote Replication enables you to replicate files on TS-109 to another TS-109 or QNAP NAS series. The files will be compressed before the replication process in order to save time for data transfer. Make sure a network share is created before creating a remote replication task.
Page 91 Complete all settings and click OK to save or Cancel to quit. The port for remote replication is 873. If you are using two TS-109 servers behind an NAT router, please open the port 873 on NAT router and forward the port to the corresponding LAN IP of TS-109. Otherwise, the remote replication service will be blocked by NAT.
Page 92 Edit Select the task to be edited. Click Edit. Modify the settings. Click OK to save or Cancel to quit. iii. Delete Select the task to be deleted. Click Delete. - 92 -...
Page 93: Backup/ Restore/ Reset Settings
3.8.8 Backup/ Restore/ Reset Settings • To backup all settings, including user accounts, server name and network configuration etc., click Backup and select to open or save the setting file. • To restore all settings, click Browse to select a previously saved setting file and click Restore to confirm.
Page 94: Network Recycle Bin
3.8.10 Network Recycle Bin This function enables files deleted on the shares of TS-109 to be removed to Network Recycle Bin to reserve the files temporarily. To enable this function, check the box “Enable Network Recycle Bin” and click Apply. The system will create a network share "Network Recycle Bin"...
Page 95: Remote Login
3.8.11 Remote Login After enabling this option, you can access this server via Telnet or SSH encrypted connection (only the account “admin” can login remotely). You can use certain Telnet or SSH connection clients for connection, e.g., putty. Please make sure you have opened the configured ports on your router or firewall when using this function.
Page 96: Event Logs
Event Logs TS-109 can store thousands of recent event logs, including warning, error and information messages. In case of system malfunction, event logs can be retrieved to analyze system problems. - 96 -...
Page 97: Chapter 4 Copy Data Directly By Front Usb Port To Ts-109
Copy button and TS-109 will copy all files in the device. If there are no changes, press the Copy button and TS-109 will not copy the files.
Page 98: Chapter 5 Multimedia Station
A. Upload photos by web administration 1. To use Multimedia Station of TS-109, make sure a SATA disk is installed correctly in TS-109 according to the instructions in Chapter 2.1. A share folder Qmultimedia will be created. Enable Multimedia function in Network Settings.
Page 99 2. Click on the link http://TS-109 IP/Qmultimedia on Multimedia Station page or click Multimedia Station on the login page of TS-109 to access Multimedia Station. 3. Click on the top right hand corner. Login with administrator name and password to manage Multimedia Station. Users without administration right can view the photos and multimedia files on Multimedia Station but they do not have the right to modify the files.
Page 100 4. Click Browse to select the multimedia file and then click Upload to upload the file to the folder. 5. You can also create folders by clicking and upload files to the folders. - 100 -...
Page 101 B. Upload photos to Qmultimedia folder directly You can upload multimedia files to TS-109 directly by the following steps. Use Run function in Windows. Enter \\[server name] or \\[server IP] to access share folder on TS-109. Open the folder Qmultimedia. Enter the user name and password to login.
Page 102 When you login Multimedia Station by web browser again, all multimedia files will be shown. Buttons on Multimedia Station page Sort files by name Sort files by size Sort files by date Return to previous page Return to Home Create folder Rename file or folder Select all Select none...
Page 103 View Photo Information 1. To view detailed information of a photo, click on the thumbnail of the picture. 2. The information of the photo, e.g. file name, resolution, size, camera producer will be shown on the right. You can enter a description for the picture in the box below the photo and click Submit.
Page 104 Buttons Description You can use the buttons on top of the photo to manage the album. Back to previous level Previous image Next image Rotate image anticlockwise Rotate image clockwise Zoom in Zoom out Play slideshow. Select the time interval in seconds. Click play to play slide show.
Page 105 Play music or video files To play music or video files on Multimedia Station, you can click on the thumbnail of the file displayed on the page. The file will be played by the default music or video playing program of your PC. *It is recommended to use Media Player 10.0 or above as the default playing program - 105 -...
Page 106 C. Configure album authority After logging in as administrator (admin), click to enter the configuration page for album authority. You can view, add, delete and edit users. For any inquiries when using these functions, click on the help button on the top right corner of the page.
Page 107 You can edit user profile and album access authority on this page. For any inquiries when using these functions, click on the help button the top right corner of the page. - 107 -...
Page 108: Enable Itunes Service
5.2 Enable iTunes Service Enable iTunes service on TS-109. The mp3 files on Qmultimedia folder of TS-109 will be shared via iTunes. All the computers with iTunes installed on LAN will be able to find, browse and play the music files on TS-109.
Page 109 Note: You can download the latest iTunes software from official Apple website http://www.apple.com. - 109 -...
Page 110: Use Upnp Media Server
5.3 Use UPnP Media Server TS-109 is built-in with TwonkyMedia, DLNA compatible UPnP media server. Enable this function and TS-109 will share particular music, photos or video files to DLNA network. You can use DLNA compatible digital media player (DMP), to play the multimedia files on TS-109 on TV or acoustic sound system.
Page 111 (1) Language: Select the display language. (2) Server Name: Enter the name of TS-109 UPnP Media Server. This name will be shown on DMP operation interface, e.g. NAS. (3) Content Locations: Select the share folder on TS-109 to be shared to DMP.
Page 112 About UPnP and DLNA Universal Plug and Play (UPnP) is a set of computer network protocols promulgated by the UPnP Forum. The purpose of UPnP is to allow devices to connect seamlessly and to simplify the implementation of networks at home and in corporate environment.
Page 113: Chapter 6 Download Station
Download Station TS-109 supports BT, HTTP, and FTP download mechanisms. You can add download task to TS-109 and let the server finish downloading independent of PC. Warning: Please be warned against illegal downloading of copyrighted materials. The Download Station functionality is provided for downloading authorized files only.
Page 114 2. Click on the link http://TS-109 IP/Qdownload on Download Station page or click Download Station on the login page of TS-109 to access Download Station. - 114 -...
Page 115 Click Add new BT task on the left and upload a torrent file. You can download legal torrent files by searching on the Internet. There are websites that provide legally sharing torrents e.g. www.legaltorrents.com. Please download the torrent files to your local disk and then upload them to TS-109. - 115 -...
Page 116 (B) Add new FTP/HTTP task To run an FTP download task, click Add new FTP/HTTP task. Enter the FTP URL of the download task and select the share folder to save the files. Enter the user name and password to login the FTP server (if necessary). Then click OK to start downloading.
Page 117 5. You can select a download task and click BT to enable or disable DHT public network and configure the sharing time after download completes. You can select an available download task and click Set Share Time to configure the time for sharing the torrent file, or click Set Config to set the maximum number of downloads at the same time (default value is 3).
Page 118 6. To pause a running download task, select the task in View Run list and click Pause/ Restart download task. You can view tasks that are paused or finished in View Pause List and View Finish List respectively. To restart a paused task, select the task in View Pause List and click Pause/ Restart download task.
Page 119 7. You can also increase or decrease task priority by clicking Increase download priority and Decrease download priority when there are multiple download tasks. 8. To delete a running, paused, or finished task, select the task and click Delete download task. You can select to remove the download task only and retain the downloaded files, or remove the task and downloaded files.
Page 120 10. To access the folders you have downloaded, please go to the share folder Qdownload of TS-109. - 120 -...
Page 121 Dump Diagnostic Information To view the diagnostic details of a download task, select a task on the list and click [Dump Diagnostic Information]. - 121 -...
Page 122 (1) The torrent file has expired, the peers have stopped sharing this file, or there is error in the file. (2) TS-109 has configured to use fixed IP but DNS server is not configured, or DNS server fails. (3) Set the maximum number of simultaneous downloads as 3-5 for the best download rate.
Page 123: Use Download Software Qget
6.1 Use Download Software QGet QGet is a powerful management software for maintaining the BT, HTTP and FTP download tasks of multiple TS series NAS servers via LAN or WAN. By using QGet, you no longer need to login the Download Station web interface of multiple servers and manage the settings one by one.
Page 124 2. Follow the instructions to install QGet. 3. Run QGet from the installed location. 4. For the details of using QGet, please refer to the online help of the software. - 124 -...
Page 125: Chapter 7 Web Server
Chapter 7 Web Server TS-109 enables you to upload web pages and manage your own website easily by Web Server function. It also supports PHP and MySQL/SQLite for you to establish an interactive website. Once you activate Web Server function, you can access your own homepage from anywhere.
Page 126 Click on the link http://TS-109 IP/ on Web Server page or click Web Server on the login page of TS-109 to access the web page you upload. Note that when Web Server is enabled, you have to type [http://TS-109 IP address:8080] in your web browser to access the login page of TS-109.
Page 127 SQLiteManager. (1) Unpack your download file SQLiteManager-*.tar.gz. (2) Upload the unpacked folder SQLiteManager-* to \\TS-109 IP\Qweb\. (3) Open the web browser and go to http://TS-109 IP/SQLiteManager-*/. : The symbol * refers to the version number of SQLiteManager. MySQL Management phpMyAdmin is a multilingual web-based tool to manage MySQL database.
Page 128: Chapter 8 Ftp Server
Chapter 8 FTP Server TS-109 supports FTP service. To use FTP service, enable this function in Network Settings and follow the steps below: Open an IE browser and enter ftp://[TS-109 IP] or ftp://[TS-109 name]. OR By Web File Manager of TS-109.
Page 129 - 129 -...
Page 130 Click FTP. Enter the user name and password to login FTP service. - 130 -...
Page 131 You can start to use FTP service. - 131 -...
Page 132: Chapter 9 Web File Manager
Chapter 9 Web File Manager Using Web File Manager To use Web File Manager, enable web service in Network Settings first. - 132 -...
Page 133 Launch the web browser and go to TS-109 administration page. Select Web File Manager and enter the correct login name and password. You can login as “guest” to access the network shares open to guest access on TS-109. The login password of guest is guest.
Page 134 Select an existing network share for management. You can organize network share folders of TS-109. With Web File Manager, you can upload, rename, or delete files and folders in the network shares. View files online Click on a file displayed on the web page. The information of the file will be displayed.
Page 135 Rename file or folder Select a file or folder to rename. Click (Rename) on the toolbar. iii. Enter the new file or folder name and click OK. Delete file or folder Select a file or folder to delete. Click (Delete) on the toolbar. iii.
Page 136 View Files Named in Local Language To view files named in Chinese, you may have to configure the browser settings. Take Internet Explorer as an example, follow the steps below to configure the settings. 1. Click on Tools in IE browser. 2.
Page 137 Web File Manager Icons Icon Description Return to the parent folder Refresh the current page Return to network share list home page Create folder Rename file or folder Delete file or folder Select all Cancel selection Logout Full access network share folder Read-only network share folder Malfunction network share folder - 137 -...
Page 138: Chapter 10 Netbak Replicator
® NetBak Replicator is a powerful program installed in user’s system (Windows only) for data backup. You can back up any files or folders on local PC to specified share folder on TS-109 by LAN or WAN. Main Functions Backup •...
Page 139 Install NetBak Replicator Select Install NetBak Replicator in TS-109 CD-ROM. Follow the steps to install NetBak Replicator. Upon successful installation, a shortcut icon will be shown on the Desktop. Double click the icon to run NetBak Replicator. - 139 -...
Page 140 Use NetBak Replicator 1. Before using NetBak Replicator, please login TS-109 administration and go to Network Share Management to create a share folder for backup. Make sure the share folder is open for everyone access or you login the share folder with an authorized account or administrator by NetBak Replicator.
Page 141 2. Run NetBak Replicator. Click . All TS-109 and their share folders within the network will be displayed. - 141 -...
Page 142 3. When the following window appears, all TS-109 in the LAN will appear on the left list. Select a server and a share folder on the right. NetBak Replicator also supports backup via WAN, you can enter the IP address of TS-109 for data backup directly and select a share folder.
Page 143 Description of Buttons on NetBak Replicator Open Configuration: Open a previously saved NetBak Replicator configuration. Save Configuration: Save the settings on NetBak Replicator. The file will be named as *.rpr Select All: Select all items in the window. Clear All: Clear selection. Select My Document: Select all folders in My Document.
Page 144 • Backup Select files and folders for backup. - 144 -...
Page 145 Start When you have selected the files for backup to TS-109, click Start on NetBak Replicator. The program will start to copy the selected files to the specified share folder on TS-109. - 145 -...
Page 146 File Filter Click File Filter on NetBak Replicator main page to select file format to be skipped from backup. Then click OK. - 146 -...
Page 147 Schedule Click Schedule on NetBak Replicator main page. Then check the box “Enable Backup Schedule” and select the frequency and time for backup. Click OK to confirm. - 147 -...
Page 148 Monitor Select a folder for monitoring. When this option is enabled, the system will upload all files or folders to the server instantly for backup when the files or folders are modified. Other files will be gray and cannot be selected.
Page 149 Initialize Configuration When using this function, NetBak Replicator will record all current settings of the user, including whether or not monitor function is enabled. When the user login again, this program will load the previous recorded settings for users to manage data backup. - 149 -...
Page 150 • Restore Please follow the steps below to restore files from TS-109 to your PC. a. Restore to original position: Select the location that the data will be restored to. b. Select new restore position: Click to select the directory to restore data to or select a previously chosen location from the drop-down menu.
Page 151 d. Option: Select recovery option and error option. If the restoring file existed, NetBak Replicator will: Overwrite all the files Ask first Skip this file If an error happens in the process of file restoring, NetBak Replicator will: Stop the restoring Ask first Ignore this error message - 151 -...
Page 152 • a. Save As…: To save all logs on NetBak Replicator, click this button. All logs will be saved as text file. b. Clear All: Click this button to clear all logs. c. Option: Select the type of logs to be recorded― “Record all logs” or “Record error logs only”.
Page 153: Chapter 11 Configuring Ad Authentication
Server and check the following items: TS-109 DNS server setting must be assigned to AD server. TS-109 and AD server can synchronize only if their time difference is less than 5 minutes. TS-109 and AD server will synchronize every 5 minutes. To configure the settings manually, TS-109 has to be set as standalone mode and then added to AD domain.
Page 154 Service Pack 1. When TS-109 is added to AD domain, the authority of “everyone” will not work, “everyone” is the default account of TS-109, but is not supported in AD domain. Therefore the authority has to be reset. The IP address of the AD server should be recorded in the DNS settings on the AD server.
Page 155 Note: a. Make sure that a fully qualified domain name such as AD.local has been filled in. b. Make sure the user name with administrator access right to that domain. When the following message appears after applying the settings in step 2, check the time zone settings.
Page 156 Go to Access Control in Network Share Management to configure the access control right of AD users for all available network shares. Using AD users to access services To access services like FTP, Network Neighborhood, or Apple Talk with an AD user account, add DomainName\ before the user name when logging in.
Page 157: Chapter 12 Access Ts-109 Via Linux Os
-t nfs <TS-109 IP address>:/<Network Share Name> <Directory to Mount> For example, if the IP address of your TS-109 is 192.168.0.1 and you want to link the network share folder “public” under the /mnt/pub directory, use the following command: mount -t nfs 192.168.0.1:/public /mnt/pub...
Page 158: Chapter 13 Ts-109 Maintenance
13.1 Restart/ Shut down Server Follow the steps below to restart or shut down TS-109. 1. Enter the administration page and select Restart/ Shutdown in System Tools. 2. Click Restart to reboot the server or Shut Down to turn off the server.
Page 159: Reset Administrator Password And Network Settings
Reset Administrator Password and Network Settings To reset the administrator password and network settings of TS-109, 1. Press the reset button of TS-109 for a few seconds. A beep sound will be heard. 2. Login TS-109 with the default user name and password:...
Page 160: Disk Failure Or Malfunction
13.4 Power Outage or Abnormal Shutdown In case of power outage or improper shutdown of TS-109, the system will resume to the state before it is shut down. If your server does not function properly after restart, please do the following: 1.
Page 161: Technical Support
Technical Support QNAP provides dedicated online support and customer service via instant messenger. You can contact us by the following means: Online Support: http://www.qnap.com E-mail: support@qnap.com MSN: support@qnap.com SKYPE: qnapskype Technical support for North America users: E-mail: support@usa.ieiworld.com 1-800 Hotline: 866-276-6754 ext.110...
Page 162: Gnu General Public License
GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it.
Page 163 software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary.
Page 164 or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this...
Page 165 a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a...
Page 166 this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.
Page 167 8. If the distribution and/or use of the Program are restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded.
Page 168 CORRECTION. 12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU...

QNAP TS-109 User Manual

Table of Contents

Safety Warnings

Chapter 1 Overview of TS-109 Turbo Station

Chapter 2 Install TS-109

Chapter 3 Start to Enjoy the Powerful Services of TS-109

Chapter 4 Copy Data Directly by Front USB Port to TS-109

Chapter 5 Multimedia Station

Chapter 6 Download Station

Chapter 7 Web Server

Chapter 8 FTP Server

Chapter 9 Web File Manager

Chapter 10 Netbak Replicator

Chapter 11 Configuring AD Authentication

Chapter 12 Access TS-109 Via Linux os

Chapter 13 TS-109 Maintenance

Technical Support

Gnu General Public License

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for QNAP TS-109

Table of Contents
