Summary of Contents for a2pro Apache Excellium 480 Series

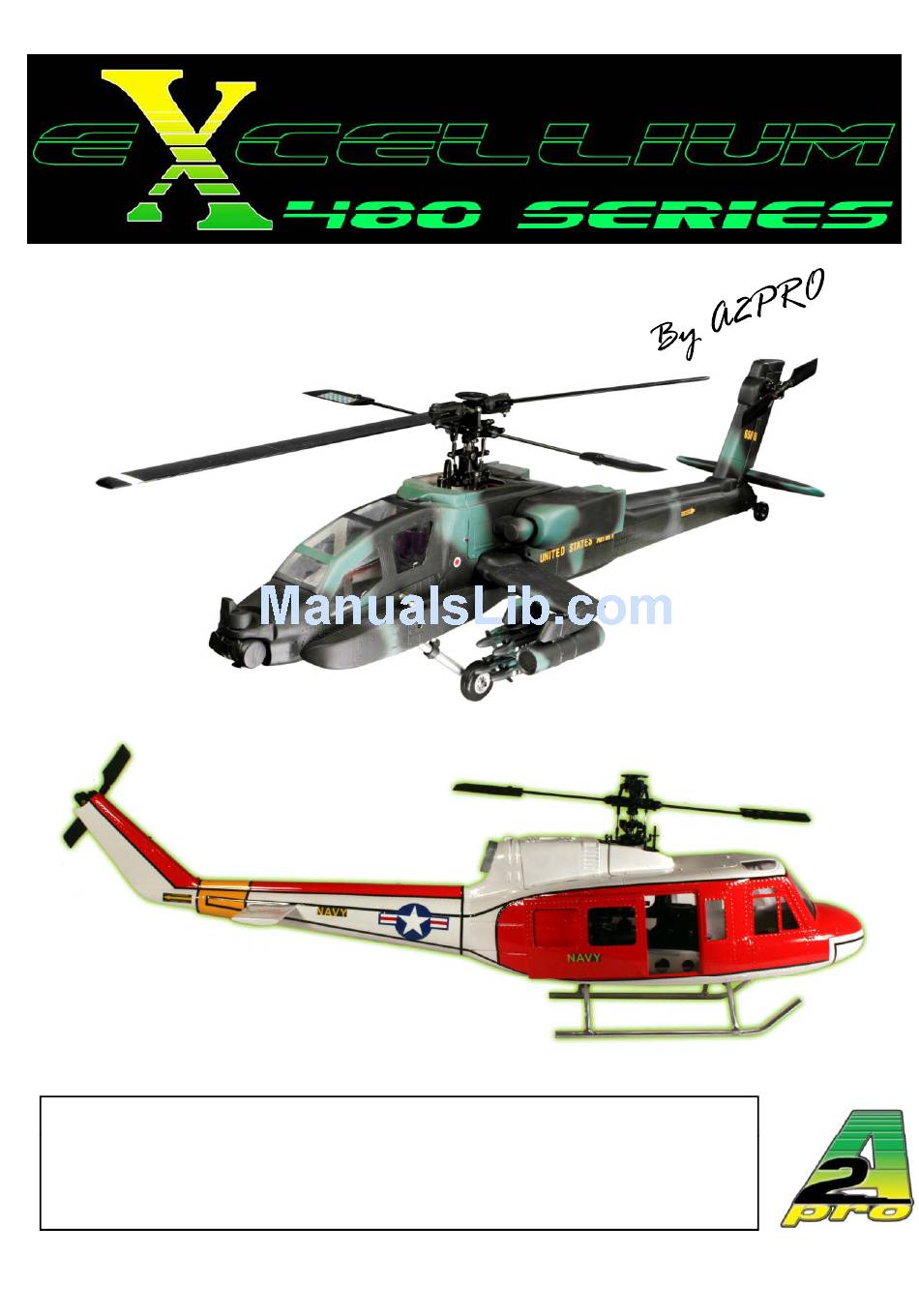

Page 1
Assembly manual / Notice de Montage Apache / Bell UH-1D Rotor principal Main rotor / : 810 mm Rotor anticouple Tail rotor / : 180 mm Poids prêt à voler Weight / : 1900g full equiped /...
Page 2
Merci d’avoir choisi un produit A2PRO / Excellium. This model is developped and manufactured by A2PRO. Ce modèle a été développé et produit par A2PRO. Do not rush in building the model take the time to check the assembly steps and Do not rush in building the model, take the time to check the assembly steps and read the manual before starting to build it.
Tools & accessories Outillage & accessoires Ref: 1229 Ref: 9970 Ref: 9925 Ref: 7821 Ref: 1544 These tools and furnitures are necessary to build your model. Do not hesitate to ask your local retailer for them ! Ces outillages et fournitures sont nécessaires pour le montage de votre machine.
Electronic equipment Equipement électronique U-Bec 5A Pro-Tronik Gyro Ref. : 78480 3x Servos 7500 TG-D (cyclic) Contrôleur / ESC : Pro-Tronik Pm80 XH 1x Servo 7502 TG D (Tail / Anticouple) 1x Servo 7502 TG-D (Tail / Anticouple) Motor Pro-Tronik 480 XH (1600 Kv) ik 480 XH (1600 K ) Li P P Li-Po Pro-Tronik 3300 up to 3700 Mah 4S...
Page 5
Before starting / Avant de commencer • The general mechanical assembly is pretty simple. But the assembly must be done with care and fine tuned. The way you will build and maintain your helicopter mechanics will determine the way it will fly and it’s reliability. A good assembly and tuning will allow a smooth and vibration free operation.
Page 6
Mechanics preparation Préparation de la mécanique The mechanics is delivered pre assembled in the scale fuselage. You will need to remove it in order to install your electronics, adjust the linkages and proceed with thread lock and bearing sealant application. Take the time to inspect the model and prepare a small container to put the small parts and screws in.
Page 7
Mechanics preparation Préparation de la mécanique In order to remove the main mechanics, you will need then to remove the screws retaining the mechanics in the fuselage. Do not forget to loose the tail boom support screw to be able to push forward the tail boom assembly to free the belt from the font pulley and then pull out the entire assembly.
Page 8
Main rotor Hub / Hub Rotor principal Disassembly, check and rebuilding the rotor hub The main rotor head is factory assembled without thread lock on the screws and screws are not tightened. You will need to disassemble the rotor head in order to check it and rebuild it as necessary.
Page 9
Flybar cage / Cadre de Barre de Bell Before assembling and installing the flybar cage do not forget to install the rod ends ! Before assembling and installing the flybar cage, do not forget to install the rod ends ! You will need to apply thread lock on the 4 screws of the flybar cage.
Page 10
Flybar Pivot / Pivot de Barre de Bell The flybar pivot assembly does not show any difficulty. Just be careful when tightening the screws in order not to damage the plastic threads Aluminium ball shall also be the screws, in order not to damage the plastic threads. Aluminium ball shall also be tightened with care.
Page 11
Washout & Swashplate The washout is a very important part. All cyclic and pitch inputs are mixed by that part. This is why that part must be built with care and frequently checked. A small natural slope can be identified and shall remain. This allows the washout to operate smoothly especially in winter when cold «retracts»...
Page 12
(utiliser un accélérateur est bien pratique dans ces cas là, Ref. A2Pro : 1540). Pensez à dégraisser la pièce avant la manipulation, et en AUCUN CAS il faut que les leviers ne soient collés ensembles, l’articulation doit se faire correctement.
Main rotor assembly Assemblage de la tête de rotor Screw the main rotor hub and the flybar pivot together. Do not overtighten the screws, this will damage the flybar pivot (808631). Just flip the mixing levers (808633) to get acces to the screws heads. Put the brass bush (808632) inside the ball bearing (808020) prior to mount it on the flybar pivot (808631).
Page 15
Flybar paddles installation Installation des palettes de bell Check one more time that both sides of the flybar have exactly the same length (L1 and Check one more time that both sides of the flybar have exactly the same length (L1 and L2 on the drawing).You will then need to install the flybar paddles.
Page 16
Servos supports / Supports de servos The servo support system is composed of a tube plus 2 aluminium parts with 3 arms. These aluminium parts, wich allow to install all kind of mini servos, are secured and locked with M3x3 screws. The fact that these support can rotate and slide up and down on their retaining mast allows a precise setup and alignment of the swashplate linkages.
Page 17
Tail transmission / Transmission AC This part of the mechanics require a specific care.The helicopter flight performances and controls are directly linked to the tail rotor operation smoothness and precision. Lube the one way bearing in the main pulley. Be sure that the tail rotor gearbox and belt are correctly installed.
Page 18
Main mechanics / Mécanique principale The assembly of the main mechanics has to be performed on a perfectly flat surface to The assembly of the main mechanics has to be performed on a perfectly flat surface, to allow the best possible alignment of the different components and especially the ball bearing blocks.
Page 19
Main mechanics / Mécanique principale FREIN FILET FREIN FILET THREAD LOCK 808901 808952 808901 808916 808940 808901 808900 808952 808952 808901 808901 808953 808901 The M2x8 screw (808901) and the M2 nut (808940) are maintaining the tail boom. This allow you to adjust the tail belt. There is a small hole in the fuselage that give you access to this screw.
Page 21
Tail gearbox / Anticouple Do not overtighten the screws in order not to «press» the bearings and mast assemblies Do not overtighten the screws, in order not to «press» the bearings and mast assemblies. This could lead to tail malfunction or excessive current draw, early belt wear and difficult tail control (and obviously tail servo prematurate failure).
Page 22
Elevated tail / Anticouple surélevé The belt system allows a very easy mechanical system to be used It is build with 2 The belt system allows a very easy mechanical system to be used. It is build with 2 frames, linked to the tail boom with a plastic insert. Take the time to perform a clean and proper installation, and don’t forget to put the belt into position before closing the frames, especially around the guiding pulleys right after the plastic insert.
Page 24
Lower pulley assembly Poulie du renvoi d’angle Attention ! Pour le Bell 205 UH-1, la courroie est de type B648MXL, référence 808662 Pour L’Apache, la courroie est de type B549MXL, référence 808748 Pensez à bien centrer la poulie 808412 sur le roulement 808232 avant de coller la poulie sur le roulement avec du scelle roulement ! Cela évitera des frottements poulie sur le roulement avec du scelle roulement ! Cela évitera des frottements parasites.
Page 25
Tail hub / Hub d’anticouple Warning! You will need to put some thread lock in the hub threads to secure the blade Warning! You will need to put some thread lock in the hub threads to secure the blade grips installation. For that operation, do not put the tread lock on the screw itself (risks of tread lock spreading in the grip ball bearings), but in the hub thread.
Page 26
Tail hub / Hub d’anticouple FREIN FILET THREAD LOCK 808900 808232 808261 808663 808232 808900 808943 808902 808666 808293 808664 808293 808902 808666 Le hub est fixé avec une vis M3x3 (808970) A M3x3 screw (808970) secures the hub on the shaft 808484 808661 Axe + poulie + goupille...
Page 27
Electronics installation The main and tail mechanics are now assembled The main and tail mechanics are now assembled. They will be assembled together after installation of the main mechanics in the body of the scale fuselage. It will be easy to setup the servos as their supports can rtoate and slide up and down. This will allow an optimal alignment of the linkages (parrallel to the main shaft) with the swashplate.
Page 28
Installation de l’électronique La mécanique principale ainsi que l’anticouple sont maintenant assemblés La mécanique principale ainsi que l anticouple sont maintenant assemblés. La mise en place de l’anticouple sera faite l’installation de la mécanique principale dans le fuselage. L’installation des servos est facilitée par l’utilisation de supports rotatifs et ajustables en hauteur.
Page 29
Servos setting / Installation des servos B = 30mm C = 50mm Fixez votre gyroscope sur le support avec du double face Stick your gyro using double sided tape D=48mm...
Page 30
Tail setting before fitting in the scale body Réglages AC avant installation dans le fuselage Servo d’anticouple au neutre, le renvoi d’anticouple doit ° être à 45 Ne vous fiez pas à l’angle des flancs de carter AC ! Ajustez la longueur des tringles si nécessaire. La longueur de la tringle allant du servo AC au renvoi doit êt être ajustée une fois la poutre de queue ajustée pour une...
Page 31
Apache landing gear details / Détails des train d’atterrissage de l’Apache 808752 Train principal complet Main landing gear set 808751 Roulette arrière complète Roulette arrière complète Tail wheel complet set...
Page 32
Removal drawings Illustrations pour le démontage Removing the Apache tail cover Démontage cache anticouple Apache Don’t forget to remove the tail remove the tail blades ! Ne pas oublier de Vis de maintien Retaining screws retirer les pales d’ d’anticouple ! Removing the UH-1 tail cover Démontage cache anticouple UH-1 Vis de maintien...
Page 34
Réglages radio Avant de commencer les réglages de votre émetteur, veillez à déconnecter les biellettes de tous les servos ! Les réglages ci-dessous sont possibles sur toute radio programmable. Il vous faut créer un nouveau programme, type «Hélicoptère», avec plateau cyclique °...
Page 35
Réglages radio Ensuite, il faudra régler une courbe de gaz qui vous permette de voler en stationnaire avec au moins 70 / 75% de gaz, afin de ne pas surcharger le moteur avec une vitesse de 70 / 75% d fi d rotation du rotor trop faible et un pas trop important.
Page 36
Radio settings Prior to set your transmitter, please disconnect every pushrod connected to the servos ! The following settings can be used with any heli transmitter. You have to create a new «heli» model memory with 120°CCPM swashplate ON (3 servos directly connected to the swashplate).
Page 37
Radio settings Set you throttle curve to 70/75% on the hover point in order not to over load the motor by th ttl t 70/75% th h i t i d th having too much pitch angle without enough head speed. Basic values are : 0 –...
