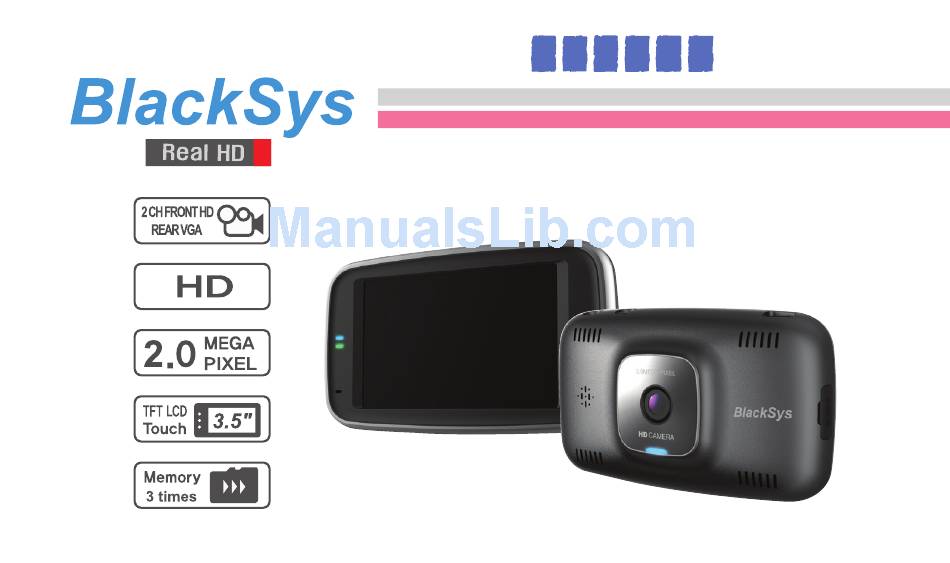

USER MANUAL
C A
R
D V
R
Car DVR of the longest memory storage time
(3 times longer as compared with others)
CAMMSYS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BL-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for BlackSys BL-100

  • Page 1 USER MANUAL Car DVR of the longest memory storage time (3 times longer as compared with others) CAMMSYS...

  • Page 3: Before Use

    Thanks you for choosing Car DVR. We provide customer service through our website. From our website, www.blacksys.co.kr/en, you can enjoy various online services and benefits about our products as well as latest information. Product Upgrade & Notice : www.blacksys.co.kr/en> customer support> notice All the figures/pictures shown on this manual are for your understanding and they could be different from the actual product.
  • Page 4 Before Use ※ For efficient use, please check the following item at least once a week For removal of a SD memory card, power must be turned off and then LED must be turned off before the removal of the card. ●...
  • Page 5 Before Use How to use a SD memory card Only a SD card authorized by the manufacturer should be used. ● Any of issues caused by unauthorized SD cards would not be reimbursed by the manufacturer. A SD card is a consumable product, so it should be exchanged regularly. ●...

  • Page 6: Table Of Contents

    0.CONTENTS Before Use 1. Caution …………………………………………………………… 2. Preparation Product Specification ……………………………………………… Product Feature …………………………………………………… Product Component ……………………………………………… Component Name ………………………………………………… 3. Instruction 3-1 Menu …………………………………………………………… 3-2 LED Lamp Status ……………………………………………… 3-3 LCD Image Output …………………………………………… 3-4 Format …………………………………………………………… 3-5 Battery Discharge Prevention Function …………………… 3-6 Parking Mode and Motion Detection Function ……………...
  • Page 7 0.CONTENTS 4. Memory Format 3-7 Image Storage Device …………………… 3-8 Manual Recording ……………………… Memory Format Sequence …………… 3-9 MIC ………………………………………… 5. Exclusive Viewer Program 3-10 Antitheft LED Function ………………… 3-11 Firmware Update ……………………… Install Player …………………………… 3-12 Memory Storage Period ……………… Player Description ………………………...

  • Page 8: Caution

    1. Caution Caution for the parking motion detection In case of Normal power connection, a vehicle battery may get discharged if a vehicle is left in negligence for a long period. In case of leaving a vehicle for a long period, start a vehicle or disconnect power cord for a certain time. Be careful to operate the Car DVR after leaving a vehicle in a cold/hot place (Proper temperature: - 10~70) In case of parking a vehicle in a cold/hot place for a long period, it may influence the normal operation of the...
  • Page 9 1. Caution Do not place a metallic product on top Do not place a metallic product on top of GPS antenna. It may degrade the reception performance. Satellite reception may take some time GPS satellite reception after starting a vehicle would take some time, and the required time would be varied over climate and/or surrounding circumstance.
  • Page 10 1. Caution In case of accident or need of recorded images for other necessary, remove the SD card from main unit and save the data in PC There is a risk of losing data by overwritten in case of keeping data in memory. In case of DC Fuse power connection When connect the permanent power, visiting professional shop is required.

  • Page 11: Preparation Product Specification

    2. Before Use- Product Features Camera Lens type CMOS Image Recording Normal 1min Intensity of illumination 0.1 LUX Event 10sec before /after event Angle of view 140° (front) / 120° (rear) Parking 10sec before /after motion detection Pixel HD 2M Pixels Parking Motion LED type Blinking upon supplying of power...

  • Page 12: Product Feature

    2. Before Use- Product Features HD 1280 x 720P Resolution 1280X 720 high resolution encoding / High performance 2 M pixel camera 3.5” TFT LCD Built-in touch, PIP Parking Recording After a certain period after parking, it would change to a parking recording mode automatically and it saves an image with a low speed frame (5fps).
  • Page 13 2. Before Use- Product Features Parking LED Blinking When power is on, LED on the front of the product starts to slowly flick to protect the vehicle. The theft prevention LED is an auxiliary function to product the vehicle from any of improper approach. Voice Recording Selection This product is designed to record image and voice at the same time.
  • Page 14 2. Before Use- Product Features Smart Phone Viewer With a Micro SD card, images saved on a smart phone can be easily played. Power Compensation With a built-in backup battery, our Car DVR still can continue the recording for about 10 minutes and saving the recorded images and sounds even if power is disconnected due to an external shock.
  • Page 15 2. Before Use- Product Features Free Voltage Power DC 12 V ~DC 24 V. Possible to be equipped at all types of vehicles. Firmware Update With a Micro SD card, update would be provided through firmware. Exclusive Viewer Program An exclusive viewer which allows the playing of images recorded from front camera and rear camera at once.

  • Page 16: Product Component

    2. Before Use- Basic Components ※ These component images may different from the actual components, and they are subject to modification without notice in advance. Main unit Micro SD Card Micro SD Card Adapter Rear camera Cigar jack power cable Rack...

  • Page 17: Component Name

    2. Before Use- Components Name Power button SD card slot Camera Security LED Operation display LED Power on/off DC 12V~24V Micro SD card slot GPS port Rear camera...

  • Page 18: Instruction

    3. Instruction 3-1 Menu- Quick Menu, Power On/Off Button ※ When power is on and LCD is touched on a basic recording screen, a quick menu mode would appear as the following. 1. Main : It is a button to change to a main menu. 2.
  • Page 19 3. Instruction 3-1 Menu –Main Menu Screen ※ When LCD is touched while a Car DVR is in recording, a quick menu mode would appear. 1. Image View : Normal recording, event recording, parking motion recording, and a list of manually recorded files would be shown and played. 2.
  • Page 20 3. Instruction 3-1 Menu- Image View Normal recording : It shows Normal saved files and in general, it is recorded in a unit of 1 minute. Event recording : It shows a list of files recorded in occurrence of event. Parking motion detection : It shows a list of files recorded in parking .
  • Page 21 3. Instruction 3-1 Menu- Time Setup After touching the desired item- year, month, date, press +/- button to change it to the desired date and time. Press an apply button to save the date and time. If a cancel button is pressed, the changed value would not be saved and it would return to a main screen.
  • Page 22 3. Instruction 3-1 Menu- Configuration - Recording Image Resolution : It adjusts the recording image resolution. Default value is Low. If it is set as High, the size of a file becomes large and it results in shorter recording hours. Therefore, the resolution should be set to be best suitable for user’s condition.

  • Page 23: Led Lamp Status

    3. Instruction 3-2. LED Lamp Status LED Lamp is a signal of the current status of the product. Please refer the following table to understand the current status of your Car DVR. Status Blue LED Green LED Speaker Sound Normal recording None Event recording, motion recording Blinking...

  • Page 24: Lcd Image Output

    3. Instruction 3-3 LCD Image Output A basic screen to be shown upon starting of the system is at a PIP mode (Picture In Picture) with front image and rear image. Rear image Front image...

  • Page 25: Format

    3. Instruction 3-4 Format A format function is available for this product for user to initialize the memory in case of emergency and/or system error. Go to a main menu and select a configuration menu and then, click a format button. Important image data could be deleted upon formatting, so the format should be executed only when it is necessary.

  • Page 26: Battery Discharge Prevention Function

    3. Instruction 3-5. Parking Mode and Motion Detection Function If there is no movement of a vehicle for a certain period (about 20 min), it would change to a parking mode automatically. If any movement of other vehicle/object is detected in a parking mode, it would record for 10 seconds before/after the motion detection.

  • Page 27: Image Storage Device

    3. Instruction 3-6. Image Storage Device This product detects shock caused by vehicle collision, quick stop and irregularities on roads and stores front and rear images before and after the shock in real time. Provided, it may not be stored as event shock recording due to shock sensitivity and/or vehicle condition, and if a corresponding image is not in an event folder, you should check it from the Normal recording image.

  • Page 28: Mic

    3. Instruction 3-8 Embedded High Sensitivity MIC This product is embedded with a high sensitive MIC. All the sounds from an accident and recording circumstances can be reproduced in a vivid manner. Sounds can be heard only with an exclusive viewer program. If you do not want to record voice for the protection of privacy, press the following button shortly.

  • Page 29: Antitheft Led Function

    As soon as it turns on, front LED would blink slowly for protecting the vehicle. Antitheft LED function is to protect the vehicle against theft during the parking. LED Flickering 3-10. Firmware Update This product can be easily updated with a SD card. Go to http://www.blacksys.co.kr/en (download= firmware) and download the latest firmware version.

  • Page 30: Memory Storage Period

    3. Instruction 3-11 Memory Storage time (For 2CH) Memory storage time would be varied over memory capacity. Choose the memory capacity upon usage purpose. (Only authorized memory device must be used.) 4G(2~3 hours) 8G(5~6 hours) 16G(10~12 hours) 32G (20~24 hours) However, memory storage period could be varied over recording circumstances and image resolution.

  • Page 31: Save Folder And File Description

    3. Instruction 3-13. Save Folder and File Description This product saves files in name of year/month/date/hour/minute/second to easily find desired image. ※ Folder and File Name 4 folders would be generated in a memory card. Infinite : a folder for Normal recording files. One of this folder stores the images recorded for 1 hour. Event : a folder for event files.

  • Page 32: Rear Camera

    3. Instruction 3-14 Rear Camera ※ In case of connecting a rear camera, a rear camera cord should be connected to the main unit first and then the black power should be turned on. If the Car DVR turns on first before connecting a rear camera, a rear camera would not be recognized and images from the rear camera would not be saved.

  • Page 33: Memory Format

    4. Memory Format Sequence 4-1. Memory Format Sequence 1. Open My Computer and then right click on a removable disk and select the format. 2. Make sure that a file system is FAT 32 and then click a start button.
  • Page 34 4. Memory Format Sequence 4-1 Memory format sequence 3. When there is a warning that data would be erased upon format, click a confirm button. 4. Memory formatting process 5. When there is a message that format is completed, click a confirm button. ※...

  • Page 35: Exclusive Viewer Program

    5. Exclusive Viewer Program ※ From our website of www.blacksys.co.kr, please download an exclusive viewer program. ① Front/rear image. Large map screen ② Front/rear image or small map screen ③ Capture screen- graph-recording time setup ④ Upon selecting a rear image ⑤...

  • Page 36: Install Player

    5. Exclusive Viewer Program Play previous file/ play current file/stop/Play next file/ rewind 10 seconds/fast forward 10 seconds/ change a frame/ open a file Capture : It is for capturing a current play screen and printing. ● Graph : It shows a status of a G sensor. ●...

  • Page 37: Player Description

    5. Exclusive Viewer Program Time Setup It is a screen for changing the time and date of the Car DVR. Select Year/Month/Date/Hour/Minute and click a confirm button to adjust time.

  • Page 38: Installation

    6. Installation 1. Select the installation location and wipe up the installation area. 2. It is recommended to install the product in between a room mirror and a front mirror. Make sure that the product does not interrupt the operation of a room mirror and cover the view. 3.

  • Page 39: Product Warranty

    This product has been manufactured under the thorough quality control process. If this product warranty is lost or information is not filled in properly, free repair service would not be provided. This warranty is valid in South Korea only. Product Name Car DVR Model Name BL-100 KCC model MSIP-REM-SYV-BL-100 Warranty Period 12 months from the purchase date Purchase Date 20 .
  • Page 40 Product Warranty Paid Service ▶ In the following cases, paid services would be provided. 1. After termination of the warranty period. 2. Within the warranty period. - When the product warranty is lost or not properly filled in. - Malfunction caused by improper use or user’s negligence. - Malfunction caused by force majeure event.
  • Page 41 Product Warranty 2. In case of claiming of a service for serious malfunction in a normal use condition within 1 month after the purchase date, product exchange. 3. Malfunction and/or defect in normal use condition within the product warranty period. - In case of defect: free service .
  • Page 42 MEMO...
  • Page 43 MEMO...
  • Page 44 MEMO...
  • Page 45 MEMO...
  • Page 46 MEMO...
  • Page 48 CammSys Customer Support Center +82-70-4680-2595 Address : Seoul, Gangnam-gu, Yeoksam-dong 681-17, Daeil Building 3rd floor ● Opening hour : 09:00 ~ 18:00 (Mon. ~ Fri.) ● Closed : Saturday, Sunday, and Public Holiday ● Homepage : www.blacksys.co.kr/en ●...
