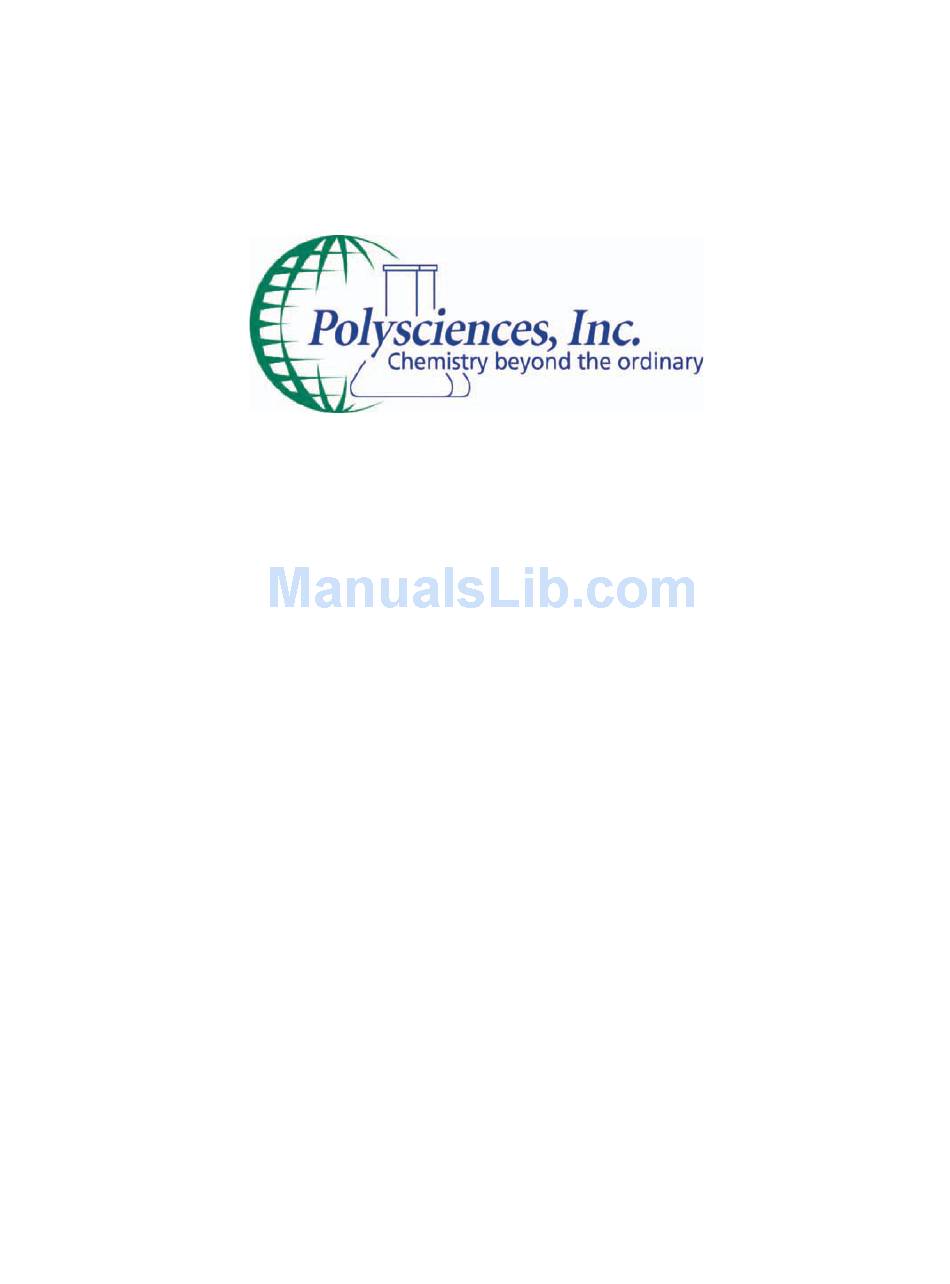

3032 MICROSCOPE SERIES
US Headquarters
400 Valley Road
Warrington, PA 18976
(800) 523-2575 / (215) 343-6484
(800) 343-3291 / (215) 343-0214 fax
info@polysciences.com
www.polysciences.com
Our catalog lists over 3,000 unique and specialty products that are used by histology professionals, lab technicians,
pathologists, chemists and scientists worldwide. Visit www.polysciences.com to learn more about our product lines.
INSTRUCTIONS
European Headquarters
Handelsstrasse 3
D-69214 Eppelheim
Germany
(49) 6221-765767
(49) 6221-764620 fax
info@polysciences.de
Asia-Pacific Headquarters
Polysciences Asia Pacific, Inc.
2F-1, 207 DunHua N. Rd.
Taipei, Taiwan 10595
(886) 2 8712 0600
(886) 2 8712 2677 fax
info@polysciences.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3032 series and is the answer not in the manual?

Questions and answers

Summary of Contents for PolyScience 3032 series

  • Page 1 3032 MICROSCOPE SERIES INSTRUCTIONS Asia-Pacific Headquarters US Headquarters European Headquarters Polysciences Asia Pacific, Inc. 400 Valley Road Handelsstrasse 3 2F-1, 207 DunHua N. Rd. Warrington, PA 18976 D-69214 Eppelheim Taipei, Taiwan 10595 Germany (800) 523-2575 / (215) 343-6484 (800) 343-3291 / (215) 343-0214 fax (49) 6221-765767 (886) 2 8712 0600 info@polysciences.com...

  • Page 2: Safety Notes

    3032 SAFETY NOTES 1. Open the shipping carton carefully to prevent any accessory, i.e. objectives or eyepieces, from dropping and being damaged. 2. Do not discard the molded Styrofoam container; the container should be retained should the microscope ever require reshipment.

  • Page 3: Care And Maintenance

    CARE AND MAINTENANCE Do not attempt to disassemble any component including eyepieces, objectives or focusing assembly. Keep the instrument clean; remove dirt and debris regularly. Accumulated dirt on metal surfaces should be cleaned with a damp cloth. More persistent dirt should be removed using a mild soap solution.
  • Page 4 Lamp House Phase Annuli Slider Illumination Trinocular Viewing Bracket Head Condenser Eyepieces X & Y Stage Movement Stage Controls Variable Light Intensity Coarse Focus Adjustment Dial Knob Fine Focus Knob Base On/Off Switch 3032 INVERTED MICROSCOPE SERIES...
  • Page 5 2． ． ． ． Assembly 3032 2.1 Assembly Diagram The following figure shows the correct installation sequence of the components. Assemble the components in the exact numerical sequence as in the diagram. Inspect all optical surfaces for dust and debris; clean if necessary. Please save the hexagonal wrench for future use.
  • Page 6 3032 2.2 Assembly Steps 2-2-1 Installing and Replacing the Lamp (Figure 3） ） ） ） Use the specified halogen lamp: 6V30W Wrap the bulb (1) with gauze or lint free paper; press the pins (2) into the socket (3) in the lamp house. When replacing the lamp turn the main switch to “O”...
  • Page 7 3032 2-2-4 Installing the Objectives（ （ （ （ Fig. 6 & 7） ） ） ） 1. Turn the coarse focusing knob① clockwise until the nosepiece reaches its lowest position. The tension control collar (2) has been factory adjusted. 2. Install the lowest magnification objective into the nosepiece.
  • Page 8 3032 2-2-6 Installing the Stage Plate（ （ （ （ Figure 9） ） ） ） 1. Install the glass stage plate ① into the stage opening. Figure 9 2-2-7 Installing the Eyepieces（ （ （ （ Figure 10） ） ） ） Remove the protective caps on the eyepiece tubes①. 2.
  • Page 9 3032 2-2-9 Connecting the Power Cord （ （ （ （ Fig.12, 13 and 14） ） ） ） ★ ★ ★ ★ Do not place stress or strain on the power cord. These will damage the cord and cause a danger to the user. 1.
  • Page 10 3. Adjustment 3032 Color filter holder Aperture diaphragm adjust lever Phase center bolt Phase contrast slider Diopter ring Light path selector lever Light switch Main switch Coarse focus knob Fine focus knob Tension adjustment collar Figure 15...
  • Page 11 4. Adjustments 3032 4-1 Microscope base 4-1-1 Turning on the Lamp（ （ （ （ Figure 16） ） ） ） Connect the power cord; turn the main switch ① to “－” (on). Figure 16 4-1-2 Adjusting the Brightness（ （ （ （ Figure 17） ） ） ） Rotate the variable light intensity dial (Fig.
  • Page 12 3032 4-2 Stage 4-2-1 Viewing the Specimen（ （ （ （ Figures 19 & 20） ） ） ） For optimum viewing, ensure the thickness, as marked on each objective (0.17mm or 1.2mm) is the same as your container, dish or slide. Use the appropriate bracket to hold your Terasaki well plate (3), culture dish (4), flask (5) or slide (5).

  • Page 13: Interpupillary Distance Adjustment

    3032 4-3 Viewing Adjustments 4-3-1 Diopter Adjustment（ （ （ （ Figure 21） ） ） ） Using the 10x objective and your right eye only, observe your specimen through the right eyepiece and bring it into focus, Then observe the specimen with your left eye only through the left eyepiece.
  • Page 14 4-3-3 Switching the Light Path（ （ （ （ Fig.23） ） ） ） ★ The light path desired is obtained by pulling out or pushing in the light path selector lever ①. For binocular observation, push the light path selector lever “in”...
  • Page 15 3032 4-4 Illumination Unit 4-4-1 Using Color Filters（ （ （ （ Figure 24） ） ） ） Select the appropriate color filter according to the type of illumination being used. Insert the filter into the filter holder. The filter holder can hold multiple filters up to a total thickness of 11mm or less.
  • Page 16 5． ． ． ． Phase Contrast Microscopy 3032 5-1 Nomenclature 5-1-1 Phase Phase Phase Phase C C C C ontrast ontrast ontrast O O O O bjective ontrast bjective bjective bjective（ （ （ （ F F F F ig ig ig igure ure 26 26 26 26）...

  • Page 17: Phase Contrast Microscopy

    Phase Contrast Microscopy 3032 5-2 Installation and use 5-2-1 Installing the Phase Contrast Slider（ （ （ （ Figure 28） ） ） ） 1. With the slider ① facing upwards (the surface with printing), insert it into the illumination system. 2. Brightfield and phase contrast light rings have their own position.
  • Page 18 6． ． ． ． Microscope Video and Photography 3032 6-1 Microscope Video 6-1-1 Selecting the Light Path（ （ （ （ Figure 31） ） ） ） 1. For binocular observation, push the light path selector lever (1) in completely. 2. Focus your specimen as usual. 3.
  • Page 19 3032 6-2 Microscope Photography 6-2-1 Selecting the Light Path (Figure 31) 1. For binocular observation, push in completely the light path selector lever (1). 2. Focus your specimen as usual. 3. For microphotography, pull horizontally on the light Camera path selector lever until it is completely pulled out. 6-2-2 Installing the Photo Camera（...

  • Page 20: Specifications

    7.Specifications 3032 Optical Infinity Optical System System Compensation Free Trinocular Head Inclined 30º Viewing Division ratio: 20% for Binocular Viewing and 80% for Video Imaging & Head Microphotography Eyepiece Wide Field Eyepiece 10X; 22 mm field of view Nosepiece Reversed Quintuple Nosepiece Infinity Long Working Distance Plan Achromatic: 4X &...

  • Page 21: Troubleshooting Guide

    TROUBLESHOOTING GUIDE If a problem occurs during the course of use, please refer to the tables below before contacting your distributor. OPTICAL Problem Cause Corrective Measure Revolve the nosepiece to Darkness at the periphery Revolving nosepiece not in click-stop position by or uneven brightness in the click stop position swinging the objective...
  • Page 22 IMAGE PROBLEMS Problem Cause Corrective Measure Image tinged yellow Lamp intensity is too low Adjust the light intensity by rotating the intensity control dial Image is too bright Lamp intensity is too high Adjust the light intensity by rotating the intensity control dial Insufficient brightness Lamp intensity is too low...
  • Page 23 Order online anytime at www.polysciences.com Asia-Pacific Headquarters US Headquarters European Headquarters Polysciences Asia Pacific, Inc. 400 Valley Road Handelsstrasse 3 2F-1, 207 DunHua N. Rd. Warrington, PA 18976 D-69214 Eppelheim Taipei, Taiwan 10595 Germany (800) 523-2575 / (215) 343-6484 (800) 343-3291 / (215) 343-0214 fax (49) 6221-765767 (886) 2 8712 0600 info@polysciences.com...
