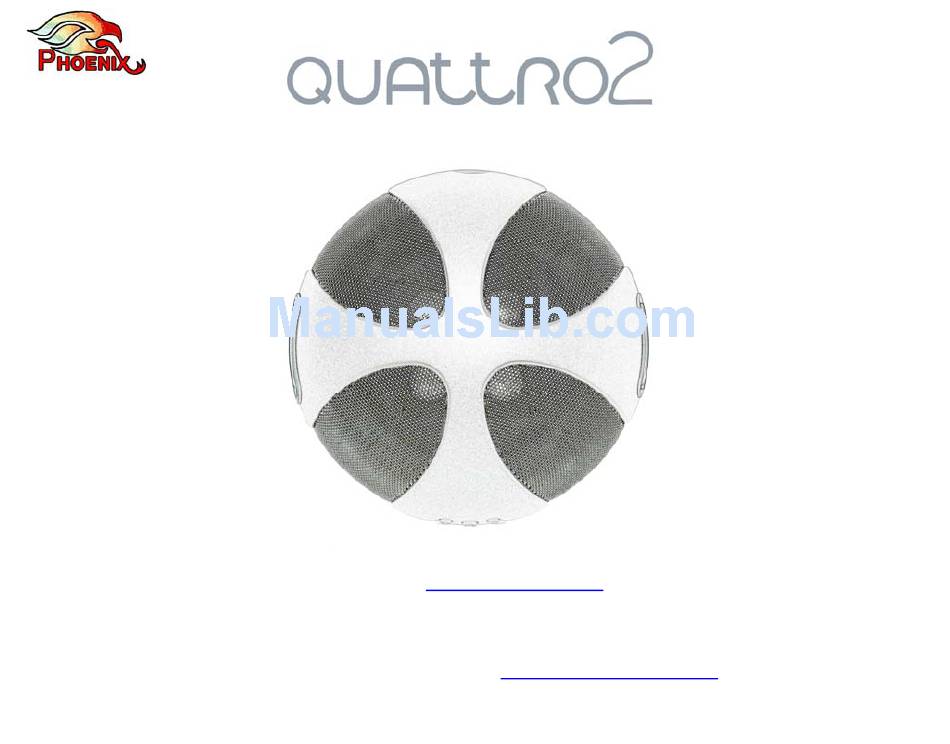

User Manual
Thank you for purchasing the new and exiting Quattro2.
Please read the instructions in this manual
before using it. Please refer to our website
www.phnxaudio.com
for more information, specifically to
our Q&A section in our Support page. Please also look for updates to this manual on our
Resources page.
For additional help please send a detailed e-mail to
Support@phnxaudio.com
Phoenix Audio Technologies
- 0 -
www.phnxaudio.com
Advertisement
Table of Contents
Related Manuals for Phoenix Quattro2
Summary of Contents for Phoenix Quattro2
- Page 1 User Manual Thank you for purchasing the new and exiting Quattro2. Please read the instructions in this manual before using it. Please refer to our website www.phnxaudio.com for more information, specifically to our Q&A section in our Support page. Please also look for updates to this manual on our Resources page.
-
Page 2: Table Of Contents
6. PSTN Interface - Connection and Operation………………………………….9 7. VCA Interface - Connection and Operation…………………………………..12 8. Daisy Chain Interface - Connection and Operation………………….…..14 9. Digital Phone Interface - Connection and Operation……………………..17 10. Downwards Compatibility……………………………………………………..17 Phoenix Audio Technologies - 1 - www.phnxaudio.com... -
Page 3: Introduction
1. Introduction The Quattro2 is a high quality conference phone for use in medium to large conference rooms. It has an exceptionally large pickup and broadcasting range yet it is small in size. The Quattro2 utilizes multiple microphones, multiple speakers and a powerful DSP to obtain its performance. -
Page 4: Key Elements
Finding the direction of the person speaking relative to the unit o Aiming a directional audio beam towards the person speaking using our proprietary beamforming array (note: the Quattro2 can manage multiple people speaking simultaneously) o Eliminate the surrounding noise... -
Page 5: Key Features
(through the additional interface module - like the PSTN line) the Quattro2 mixes the incoming and outgoing signals so that the three partners (the Quattro2 user, the telephone communication, and the computer communication) are full participants in the conference. -
Page 6: Control And Panels
4. Control and Panels The Quattro2 has: A Primary (USB) interface panel A Simple control panel and A Secondary interface panel (optional) Primary (USB - Computer) Interface Panel The unit has a primary (USB) panel that includes three jacks: USB (on the right) for computer communication Cascading (DIN6 - in the middle) for chaining additional Quattro units. -
Page 7: Control Panel
Blinking Power/Mute light – the unit is on and the microphones are muted. L1 or L2 light is on – the button is active. For example – when using the PSTN interface L1 light on indicates that Line 1 in connected. Phoenix Audio Technologies - 6 - www.phnxaudio.com... -
Page 8: Secondary Panel
Otherwise the unit may fail to turn On. Secondary Interface Panel If your Quattro2 is equipped with an additional interface module it may have a secondary panel – depending on your specific interface. Details and description are provided within the instructions of your specific interface module. -
Page 9: Using The Quattro With Your Computer - Connection And Operation
5. Using the Quattro2 with Your Computer - Connection and Operation Plug the USB cable (supplied) into the Quattro2 on one end, and to your computer on the other end. The unit will turn on automatically (blue light is on as an indication). -
Page 10: Pstn Interface - Connection And Operation
Quattro2 (wider jack on the right) and the other end to your telephone’s line wall jack. If you wish to use a telephone in parallel with the Quattro2, and also utilize it for the dialing purposes, plug the narrow connector of the unique cable to the Quattro2 (left side) and the other side to your telephone. - Page 11 If you use the Phoenix Dial Pad with the Quattro2 (1L model only), connect it to the left (narrow) RJ jack on the unit and use it to initiate a call, dial out and hang up a call. The Dial Pad comes with its own instruction page.
- Page 12 Accepting a call: when the Quattro2 rings you can push L1 (or L2 if the call is coming in line 2) to accept the call on the Quattro2. No need to pickup the handset. Switching back to your telephone: pickup the telephone’s handset and push L1 (or L2 if the call is on line 2).
-
Page 13: Vca Interface - Connection And Operation
Switch Output level Switch Output level Position peak-to-peak Position peak-to-peak Line 3.0v 0.5v level level Line 1.5v 0.25v level level Line 0.75v 0.125v level level Line 0.375v 0.0675v level level Phoenix Audio Technologies - 12 - www.phnxaudio.com... - Page 14 3.5mm jack (in the primary interface panel). Such dummy plug can be purchased separately (you can use any 3.5mm plug for this purpose). Quattro Out Dummy Plug (Optional) VC Speakers Out Phoenix Audio Technologies - 13 - www.phnxaudio.com...
-
Page 15: Daisy Chain Interface - Connection And Operation
(referred to as the unit #1) is connected to the communication line or computer. Another Quattro2 will be connected to unit #1; a third Quattro2 can be connected to unit #2; and so on. There is no limit to the number of Quattro units that can be chained. - Page 16 Each unit will transfer its processed audio to the upper unit in the chain which will evaluate its quality against its own and use it accordingly. With two Phoenix Audio Technologies - 15 - www.phnxaudio.com...
- Page 17 The diagram below illustrates the process: PSTN Line Phoenix Audio Technologies - 16 - www.phnxaudio.com...
-
Page 18: Digital Phone Interface - Connection And Operation
Quattro. You can Daisy Chain Quattro units with Quattro2 units, but some of the new features will not function properly. More specifically you cannot turn the whole chain from Quattro #1 if it includes an older version Quattro in it. - Page 19 , 2007: Phoenix Audio Technologies warrants that this product is free of defects in both materials and workmanship. Should any part of this product be defective, the Manufacturer agrees, at its option, to repair or replace with a like new replacement any defective part(s) free of charge (except transportation charges) for a period of two years for all products.
- Page 20 This warranty extends only to the original end user and is not assignable or transferable. This warranty is governed by laws of the State of New York. 98 Cutter Mill Road, Great Neck, NY 11021, Phoenix Audio Technologies, Telephone: (516) 829-2920, Fax: (516) 829-2923, info@phnxaudio.com Phoenix Audio Technologies - 19 - www.phnxaudio.com...
