Softel ONU-8FE User Manual

High cost performance ftth epon onu terminal device

ONU-8FE FTTH EPON ONU User Manual

Summary

ONU-8FE is a high cost performance ONU terminal device. (Indoor and outdoor. Gigabit

Ethernet/Passive optical network). Provide four 10/100M base-t Ethernet port and one

PON port to transmit voice, data and video, etc. ONU-8FE is a high cost performance

ONU terminal device. (Indoor and outdoor. Gigabit Ethernet/Passive optical network).

Provide four 10/100M base-t Ethernet port and one PON port to transmit voice, data and

video, etc.

Flexibility in function and Integrate L2 switch

Followed EPON technology development, we launch GEPON ONU based on the latest

EPON standard, and at the same time follow EPON technical requirements and standard

of China Telecom and China Netcom and radio and television/power. It has good

intercommunity, can work with OLT from the mainstream manufacturer. The product can

be placed in the family, the Internet bar, the small office, or other broadband access

occasion. Products provide one 10/100/1000M broadband access, realize the powerful

and manageable.

L2 Ethernet function, and transmission distances can be up to 20 km. Installation is

convenient and flexible. Meeting FTTH/FTTB/FTTC, etc. various kinds of application.

scenarios. ONU-8FE outdoor type ONU is suitable for various super high temperature, the

ultralow temperature, moisture, etc.

Table of Contents

Do you have a question about the ONU-8FE and is the answer not in the manual?

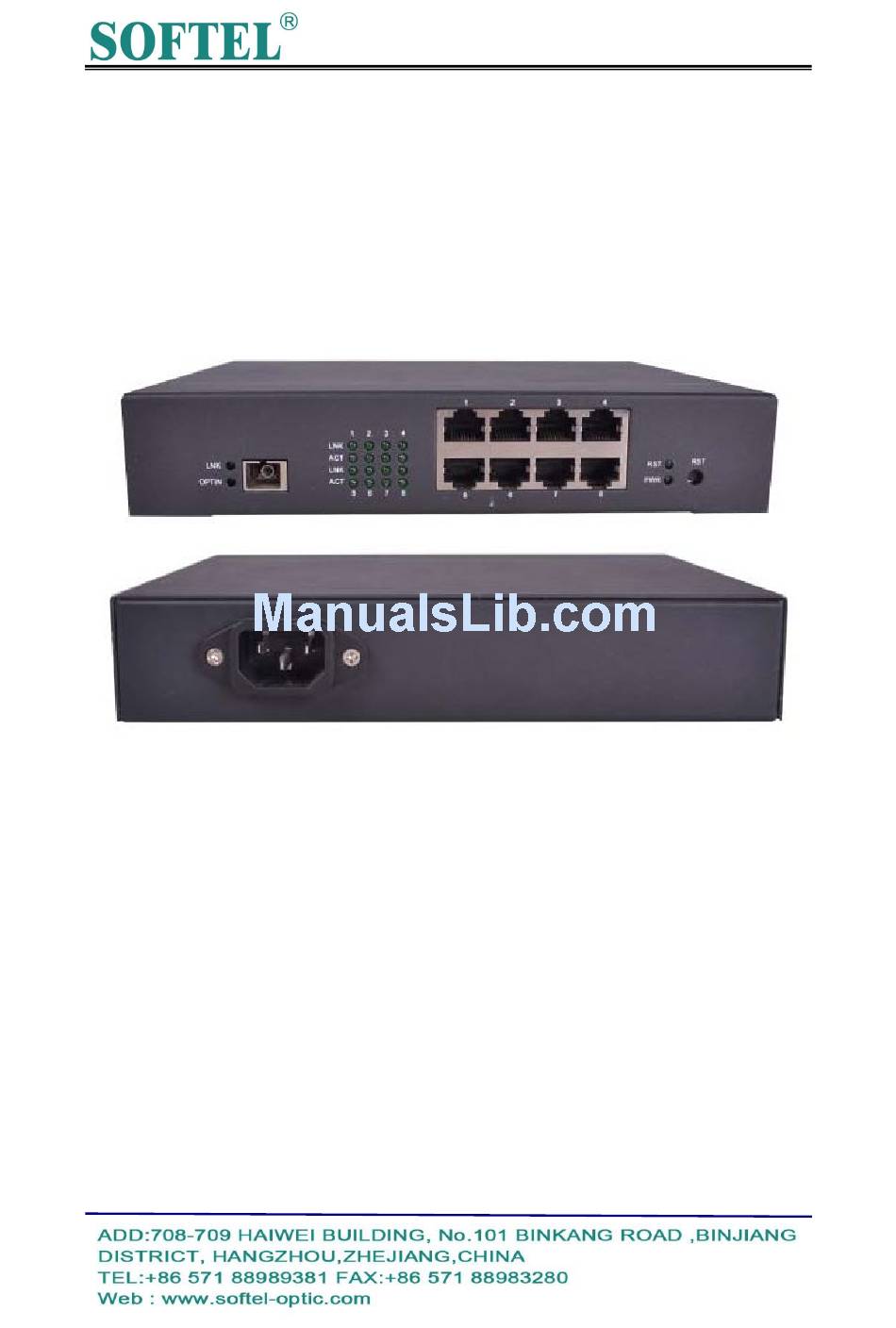

Page 1 ONU-8FE is a high cost performance ONU terminal device. (Indoor and outdoor. Gigabit Ethernet/Passive optical network). Provide four 10/100M base-t Ethernet port and one PON port to transmit voice, data and video, etc. ONU-8FE is a high cost performance ONU terminal device. (Indoor and outdoor. Gigabit Ethernet/Passive optical network).
Page 2 ONU-8FE FTTH EPON ONU User Manual Feature:  Completely compatible with EPON international standard IEEE802.3ah/802.3-2005  Support China Telecom EPON CTC2.1 standard and expand OAM  Support triple churning encryption requested by China Telecom  Support DBA reporting mechanism requested by China Telecom ...
Page 3 ONU-8FE FTTH EPON ONU User Manual  Receiving sensitivity: < -25dBm  The farthest distance between OLT and ONU is 20km Layer 2 switch：  Support IEEE 802.1q VLAN  Support speed rate inhibition of broadcast and unicast packet at ONU ...
Page 4 ONU-8FE FTTH EPON ONU User Manual  Maximum power consumption: ≤ 5 W General technical requirement:  Working temperature: -20ºC ~ +60º C  Relative humidity: 5% ~ 95% （no condensation）  Storage temperature: –40 ~ +75º C Relative Standard: Authentication: ...
