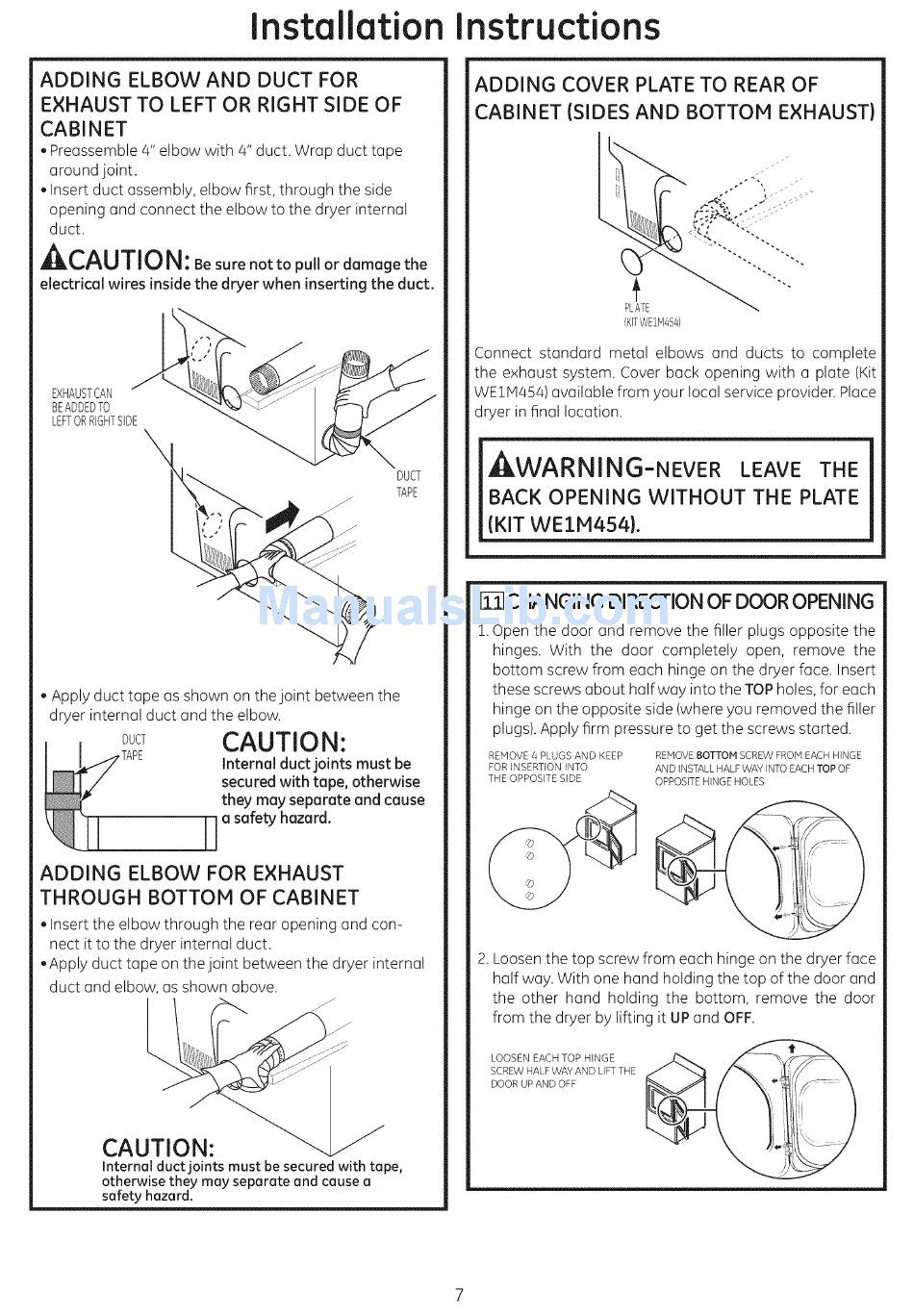

Installation instructions
ADDING ELBOW AND DUCT FOR
EXHAUST TO LEFT OR RIGHT SIDE OF
CABI N ET
. Preassemble 4" elbow with 4" duct. Wrap duct tape
around joint.
* Insert duct assembly, elbow first, through the side
opening and connect the elbow to the dryer internal
duct.
ACAUTION:
Be sure nottopull or damage the
electrical wires inside the dryer when inserting the duct.
EXHAUST CAN
BEADDED T O
LEFT O R RIGHT S IDE
DUCT
TAPE
.Apply duct tape as shown on the joint between the
dryer internal duct and the elbow.
DUCT CAUTION:
Internal duct joints must be
secured with tape, otherwise
they may separate and cause
a safety hazard.
ADDING ELBOW FOR EXHAUST
THROUGH BOTTOM OF CABINET
. Insert the elbow through the rear opening and con-
nect it to the dryer internal duct.
. Apply duct tape on the joint between the dryer internal
duct and elbow, as shown above.
CAUTION:
Internal duct joints must be secured with tape,
otherwise
they may separate
and cause a
safety
hazard.
ADDING COVER PLATE TO REAR OF
CABINET (SIDES AND BOTTOM EXHAUST)
PL ATE
(KiT W EIN454)
Connect standard metal elbows and ducts to complete
the exhaust system. Cover back opening with a plate (Kit
WE1M454) available from your local service provider. Place
dryer in final location.
_WARNING-NEVER
LEAVE THE
BACK OPENING WITHOUT THE PLATE
(KIT WEIM454).
[]CHANGING DIRECTIONOF DOOROPENING
Open the door and remove the filler plugs opposite the
hinges. With the door completely open, remove the
bottom screw from each hinge on the dryer face. Insert
these screws about halfway into the TOP holes, for each
hinge on the opposite side (where you removed the filler
plugs). Apply firm pressure to get the screws started.
.
REMOVE 4 PLUGS AND KEEP
FOR INSERTION INTO
THE OPPOSITE SIDE
REMOVE BOTTOM SCREW FROM EACH HINGE
AND INSTALL HALF WAY INTO EACH TOP OF
OPPOSITE HINGE HOLES
2. Loosen the top screw from each hinge on the dryer face
half way. With one hand holding the top of the door and
the other hand holding the bottom, remove the door
from the dryer by lifting it UP and OFF.
LOOSEN EACH TOP HINGE
SCREW HALF WAY AND LIFTTHE
DOOR UP AND OFF
