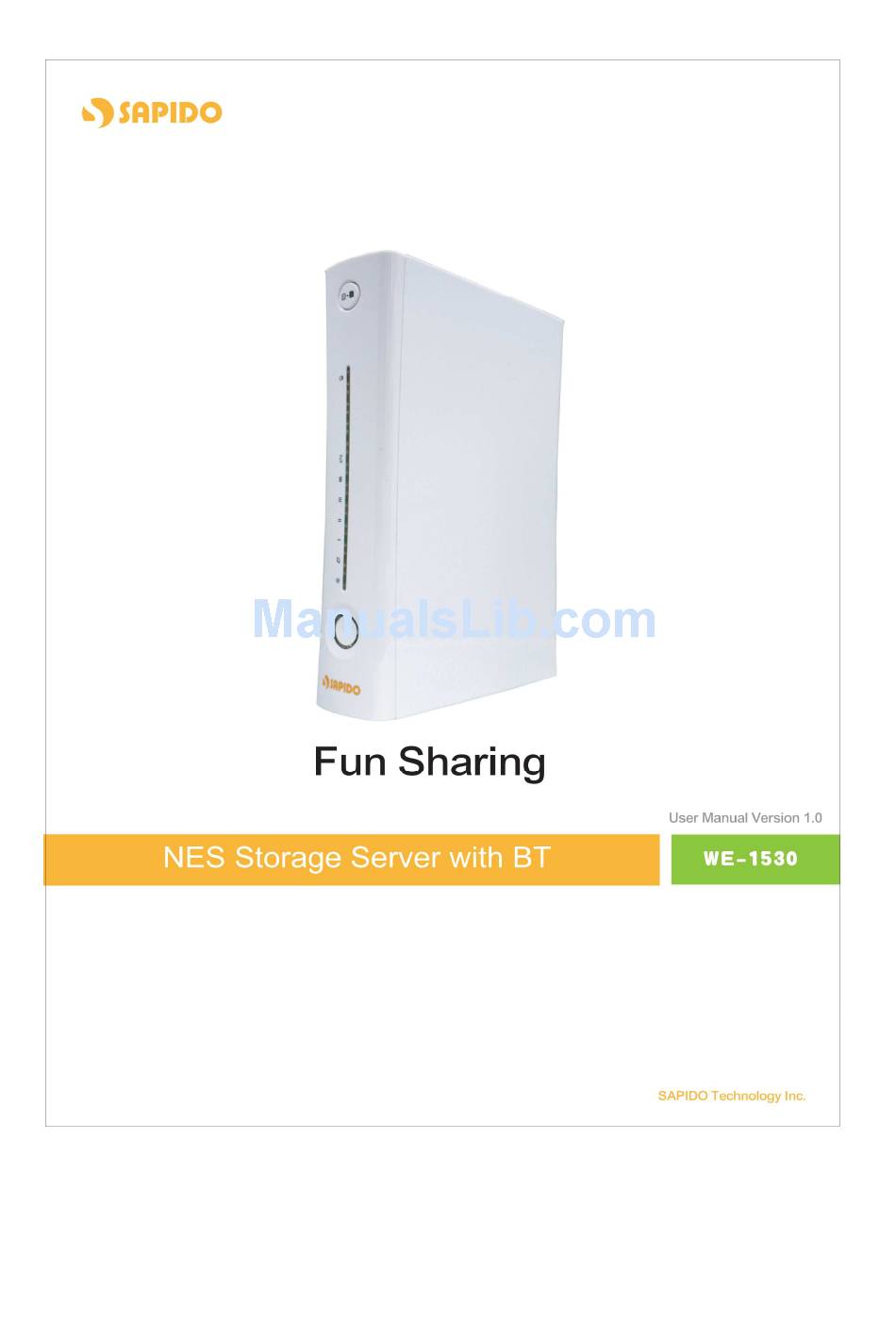

Sapido WE-1530 User Manual

Nes storage server with bt
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WE-1530 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sapido WE-1530

Summary of Contents for Sapido WE-1530

  • Page 2: Table Of Contents

    Table of Content NOTICE..............................8 : ......................... 8 TANDARD OF EVICE FCC C ............................. 9 AUTION CE S ......................10 TATEMENT OF ONFORMITY CHAPTER 1 INTRODUCTION ......................11 ...........................11 VERVIEW ........................... 12 EATURES ........................13 PECIFICATIONS ..................... 14 YSTEM EQUIREMENTS IP A &...
  • Page 3 Quick Setup Finish................46 3.3.15 IP C ......................47 ONFIGURATION 3.4.1 WAN ..................47 LAN..................53 3.4.2 Wireless ..................54 3.4.3 DDNS ..................59 3.4.4 .......................... 60 DVANCED 3.5.1 NA T ..................60 Firewall ..................63 3.5.2 QoS ..................73 3.5.3 ..........................
  • Page 4 3.11 ........................... 133 CHAPTER 4 AP MODE ........................134 ................ 134 DMINISTRATOR UICK ETUP NSTRUCTION ......................135 PERATION ........................137 UICK ETUP 4.3.1 LAN Setup..................139 4.3.2 Wireless Setup ................141 ime Server Setup ................142 4.3.3 Password Setup ................142 4.3.4 Folder Management Setup ..............
  • Page 5 & S ........................192 TATUS 4.7.1 Network Configuration ............... 193 4.7.2 User Account List ..............195 Event Log................195 4.7.3 ..........................196 OGOUT ....................196 ERSONAL ONFIGURATION 4.9.1 Anonymous ................199 4.9.2 My Document ................200 My Download ................200 4.9.3 My Album.................
  • Page 6 Web Camera Server ................. 235 5.5.4 5.5.5 Printer Server ................246 ...................... 253 YSTEM ANAGEMENT Reboot..................253 5.6.1 Change Password................254 5.6.2 Firmware Upgrade ................254 5.6.3 5.6.4 Profile Save ................... 255 5.6.5 Remote Management ............... 256 Time..................... 258 5.6.6 UPnP Setting .................
  • Page 7 ........................ 298 EBCAM ERVER 7.10 ....................... 299 RINTER ERVER 7.11 ........................... 299 UPPORT 7.12 ..........................300 THERS 7.13 USB D ........................300 EVICE CHAPTER 8 APPENDICES ......................301 ..........................301 RINTER ........................301 AMERA USB D ........................306 EVICES ......................307 PERATING YSTEMS ........................

  • Page 8: Notice

    Notice The Standard of Device: Item Specification Key Components Star 9105gu Flash ROM 8 MByte (NAND Gate) DRAM 64 MByte Communication Interfaces WAN Port 1 x 10/100 Mbps RJ45, with auto MDI/MDIX LAN Port 4 x 10/100 Mbps RJ45, with auto MDI/MDIX USB Port 2 x USB2.0 host interface for USB printer , web cam…etc.

  • Page 9: Fcc Caution

    Button 1.Reset button – Press one second for device reset and press over 5 second for restore to factory default setting 2. Auto copy button. From Flash device to HDD Power supply Adapter AC 100~240V IN , DC 12V ,3A OUT Hard Disk IDE 3.5’...

  • Page 10: Ce Statement Of Conformity

    CE Statement of Conformity Our product has been tested in typical configuration by Ecom Sertech Corp and was found to comply with the essential requirement of “Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility” (89/336/EEC;92/31/EEC;...

  • Page 11: Chapter 1 Introduction

    Chapter 1 Introduction Overview NES Storage Server with BT is a portable and convenient wireless solution for delivering 802.11g wireless connectivity with a maximum wireless signal rate of up to 54Mbps. Use it in conference rooms, hotel rooms, or even at hotspots. The unit supports multiple operation modes, including Access Point (AP) mode, Router mode, and Wireless Client mode.

  • Page 12: Features

    Features NES Storage Server with BT’s main functions, including Wireless Access, Printer Server, Download Server, Webcam Monitor, Samba Server, FTP Server and IP Sharing etc. are shown as below. These features and their applying instructions specified in User Manual will not only fulfill your requirements, but also ease your inconvenience from the job. SadoGO Proprietary utility is designed to let users, even the beginners, complete their server setups easily and access Internet without any difficulty.

  • Page 13: Specifications

    Download Server The unit provides BT and FTP downloads without keeping your PC alive. Security/Encryption The unit is equipped with encryption types of WEP, WPA, 802.1x and so on to give more security assurance. Real-time Monitoring NES Storage Server with BT can save real-time images from connected web-camera for the purpose of home safety monitoring.

  • Page 14: System Requirements

    System Requirements To begin with NES Storage Server with BT, you must have the following minimum system requirements. If your system can’t correspond to the following requirements, you might get some unknown troubles on your system. XDSL/Cable Modem and broadband Internet Account. One Ethernet (10 BASE-T or 10/100 BASE-TX) network interface card.
  • Page 15 【Step 1】 Go to Start>Settings> Network Connections and then select Local Area Connection.
  • Page 16 【Step 2】 Click on Properties 【Step 3】 Double click on Internet Protocol (TCP/IP).
  • Page 17 【Step 4-1】 For getting IP automatically if you are one of the users under NES Storage Server with BT, please skip Use the following IP address and then select Obtain an IP address automatically and Obtain DNS server address automatically and then click on OK button.

  • Page 18: Network Testing

    choice) Notice: IP address and Default gateway cannot be the same. 1.5.1 Network Testing There are two ways to test your Network whether it can work on Internet or not. They are “Testing with Internet Browser” and “Testing with Dos”. 1.5.1.1 Testing with Internet Browser Open an Internet Browser, such as Internet Explore or Netscape.
  • Page 20 1.5.1.2 Testing with DOS (Windows XP Platform) 【Step 1】 Go to start > Run. 【Step 2】 Input cmd in the blank, and then click OK button. The Command Prompt window appears.
  • Page 21 【Step 3】 Input ipconfig in the flashing area then press enter. You will get an IP Address 192.168.1.100, for example, and Default Gateway as 192.168.1.1.
  • Page 22 【Step 4】 Ping a legal WAN Address such as 192.168.1.1. If Internet works, it will show Reply from 192.168.1.1: bytes = 32 time = 3ms TTL =64, for example. If it can’t work, it will show Request timed out.

  • Page 23: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation 2.1 Diagram of Connecting Hardware to NES Storage Server with BT NES Storage Server with BT is a portable and convenient wireless solution for delivering 802.11g wireless connectivity with a maximum wireless signal rate of up to 54Mbps. Use it in conference rooms, hotel rooms, or even at hotspots.

  • Page 24: Client Mode Hardware Connection And Application

    Server with BT via LAN port or Wireless (WDS). The administrator can set up quickly, including LAN Setup, Wireless Setup, Time Server Setup, Password Setup, USB Disk Management Setup, User Account Management Setup, FTP Server Setup, Web Camera Setup, Printer Server Setup, Samba Setup and Download Server Setup. Please also see the following 3-in-1 diagram, as the example below.

  • Page 25: Chapter 3 Router Mode

    Chapter 3 Router Mode 3.1 Administrator Quick Setup Instruction Make sure that NES Storage Server with BT is in Router Mode from IP configuration, then open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://192.168.1.1 (Default Gateway) into browser’s blank. Notice: If the homepage doesn’t appear, please check if the TCP/IP configuration is obtaining IP address automatically or not.
  • Page 26 Please click on Administrator button to log in setup at first time, also any settings can be changed in the future. Only the Administrator has the right to modify all settings. User Name and Password The default values for User Name and Password are admin (all in lowercase letters). Click Login to enter.

  • Page 27: Operation Mode

    Operation Mode Click on Operation Mode from the left menu on main page. After logging in, users can manually switch to other 2 modes by selecting the preferred and click Apply. A message window will pop up for your confirmation to reboot the system. Click OK to continue.

  • Page 28: Quick Setup

    Quick Setup Typical Configuration Manager Page consists of two separate frames. The left frame contains all the means available for device configuration. Menus are indicated by file icons, and related menus are grouped into categories, such as LAN, WAN etc., and indicated by folder icon, depending on whether the group of menus are expanded or not.
  • Page 29 Click Application, you see 9 major items set here, including Folder Management Setup, User Account Management Setup, Firewall Setup, QoS Setup, FTP Server Setup, Printer Server Setup, Web Camera Setup, Download Server Setup and Samba Server Setup. Except for the default ones, all can be selected upon your demands.

  • Page 30: Wan Setup (Internet Connection)

    Quick Setup Instruction WAN Setup: Set up the connection type provided by your ISP; 4 modes of WAN connection are supported by NES Storage Server with BT–Static IP, Dynamic IP, PPPoE, and PPTP. LAN Setup: Set up the IP Address for LAN and Group. If you are using the Router with multiple PCs on your LAN, you must connect the LAN via the Ethernet ports on the built-in Ethernet switch.
  • Page 31 Choose your WAN type as the above mentioned, and its associated settings will show up underneath at the same time.
  • Page 32 3.3.1.1 WAN Type – Static IP Choose Static IP Address if all WAN IP information is provided to you by your ISP. You will need to enter the IP address, IP Netmask and IP gateway as provided. Each entered fields must be in the appropriate IP form, which are four IP octets separated by a dot (x.x.x.x).
  • Page 33 3.3.1.2 WAN Type – Dynamic IP Choose Dynamic IP to obtain IP address information automatically from your ISP. Select this option if your ISP does not give you any IP numbers to use. This option is commonly used for Cable modem services. If ISP provided you DNS information, please select Specify DNS Server IP;...
  • Page 34 otherwise, select No Default DNS Server. Click on Next button to go on 3.3.2 LAN Setup on page 31. 3.3.1.4 WAN Type – PPTP This option is typically used for DSL services. Some DSL service providers supply a special DSL modem. This kind of modem only supports the PPTP tunnel to access the Internet, you should create a PPTP tunnel that carries a PPP session and terminates on the DSL model.

  • Page 35: Lan Setup

    Please enter the account’s name and password which provided by your ISP, and then click on Next button to go on 3.3.2 LAN Setup. 3.3.2 LAN Setup If you are using NES Storage Server with BT with multiple PCs on your LAN, you must connect the LAN via the Ethernet ports on the built-in Ethernet switch.

  • Page 36: Wireless Setup

    For Gateway IP Address, the IP address 192.168.1.xxx (xxx can be any number between 1 and 254 that is not used by another device.) Please don’t change the default LAN IP settings at this section until you have completed the rest of the configurations and confirm that your Internet connection is working.
  • Page 37 For selecting configuration utility in AP/Bridge wireless connection, the Channel 6 is the default channel; all devices on the network must be set to the same channel to communication on the network. The default TxPreamble setting is Long (if you use high traffic networks should use the shorter preamble type).

  • Page 38: Time Server Setup

    3.3.4 Time Server Setup The section provides time alteration. The Router keeps a record of the current date and time, which is used to calculate and report various performance data, but changing the router’s date and time does not affect the date and time on your PCs. Select your time zone from the Time Zone drop-down list, or you may set the time manually;...

  • Page 39: Folder Management Setup

    For changing password, please fills the password information into above blanks, and then click on Next button. Notice 1: Only the password can be changed, the user name for administrator is admin and can be changed. Notice 2: If you forget administrator’s password, please reset NES Storage Server with BT to default setting by pressing the “Reset”...

  • Page 40: User Account Management Setup

    If you want to view the data inside the disk, please go to 3.3.10 FTP Sever Setup to enable FTP server and then click on Disk Explorer to view all folders inside the device. 3.3.7 User Account Management Setup Personal users can use each individual application such as My Status, My Webcam, My Download and My Document etc.

  • Page 41: Firewall Setup

    Set each user’s right and space arrangement, and then click on Add button for saving user’s account. Click on Next button after finished. 3.3.8 Firewall Setup The Firewall rules of NES Storage Server with BT are an advance feature used to deny or allow traffic from passing through the router.

  • Page 42: Qos Configuration Setup

    3.3.9 QoS Configuration Setup QoS management helps to set and evaluate QoS policies and goals. It is the particular concern for the continuous transmission of high-bandwidth video and multimedia information. Transmitting this kind of content dependably is difficult in public networks using ordinary best effort protocols.

  • Page 43: Ftp Server Setup

    finishing the above. 3.3.10 FTP Server Setup NES Storage Server with BT can be the FTP Server providing users to transmit files, also for the guest to download the files from assigned website. Moreover, by connecting an internal HDD to the router, user can easily set up a FTP Server to share or download files for local or remote users.
  • Page 44 Enable the printer and click on Next button to next setup. Notice: After above Printer Server in Quick Setup i s finished, the related printing settings on Storage Server. Router and PC have to be set up, too. Please refer to 3.6.5 Printer Server to set the details.

  • Page 45: Web Camera Server Setup

    3.3.12 Web Camera Server Setup If you plan to use NES Storage Server with BT as a Web Camera site, connect a supported USB Web Camera to the USB port of NES Storage Server with BT. Check to enable the webcam server and WAN access by demand.

  • Page 46: Samba Server Setup

    3.3.14 Samba Server Setup NES Storage Server with BT supports NetBIOS protocol, providing network neighbors to share file folders or printer. Click on Next button to next setup. 3.3.15 Quick Setup Finish The Quick Setup has been completed successfully when you see this screen. To apply your new settings, please click on Finish button to reboot system automatically and go to the product’s diagram homepage.

  • Page 47: Ip Configuration

    IP Configuration This function allows you to add routing rules into NES Storage Server with BT. It is useful if you connect several computers behind NES Storage Server with BT to share the same connection to Internet. 3.4.1 Select WAN under the IP Config menu. NES Storage Server with BT supports four WAN connection types, i.e.
  • Page 48 If you applied for a Static IP connection type from ISP, please follow the steps to set up your WAN connection. IP Address: Input your IP Address supplied by ISP. If you don’t know, please check with your ISP. Subnet Mask: Input Subnet Mask, normally it is 255.255.255.0. ISP Gateway Address: Input ISP Gateway Address.
  • Page 49 Host Name: The host name is optional; but if your ISP requires you to input a specific host name, please put it in, for example, NES Storage Server with BT applied from ISP. Generally, Cable Modem will provide the hostname information.
  • Page 50 User Name: Input your user name supplied by ISP. If you don’t know, please check with your ISP. Password: Input your Password supplied by ISP. MTU: MTU stands for Maximum Transmission Unit. For PPPoE connection, you may need to set the MTU setting in order to work correctly with your ISP. Idle Time: It is the time of inactivity before disconnecting your PPPoE session.
  • Page 51 3.4.1.4 PPTP If you have applied for a PPTP connection type from ISP, please follow the steps to set up your WAN connection. PPTP: : : : Select connect to PPTP by Dial On Demand, Always Online or Manual connects. PPTP Account: : : : Input the PPTP Account supplied by ISP, NES Storage Server with BT, for example.
  • Page 52 which the Internet connect is maintained during inactivity. If the connection is inactive for longer than the defined Idle Time, then the connection will be dropped. Either set this to zero or enable Auto-reconnect to disable this feature. DNS: If ISP provides you DNS information, please select Specify DNS Server IP and input the DNS information into the blank;...

  • Page 53: Lan

    3.4.2 Use this page to set up the local IP address and subnet mask for your router. Please select LAN under the IP Config menu and follow the instructions below to enter the LAN setting page to configure the settings you want. IP Address: The default value of LAN IP address is 192.168.1.1 for this router.

  • Page 54: Wireless

    3.4.3 Wireless NES Storage Server with BT enables fastest 54 Mbps IEEE802.11g wireless transmissions and keeps compatibility with existing IEEE 802.11b devices. NES Storage Server with BT complies with IEEE 802.11b standard. Please select Wireless under the main menu. Follow the instructions to configure the Wireless settings.
  • Page 55 Wireless: Select AP/Bridge or WDS to allow or disallow the wireless operation. Wireless Mode: This field indicates the 802.11g interface mode. 802.11G prevents the 802.11b clients from accessing the router. 802.11B/G allows both 802.11b and 802.11g clients to access the router. 802.11B will enable the network as an 802.11b wireless network.
  • Page 56 Storage Server with BT. To minimize interference, configure each of NES Storage Server with BT to use Non-overlapping channels. Non-overlapping channels have 25 MHz separation beginning at the first allowed channel for the country (for the US and most of Europe, channel 1, 6 & 11 are used.) Make sure that NES Storage Server with BTs sharing the same Channel (or Channels close in number) are as far away from each other as possible, based on the results of your site survey of the facility.
  • Page 57 Hexadecimal. Select the item from drop-down list you wish to use. Pass phrase: Automatically generate four WEP keys. A WEP key is either 10 or 26 hexadecimal digits (0~9, a~f, and A~F) based on whether you select 64 bit or 128 bit in the WEP drop-down menu. Type a combination of up to 64 letters, numbers, or symbols in the blank, NES Storage Server with BT uses an algorithm to generate four WEP keys for encryption.
  • Page 58 Encrypt Type - WPA The WPA encrypts each frame transmitted from the radio using the pre-shared key (PSK) which entered from this panel or a key got dynamically through 802.1x. WPA-PSK (TKIP): Allow the access from WPA clients simultaneously and the encryption keys are given from PSK respectively.

  • Page 59: Ddns

    3.4.4 DDNS Dynamic DNS allows you to make an assumed name as a dynamic IP address to a static Please hostname. Please configure the dynamic DNS below. select DDNS under the IP Config menu, and follow the instructions below to enter the DDNS setting page to configure the settings you want.

  • Page 60: Advanced

    Advanced There are NAT settings, Firewall setting and QoS setting included in advance setup. The advanced setting is in Router Mode only. 3.5.1 NAT is a method of mapping one or more IP addresses and/or services ports into different specified services, where NAT stands for Network Address Translation. It allows the internal IP addresses of many computers on a Local Area Network (LAN) to be translated to one public address, saving users’...

  • Page 61: Virtual Server

    3.5.1.1 Virtual Server To offer services, like WWW, FTP, provided by a server in your local network accessible for outside users, you should specify a local IP address to the server. Then, add the IP address and network protocol type, port number, and name of the service in the following list.
  • Page 62 record what this rule is used for. Private IP: Specify the private IP address of the internal host offering the service. Protocol Type: Specify the transport layer protocol (TCP or UDP). Private Port: Specify the private port number of the service offered by the internal host.

  • Page 63: Firewall

    Router. IP Address: This field stands for the destination IP address that you like to redirect the matched packet to. Apply & Cancel: Click on Apply button to continue. Click on Cancel button to clear the setting on this page. 3.5.2 Firewall The Firewall function helps to protect your local network against attacks from outside.
  • Page 64 Firewall Protection Level: Select the level from the drop-down list, including High, Medium and Low. The below screen including SPI service and ICMP setting will change according to your level setup. Enable SPI Service: NES Storage Server with BT often monitor a wider range of activity, such as patterns of traffic and the type of application sending traffic.
  • Page 65 address. You can enable ICMP Ping from WAN side or not. DoS Attacks Blocking Settings Enable DoS Attacks Blocking: The following sections will explain in more detail about DoS Defense setup by using the web configuration. There are a total 8 kinds of defense function for the DoS Defense Setup.
  • Page 66 number is used to guard against accidental receipt of unintended data and malicious use by the attackers if the ISN (Initial Sequence Number) is generated randomly. Forged packets with valid sequence numbers can be used to gain trust from the receiving host. Attackers can then gain access to the compromised system.
  • Page 68 3.5.2.2 IP Filter Use IP Filter to deny LAN IP addresses from accessing the Internet. You can deny specific port numbers or all ports for the specific IP address.
  • Page 69 Enable IP Filter: Check enable or disable to apply IP Filter function. Enable Log: All packets between WAN and LAN will be logged. Source: To specify the appropriate IP address / mask and enter the source port number. Destination: Allows you to set the destination address / mask to which this rule should apply and enter the source port number.

  • Page 70: Mac Filter

    3.5.2.3 MAC Filter Use MAC filters to deny LAN computers by their MAC addresses from accessing the Internet. You can manually add a MAC address that is currently connected to NES Storage Server with BT.
  • Page 71 MAC Filter Action: To deny or allow all MAC filter action. Enable MAC Filter: Check enable or disable to apply MAC Filter function. Enable Log: All packets between WAN and LAN will be logged. Description: Enter the filter description into this blank. MAC Address: Enter the MAC address manually that you want to filter.

  • Page 72: Url Filter

    3.5.2.4 URL Filter Keyword based URL (Uniform Resource Locator) filtering allows you to define one or more keywords that should not appear in URL’s. Any URL containing one or more of these keywords will be blocked. This is a policy independent feature i.e. it cannot be associated to ACL rules.

  • Page 73: Qos

    Enable URL Filter: Check enable or disable to apply URL filter function. Enable log: All packets between WAN and LAN will be logged. Description: Enter the filter description into this blank. URL keyword: Enter the URL words into this blank to apply filter blocking, example: “www.yahoo”, then it’ll block all the websites from www.yahoo range.
  • Page 74 Enable QoS Service: One checkbox appears to activate the QoS control function or not. Click it to force the router to perform QoS control over traffic flows. By default, it’s enabled. Current Upstream Bandwidth: Allows you to set the upper bound of the port forwarding rate.

  • Page 75: Server

    Priority: To limit the bandwidth consumed over a backbone link by FTP transfers or give priority to an important database access. And the following applications can be selected individually and distribute the priority level. Application: Including FTP, HTTP, E-mail, Telnet, Voice, Games, IM and Video priority setting.
  • Page 76 Enable Samba Server: Check to Enable/Disable while connecting. Workgroup Name: Fill in the name, and the default is WORKGROUP. Server Name: Name your server. Server Description: Describe your server by demand, and the default is NES Storage Server with BT. Printer Model: Printer model appears when connected.
  • Page 77 【Step 2】 Fill in blank address field with \\192.168.1.1.
  • Page 78 【Step 3】 A window pops up asking for user name and password. If log in as an administrator, please enter admin for both fields; otherwise, fill in with personal account and password. Click OK after finished. 【Step 4】 As the window below appears, login user has entered file sharing directory, and the folders underneath are all available for sharing locally.

  • Page 79: Ftp Server

    3.6.2 FTP Server By directly connecting IDE storage device, FTP server can be created with simple configuration. FTP Server utility allows both local and remote users to upload or download files, pictures or music files from the same storage device in most easy and timely fashion. It is also cost effective where users do not need to purchase a dedicated PC to set up a 24-hour FTP service.

  • Page 80: Download Server

    on enable for this item. FTP Server Port: Define the FTP command transfer service port. If you want to change this port number, also remember to change the service port setting of your FTP client. Idle connection Time-Out: When a specific time value is added, FTP Server will be de-activated if it has no activity within the time limit.
  • Page 81 • BT Download BT file: Click “Browse…” to get the file from the storage location. Target Path: Create a saving directory under the default download folder (e.g. /test). Add: Click Add to start downloading. Clear: Click Clear to delete the previous setup. Show: The list shows total archive size and current download process, 4 files at most.
  • Page 82 1. Download/Upload Speed Limit: Enter your transmitting limit and click OK. • FTP Download Set up the name and path for the appointed FTP download; however, downloading via HTTP protocol is not supported here. And the default saving location is under “/download” directory.

  • Page 83: Web Camera Server

    Schedule Name: Fill the name in the blank. Source URL: Fill in the blank which indicates the route of downloading website. Directory/Files: Choose to save Only Files or Included Sub-directories. Remote Login Account: Select to log in as Anonymous/Specific User. User Name: Fill the name in the blank if it’s required.
  • Page 84 router, it allows user to monitor their home or office from remote locations. Motion Detection function has also been built-in and allows user to use webcam to detect any movements in their houses or offices and send email alert with captured images. 3.6.4.1 Web Camera Server Basic Setup Enable Webcam Server: Allow using this function by checking on enable.
  • Page 85 3.6.4.2 Web Camera Server Advanced Configuration Click on Record Setting button, and the screen will appear as below. Enable save image: If you want to save the image from webcam, please check on enable. Save image interval: For saving image, you can set the save interval time, the default value is 5 seconds.
  • Page 86 3.6.4.3 Application for Web Camera 3.6.4.3.1 Web Camera Monitoring Application Monitor your home or take pictures with a Webcam via NES Storage Server with BT; one can set up the monitoring or recording of all images into the IDE HDD for reviewing. Often marketed as surveillance tools for home or office security;...
  • Page 87 3.6.4.3.1.1 Web Camera Monitoring via WAN connection How to check your WAN IP address To monitor the webcam image from outside, you need to know the WAN IP address. Select Network Configuration under Log & Status on main Menu after connected, and you will see the WAN IP Address used to connect to webcam monitor screen.
  • Page 88 There will pop-up screen shows the image from web camera as example below. 3.6.4.3.1.2 Web Camera Monitoring via WiFi Mobile Phone Please fill address plus “/webcam.html” (e.g. http://210.64.134.25/webcam.html) into the mobile phone’s browser blank and you will see the webcam user login screen appear as below.
  • Page 89 After logging in with your own account, you will see the monitor image from web camera via WiFi mobile phone. 3.6.4.3.2 Web Camera Recording 3.6.4.3.2.1 Administrator Setup NES Storage Server with BT also can record the pictures from Webcam; only Administrator can activate the settings.
  • Page 90 function, click on Record Setting button for further setting. To set up the Webcam Advanced Configuration for each text field, the image from webcam will be recorded into your IDE HDD or Remote FTP. Click on Apply after setup finished. For administrator, you may view all the images from webcam recording, please select...
  • Page 91 Folder Management and click on Disk Explorer to view entire folder inside the disk including webcam record files. After click on Disk Explorer, you will see the folder screen appear including all the folders inside NES Storage Server with BT. (Below is the example.) For getting the images from web camera or any files inside router, you may copy the files into your...
  • Page 93 3.6.4.3.2.2 Personal Application All the users under administrator’s setting can view entire webcam recording images from My Document. Please log in with your own personal account. For viewing your own folder, please click on “My Document”. After click on My Document, you will see folder screen appear as the example below.

  • Page 94: Printer Server

    Notice: If you can’t open the folder, please check with administrator to set up your FTP access right. 3.6.5 Printer Server NES Storage Server with BT has two USB ports for connecting with printers to be shared on the local area network. Follow the steps to set up your PC to connect to a printer server.
  • Page 95 Enable Printer Server: Check enable for applying printer server. Enable Printer Access From WAN: Allow printer access from WAN side by checking on enable for this item. Printer Model: The printer model will be shown when the USB printer is plugged.
  • Page 96 3.6.5.1 Printer Setting on PC After enabling Printer Server in Quick Setup and Printer Server Configuration, please follow the steps to set the detail LPR settings on your PC. (The example below is for Windows XP platform.) 【Step 1】 After setting USB printer on NES Storage Server with BT’s setup page, please go to Start >...
  • Page 97 【Step 2】 Click on Add a printer item.
  • Page 98 【Step 3】 Click on Next button. 【Step 4】 Select Local printer attached to this computer, and click Next.
  • Page 99 【Step 5】 Select Create a new port and choose Standard TCP/IP Port from drop-down list, then click Next. 【Step 6】 Click Next.
  • Page 100 【Step 7】 Put in NES Storage Server with BT’s address: 192.168.1.1 and click Next. 【Step 8】 Select Custom and click on Settings… button to set the detail setting.
  • Page 101 【Step 9】 Select LPR and give it the same Queue Name as USB Printer Name has shown, and mark LPR Byte Counting Enabled. Finally, click on Next button. 【Step 10】 Click Finish on the next screen after the aforesaid settings, you have to install the printer driver as well.
  • Page 102 【Step 11】 Select the Manufacturer and Printers. If your printer is not listed in the table, please insert its driver CD and then click on Have Disk… button for installation. Or click on Next button to finish the setting. You can name your printer, set it as default printer and share your printer as the next screen shown, the Printer Server setting is getting completed.

  • Page 103: System Management

    System Management NES Storage Server with BT provides system management including password changing, firmware upgrade, time setting, user’s account setting and other detail settings. Following is detail explanation for each. 3.7.1 Reboot If you had entered the wrong configuration while setting up your router or other utilities, you can always reboot your NES Storage Server with BT by this setting.

  • Page 104: Change Password

    3.7.2 Change Password At this section, the administrator can change the system password. Only the password can be changed, the user name for administrator is admin and can’t be changed. Old Password: Enter the original password you set. New Password: Enter the new password you want to change. New Password (Confirm): Enter the new password again for confirming.

  • Page 105: Firmware Upgrade

    3.7.3 Firmware Upgrade There is certain risk while upgrading firmware. Upgrading firmware is not recommended unless the significant faulty is found. You can upgrade the firmware of NES Storage Server with BT on this page. Make sure the firmware you want to use is on the local hard drive of the computer.

  • Page 106: Profile Save

    3.7.4 Profile Save To back up the current configuration setting or load the backup data, also you can restore NES Storage Server with BT to default setting by this function. Save Settings To PC: Click on Save button for saving the configuration setting into assigned location.

  • Page 107: Remote Management

    3.7.5 Remote Management Remote Management allows NES Storage Server with BT to be configured from the Internet by a web browser. In general, only a member of your network can browse the built-in web pages to perform “Administrator” tasks. This feature enables you to perform the tasks from the remote (Internet) host.

  • Page 108: Time

    router. Description: Enter the description for the remote configuration. Add, Apply & Cancel: Click on Add button to add the remote list, click on Apply button to activate, or click on Cancel button to clear the settings on this page. Remote Management IP List: Display, edit or delete IDs, description and IP address of allowed remote list.

  • Page 109: Upnp Setting

    Local Time: The default time within. Default NTP Server: Select the NTP Server from the drop-down list. Time Zone: Select your time zone location from the drop-down list. Daylight saving time: If you are in daylight saving time area, please enable this item.

  • Page 110: User Account Management

    1. Enable/Disable UPnP: Select to enable or disable this service. 2. Apply, Cancel: Click on Apply button to activate this function or Cancel button to clear the setting. 3.7.8 User Account Management Personal users can use each individual application such as My Status, My Webcam, My Download and My Document etc.
  • Page 111 Max Login User: Set up the maximum users to log in at the same time, select the number from drop-down list. If you want to change the maximum login users only without changing user’s information, please click on OK button after select...

  • Page 112: Folder Management

    login user’s number. User Name: Create the user name in this blank. Password: Set up the user’s password. User Quota: Set up the storage space on server for each user. User Right: Check to allow set-user accessing Samba folder, monitoring from webcam or using Download/FTP server.

  • Page 113: Email Alert

    To format, please click on Format button. Moreover, if you want to view the data inside the disk, please go to 3.3.10 FTP Sever Setup to enable FTP server and then click on Disk Explorer to view all the folders inside the device. 3.7.10 Email Alert To monitor router activity, you can run on a local PC or a remote one elsewhere on the...

  • Page 115: Log & Status

    Email Alert: Check the enable box to activate the email alert service. SMTP Server: Specify an IP address of the SMTP server which can send mails from your NES Storage Server with BT to the recipients’ mailboxes directly. Your Mail (from): Enter the email address indicated the sending location. SMTP Auth: If the email alert needs to be sent via SMTP authentication, please check this item, and then enter the required account and password.

  • Page 117: User Account List

    3.8.2 User Account List This section shows all users’ information. Check the user name, status and opened directory/file on screen.
  • Page 118 3.8.3 Event Log NES Storage Server with BT provides system logs for review. The system status log shows logging time, type and detail information as below. Click Refresh to update.

  • Page 119: Logout

    Logout Click Logout on the bottom menu to exit and go back to GUI login home page as illustrated on next page. Notice: If the homepage doesn’t appear, please check whether the TCP/IP configuration is obtaining IP address automatically or not. If you don’t know how to do this, please refer to 1.5 Get your IP Automatically &...
  • Page 120 Click Personal Panel and log in with your own user account. (If you can’t access your personal account, please check with administrator for validation.) Personal Panel Screen below shows every login user’s access rights, including Anonymous, My Document, My Download, My Album, My Blog, My Webcam and My Status.

  • Page 121: Anonymous

    function; even though there is none to be set, the user can still apply My Status. Notice: The available access rights are depended on administrator’s authorization in 3.7.8 User Account Management. 3.10.1 Anonymous “Anonymous” shows all the files stored in IDE HDD by administrator and allows any login user to check the folder and copy files to the HD via Internet.

  • Page 122: My Document

    3.10.2 My Document “My Document” shows all the files in IDE HDD under each user’s account. Login user can also create the folder or copy files into the HD directly via Internet. The illustrated below is the detail description of folder inside. Click My Document and opens another web page to show all the files in your own folder.
  • Page 123 “My Download” provides users to add download schedule immediately or by appointed time. Downloaded data can be stored into FTP Anonymous folder, Samba folder or Personal folder respectively. The illustrated below is for your reference. Click My Download to open the setup page showing the required information and user’s download list.

  • Page 124: My Album

    Port: Input the port number of the server, default value is 21. Link Testing: Click on it for checking if above setting is no problem and make sure it’s connected normally. Folder Name: Fill the name of the downloaded folder in the blank. If you want to overwrite the name you put in before, just check on this item.
  • Page 125 Title description: fill in to name your album. ™ Album count of perpage: set the number of listed albums on every web ™ page. Row count of album: set the number of listed albums on each row. ™ Column count of album: set the number of listed albums on each column. ™...
  • Page 126 Click New Album to create a new one, and click Add Photos to select photos and then upload. After clicking Add Photos, the following window pops up. Click Browse… on the right of each File blank field to select photos on PC. Also you can fill in some briefs in Caption field.
  • Page 127 After uploading files successfully, the photos will be displayed on personal album web page shown as below.

  • Page 128: My Blog

    Delete Photos: check to select the photo you want to delete. ™ View: check the photo first and then click to enlarge for better or detailed viewing. ™ Click Main Menu on the menu bar, the web page goes back to the main page of user’s album, as shown below.
  • Page 129 Click Setting on the menu bar to enter the following web page: Blog Title: Name your blog. ™ Blog Description: A brief outline for your blog. ™ Allow User Comment: Authourize any visitors to comment. After finishing the ™ above, click Apply to save the settings. Click New Message on the menu bar to enter the following web page:...
  • Page 130 Title: Fill in a subject. ™ Message: Write down your messages. ™ Reference URL: Fill in available URL addresses for any reference. ™ Image URL: Fill in available addresses for linking the images. After finishing the ™...

  • Page 131: My Webcam

    above, click Apply to save the settings. • After leaving some messages, click Show Blog or View on the menu bar to enter the following web page. 3.10.6 My Webcam “My Webcam” application allows you to view the real time image when the web camera is Click My Webcam, and the system pops up a new window to display real time image as the example below shows.

  • Page 132: My Status

    3.10.7 My Status “My Status” shows all the login information for your personal account. Click Main Menu on the left to go back main control panel and other applications. Notice: All above usage information is based on administrator’s setup.

  • Page 133: Site Map

    3.11 Site Map NES Storage Server with BT provides site map clicking for each icon to carry out the SadoGO from the home page.

  • Page 134: Chapter 4 Ap Mode

    Chapter 4 AP Mode 4.1 Administrator Quick Setup Instruction Manually switch into AP Mode via Operation Mode configuration, then open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://192.168.1.254 (Default Gateway) into browser’s blank field. Notice: If the homepage doesn’t appear, please check whether the TCP/IP configuration is obtaining IP address automatically or not.

  • Page 135: Operation Mode

    User Name and Password The default values for User Name and Password are admin (all in lowercase letters). Click Login to enter. Notice: Only the password can be changed, please read setup 4.3.4 Password Setup or 4.6.2 Change Password. In order to protect your own settings, it’s strongly recommended to change the password before you finish the Router Basic Setup.
  • Page 136 A message window will pop up for your confirmation to reboot the system. Click “Yes” to continue.

  • Page 137: Quick Setup

    Quick Setup Typical Configuration Manager Page consists of two separate frames. The left frame contains all the means available for device configuration. Menus are indicated by file icons, and related menus are grouped into categories, such as LAN, WAN and etc., and indicated by folder icon, depending on whether the group of menus are expanded or not.
  • Page 138 Quick Setup full function table list Click Basic, you see 4 major items set in Quick Setup Selection. Please click Next button after confirmed. Initial as default Initial as default Initial as default Initial as default Click Application, you see 7 major items set here, including Folder Management Setup, User Account Management Setup, FTP Server Setup, Printer Server Setup, Web Camera Setup, Download Server Setup and Samba Server Setup.

  • Page 139: Lan Setup

    Quick Setup Instruction LAN Setup: Set up the IP Address for LAN and Group. If you are using the Router with multiple PCs on your LAN, you must connect the LAN via the Ethernet ports on the built-in Ethernet switch. You should also assign a unique IP address to each device residing on your LAN.
  • Page 140 The default IP address For Gateway IP Address, the IP address 192.168.1.xxx (xxx can be any number between 1 and 253 that is not used by another device.) Please don’t change the default LAN IP settings at this section until after you have completed the rest of the configurations and confirm that your Internet connection is working.

  • Page 141: Wireless Setup

    4.3.2 Wireless Setup There are 2 ways of hardware connection via Wired upper link and Wireless upper link. First step is to name your ESSID, and the default value is BT_Storage_Server. Please follow the illustrations below to proceed. Select AP/Bridge from the drop-down list. You can use the default ESSID unless more than one AP/Router is deployed in the same area.

  • Page 142: Time Server Setup

    Moreover, WDS (Wireless Distribution System) is a Wireless Access Point mode that enables wireless bridging in which WDS APs communicate with each other only (without allowing for wireless clients or stations to access them), and/or wireless repeating in which APs communicate both with each other and with wireless stations (at the expense of half the throughput), please input the other party’s MAC address into the WDS column.

  • Page 143: Folder Management Setup

    The password consists of a-z, A-Z, 0-9, underscore, and a single dot (.). For changing password, please fills the password information into blank fields, and then click Next. Notice 1: Only the password can be changed, the user name for administrator is “admin” and not to be changed.

  • Page 144: User Account Management Setup

    4.3.6 User Account Management Setup Personal users can use each individual application such as My Status, My Webcam, My Download and My Document etc. This section is to set the user’s right. Also, all users’ rights will be showed in User Account List and can be edited or deleted by clicking the meaning text.

  • Page 145: Ftp Server Setup

    4.3.7 FTP Server Setup NES Storage Server with BT can be the FTP Server providing users to transmit files, also for the guest to download the files from assigned website. Moreover, by connecting an IDE HDD to the router, user can easily set up a FTP Server to share or download files for local or remote users.

  • Page 146: Web Camera Server Setup

    If the printer is not connected, you can’t choose “Enable.” Enable the printer and click on Next button to next setup. Notice: After above Printer Server in Quick Setup finished, the related printing settings on Storage Server Router and PC have to be set up, too. Please refer to 4.5.5 Printer Server to set the details. 4.3.9 Web Camera Server Setup If you plan to use NES Storage Server with BT as a Web Camera site, just connect a...

  • Page 147: Samba Server Setup

    please check enable so that the detail setting can be managed as in 4.5.3 Download Server. Click on Back button to the previous page or Exit to quit the setup. Otherwise, click on Next button to next setup. 4.3.11 Samba Server Setup NES Storage Server with BT supports NetBIOS protocol, providing network neighbors to share file folders or printer.

  • Page 148: Ip Configuration

    To apply your new settings, please click on Finish button to reboot system automatically and go to the product’s diagram homepage. You may connect to Internet via wired or wireless at this moment according to above settings. IP Configuration This function allows you to add routing rules into NES Storage Server with BT. It doesn’t provide functions of WAN and DDNS in AP mode, though.
  • Page 149 IP Address: : : : The default value of LAN IP address is 192.168.1.254 for this router. IP Netmask: : : : Fill in Subnet Mask, normally it is 255.255.255.0. IP Gateway: : : : Fill in with the default gateway address. If you don’t know, please check your ISP.

  • Page 150: Wireless

    2. DNS: : : : This field indicates the IP address of DNS to provide to clients that request IP Address from DHCP Server, the default setting is the same with LAN IP address. 3. WIN N N N S: : : : Windows Internet Naming Service manages interaction of each PC on the Internet.
  • Page 151 Wireless: : : : Select AP/Bridge or WDS to allow or disallow the wireless operation. Wireless Mode: : : : This field indicates the 802.11g interface mode. 802.11G prevents the 802.11b clients from accessing the router. 802.11B/G allows both 802.11b and 802.11g clients to access the router. 802.11B will enable the network as an 802.11b wireless network.
  • Page 152 than one NES Storage Server with BT or access point is deployed in the same area. Under this situation, it is advised that you should use a different ESSID and radio channel for each of NES Storage Server with BT or access point in order to distinguish from each other.
  • Page 153 by anonymous. Not only your network bandwidth would be shared; but also transmitting data might be intercepted. Select Shared function and it can be taken effect.Encrypt Type – WEP: : : : There are two types of encrypt type can be selected, including WEP and WPA: WEP Encryption: Enabling WEP can protect your data from eavesdroppers.
  • Page 154 ASKII: The 8~63 ASCII characters can be entered, for example, “0123456789ABCD….” Radius with 802.x: Check this circle to enable Radius client function. WPA Rekey Timer: Allows for the session keys to be refreshed over time, minimizing the amount of data that is encrypted with the same session key.

  • Page 155: Server

    Server NES Storage Server with BT provides 5 server setups, including Samba Server, FTP Server, Download Server, Web Camera Server and Printer Server. 4.5.1 Samba Server By supporting NetBIOS Protocol, NES Storage Server with BT provides LAN users to share files or printer via My Network Places.
  • Page 156 Printer Model: : : : Printer model appears when connected. Apply & Cancel: : : : Click Apply to save or Cancel to clear settings. 1. How to Access File Sharing Directory Please follow the steps below. 【Step 1】 Go to Start and click My Computer. 【Step 2】...
  • Page 157 【Step 3】 A window pops up asking for user name and password. If log in as an administrator, please enter admin for both fields; otherwise, fill in with personal account and password. Click OK after finished. 【Step 4】 As the window below appears, login user has entered file sharing directory, and the folders underneath are all available for sharing locally.

  • Page 158: Ftp Server

    4.5.2 FTP Server By directly connecting IDE storage device, FTP server can be created with simple configuration. FTP Server utility allows both local and remote users to upload or download files, pictures or music files from the same storage device in most easy and timely fashion. It is also cost effective where users do not need to purchase a dedicated PC to set up a 24-hour FTP service.

  • Page 159: Download Server

    storage device plugged. Enable Anonymous to Login: Allow anonymous to log in after check on enable. Enable FTP Access from WAN: Allow FTP access from WAN side by checking on Enable for this item. FTP Server Port: Define the FTP command transfer service port. If you want to change this port number, also remember to change the service port setting of your FTP client.
  • Page 160 • BT Download BT file: Click “Browse…” to get the file from the storage location. Target Path: Create a saving directory under the default download folder (e.g. /test). Add: Click Add to start downloading. Clear: Click Clear to delete the previous setup. Show: The list shows total archive size and current download process, 4 files at most.
  • Page 161 Download/Upload Speed Limit: Enter your transmitting limit and click • FTP Download Set up the name and path for the appointed FTP download; however, downloading via HTTP protocol is not supported here. And the default saving location is under “/download” directory.

  • Page 162: Web Camera Server

    Take the download setting in the Schedule Name: Fill the name in the blank. Source URL: Fill in the blank which indicates the route of downloading website. Directory/Files: Choose to save Only Files or Included Sub-directories. Remote Login Account: Select to log in as Anonymous/Specific User. User Name: Fill the name in the blank if it’s required.
  • Page 163 router, it allows user to monitor their home or office from remote locations. Motion Detection function has also been built-in and allows user to use webcam to detect any movements in their houses or offices and send email alert with captured images. 4.5.4.1 Web Camera Server Basic Setup Enable Webcam Server: Allow using this function by checking on enable.
  • Page 164 4.5.4.2 Web Camera Server Advanced Configuration Click Record Setting, and the screen below appears. Enable save image: If you want to save the image from webcam, please check on enable. Save image interval: For saving image, you can set the save interval time, the default value is 5 seconds.
  • Page 166 4.5.4.3 Application for Web Camera 4.5.4.3.1 Web Camera Monitoring Application Monitor your home or take pictures with a Webcam via NES Storage Server with BT; one can set up the monitoring or recording of all images into the IDE HDD for reviewing. Often marketed as surveillance tools for home or office security;...
  • Page 167 【Step 2】 Enter the default value, admin, for both administrator’s name and password and log in the product’s main menu page. 【Step 3】 Click LAN under IP Config folder on the left side menu. Then set IP Address in the same subnet with upper-layer device, for example, 192.168.2.49;...
  • Page 168 【Step 4】 Click Remote Management under System Management directory and change HTTP Connection Port into 800. Click Apply to save the settings. 【Step 5】 Plug another internet wire into the WAN port and apply IP Release & Renew commands via command prompt window in order to obtain new IP address. Afterwards, open your web browser and fill in http://192.168.2.49:800/webcam.html into address field, so the...
  • Page 169 【Step 6】 After entering user name and password, the following monitor image shows up. 4.5.4.3.2 Web Camera Recording 4.5.4.3.2.1 Administrator Setup NES Storage Server with BT also can record the pictures from Webcam; only Administrator can activate the settings. Select Web Camera Server from main Menu and enable this function, click on Record Setting button for further setting.
  • Page 170 To set up the Webcam Advanced Configuration for each text box, the image from webcam will be recorded into your IDE HDD or Remote FTP. Click on Apply after setup finished. For administrator, you may view all the images from webcam recording, please select Folder Management and click on Disk Explorer to view entire folder inside the disk including webcam record files.
  • Page 171 After click on Disk Explorer, you will see the folder screen appear including all the folders inside NES Storage Server with BT. (Below is the example.) For getting the images from web camera or any files inside router, you may copy the files into your HDDs...
  • Page 172 4.5.4.3.2.2 Personal Application All the users under administrator’s setting can view webcam real-time images from My Webcam. Please log in with your own personal account. For viewing your own folder, please click “My Document”.

  • Page 173: Printer Server

    After click on My Document, you will see folder screen appear as the example below. You can store files here, too. Notice: If you can’t open the folder, please check with administrator to set up your FTP access right. 4.5.5 Printer Server Follow the illustrations below to set up your NES Storage Server with BT and USB-connected printer.
  • Page 174 Enable Printer Server: Check enable for applying printer server. Enable Printer Access From WAN: Allow printer access from WAN side by checking enable for this item. Printer Model: The printer model shows up while plugging a USB printer. Printer Name: Enter the preferred name of your printer. Printer Description: Enter the description of printer as your demand.
  • Page 175 【Step 2】 Click on Add a printer item. 【Step 3】 Click on Next button. 【Step 4】 Select Local printer attached to this computer, and click Next.
  • Page 176 【Step 5】 Select Create a new port and choose Standard TCP/IP Port from drop-down list, then click Next. 【Step 6】 Click Next.
  • Page 177 【Step 7】 Put in NES Storage Server with BT’s address: 192.168.1.254 and click Next. 【Step 8】 Select Custom and click on Settings… button to set the detail setting.
  • Page 178 【Step 9】 Select LPR and give it the same Queue Name as USB Printer Name has shown, and mark LPR Byte Counting Enabled. Finally, click on Next button. 【Step 10】 Click Finish on the next screen after the aforesaid settings, you have to install the printer driver as well.
  • Page 179 【Step 11】 Select the Manufacturer and Printers. If your printer is not listed in the table, please insert its driver CD and then click on Have Disk… button for installation. Or click on Next button to finish the setting. You can name your printer, set it as default printer and share your printer as the next screen shown, the Printer Server setting is getting completed.

  • Page 180: System Management

    System Management NES Storage Server with BT provides system management including password changing, firmware upgrade, time setting, user’s account setting and other detail settings. Following is detail explanation for each. 4.6.1 Reboot If you had entered the wrong configuration while setting up your router or other utilities, you can always reboot your NES Storage Server with BT by this setting.

  • Page 181: Change Password

    4.6.2 Change Password At this section, the administrator can change the system password. Only the password can be changed, the user name for administrator is admin and can’t be changed. Old Password: Enter the original password you set. New Password: Enter the new password you want to change. New Password (Confirm): Enter the new password again for confirming.

  • Page 182: Firmware Upgrade

    4.6.3 Firmware Upgrade There is certain risk while upgrading firmware. Upgrading firmware is not recommended unless the significant faulty is found. You can upgrade the firmware of NES Storage Server with BT on this page. Make sure the firmware you want to use is on the local hard drive of the computer.

  • Page 183: Profile Save

    4.6.4 Profile Save To back up the current configuration setting or load the backup data, also you can restor NES Storage Server with BT to default setting by this function. Save Settings To PC: Click on Save button for saving the configuration setting into assigned location.

  • Page 184: Remote Management

    4.6.5 Remote Management Remote Management allows NES Storage Server with BT to be configured from the Internet by a web browser. In general, only a member of your network can browse the built-in web pages to perform “Administrator” tasks. This feature enables you to perform the tasks from the remote (Internet) host.
  • Page 185 Description: Enter the description for the remote configuration. Add, Apply & Cancel: Click Add to add the remote list, and click Apply to activate, or Cancel to clear the settings on this page. Remote Management IP List: Display, edit or delete IDs, description and IP address of allowed remote list.

  • Page 186: Time

    4.6.6 Time The system automatically shows the local time and time on PC. You can set the date and time manually so that it can be adjusted on router accordingly. Local Time: The default time within. Set the Time: Select this item to set up time by manual, select the date and time from each drop-down list.

  • Page 187: User Account Management

    Enable/Disable UPnP: Select to enable or disable this service. Apply, Cancel: Click Apply to activate this function or Cancel to clear the setting. 4.6.8 User Account Management Personal users can use each individual application such as My Status, My Webcam, My Download and My Document etc.
  • Page 188 Max Login User: Set up the maximum users to log in at the same time, select the number from drop-down list. If you want to change the maximum login users only without changing user’s information, please click on OK button after select login...

  • Page 189: Folder Management

    user’s number. User Name: Create the user name in this blank. Password: Set up the user’s password. User Quota: Set up the storage space on server for each user. User Right: Check to allow the user accessing Samba folder, monitoring from webcam or using FTP server.

  • Page 191: Email Alert

    4.6.10 Email Alert To monitor router activity, you can run on a local PC or a remote one elsewhere on the Internet. And NES Storage Server with BT provides the e-mail alert facility so that the log messages can be packed as an e-mail for someone who wants to receive these messages by scheduled time.

  • Page 192: Log & Status

    Email Alert: Check the enable box to activate the email alert service. SMTP Server: Specify an IP address of the SMTP server which can send mails from your NES Storage Server with BT to the recipients’ mailboxes directly. Your Mail (from): Enter the email address indicated the sending location. SMTP Auth: If the email alert needs to be sent via SMTP authentication, please check this item, and then enter the required account and password.

  • Page 193: Network Configuration

    4.7.1 Network Configuration Network Configuration shows all connection status of LAN, Wireless and plugged USB devices.
  • Page 194 Each block shows configuration status, you may click Refresh to update the screen list.

  • Page 195: User Account List

    4.7.2 User Account List This section shows all users’ information. Check the user name, status and opened directory/file on screen. 4.7.3 Event Log NES Storage Server with BT provides system logs for review. The system status log shows logging time, type and detail information as below. Click Refresh to update.

  • Page 196: Logout

    Logout Click Logout on the bottom menu to exit and go back to GUI login home page. Personal Configuration Open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://192.168.1.254 (Default Gateway) into browser’s blank field. Notice: If the homepage doesn’t appear, please check whether the TCP/IP configuration is obtaining IP address automatically or not.
  • Page 197 Homepage Click Personal Panel and log in with your own user account. (If you can’t access your personal account, please check with administrator for validation.)
  • Page 198 Personal Panel Screen below shows every login user’s access rights, including Anonymous, My Document, My Download, My Album, My Blog, My Webcam and My Status. NES Storage Server with BT provides personal control panel for every login user’s entrance to each application screen, please click on each icon for application. The icons appear in gray color can’t be clicked if the user doesn’t have the right to use that function;...

  • Page 199: Anonymous

    4.9.1 Anonymous “Anonymous” shows all the files stored in IDE HDD by administrator and allows any login user to check the folder and copy files to the HD via Internet. The following is the detail description. Click Anonymous to access the shared folder created by administrator and freely download those files underneath to personal hard drives.

  • Page 200: My Document

    4.9.2 My Document “My Document” shows all the files in IDE HDD under each user’s account. Login user can also create the folder or copy files into the HD directly via Internet. The illustrated below is the detail description of folder inside. Click My Document and opens another web page to show all the files in your own folder.
  • Page 201 “My Download” provides users to add download schedule immediately or by appointed time. Downloaded data can be stored into FTP Anonymous folder, Samba folder or Personal folder respectively. The illustrated below is for your reference. Click My Download to open the setup page showing the required information and user’s download list.

  • Page 202: My Album

    8. Link Testing: Click on it for checking if above setting is no problem and make sure it’s connected normally. 9. Folder Name: Fill the name of the downloaded folder in the blank. If you want to overwrite the name you put in before, just check on this item. 10.
  • Page 203 Title description: Fill in to name your album. ™ Album count of perpage: Set the number of listed albums on every web page. ™ Row count of album: Set the number of listed albums on each row. ™ Column count of album: Set the number of listed albums on each column. ™...
  • Page 204 15. Click Disk on the top to select photos from your network disk folder, as the window shown below. For going back to the above, just click Previous. 16. After uploading files successfully, the photos will be displayed on personal album web page shown as below.
  • Page 205 Delete Photos: Check to select the photo you want to delete. ™ View: Check the photo first and then click to enlarge for better or detailed viewing. ™ • Click Home on the menu bar, the web page goes back to the main page of user’s album, as shown below.

  • Page 206: My Blog

    4.9.5 My Blog “My Blog” indicates personal blog site providing the wizard to help users easily and quickly set up their own blogs. Click My Blog to enter the main page as the example below. And follow the instructions to set up.
  • Page 207 Title: Fill in a subject. ™ Message: Write down your messages. ™ Reference URL: Fill in available URL addresses for any reference. ™ Image URL: Fill in available addresses for linking the images. After finishing the ™ above, click Apply to save the settings. •...

  • Page 208: My Webcam

    4.9.6 My Webcam “My Webcam” application allows you to view the real time image when the web camera is Click My Webcam, and the system pops up a new window to display real time image as the example below shows.

  • Page 209: My Status

    Notice: If you can’t view the real-time image, the cause may be the setting of Internet Security and needs to be adjusted, or to install the Java program 4.9.7 My Status “My Status” shows all the login information for your personal account. Click Main Menu on the left to go back main control panel and other applications.

  • Page 210: Site Map

    Notice: All above usage information is based on administrator’s setup. 4.10 Site Map NES Storage Server with BT provides site map clicking for each icon to carry out the SadoGO from the home page.

  • Page 211: Chapter 5 Client Mode

    Chapter 5 Client Mode 5.1 Administrator Quick Setup Manually switch into Client Mode via Operation Mode configuration, then open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter (Default Gateway) into browser’s blank field. Notice: If the homepage doesn’t appear, please check whether the TCP/IP configuration is obtaining IP address automatically or not.

  • Page 212: Operation Mode

    User Name and Password The default values for User Name and Password are admin (all in lowercase letters). Click Login to enter. Notice: Only the password can be changed, please read setup 5.3.4 Password Setup or 5.6.2 Change Password. In order to protect your own settings, it’s strongly recommended to change the password before you finish the Router Basic Setup.

  • Page 213: Quick Setup

    A message window will pop up for your confirmation to reboot the system. Click OK to continue. Quick Setup Configuration Manager Page consists of two separate frames. The left frame contains all the means available for device configuration. Menus are indicated by file icons, and...
  • Page 214 related menus are grouped into categories, such as LAN, WAN and etc., and indicated by folder icon, depending on whether the group of menus are expanded or not. You can click on any of these to display a specific configuration page. And the right frame is designed as a site map.

  • Page 216: Site Survey Setup

    5.3.1 Site Survey Setup Search for available wireless APs to access Internet. Click Rescan to show the information. Select the preferred AP for connection, for example, 3.5G_Mini_Server as the above, and click Next to continue.

  • Page 217: Wireless Setup

    5.3.2 Wireless Setup Display connected wireless AP information. After setup completed, click Next.

  • Page 218: Time Server Setup

    5.3.3 Time Server Setup NES Storage Server with BT shows local date and time; however, the time still can be changed manually by selecting from the drop-down list, which won’t effect the original time your PC. setting on After completed, click Next to proceed. 5.3.4 Password Setup Here suggests changing the password for logging into the configuration manager in terms...

  • Page 219: Folder Management Setup

    For changing password, please fills the password information into above blanks, and then click Next. Notice 1: Only the password can be changed, the user name for administrator is “admin” and not to be changed. Notice 2: If you forget administrator’s password, please reset NES Storage Server with BT to default setting by pressing the “Reset”...

  • Page 220: Ftp Server Setup

    users’ rights will be showed in User Account List and can be edited or deleted by clicking the meaning text. Please input the user name and the password. Click “Add,” you will see the information show in the “User Account List.” Take an instance of “test.”...

  • Page 221: Printer Server Setup

    If the internal HDD isn’t connected first, you won’t enable FTP Server. (Not even click on “Enable”) Set the FTP Server and related setting. Disable the function as demand, and click Next to continue. 5.3.8 Printer Server Setup NES Storage Server with BT supports LPR-protocol, as well as NetBIOS, and is convenient for sharing printer.

  • Page 222: Web Camera Server Setup

    5.3.9 Web Camera Server Setup If you plan to use NES Storage Server with BT as a Web Camera site, connect a supported USB Web Camera to the USB port of NES Storage Server with BT. Check both Enable webcam server and Access from WAN as Enable to activate. Click on Next button to next step.

  • Page 223: Samba Server Setup

    5.3.11 Samba Server Setup NES Storage Server with BT supports NetBIOS protocol, providing network neighbors to share file folders or printer. Click on Next button to next setup. 5.3.12 Quick Setup Finish The Quick Setup has been completed successfully when you see this screen. To apply your new settings, please click on Finish button to reboot system automatically and go to the product’s diagram homepage.

  • Page 224: Ip Configuration

    IP Configuration This function allows you to add routing rules into NES Storage Server with BT, including LAN and Site Survey. 5.4.1 Use this page to set up the local IP address and subnet mask for your router. Please select LAN under the IP Config menu and follow the instructions below to enter the LAN setting page to configure the settings you want.

  • Page 225: Site Survey

    DHCP Clients List: The list shows all clients’ IP and MAC addresses. 5.4.2 Site Survey Click Site Survey under IP Config directory.
  • Page 226 Link Mode: Select Infrastructure/Ad_hoc to enable wireless. RTS Threshold: This value should remain at its default setting of 2347. If you encounter inconsistent data flow, only minor modifications of the value range between 256 and 2347 are recommended Frag Threshold: To identify the maximum length of packet, the overflow packet length will be fragmentized.

  • Page 227: Server

    TKIP & AES PSK Key: The applied algorithm is like WPA. However, WPA-PSK is using a simple code to generate the key, and the key length is 64 characters of Hex (0~9, a~f and A~F). Apply & Cancel Click Apply to save or Cancel to clear the settings on this page. Server NES Storage Server with BT provides 5 server setups, including Samba Server, FTP Server, Download Server, Web Camera Server and Printer Server.

  • Page 228: Samba Server

    5.5.1 Samba Server By supporting NetBIOS Protocol, NES Storage Server with BT provides LAN users to share files or printer via My Network Places. Click Samba Server to proceed. 11. Enable Samba Server: Check to Enable/Disable while connecting. 12. Workgroup Name: Fill in the name, and the default is WORKGROUP. 13.
  • Page 229 5.5.1.1 How to Access File Sharing Directory Please follow the steps below. 【Step 1】 Go to Start and click My Computer. 【Step 2】 Fill in blank address field with \\10.64.64.64 【Step 3】 A window pops up asking for user name and password. If log in as an administrator, please enter admin for both fields;...

  • Page 230: Ftp Server

    【Step 4】 As the window below appears, login user has entered file sharing directory, and the folders underneath are all available for sharing locally. Note: Only 2 icons show up at most. If an IDE hard drive disk is connected and enabled, the samba folder shows up. If a USB printer is connected and enabled, the printer icon shows up.
  • Page 231 Only when storage device is plugged，FTP Server can be checked as enabled. Enable FTP Server: The Enable for FTP Server only can be selected when storage device plugged. Enable Anonymous to Login: Allow anonymous to login after check on enable. Enable FTP Access from WAN: Allow FTP access from WAN side by checking on Enable for this item.

  • Page 232: Download Server

    5.5.3 Download Server NES Storage Server with BT provides users accessing Internet to download BT/FTP files immediately or by schedule. Downloaded data is automatically saved under FTP Download directory. Administrator can manage both BT and FTP downloads via GUI, but common users are only authorized to access FTP download under Personal Panel. •...
  • Page 233 BT file: Click “Browse…” to get the file from the storage location. Target Path: Create a saving directory under the default download folder (e.g. /test). Add: Click Add to start downloading. Clear: Click Clear to delete the previous setup. Show: The list shows total archive size and current download process, 4 files at most.
  • Page 234 • FTP Download Set up the name and path for the appointed FTP download; however, downloading via HTTP protocol is not supported here. And the default saving location is under “/download” directory. Test if the link is on line. Schedule the download Schedule the download Schedule the download Schedule the download...

  • Page 235: Web Camera Server

    21. User Name: Fill the name in the blank if it’s required. 22. Password: Fill the password in the blank if it’s required. 23. Port: Input the port number of the server, default value is 21. 24. Link Testing: Click on it for checking if above setting is no problem and make sure it’s connected normally.
  • Page 236 Record Setting: Please see the detail advance setting in 5.5.4.2 Web Camera Server Advanced Configuration. Click Apply to continue or Cancel to clear the settings on 12. Apply & Cancel this page. Click Record Setting, and the screen below appears. Enable save image: If you want to save the image from webcam, please check on enable.
  • Page 237 1. 5.5.4.3 Application for Web Camera 甲 甲 甲 甲 、 、 、 、 5.5.4.3.1 Web Camera Monitoring Application Monitor your home or take pictures with a Webcam via NES Storage Server with BT; one can set up the monitoring or recording of all images into the IDE HDD for reviewing. Often marketed as surveillance tools for home or office security;...
  • Page 238 5.5.4.3.1.1 Web Camera Monitoring via WAN Connection Follow instructions below to set up WAN IP address. 【Step 1】 Click Network Configuration under the directory of Log & Status to check the selected wireless IP address, for example, 192.168.1.4 as below. 【Step 2】...
  • Page 239 【Step 3】 Click Virtual Server under the directory of NAT in Advance setup. Then check Enable and put 192.168.2.126 in Private IP field. Fill in 80 for both Private Port and Public Port, and then click Add. After completed, click Apply to save the setting.
  • Page 240 【Step 4】 Plug internet wire into the WAN port and connect to your PC. Then open your web browser and fill in http://192.168.2.126/webcam.html into address field, so the login webpage shows up as below. 【Step 5】 After entering user name and password, the following monitor image shows up.
  • Page 241 乙 乙 乙 乙 、 、 、 、 5.5.4.3.2 Web Camera Recording 5.5.4.3.2.1 Administrator Setup NES Storage Server with BT also can record the pictures from Webcam; only Administrator can activate the settings. Select Web Camera Server from main Menu and enable this function, click on Record Setting button for further setting.
  • Page 242 For administrator, you may view all the images from webcam recording, please select Folder Management and click on Disk Explorer to view entire folder inside the disk including webcam record files. After click on Disk Explorer, you will see the folder screen appear including all the folders inside NES Storage Server with BT.
  • Page 243 For getting the images from web camera or any files inside router, you may copy the files into your HDDs directly. addition, image files stored webcam_recorded_files folder, click to examine the content inside.
  • Page 244 5.5.4.3.2.2 Personal Application All the users under administrator’s setting can view entire webcam real-time images from My Webcam. Please log in with your own personal account. For viewing your own folder, please click “My Document”. After click on My Document, you will see folder screen appear as the example below. You can store files here, too.
  • Page 245 Notice: If you can’t open the folder, please check with administrator to set up your FTP access right.

  • Page 246: Printer Server

    2. 5.5.5 Printer Server Follow the illustrations below to set up your NES Storage Server with BT and USB-connected printer. 12. Enable Printer Server: Check enable for applying printer server. 13. Enable Printer Access From WAN: Allow printer can access from WAN side by checking enable for this item.
  • Page 247 follow the steps to set the detail LPR settings on your PC. (The example below is for Windows XP platform.) 【Step 1】 After setting USB printer on NES Storage Server with BT’s setup page, please go to Start > Printers and Faxes to add a printer. 【Step 2】...
  • Page 248 【Step 3】 Click on Next button. 【Step 4】 Select Local printer attached to this computer, and click Next.
  • Page 249 【Step 5】 Select Create a new port and choose Standard TCP/IP Port from drop-down list, then click Next. 【Step 6】 Click Next.
  • Page 250 【Step 7】 Put in NES Storage Server with BT’s address: 10.64.64.64 (as in Client Mode) and click Next. 【Step 8】 Select Custom and click on Settings… button to set the detail setting.
  • Page 251 【Step 9】 Select LPR and give it the same Queue Name as USB Printer Name has shown, and mark LPR Byte Counting Enabled. Finally, click on Next button. 【Step 10】 Click Finish on the next screen after the aforesaid settings, you have to install the printer driver as well.
  • Page 252 【Step 11】 Select the Manufacturer and Printers. If your printer is not listed in the table, please insert its driver CD and then click on Have Disk… button for installation. Or click on Next button to finish the setting. You can name your printer, set it as default printer and share your printer as the next screen shown, the Printer Server setting is getting completed.

  • Page 253: System Management

    System Management NES Storage Server with BT provides system management including password changing, firmware upgrade, time setting, user’s account setting and other detail settings. Following is detail explanation for each. 1. 5.6.1 Reboot If you had entered the wrong configuration while setting up your router or other utilities, you can always reboot your NES Storage Server with BT by this setting.

  • Page 254: Change Password

    2. 5.6.2 Change Password At this section, the administrator can change the system password. Only the password can be changed, the user name for administrator is admin and can’t be changed. 1. Old Password: Enter the original password you set. 2.

  • Page 255: Profile Save

    Update Firmware: Click Browse to browse the local hard drive and locate the firmware used for update. OK & Cancel: Click OK to confirm or Cancel to clear the setting on this page. Notice: Before using a whole new disk, please format it on your PC first, so that it can be formatted on Storage Server Router.

  • Page 256: Remote Management

    Save Settings To PC: Click on Save button for saving the configuration setting into assigned location. Load Settings From PC: Click on “Browse…” button for searching the saving configuration from hard drive, and then click on Load button to load all the settings into the router.
  • Page 257 the remote (Internet) host. 1. HTTP Connection Port: The port number used to access the router. 2. Remote Management: You can allow any Internet IP address to access the router, or set up deny rule according to IP setting. 3. IP Address: Internet IP address of the computer that has access to the router. 4.

  • Page 258: Time

    6. 5.6.6 Time The system automatically shows the local time and time on PC. You can set the time and date manually so that it can be adjusted on router accordingly. 1. Local Time: The default time within. 2. Set the Time: Select this item to set up time by manual, select the date and time from each drop-down list.

  • Page 259: Upnp Setting

    5.6.7 UPnP Setting UPnP (Universal Plug and Play) allows all devices on the network to connect by node-to-node via TCP/IP protocol. 1. Enable/Disable UPnP: Select to enable or disable this service. 2. Apply, Cancel: Click Apply to activate this function or Cancel to clear the setting. 5.6.8 User Account Management Personal users can use each individual application such as My Status, My Webcam, My...
  • Page 260 Max Login User: Set up the maximum users to log in at the same time, select the number from drop-down list. If you want to change the maximum login users only without changing user’s information, please click on OK button after select login user’s number.

  • Page 261: Folder Management

    User Name: Create the user name in this blank. Password: Set up the user’s password. User Quota: Set up the storage space on server for each user. User Right: Check to allow set-user accessing Samba folder, monitoring from webcam or using FTP server. Activated: Click On to allow the user’s right to be applied immediately.

  • Page 262: Email Alert

    5.6.10 Email Alert To monitor router activity, you can run on a local PC or a remote one elsewhere on the Internet. And NES Storage Server with BT provides the email alert facility so that the log messages can be packed as an e-mail for someone who wants to receive these messages by scheduled time.
  • Page 263 1. Email Alert: Check the enable box to activate the email alert service. 2. SMTP Server: Specify an IP address of the SMTP server which can send mails from your NES Storage Server with BT to the recipients’ mailboxes directly. 3.

  • Page 264: Log & Status

    10. Email Alert List: Display, edit or delete a list of relative information in regarding to the above mentioned. 11. Refresh & Delete: Click on Refresh to renew the login data and other system status information, or click on Delete to clear these logs. Log &...

  • Page 265: User Account List

    2. 5.7.2 User Account List This section shows all users’ information. Check the user name, status and opened directory/file on screen. 3. 5.7.3 Event Log NES Storage Server with BT provides system logs for review. The system status log shows logging time, type and detail information as below. Click Refresh to update.

  • Page 266: Logout

    Logout Click Logout on the bottom menu to exit and go back to login home page. Personal Configuration Open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://10.64.64.64 (Default Gateway) into browser’s blank field. Notice: If the homepage doesn’t appear, please check whether the TCP/IP configuration is obtaining IP address automatically or not.
  • Page 267 Homepage Click Personal Panel and log in with your own user account. (If you can’t access your personal account, please check with administrator for validation.)
  • Page 268 Personal Panel Screen below shows every login user’s access rights, including Anonymous, My Document, My Download, My Album, My Blog, My Webcam and My Status. NES Storage Server with BT provides personal control panel for every login user’s entrance to each application screen, please click on each icon for application.

  • Page 269: Anonymous

    1. 5.9.1 Anonymous “Anonymous” shows all the files stored in IDE HDD by administrator and allows any login user to check the folder and copy files to the HD via Internet. The following is the detail description. Click Anonymous to access the shared folder created by administrator and freely download those files underneath to personal hard drives.

  • Page 270: My Document

    2. 5.9.2 My Document “My Document” shows all the files in IDE HDD under each user’s account. Login user can also create the folder or copy files into the HD directly via Internet. The illustrated below is the detail description of folder inside. Click My Document and opens another web page to show all the files in your own folder.
  • Page 271 time. Downloaded data can be stored into FTP Anonymous folder, Samba folder or Personal folder respectively. The illustrated below is for your reference. Click My Download to open the setup page showing the required information and user’s download list. Schedule Name: Fill the name in the blank. Source URL: Fill in the blank which indicates the route of downloading website.

  • Page 272: My Album

    make sure it’s connected normally. Folder Name: Fill the name of the downloaded folder in the blank. If you want to overwrite the name you put in before, just check on this item. Schedule Time: Select time to arrange the download schedule, and default setting is Immediately.
  • Page 273 Title description: Fill in to name your album. ™ Album count of perpage: Set the number of listed albums on every web page. ™ Row count of album: Set the number of listed albums on each row. ™ Column count of album: Set the number of listed albums on each column. ™...
  • Page 274 Click Disk on the top to select photos from your network disk folder, as the window shown below. For going back to the above, just click Previous.
  • Page 275 After uploading files successfully, the photos will be displayed on personal album web page shown as below. Delete Photos: Check to select the photo you want to delete. ™ View: Check the photo first and then click to enlarge for better or detailed viewing. ™...

  • Page 276: My Blog

    5. 5.9.5 My Blog “My Blog” indicates personal blog site providing the wizard to help users easily and quickly set up their own blogs. Click My Blog to enter the main page as the example below. And follow the instructions to set up.
  • Page 277 Title: Fill in a subject. ™ Message: Write down your messages. ™ Reference URL: Fill in available URL addresses for any reference. ™ Image URL: Fill in available addresses for linking the images. After finishing the ™ above, click Apply to save the settings. •...

  • Page 278: My Webcam

    6. 5.9.6 My Webcam “My Webcam” application allows you to view the real time image when the web camera is Click My Webcam, and the system pops up a new window to display real time image as the example below shows.

  • Page 279: My Status

    Notice: If you can’t view the real-time image, the cause may be the setting of Internet Security and needs to be adjusted, or to install the Java program 7. 5.9.7 My Status “My Status” shows all the login information for your personal account. Click Main Menu on the left to go back main control panel and other applications.

  • Page 280: Site Map

    Notice: All above usage information is based on administrator’s setup. 22. Site Map NES Storage Server with BT provides site map clicking for each icon to carry out the SadoGO from the home page.

  • Page 281: Chapter 6 Ddns Service Application

    Chapter DDNS Service Application DDNS is a service changes the dynamic IP to the static IP. The settings of DDNS can solve the problem of being given the different IP by router every time. After setting the Router, your host name would correspond to your dynamic IP. Moreover, via the host name application, it could be easier for you to use FTP, Webcam and Printer remotely.
  • Page 282 【Step 2】 Fill in the form as required, and then click on Create Account button.
  • Page 283 【Step 3】 When you got this account created message, close it, and check your mailbox. You would get a mail from DynDNS website. 【Step 4】 Click on the indicated address within your mail to confirm. https://www.dyndns.org/account/confirm/wRf7xNbusv8rsSUqt6-USw...
  • Page 284 【Step 5】 Click on login. 【Step 6】 Click My Services after logging in.
  • Page 285 【Step 7】 Click Add New Hostname. 【Step 8】 Please click on “Add Dynamic DNS Host.”...
  • Page 286 【Step 9】 1. Please input all the columns in【Step 2】. 2. Please choose the item as what you need. 3. Then click on “Add Host” 【Step 10】 Your hostname has been created when you see the following page.

  • Page 287: Chapter 7 Q & A

    Chapter 7 Q & A 7.1 Installation 1. Q: Where is the XDSL Router installed on the network? A: In a typical environment, the Router is installed between the XDSL line and the LAN. Plug the XDSL Router into the XDSL line on the wall and Ethernet port on the Hub (switch or computer).

  • Page 288: Ip Address

    3. Q: Why does NES Storage Server with BT shut down unexpectedly? A: Re-plug your power adapter. Then, check the STATUS indicator; if it is off, the internal flash memory is damaged. For more help, please contact with your provider. 7.3 IP Address 1.
  • Page 289 Protocol(TCP/IP)＞ select obtain IP address automatically＞ Click on OK button. Then, open Internet browser for testing. If you still can’t go online, please test something else below. 13. Verify network configuration by ensuring that there are no duplicate IP addresses. 14.

  • Page 290: Nes Storage Server With Bt Setup

    1. Click on Tools > Internet Options > Connections tab. 2. Select never dial a connection, click on Apply button, and then click on OK button. 3. Click on Tools and then click on Internet Options. 4. Click on Connections and then click on LAN Settings. 5.
  • Page 291 2. Q: Why can’t my USB devices and LAN ports work properly after setting the DHCP? A: There are two rules over here. Rule1: After connecting USB devices, please reboot your Router. Rule2: Before finishing the DHCP setup, please don’t connect any computer to LAN ports, because the conflict of having the same IP may occur and cause some computers a lot of trouble.

  • Page 292: Wireless Lan

    4. Q: Why is that I can ping to outside hosts, but cannot access Internet websites? A: Check the DNS server settings on your PC. You should get the DNS servers settings from your ISP. If your PC is running a DHCP client, remove any DNS IP address setting.
  • Page 293 from working correctly with another vendor's products. So pay attention to detail is going to be the key to a successful installation.
  • Page 294 Next make sure the router and the NIC are configured to use the same communications channel. There are normally 11 of them, and the default channel can also vary from vendor to vendor. You might also want to confirm that the router has DHCP services enabled and an address pool configured. If not, the NIC won't be able to pick up an IP address.
  • Page 295 3. Q: Wireless connection speed is very slow. A: The wireless system will connect at highest possible speed, depending on the distance and the environment. To obtain the highest possible connection speed, you can experiment with following: Access Point location: Try adjusting the location and orientation of the Access Point.

  • Page 296: Samba Server

    default IP Address of 192.168.1.254. Also, the Network Mask should be set to 255.255.255.0 to match the Wireless Router. In Windows, you can check these settings by using Control Panel ~ Network to check the Properties for the TCP/IP protocol. 6.
  • Page 297 2. Q: How to remove or revise the files on FTP server? If there is any file needing to be revised, here suggests downloading the file to the HDD of PC and modifying it locally. Then upload to FTP server again after revised.

  • Page 298: Webcam Server

    6. 7.9 Webcam Server 1. Q: I cannot view Webcam’s video screen from WAN. Please follow the steps below. 1. Step1. Open Internet browser and enter http://192.168.1.1 in the address field. 2. Step2. Enter admin in both "User Name" and "Password" fields. Then, click on Login button.

  • Page 299: Printer Server

    A: Besides making sure to enable the USB Webcam Access from WAN, the Remote Management should be enabled as well, so that the image of USB Webcam could be seen from WAN. 7.10 Printer Server 1. Q: Why can’t my printer work? A: For more details, please refer to Chapter 3.5.5 Print Server in the USB Application.

  • Page 300: Others

    4. Q: Is the Router cross-platform compatible? A: Any platform that supports Ethernet and TCP/IP is compatible with the Router. 7.12 Others 1. Q: Why can’t I receive corrupted FTP downloads? A: If you are experiencing corrupted files when you download a file with your FTP client, try using another FTP program.

  • Page 301: Chapter 8 Appendices

    Chapter 8 Appendices NES Storage Server with BT supports the listed USB devices as follows. 11. 8.1 Printer NES Storage Server with BT supports LPR protocol, while the printer drivers can be installed on Windows 98/2000/XP platforms, the connected printer works for the unit as well.
  • Page 302 alternate version) Creative Labs WebCam 3 OV511 Creative Labs WebCam 5 (PID=400c) SAA8116HL WebCam Plus (Model Creative Labs OV511+ CT6840) WebCam Plus ("WebCam Creative Labs OV518 Mini"; model PD0040) WebCam (model Creative Labs OV511+ PD1030) Creative Labs Webcam Pro Ex OV511 D-Link DSB-C100...
  • Page 303 MediaForte PC Vision 300 OV511 Mustek WCam 3X OV511 Mtekvision Zeca MV402 OV511+ OmniVision OV7110 Eval Board OV511 OmniVision OV511+/OV7120 Eval Board OV511+ OmniVision OV511+/OV7620 Eval Board OV511+ Pretec PCC-600 OV511 Prochips PCA-3100 OV511+ Puretek PT-6007 OV511 Philips PCVC675K "Vesta" SAA8115HL Philips PCVC680K "Vesta Pro"...
  • Page 304 MPixels Aiptek Mini PenCam 2M spca504b Aiptek PenCam SD 2M spca504b Aiptek Pocket DV3100 spca533a Aiptek Pocket DV3500 spca536a Aiptek Pocket DV5100 spca536a Aiptek Pocket DV5300 spca536a Aiptek PocketCam 2M spca504b Aiptek PocketCam 3M spca504b Aiptek PocketCam 4M spca533 Aiptek Slim3200 spca533a Aiptek/Sunplus...
  • Page 305 Digital Dream Enigma 1.3 spca504b Digital Dream Epsilon 1.3 spca533a Generic Generic vimicro 303b Generic Generic Zc0305b Genius Dsc-1.3M Smart spca504b-P3 Genius Eye 310 Genius Genius eye 311Q sn9c120 Genius Look 1320 Genius Look 313 Media Genius Look 316 Genius Look 320S Genius Slim 310NB...

  • Page 306: Usb Devices

    Logitech QuickCam IM+Sound zc030x Logitech QuickCam tor Notebook zc030x Megapix Megapix V4 spca533a Mercury Cyberpix S550V Mercury Peripherals Inc. MercuryDigital Mercury Digital Pro 3.1 Mp spca533 Micro Innovation WebCam320 zc030x Mustek DV 3000 spca533a Mustek DV4000 spca536a Mustek Gsmart D30 spca533a Mustek Gsmart LCD2...

  • Page 307: Operating Systems

    Shuttle SFD-0128 Apacer HandyDrive 勁永 I-Ststick 32MB Apacer Handy Steno 64MB USB 1.1 ASUS AI-flash 2 64MB ASUS 32MB GENUINE 32MB NEXS SD Card Transcend JetFlash 128 MB USB 2.0 SanDisk Curzer Mini Flash 256MB USB 2.0 Cool Drive(U339) 128 MB USB 2.0 KingMax 128MB...

  • Page 308: Sadogo

    Safari ver. 2.0.4 or higher version SadoGO MicroSoft: Windows 2000, XP, Vista Communications Regulation Information Should any consumers need to learn more information, services and supports, please contact the supplier of your product directly.
