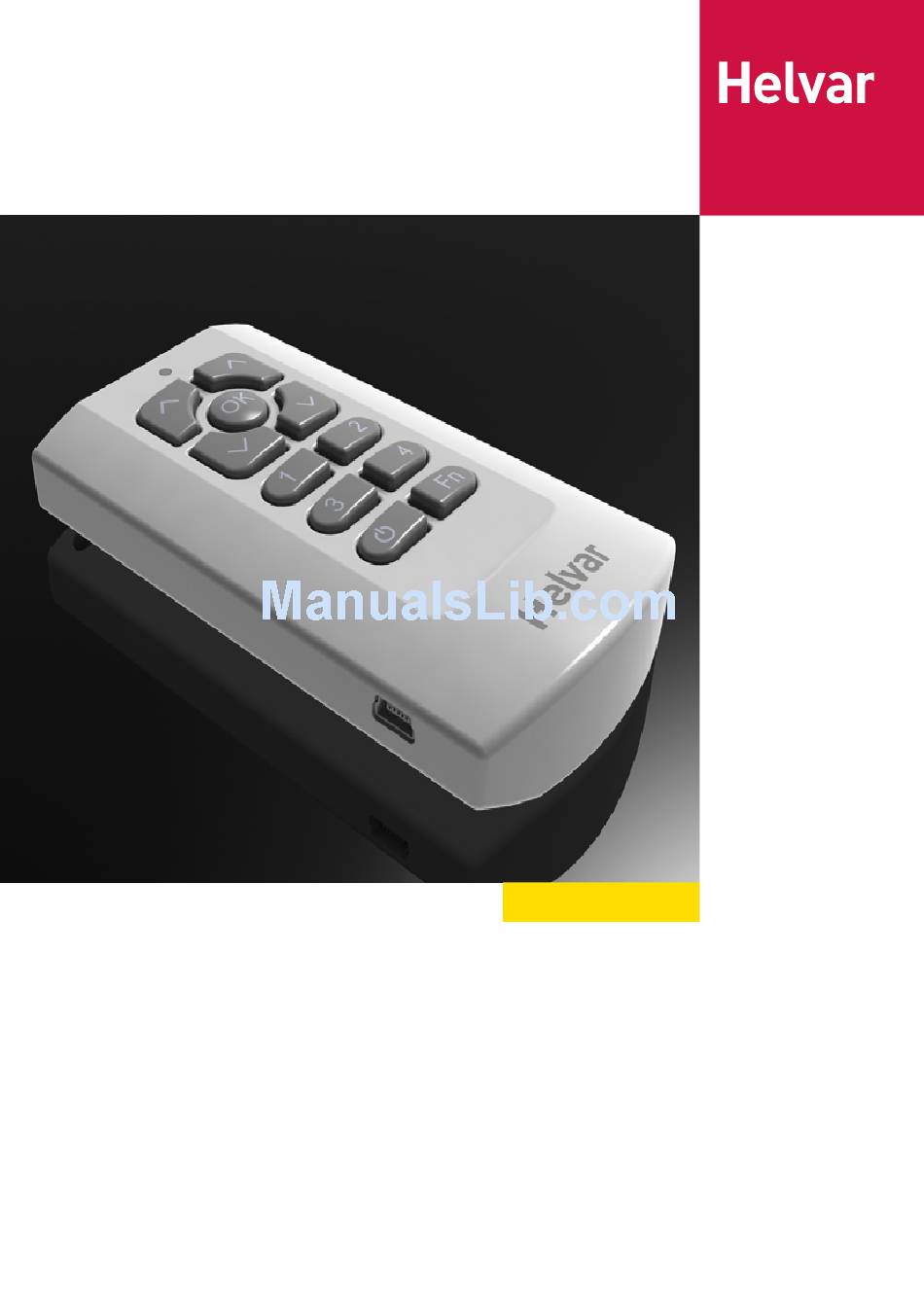

- Page 1 efficiency • intelligence • ease-of-use iDim Remote Control (304) User Manual P e o p l e | I n n o v a t i o n s | S o l u t i o n s...
-
Page 2: Technical Specifications
2 x No 6 - ¾“ (3.5 mm x 20 mm) pan pozi head screws Conformity & Standards EMC: Emission: EN 6100-6-3 EMC: Immunity: EN 6100-6-1 Safety: EN 60 950 Environment Complies with WEEE and RoHS directives Helvar iDim Remote Control (304) User Manual... - Page 3 iDim Add / Remove Batteries To add or remove batteries: 1. Unclip the battery cover on the reverse of the remote. 2. Add batteries, observing correct polarity and replace cover. Batteries not required if running iDim Remote Control through a PC via USB cable. Note: Assemble iDim Remote Cradle for Desktop Use To assemble the iDim Remote Cradle for desktop use:...
- Page 4 PC if you want to set advanced configuration settings via your PC. The remote will work without iDim Studio. Note 2: To download iDim Studio please visit www.helvar.com To connect the iDim Remote to your PC: 1. Attach Mini USB connector to iDim remote.
- Page 5 iDim Modify Light Levels using iDim Remote When modifying the constant light target levels for your system, please ensure that the process is done in a darkened room or during dusk as excessive natural light may result in levels being recorded by the sensor that are not actually achievable. Table 1: Default DALI 1 and DALI 2 Constant Light, Fixed Light and Offset configuration for the six default iDim modes.
- Page 6 The iDim Remote LED should flash green when scene recall is called. communicating with a PC the iDim Remote LED flashes red. Do NOT disconnect during this time. Helvar iDim Remote Control (304) User Manual...
-
Page 7: Reset Mode
iDim Special Functions using iDim Remote (cont.) Start/Stop 100 hour Burn-In Mode IDim Sense LED flash feedback To start or stop Burn-In mode: 1. Ensure the iDim Remote is in special function mode. 2. Point the remote at a controller. 3. - Page 8 Transfer settings to iDim Sense using iDim Remote 625 ms To transfer settings to iDim Sense using iDim Remote: Point the remote at a controller. Press OK and Fn key at same time. Helvar iDim Remote Control (304) User Manual...
- Page 9 iDim iDim Sense LED Flash Feedback Two LEDs, red and green, in the iDim Sense flash to provide visual feedback, for various states and operations. Function LED flash feedback Mode unmodified User defined mode selected* (default mode) Mode 1 Selected (Classroom mode) Mode 2 Selected (Single Office mode)
- Page 10 Hawley Mill Hawley Road Dartford, Kent DA2 7SY United Kingdom Tel: +44 (0)1322 222211 Fax: +44 (0)1322 282216 www.helvar.com Data subject to change without notice Helvar iDim Remote Control (304) User Manual...
