SmarTrunk ST-1000D Service Manual

Uhf fm compact digital transceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ST-1000D
UHF FM COMPACT DIGITAL
TRANSCEIVER
SERVICE MANUAL
SmarTrunk Systems, INC.
ST-1000D SM R1.1B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-1000D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SmarTrunk ST-1000D

Summary of Contents for SmarTrunk ST-1000D

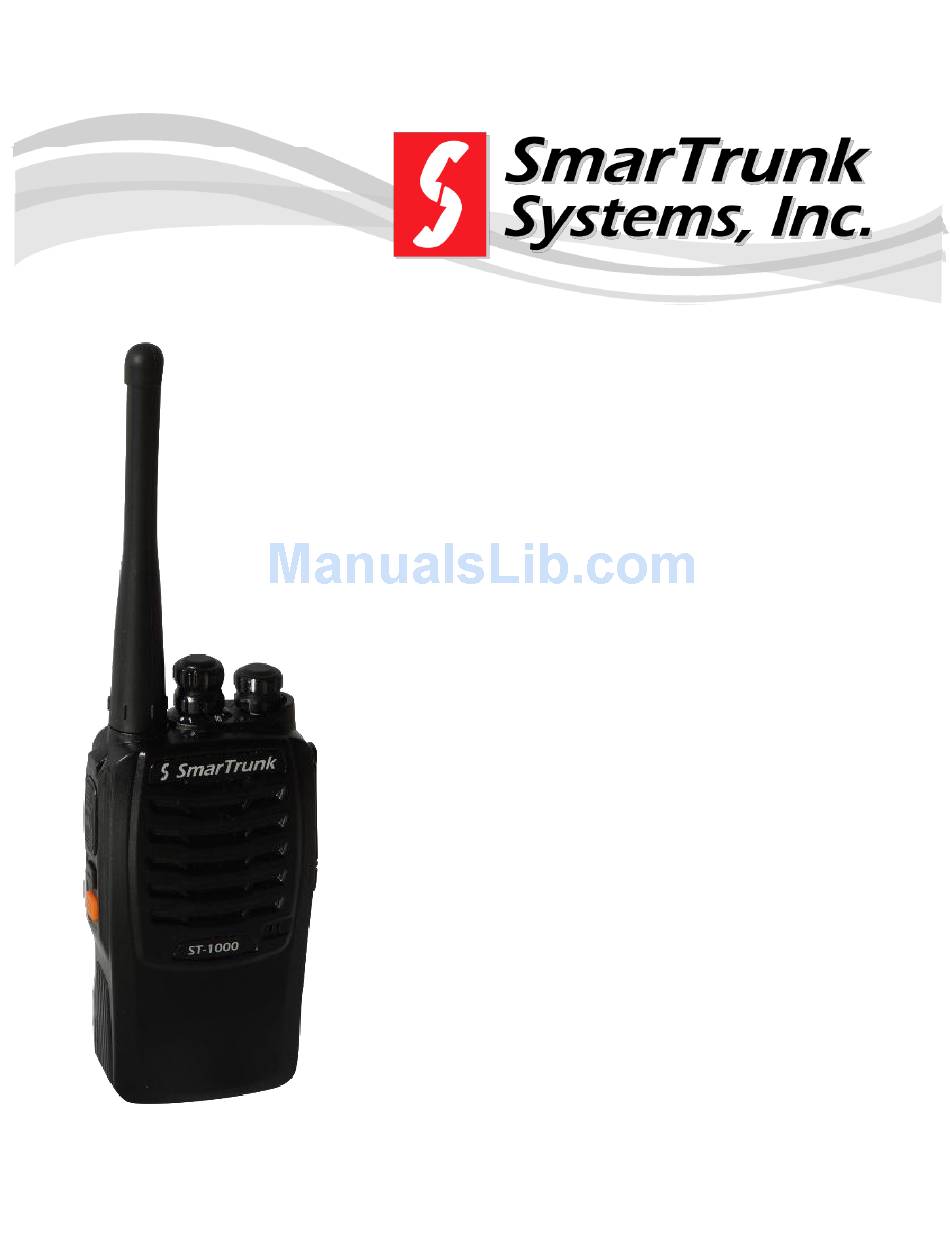

  • Page 1 ST-1000D UHF FM COMPACT DIGITAL TRANSCEIVER SERVICE MANUAL SmarTrunk Systems, INC. ST-1000D SM R1.1B...

  • Page 2: Table Of Contents

    COMPLIMENTARY USER ALIGNMENT..................13 6.1. OPTION ALIGNMENT: ......................13 6.1.1. SQUELCH LEVEL: ........................ 13 6.1.2. ANNUNCIATION ........................ 13 6.1.3. Tones ..........................14 6.1.4. Voice activated transmission ..................... 14 6.1.4.1. VOX sensitivity level ...................... 14 ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.
  • Page 3 6.1.6. Microphone sensitivity ...................... 15 ST-1000D SCHEMATIC ....................... 17 ST-1000D COMPONENT LOCATOR ....................18 11.1 ST-1000D TOP LAYER COMPONENTS LOCATION ............... 18 11.2 ST-1000D BOTTOM LAYER COMPONENTS LOCATION ............... 19 ST-1000D PCB LAYOUT ........................20 12.1 ST-1000D TOP LAYER PCB LAYOUT .................... 20 12.2...

  • Page 4: Specifications

    0.3uV (5% BER) Image rejection 60dB typ Adjacent Channel selectivity 60dB typ @25KHz BW HUM and NOISE ratio 40dB Speaker Audio Power External audio power Specifications subject to change without notice or obligation ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.
  • Page 5 ST-1000 EXPLODED VIEW...

  • Page 6: St-1000 Simplified Diagram

    ST-1000 SIMPLIFIED DIAGRAM TX CTRL [U3] Power Final Buffer Ant Sw Driver Detection D1/D4 Radio CLOCK POWER [Y2] CTRL [U3] AUDIO [U9] Main Processor [U8] [U11] FLASH MEMORY [U4] MEMORY [U7] SIDE SERIAL KEYS PORT...
  • Page 7 Notes:...

  • Page 8: St-1000 Rf Description

    (U1) as the result of the analysis of the signal and the noise of the carrier. The output is sent to 4.2.1. Front-end RF Receiver the main processor as a digital frame, which is analyzed by radio ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 9: Virtual Volume Control

    If the received signaling matches then applies filter it, adjust the the channel programming, then volume and fed it to the audio the main processor (U8) opens the power amplifier (U10) through one audio patch. ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 10: Transmitter System

    The transmit signal then passes clock generator and U1 with a through the antenna switch D1 corresponding balance controlled (BAR88) and is low-pass filtered to by software. suppress harmonic spurious radiation before delivery to the antenna. ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 11: Automatic Transmit Power Control

    DAC output on same processor (U8) then amplified (MCP6241U) controlling the gate current on Q1 and Q17. Notes: ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 12: Rc-1000 Alignment

    As the core of the radio is firmware only, all processes are the result of internal feed-back where alignment by user is not required. ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 13: Complimentary User Alignment

    Options screen is popped up: 6.1.2. ANNUNCIATION You can enable or disable voice annunciation. To enable it, please check the Voice into Options alignment screen: From this screen the user can adjust some parameters as: ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 14: Tones

    To activate this feature, please VOX feature when the radio is check the VOX-Enabled Box. receiving voice. To enable this feature, check the Vox Inhibit On Receive box: ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 15: Vox Delay

    VOX services in the radios, the first words cannot be transmitted because the voice detection and the transmit power warm-up takes time, losing part of the message. SmarTrunk VOX delay can be activated to avoid this issue. When active Vox Delay service, the radio recording...
  • Page 16 Press OK to store your changes into the radio file. The information will be updated to the radio once you transfer the file. ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 17: St-1000D Schematic

    7. ST-1000D SCHEMATIC PTUN LCB1608-600 TX5V References: Pink components not loaded on ST-1000 TX5V PCTRL IRQR BEAD 150pF BEAD 10nF 10nF .82uH 100nF 150pF 27nH AVDD1 RSCK 150pF 150pF 10nF AVDD6 RDIO 10nF 27nH MOSI PABIAS 27nH 150pF AVDD2 AVDD5...

  • Page 18: St-1000D Component Locator

    11 ST-1000D COMPONENT LOCATOR 11.1 ST-1000D TOP LAYER COMPONENTS LOCATION...

  • Page 19: St-1000D Bottom Layer Components Location

    11.2 ST-1000D BOTTOM LAYER COMPONENTS LOCATION ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 20: St-1000D Pcb Layout

    12 ST-1000D PCB LAYOUT 12.1 ST-1000D TOP LAYER PCB LAYOUT ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 21: St-1000 Bottom Layer Pcb Layout

    12.2 ST-1000 BOTTOM LAYER PCB LAYOUT ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 22: St-1000D Pcb Ground Layer

    12.3 ST-1000D PCB GROUND LAYER ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 23: St-1000D Pcb Power Layer

    12.4 ST-1000D PCB POWER LAYER ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 24: St-1000D Bom

    13 ST-1000D BOM ST-1000D BOM VERSION 1 ITEM DESCRIPTION NAME VALUE RANGER PN MAIN P.C.B. EPT100010A CAP CERAMIC 0.5PF 50V C0G 0402 .5pF CK1059AK1A CAP CERAMIC 0.5PF 50V C0G 0402 .5pF CK1059AK1A CAP CERAMIC 100PF 50V NP0 0402 C150 100pF...
  • Page 25 CAP CERAMIC .01UF 50V X7R 0402 C115 10nF CK5103AK5X CAP CERAMIC .01UF 50V X7R 0402 C117 10nF CK5103AK5X CHIP/C 0.22UF 10WV J X5R 0402 C125 220nF CK0224AK5T CAP CERAMIC .01UF 50V X7R 0402 C126 10nF CK5103AK5X ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.
  • Page 26 CAP CER 1.0UF 6.3V X5R 20% 0402 C182 CK6105AK6T CAP CER 1.0UF 6.3V X5R 20% 0402 C183 CK6105AK6T CAP CER 1.0UF 6.3V X5R 20% 0402 C209 CK6105AK6T CAP CER 10UF 6.3V X5R 20% 0603 C120 10uF CK6106AD6T ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.
  • Page 27 RES 1.0K OHM 1/16W 5% 0402 SMD RCY041024Z RES 1.0K OHM 1/16W 5% 0402 SMD RCY041024Z RES 1.0K OHM 1/16W 5% 0402 SMD RCY041024Z RES 1.0K OHM 1/16W 5% 0402 SMD RCY041024Z RES 1.0K OHM 1/16W 5% 0402 SMD ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.
  • Page 28 RCY042224Z RES 2.2K OHM 1/16W 5% 0402 SMD RCY042224Z RES 2.2K OHM 1/16W 5% 0402 SMD R105 RCY042234Z RES 22K OHM 1/16W 5% 0402 SMD RCY042234Z RES 22K OHM 1/16W 5% 0402 SMD ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.
  • Page 29 INDUCTOR YCMCI1533D INDUCTOR 15nH YCMCI2733D INDUCTOR 27nH YCMCI2733D INDUCTOR 27nH YCMCI8243D INDUCTOR .82uH YCSPG18424 SPRING COIL 27nH YCSPG18426 SPRING COIL 13nH YCSPG18426 SPRING COIL 13nH YCSPG18426 SPRING COIL 13nH YCSPG18426 SPRING COIL 13nH ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 30: St-1000D Mechanical Bom

    150K RCY041544Z CHIP/F/R 150K OHM 1/16W 0402 CK5103AK5X CAP CER 10000PF 16V 10% X7R 0402 C143 IC MCU 32BIT 512KB FLASH 64LQFP ATSAM4S8BA YNATSAM04S 14 ST-1000D MECHANICAL BOM ST-1000D BOM (MECHANICAL) LOCATION DESCRIPTION VALUE SMARTRUNK PN ROTARY SELECTOR ROTARY EWRT32010S...
  • Page 31 SET SCREW M3X0.5PX6 BLACK JS052206MB MAIN CHASSIS SET SCREW M3X0.5PX8 JS052308MN MAIN PCB SET SCREW M2X0.5PX4 JS052103MN AC ADAPTOR ETSGS2U009 ANTENNA EX10N41858 MIC RUBBER CAP QL1000071A MAIN CHASSIS INSULATING PLATE (BLACK) XZZZZ1000C HEAT CONDUCTOR 8mmX5mmX2.5tmm QL1000A10A ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 32: Accessory Port

    Rx Data (to the radio) Ring Mic + (from the radio) 2.5mm Plug Speaker – PTT Sleeve Data GND Ring TX Data (from the radio) Speaker + Connect Sleeve to Sleeve for PTT ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.
  • Page 33 ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.

  • Page 34: St-1000D Service Manual Revisions

    16 ST-1000D SERVICE MANUAL REVISIONS AUTHOR RELEASE DATE REMARKS DANIEL MARTIN AUG-2014 INITIAL RELEASE VERSION DANIEL MARTIN NOV-14 SCHEMATIC UPDATED ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.
  • Page 35 Copyright 2014 Printed in Malaysia www.smartrunk.com ST-1000D SM R1.1 ST-1000D SM R 1.1B SMARTRUNK SYSTEMS, INC.
