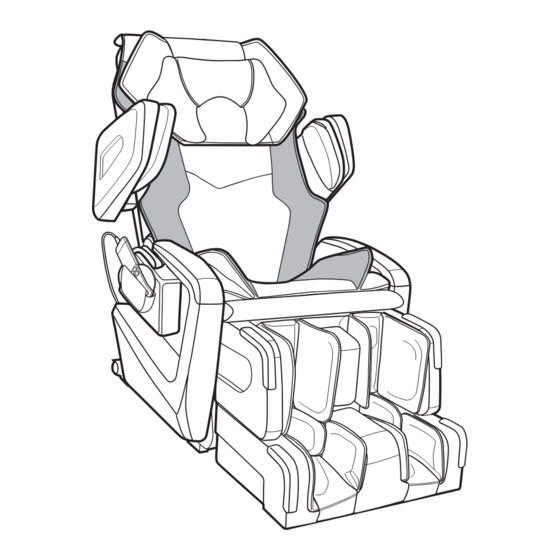

Inada Chair HCP-9101A Operating Instructions Manual

Hide thumbs

Table of Contents

Quick Links

Thank you for purchasing the Inada Chair AAA.

You can enjoy various types of massage for relieving or soothing fatigue.

We hope the Inada Chair AAA will be a valued partner in your daily

health preservation for many years to come.

Please read this Operating Manual before use.

●

Keep this Operating Manual nearby so that you can refer to it anytime.

●

This product is designed for home use.

●

HCP-9101A

CONTENTS

SAFETY PRECAUTIONS ·················· 1

MAIN FEATURES ······························ 4

COMPONENTS & DESCRIPTION ·· 5

BEFORE USE ······································ 7

POSITION ADJUSTMENT ············· 11

AFTER USE ······································· 16

PROGRAMS & SELECTION ·········· 17

PRESET PROGRAMS ······················ 19

MANUAL SELECTION ··················· 21

TROUBLESHOOTING ····················25

REGULAR MAINTENANCE

FOR SAFETY

FAQ ····················································27

CARE AND STORAGE ····················29

CUSTOMER SERVICE AND

WARRANTY

SPECIFICATIONS ··········Back Cover

Operating Manual

Warranty card provided separately

··········26

···········30

Table of Contents

Need help?

Do you have a question about the HCP-9101A and is the answer not in the manual?

Questions and answers

Summary of Contents for Inada Chair HCP-9101A

Page 1: Table Of Contents
Thank you for purchasing the Inada Chair AAA. You can enjoy various types of massage for relieving or soothing fatigue. We hope the Inada Chair AAA will be a valued partner in your daily CONTENTS health preservation for many years to come.
Page 2: Safety Precautions
SAFETY PRECAUTIONS Be sure that you have read these SAFETY PRECAUTIONS thoroughly before using your Inada Chair AAA for the first time. The Operating Manual contains important information about how to use the chair safely and correctly, avoiding possible damage to property or injury to the users of the chair and others. First of all, you should understand well the meaning of the indications and symbols described below, which are used throughout the Operating Manual to highlight important safety instructions.
Page 3 Safety Precautions: Before Use Caution Before plugging the power cord into the wall outlet, make sure that the main POWER switch is set to OFF. ● May result in damage to the chair or electric shock. → Make sure that the plugs on the power cord are inserted fully into the cord connector and the wall outlet. ● May result in electric shock, short circuit, or combustion. → Before using the chair for the first time, turn on all the switches in order as indicated in this Operating Manual to check that the ● chair is operating properly. Before using, raise the reclining seat to its fully upright position. Then recline the seat back slowly to the most comfortable ● position, remembering to start off with a lighter massage. Starting with a deep massage may hurt a user. Elderly people and persons with weak bones should be especially careful when selecting massage intensity. → Required Action For the safety, sit down in the chair slowly without turning or twisting the body to ensure that the spinal rollers are placed at...
Page 4 SAFETY PRECAUTIONS Safety Precautions: During Use Caution In an emergency, or if you find any abnormal condition, push the EMERGENCY STOP button on the remote control to stop ● operation immediately. If you get acute pain or other unusual physical discomfort while using the chair, immediately discontinue the use of the chair and ● seek medical advice. If you feel the massage is too strong, reduce the stimulation according to this Operating Manual. If this solution does not work, ● stop using and contact the vendor. May result in injury if you continue use with high stimulation under such circumstances. → Make sure to keep the back pad in place during massage. Do not use the chair without the back pad. ● May result in personal injury. → Do not fall asleep in the chair during a massage session. ● May result in personal injury. →...
Page 5: Main Features
And the manual selection mode allows you to combine functions to suit your particular needs. Benefits As a therapeutic massage device in the general households, the Inada Chair AAA provides the following benefits: Relaxes muscles Relieves minor muscle aches and pains ●...
Page 6: Components & Description
COMPONENTS & DESCRIPTION Back Pad ● Headrest (large) ● S houlder Massage ● Headrest (small) ● Unit (left) R ollers ● Storage roller position is inside the upper part of the seat back. S houlder Massage Unit ● (right) Seat ● Remote Control Holder ● Hand Massage Unit (right) ● L eg Rest ●...
Page 7 Remote Control POWER Button Program Selection Display Turns the remote control power ON and When a program is selected OFF. inside the remote control If the button is pressed again, the panel, the corresponding light operation will stop after the rollers return turns on. to their storage position.
Page 8: Before Use
BEFORE USE This product is shipped with the reclining seat folded down. Before use, be sure to raise the seat back to its ● upright position until it makes a locking sound. Do not expose the chair to sudden bursts of heat. If the room where the chair is to be used is cold, turn the heat ● up slowly.
Page 9 How to Move the Chair Turn the main POWER switch to OFF and disconnect the plug from the wall outlet before moving the chair. To Carry Moving Method (1) There are handles on the lower part of the armrests, to the front and rear. Two people should hold these handles to carry the chair.
Page 10 BEFORE USE How to Install and Remove the Shoulder Massage Unit How to Install the Shoulder Massage Unit Insert the part of the shaft that projects from the shoulder massage unit into the hole on the side of the seat back and fully push it in. Install so that the air inlet is at the top. There are left and right shoulder massage units.
Page 11 How to Install the Remote Control Holder Magnets are used to attach the remote control holder. Remote Control Holder Attach the remote control holder to its installation area on the hand massage unit. The remote control holder can be installed on either the left or right side.
Page 12: Position Adjustment
POSITION ADJUSTMENT How to Sit When the chair is off, the rollers are normally drawn back into the left and right sides of the upper part of the seat back (storage position). For safety reasons, first check the position of the rollers. If they are in any position other than storage positions, turn the main POWER switch on before sitting down to allow the rollers to return to their storage position.
Page 13 How to Use the Buffer Pad If you feel that the massage is too intense, insert the supplied buffer pad (thin) into the back pad. If you still feel that the massage is too intense, replace the thin buffer pad with the thick one before starting the massage again. Buffer Pad Do not use both buffer pads at the same time.
Page 14 POSITION ADJUSTMENT How to Use the Reclining Seat Back To raise the reclining seat back: ● Press the top RECLINE button to raise the reclining seat back. To lower the reclining seat back: ● Press the bottom RECLINE button to lower the reclining seat back. Press the button to Release the button to stop start the operation. the operation.
Page 15 How to Use the Leg Rest Raising and Lowering the Leg Rest To raise the leg rest: ● Press the top LEG REST button to raise the leg rest. To lower the leg rest: ● Press the bottom LEG REST button to lower the leg rest. Press the button to Release the button to start the operation. stop the operation. Press Release Press...
Page 16 POSITION ADJUSTMENT How to Use the Hand Massage Unit The hand massage unit slides and rotates within a certain range. Open and close Rotate Slide Put your hand into the hand massage unit and relax while the massage is performed. Hand Massage Unit Caution Do not stand or sit on the armrest or hand massage unit. May result in personal injury or damage. ● →...
Page 17: After Use
AFTER USE When the massage has ended and you have finished using the chair... Raise the reclining seat back and fully lower the leg rest! While making sure there is nothing in the surrounding area, return the reclining seat back to its upright position and lower the leg rest to its lowest position. Set the main POWER switch to OFF! Turn off the main POWER switch located at the back right of the chair.
Page 18: Programs & Selection
PROGRAMS & SELECTION Preset Massage Types Programs The preset programs make it easy to select a program that suits your preferences or objectives. Manual Selection Healthcare Programs Massages for recovering from muscle fatigue, You can combine your favorite and programs that include stretch actions. massage types.
Page 19 Quick Programs These programs are intended for refreshing yourself in a short period of time. Full Body Program This program is recommended for persons who want to refresh themselves in a short time. Shoulder Program This program gives a concentrated massage of the neck and shoulders in a short time. Low Back Program This program gives a concentrated massage of the lower back in a short time.
Page 20: Preset Programs
PRESET PROGRAMS Preset Program Massages 12 automatic programs provide a variety of different massages to relieve fatigue. ● With the preset program buttons, you can choose your favorite program to give you a massage according to the ● preset menu. Press the POWER button. ❶ If no selection is made within 5 minutes, the power is automatically shut off.
Page 21 Various Adjustments Shoulder Position Adjustment Buttons and Description Indicators After the shiatsu points are located, the ROLLER buttons flash. The shoulder positions can be adjusted while the buttons flash. The rollers move up while this button is ▲ pressed. The rollers move down while this button is ▼...
Page 22: Manual Selection
MANUAL SELECTION Description of Manual Selection Operations You can combine massaging actions of your choice from among menus ① ③ A circle in the adjustment column means that the particular adjustment can be made in the course of that massage ● action. The width cannot be adjusted if an action for which width adjustment is not available is combined with rolling. ● Basic Operations ①...
Page 23 Press the POWER button. ❶ If no selection is made within 5 minutes, the power is automatically shut off. Press the desired button. ❷ Select a basic operation + rolling + air massage. The shoulder positions can be adjusted. (When rolling is selected) ❸ With the ROLLER buttons, the vertical position of the rollers can be adjusted.
Page 24 MANUAL SELECTION Various Selections Forward/Reverse Selection Press the button. Press the button. Press the button. (1st time) (2nd time) (3rd time) Kneading starts Kneading changes Kneading stops Forward Reverse During Kneading, Human Hands, and Knead & Tap, each time the button is pressed, forward direction, reverse direction, or stop can be selected.
Page 25 Various Adjustments Roller Position Adjustment Buttons and Description Indicators When full rolling is selected: ● Changes between up and down When pressed during a down movement, changes ▲ to up. When pressed during an up movement, changes to ▼ down. When partial rolling is selected: ● The center position of the range of partial rolling can be adjusted.
Page 26: Troubleshooting
TROUBLESHOOTING If there is still a problem after trying the solutions given in this troubleshooting guide, stop using the product immediately so as to prevent accident or injury and unplug the product from the wall outlet. Contact the vendor for assistance. Problem Cause & Solution The rollers are designed with an...
Page 27: Regular Maintenance For Safety
Noise during chair These noises are a normal part of the chair’s operation and do operation not affect its performance in any way. The following noises are made during operation. Noises during tapping Sound of the rollers rubbing against the seat cover during kneading Sound of the rollers returning from the highest or lowest position Sound of the air massage cushions Sound of the air pump...
Page 28: Faq
Can I use the chair while the shoulder units Can I put the chair onto an electric carpet? are removed? Do not place the chair onto an electric carpet because it could cause a fire. The chair is very heavy, so it could damage the Although for structural reasons they can be heat generating parts of the electric carpet and removed and reattached, if massage is performed...
Page 29 Does the reclining seat back move I spilled water on the chair. What should I do? automatically during a massage or after a program has finished? There is a danger of an electric shock. The reclining seat back does not move Immediately stop using the chair and perform automatically after a program has finished.
Page 30: Care And Storage
CARE AND STORAGE Storage After wiping off any dust or dirt, store the product in a place that is relatively dry. ● If the chair is left unused for a while, put a cover on it that will protect it from dust and dirt. ●...
Page 31: Customer Service And Warranty
CUSTOMER SERVICE AND WARRANTY . Warranty Please read the contents carefully and keep it in a safe place. Please complete and mail in the warranty card that was included with your chair. If the chair is to be used outside the home (in a commercial setting, for example), fees will be charged for repairs. . Repairs & Service Before calling for repairs or service, use the Troubleshooting guide on pages 25-26 to see if the problem can be solved easily.
Page 32: Specifications
For technical assistance in the USA and Canada, you can reach us by calling our toll free number: 888.769.0555. The direct dial number is 303.317.4356. We welcome comments and feedback about your buying experience and your experience in your INADA chair. We invite you to email us at info@inadausa.com.
