Summary of Contents for Goodway G-980STJ-E

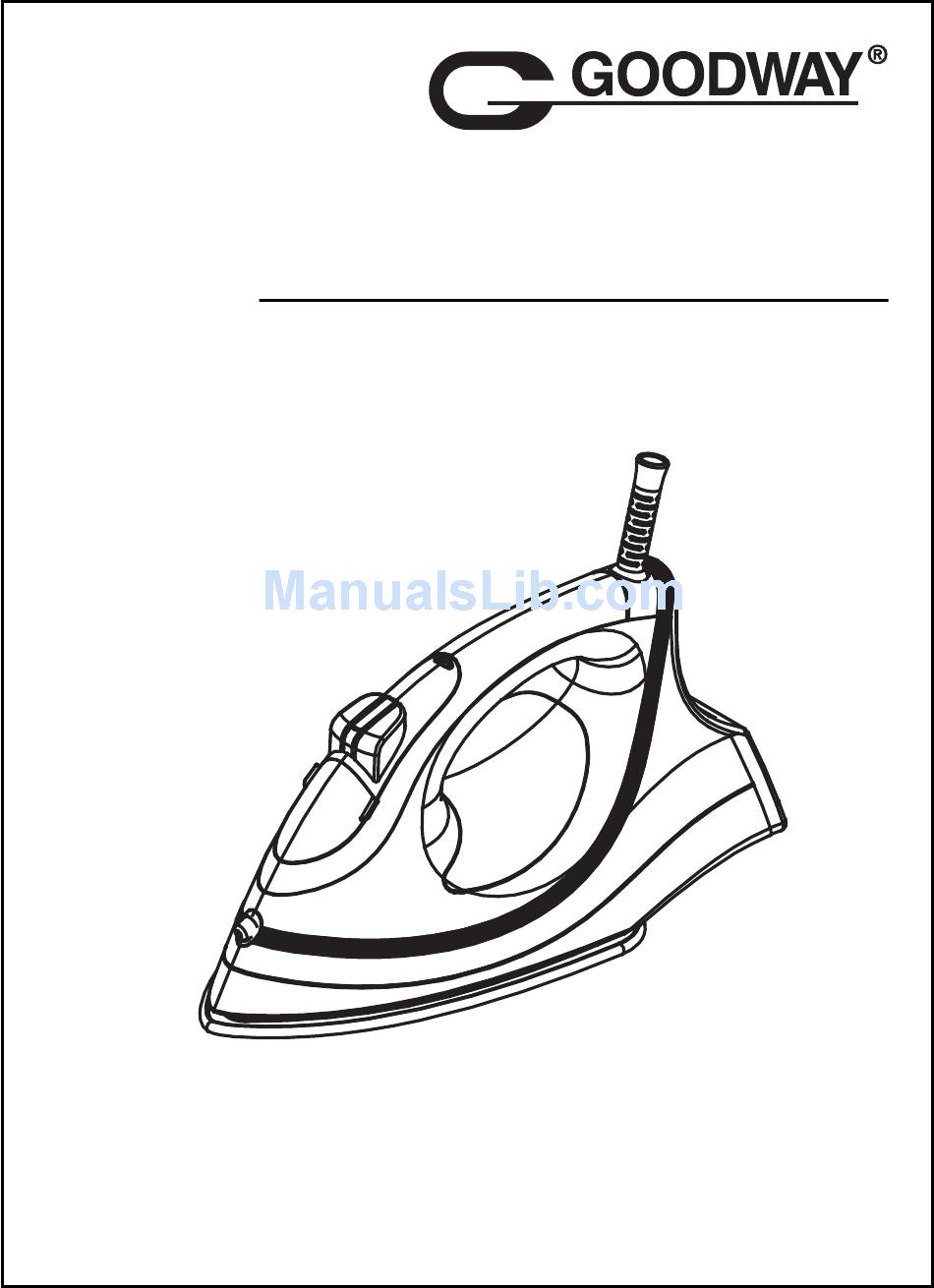

- Page 1 Steam Iron Model: G-980STJ-E / G-980STJ-E-M INSTRUCTION MANUAL...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Make sure to read all the safety precautions below and look at the illustra- tions before using the appliance. 1. Read all instructions carefully before using. 2. Use the appliance for its intended use only. 3. The appliance is intended for household use only. 4. - Page 3 12. Burns can occur from touching hot metal parts, hot water or steam. Use caution when using the appliance. If the iron is placed onto the iron rest plate during in use, the iron rest plate may become a hot surface. Do not touch the iron rest plate and the sole-plate until they have cooled down completely.
-
Page 4: Parts And Features
Parts and Features Burst button Temperature display Power indicator light & Temperature Setting indicator light Temperature setting button Reservoir Soleplate Spray button Steam control & Self clean Knob Water inlet cover Spray nozzle... -
Page 5: Fabric Setting Chart
Fabric Setting Chart Check the garment label first and then set the required ironing temperature at the adjustable temperature knob. To prevent damage to the fabric being ironed, follow the temperature guide carefully. Test the inside of the hem for the garment. - Page 6 2. The fabric setting chart is only valid for plain fabrics and not for materials to which finishes, glosses etc, have been applied. Textile to which some kind of finish has been applied (gloss, crinkle, relief etc.) is best ironed at lower temperature. 3.
- Page 7 Use of your iron 1.Fill reservoir 1. Turn steam control & self clean knob to “ ”. 2. Hold the iron in horizontal position. Open water fill cover, using a measuring cup or other equipments to fill water into reservoir up to Max filling level.
-
Page 8: Steam Ironing
Special illustration: 1. Temperature setting indicator light blink quickly to indicate that iron temperature is too high, whereas the temperature is too low. When temperature setting light lights up steadily, it indicates that temperature is within the set range. 2. Due to influence from various factors, there will be difference between actual temperature of the centre point of the soleplate and that showing on temperature display. -
Page 9: Dry Ironing
3. It is normal that sometimes temperature indicates on temperature display is out of the range of set temperature during steam ironing. 4.Dry ironing 1. Set steam control and self clean knob to “ ” position, fill reservoir with water(refer to Fill Reservoir) 2. -
Page 10: Burst Of Steam
5.Burst of steam The Burst of Steam feature provides additional steam for removing stubborn creases. 1. Set temperature control button to MAX position, and steam control & self clean knob at “ ” When the power indicator light illuminates steadily, the required temperature has been reached. 2. -
Page 11: Auto Shut Off
7.Auto shut off G-980STJ-E: The appliance will automatically shut off if it has been successively used for about more than 60 minutes, and buzzer alarm 6 times. Temperature display shows OFF, power indicator light “ ” blinks. To continue ironing, only press the temperature control button again. -
Page 12: Maintenance
10.Maintenance After several use of your iron, a little amount of limescale will be built up in the steam chamber and steam outlet, following up below self-cleaning process, it will be well removed. 1. Fill water into reservoir up to MAX fill level.(Refer to fill reservoir) 2. -
Page 13: Troubleshooting
Trouble shooting Problem Possible cause(s) Solution Incorrect connection to Re-plug the unit to Iron won’t heat the main socket main socket. Select the required ironing The Temp setting is not temperature according to correct. fabric setting chart. Take to a qualified Unknown malfunctions serviceman or manufacturer or its service agent for...
