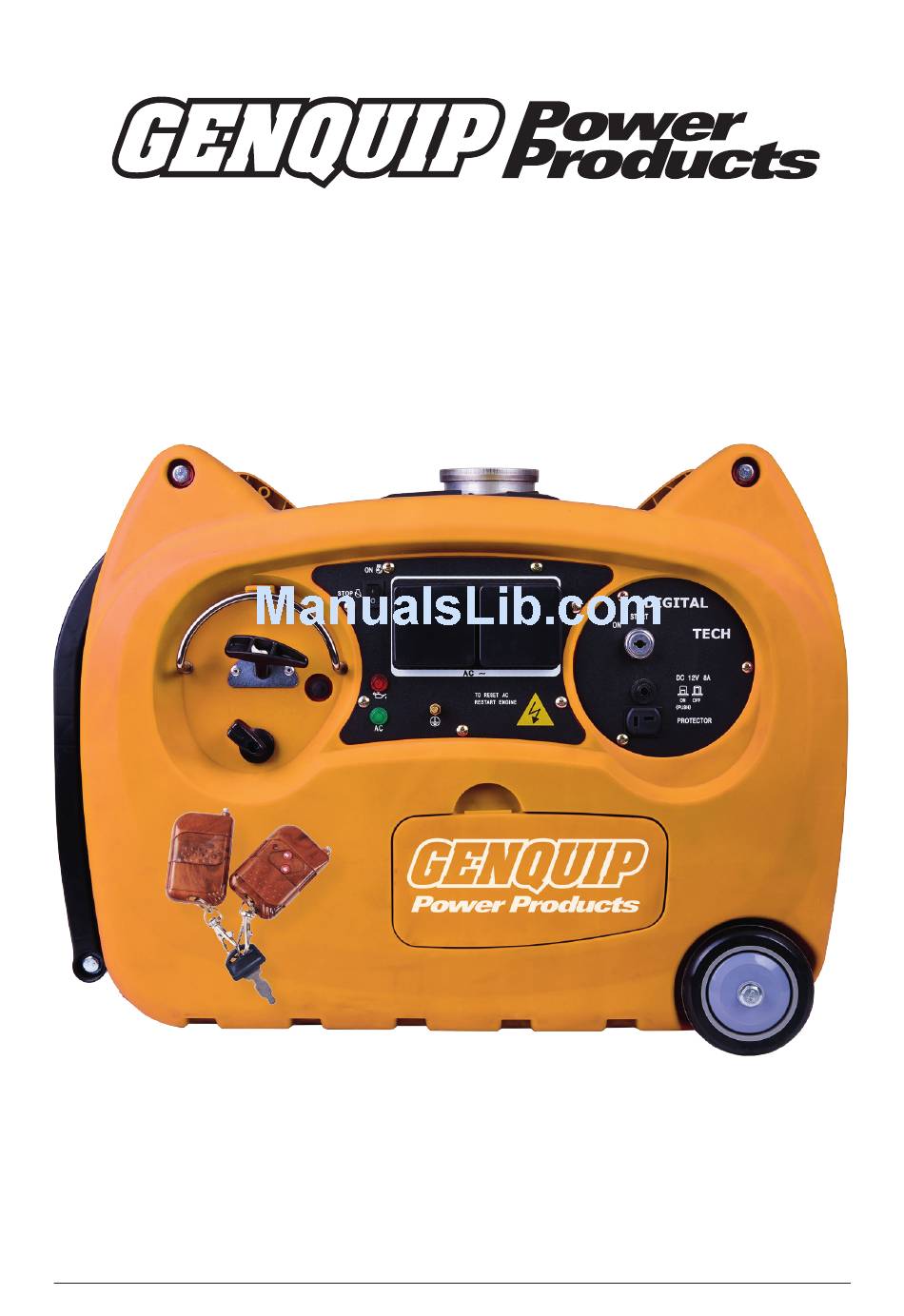

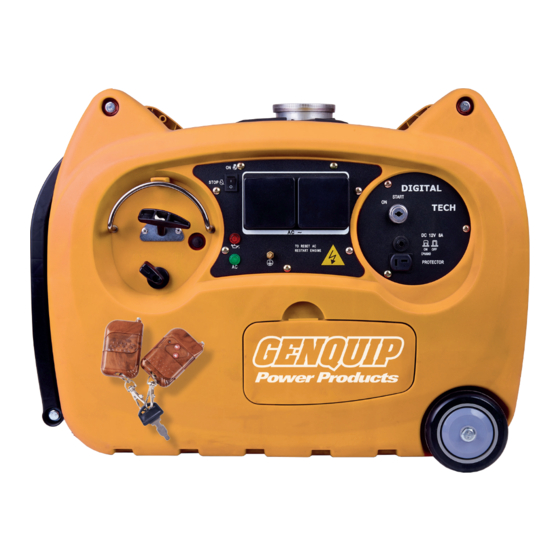

- Page 1 Genquip Gi3300ER DSP Inverter Generator Owner’s Manual Genquip Gi3300 DSP Inverter Generator page 1 GENQUIP GI3300ER DSP INVERTER GENERATOR PAGE 1...
-
Page 3: Table Of Contents
• Charging Batteries • Engine Won’t Start • Battery • Generator Stops Periodic Maintenance Wiring Diagram Spark Plug Inspection & Oil Specifications & Replacement Dimensions Engine Oil Replacement Warranty Fuel Filter Fuel Tank Filter GENQUIP GI3300ER DSP INVERTER GENERATOR PAGE 3... -
Page 4: Control Function
Fuel On and Off Switch 11. Transport Handle AC Ready Pilot Light 12. 12V DC Outlet and Reset Button Oil Warming Light 13. Access Door Panel Ground (Earth) Terminal 14. Electric Key Start PAGE 4 GENQUIP GI3300ER DSP INVERTER GENERATOR... -
Page 5: Pre-Operation Checklist
Make sure the engine oil is at the upper level of the oil filler hole. Add oil as necessary. Recommended oil for most climates is 10W30. Engine oil quantity is 600 millilitres. Genquip Gi3300 DSP Inverter Generator page 5 GENQUIP GI3300ER DSP INVERTER GENERATOR PAGE 5... -
Page 6: Control Function
If the DC Protector trips to the OFF position, press to reset. Reduce the load to the specified generator output if the DC protector turns off. If it turns off again, consult the authorized dealer. page 6 Genquip Gi3300 DSP Inverter Generator PAGE 6 GENQUIP GI3300ER DSP INVERTER GENERATOR... -
Page 7: Operation
Before starting the engine, do not connect any electric devices. Turn the fuel switch lever to the “ON” position. Turn the engine switch to the “ON” position. Genquip Gi3300 DSP Inverter Generator page 7 GENQUIP GI3300ER DSP INVERTER GENERATOR PAGE 7... -
Page 8: Remote Start/Stop Function
If the generator will not be used again for more than a day, turn the engine switch to the “Off” position. Failure to turn the engine switch off after use will drain the battery. PAGE 8 GENQUIP GI3300ER DSP INVERTER GENERATOR... -
Page 9: Ac Connection Overload Indicator
The 12V (DC) outlet fitted to this generator is NOT a battery charger. • Do not use AC (240V) and DC(12V) power at the same time as damage to the control unit will occur resulting in warranty being voided. GENQUIP GI3300ER DSP INVERTER GENERATOR PAGE 9... -
Page 10: Battery
Connect the negative lead (black) to the negative (-) terminal. Close the front access door panel. To charge the battery Have your Genquip dealer or an qualified electrician charge the battery as soon as possible if it seems to have discharged. Recommended battery Capacity: 12V/4.5Ah or 12V/5Ah... -
Page 11: Periodic Maintenance
Check and tighten ✔ ✔ Cooling System (Air) Check for obstructions ✔ ✔ Exhaust System Check for obstructions ✔ * First 20 hours & then every 50 hours page 8 Genquip Gi3300 DSP Inverter Generator GENQUIP GI3300ER DSP INVERTER GENERATOR PAGE 11... -
Page 12: Spark Plug Inspection & Oil Replacement
• Standard electrode color: tan colour • Standard Spark Plug: BPR4ES(NGK)(F7RTC) • Gap: (0.028-0.031 inches) 3. Install the spark plug. • Spark Plug Torque:14 lbs. -Ft. (0.028-0.031 inch) Genquip Gi3300 DSP Inverter Generator page 9 PAGE 12 GENQUIP GI3300ER DSP INVERTER GENERATOR... -
Page 13: Engine Oil Replacement
Install the rubber cap on the bottom. CAUTION: Be sure to replace cap securely to prevent from falling off during operation. 10. Close the oil filler cover. page 10 Genquip Gi3300 DSP Inverter Generator GENQUIP GI3300ER DSP INVERTER GENERATOR PAGE 13... -
Page 14: Fuel Filter
Clean filter in foam filter cleaner and dry Re-oil with filter oil Squeeze out excess oil. Do not wring filter out Return to machine and reassemble. Genquip Gi3300 DSP Inverter Generator page 11 PAGE 14 GENQUIP GI3300ER DSP INVERTER GENERATOR... -
Page 15: Valve Adjustment
Hold rocker axis using a wrench and tighten the lock nut. Check the clearance of valve after adjustment. page 12 Genquip Gi3300 DSP Inverter Generator GENQUIP GI3300ER DSP INVERTER GENERATOR PAGE 15... -
Page 16: Genquip Safety
Avoid getting burned. Many generator parts radiate heat that is sufficient to burn you during operation. • Only use a licensed electrician to hard wire your Genquip generator. • Turn off all equipment powered by the generator before shutting it down your generator. - Page 17 Risk numbers are 1. fatal or permant disability and 2. serious injury or long term illness. page 14 Genquip Gi3300 DSP Inverter Generator GENQUIP GI3300ER DSP INVERTER GENERATOR PAGE 17...
- Page 18 Ensure you check that you fuel &/or oil type. may result in engine parts are using correct oil and fuel separating from main body types. resulting in serious injury. Genquip Gi3300 DSP Inverter Generator page 15 PAGE 18 GENQUIP GI3300ER DSP INVERTER GENERATOR...
-
Page 19: Cleaning
DO NOT use a forceful spray of water to clean the generator. Water can penetrate generator’s electrical system, which could reduce insulation resistance. Possible generator failure may result. page 16 Genquip Gi3300 DSP Inverter Generator GENQUIP GI3300ER DSP INVERTER GENERATOR PAGE 19... -
Page 20: Storage, Transportation & Servicing
If operating in hot dusty conditions, oil and air filters must be checked daily and service intervals should be every 10 hours initially and every 25 hours thereafter. Genquip Gi3300 DSP Inverter Generator page 17 PAGE 20 GENQUIP GI3300ER DSP INVERTER GENERATOR... -
Page 21: Troubleshooting
NO - Organise for the unit to be serviced. Is the red overload LED on? If it is - reduce the load. Faulty power cord. Replace cord. page 18 Genquip Gi3300 DSP Inverter Generator GENQUIP GI3300ER DSP INVERTER GENERATOR PAGE 21... -
Page 22: Generator Stops
If not, top up the oil tank. Generator may have run Check that the generator out of fuel. has fuel in it. If not, top up the fuel tank. Genquip Gi3300 DSP Inverter Generator page 19 PAGE 22 GENQUIP GI3300ER DSP INVERTER GENERATOR... -
Page 23: Troubleshooting
Unplug the appliance from If appliance has a defect the generator and check follow the instructions as working or stops for defect. per the operation/owners working manual. page 20 Genquip Gi3300 DSP Inverter Generator GENQUIP GI3300ER DSP INVERTER GENERATOR PAGE 23... -
Page 24: Wiring Diagram
Ground (Earth) terminal Yellow 17. Stepping motor Economy Control Pink 18. Charge coil Black & White Switch 19. DC receptacle Green & Yellow Step Motor controller White & Blue 20. Ballast Engine switch PAGE 24 GENQUIP GI3300ER DSP INVERTER GENERATOR... -
Page 25: Specifications & Dimensions
SPARK PLUG TYPE BPR4ES (NGK) / F7RTC 0.8 (0.028 - 0.031) inches DISPLACEMENT 171cc RATED OUTPUT 4.9HP at 3600 r/min FUEL Unleaded Petrol ENGINE OIL QUANTITY 600ml page 22 Genquip Gi3300 DSP Inverter Generator GENQUIP GI3300ER DSP INVERTER GENERATOR PAGE 25... -
Page 26: Warranty
Warranty only applies to the original purchaser sustain or incur, will be limited to, at Genquip’s and is not transferable. Original proof of purchase option, repair of the generator, replacement... - Page 28 Genquip Warehouse 45 Riverside Road Chipping Norton NSW Call 1300 730 716...
