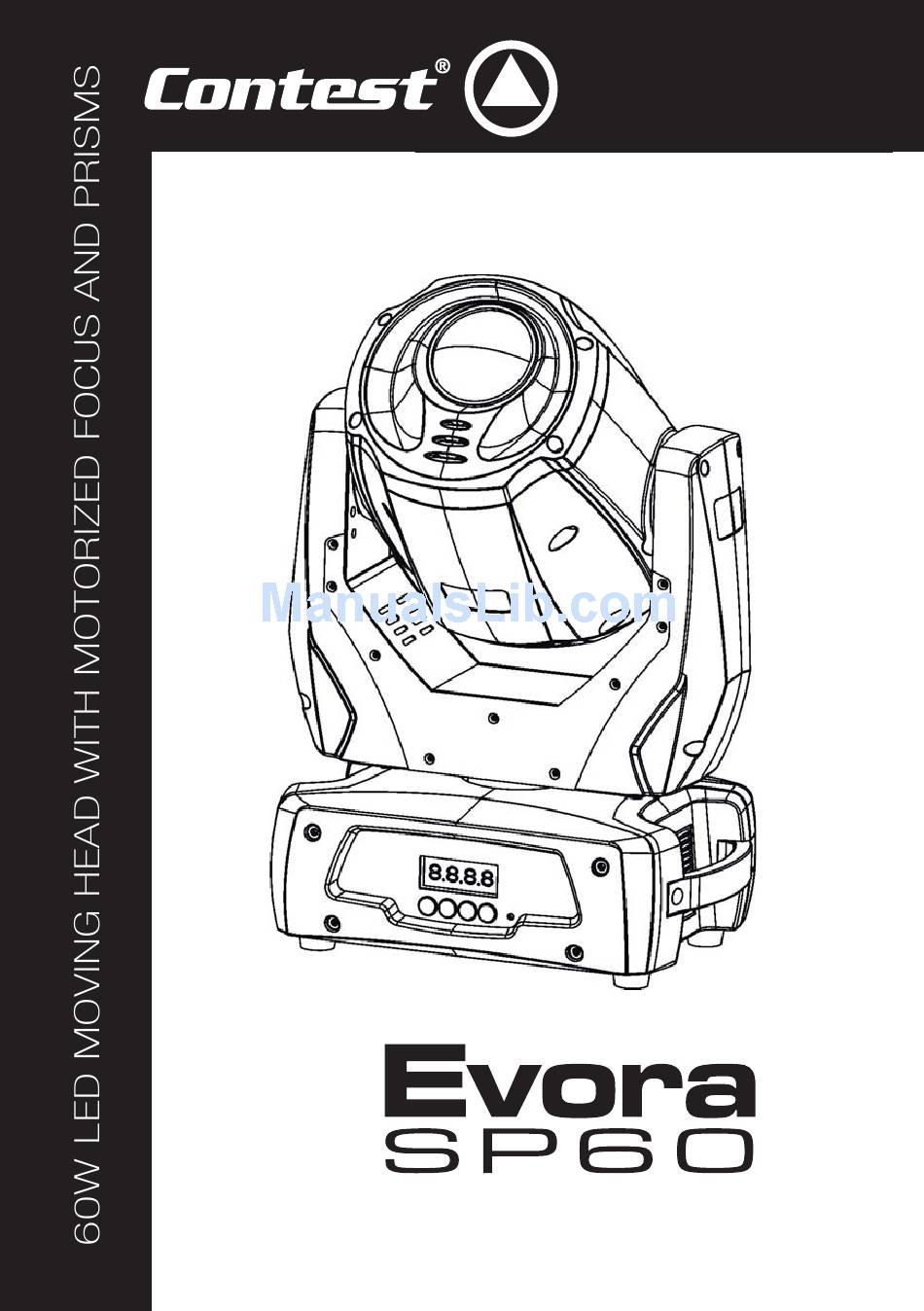

- Page 1 USER GUIDE 10074 - November 2013 Version 1.2...
- Page 2 Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English Page 2...
-
Page 3: Important Safety Information
In order to avoid any electrical malfunction, please do not use any multi-socket, power cord extension or connecting system without Any maintenance procedure must be performed by a CONTEST making sure they are perfectly isolated and present no defect. authorised technical service. Basic cleaning operations must tho- roughly follow our safety instructions. -
Page 4: Technical Specifications
Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English 2 - Introduction Thank you for purchasing the Evora-SP60 moving head. You now have in your possession a high-quality, powerful and intelligent device absolutely perfect for parties, animations, live events... 3 - Technical specifications •... - Page 5 Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English 9 - DMX output via 3-pin XLR 10 - DMX input via 3-pin XLR 11 - DMX output via 5-pin XLR 12 - DMX input via 5-pin XLR 13 - Power switch 14 - Fuse Fuse : 3.15A - 250V ;...
- Page 6 Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English 6 - Cabling, addressing and daisy chaining Connecting the DMX remote control : Connect the female plug of your XLR cable to your DMX remote control XLR output, then connect your cable male output to the moving head.
- Page 7 Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English 7 - Menus The Evora-SP60 features many menus allowing you to configure its every move and function. Press MODE / ESC to access the main menu. Use the navigation keys to browse through submenus. Then press ENTER to access a submenu. Use the navigation keys to change values.
- Page 8 Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English Displaying DMX values and inverting the display Displays the DMX value of each channel Inverts the display (180°) The display automatically shuts off Locks the keyboard There are 2 ways to unlock the keyboard: 1 - When the Evora-SP60 is switched on again 2 - By pressing 3 seconds the MENU button 7.2 SET menu...
- Page 9 Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English 7.2 SET menu (continuation) Time before the motors and LED shuts down in case of DMX signal interruption From 1 to 99 minutes This function can be deactivated by choosing "OFF". Displays the current version of the internal software 7.3 ADJU menu Allows you to lock the device to be able to configure the focus and test each channel...
- Page 10 Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English 7.5 EDIT menu Allows you to edit the internal sequence launched by the RUN command from the MODE menu. Number of scenes included in the sequence. 48 scenes max. If the value is S-07, the sequence will include 7 scenes.
- Page 11 Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English 8 - DMX channels and their functions CHANNEL 1: Colour wheel 000 - 014 Open / White 015 - 029 Colour 1 = Light Green 030 - 044 Colour 2 = Blue 045 - 059 Colour 3 = Green...
- Page 12 Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English CHANNEL 3: Gobos rotation and indexation 000 - 127 Gobos indexation 128 - 189 Clockwise gobos rotation: from fast to slow 190 - 193 No rotation 194 - 255 Counterclockwise gobos rotation: from slow to fast CHANNEL 4: PAN and TILT movements speed 000 - 225...
- Page 13 Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English CHANNEL 7 : 3-facet rotating prism, 3D prism / Gobo macros 000 - 031 Open 032 - 063 3-facet prism 064 - 095 3D prism 096 - 127 Frost 128 - 135 Macro 1...
- Page 14 Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English CHANNEL 10: Shutter and Strobe 000 - 031 LED off 032 - 063 LED on 064 - 095 Slow to fast strobe effect 096 - 127 LED on 128 - 159 Pulse effect 160 - 191...
- Page 15 Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English CHANNEL 13: 16-bit* PAN movement 000 - 255 Precise PAN movement settings CHANNEL 14: 16-bit* TILT movement 000 - 255 Precise TILT movement settings * You can access the 16-bit mode via the function of the menu ( see paragraphe 7.2...
-
Page 16: Replacing Gobos
Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English 9.3 Replacing gobos Each gobo is embedded into a support. Each support can be disassembled for easier gobo replacements. To dissassemble a gobo support, push the support toward the back of the weel, then pull it out. -
Page 17: Error Messages
Problems might also come from a defective motor or the motor electronic management. In any case, please write down the error displayed and contact your retailer to launch a maintenance procedure. Do NOT attempt to repair it by yourself as only Contest-approved technicians are allowed to perform maintenance operations. Page 17... - Page 18 Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English 11 - Beamwidth and light output Intensity (lux) 7350 1970 1130 15° Distance (m) Diameter (m) Ø 0,63 Ø 1,20 Ø 1,55 12 - Dimensions Page 18...
- Page 19 Evora-SP60 - 60W LED compact moving head with motorized focus and prisms English 13 - Notes Page 19...
- Page 20 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
