Page 1

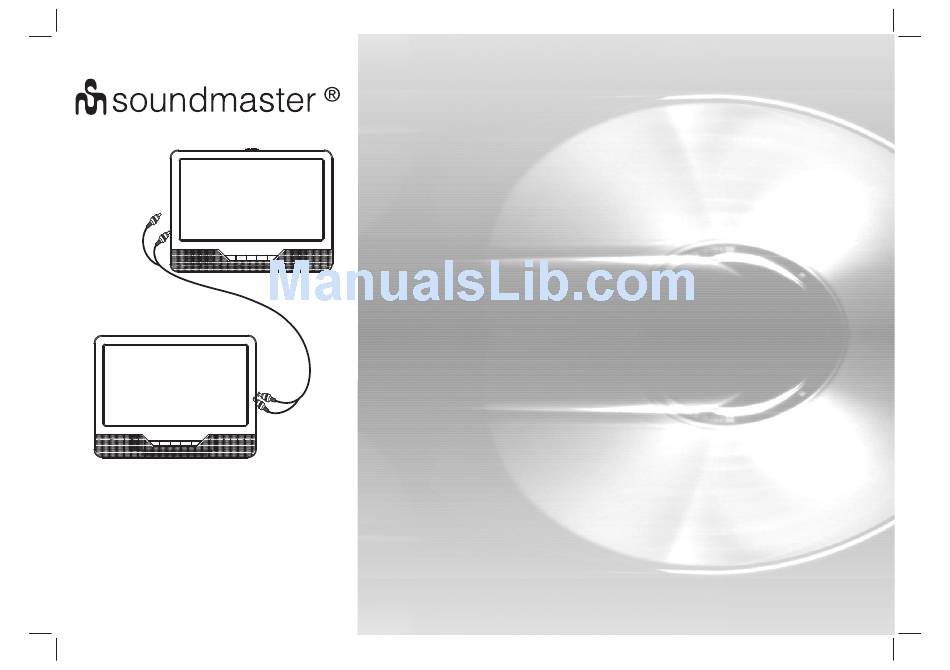

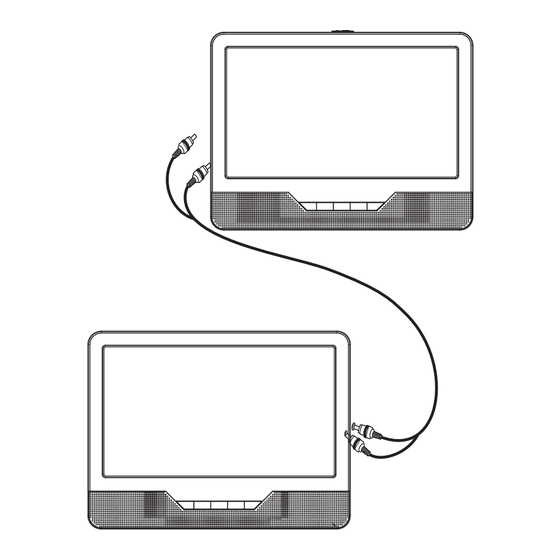

P D V D - 1 6 3 0 9 C 2 P 一 主一 副 模拟屏 M T K 1 3 8 9 全贴片 带电池 不带 红外线 功能 过 E R P2 USER'S MANUAL PORTABLE DVD PDB-1800 Before connecting, operating or adjusting this product, please read this user's manual carefully and completely.
Important Safety Instructions 1.Warning: To reduce the risk of electric shock, do not remove the 12.CAUTION: Danger of explosion if battery is incorrectly cover or back. There are no user-serviceable parts inside. Refer replaced. Replace only with the same or equivalent type. servicing to qualified personnel.
Safety Precautions WARNING Notes on Copyrights: RISK OF ELECTRIC SHOCK DO NOT OPEN 10. It is forbidden by law to copy, broadcast, show,broadcast via cable, play in public, or rent copyrighted material without 1.Warning: This digital video disc player employs a laser system. permission.
Identification of Controls Main Unit 1.CARD SLOT MASTER TFT SCREEN 2. POWER ON/OFF 3. HEADPHONE OUT JACKS 4. VIDEO/AUDIO OUT 5. DIGITAL AUDIO OUT (COAXIAL) 6.USB 7. DC OUT 8. DC IN 9-12V (PLAY/PAUSE) 10. UP 11. DOWN STOP 13. SOURCE 14.
Identification of Controls Remote control unit 5.10+ BUTTON In order to select a track 10 or greater, first press 10+, For example; select track 12, first press 10+, and then press number 2 button. STEP MUTE SOURCE 6. MENU/PBC Return to DVD root menu(DVD). PBC on/off switch (VCD) .
Page 6
Identification of Controls Remote control unit BUTTON 25.SLOW Press BUTTON allow skipping back at 5-level speed(X2->X4-> Press Slow button repeatedly to enter slow playback, and cycle X8->X16->X32 -> PLAY), press PLAY button return to normal playback. between different speeds. The speeds are 1/2,1/4,1/8,1/16,and normal.
Connecting Power 4.Attach the DVD player with support to the horizontal bar until a click is Heard. To connect power from inside a car, connect the supplied car adapter to the DC IN 9-12V jack of the unit. To connect power from household power sources, connect the supplied power adapter to the DC IN 9-12V jack of the unit and to the mains socket.
SETUP Menu Setting Angle Mark Displays current angle setting information on the right hand corner of the TFT screen if available on the disc. General Setup Page OSD Language You can select your own preferred language seetings. Press SETUP button to get the setup menu. Use direction buttons to select the preferred item.
SETUP Menu Setting Audio Setup Page Video Setup Page Video Setup Page Downmix This options allows you to set the stereo analog output of your DVD Player. - - VIDEO SETUP PAGE - - - - VIDEO SETUP PAGE - - LT/RT :Select this option if your DVD Player is connected to a Dolby Pro Logic decoder.
SETUP Menu Setting Preference Page Password Setup Page PAL - Select this if the connected TV is PAL system.It change Password: select the menu password change page. will video signal of a NTSC disc and output in PAL format. NTSC-Select this if the connected TV is NTSC system.It will change the video signal of a PAL disc and output in NTSC format.
Page 11
SLAVER TFT MENU SETTING PICTURE Page PICTURE BRIGHT CONTRAST COLOR ENGLISH RESET Brightness Adjust screen Bright Setting. Contrast Adjust screen Contrast Setting. Color Adjust screen Color Setting. ENGLISH Adjust Menu OSD Language PICTURE SCREEN 16.9 SCREEN Adjust screen SCREEN 16:9 or 4:3...
Parameters and specifications Battery Parameters Electronical parameters Battery Specifications: Item Standard requirement Output:7.4V Power requirements : AC 100-240 V , 50/60 Hz Power consumption : <15W Storage and work circumstances: Operating humidity : 5 % to 90 % 1. Storage circumstances Temperature Humidity VIDEO OUT 6 months...
