Summary of Contents for Franklin Chef FR787S

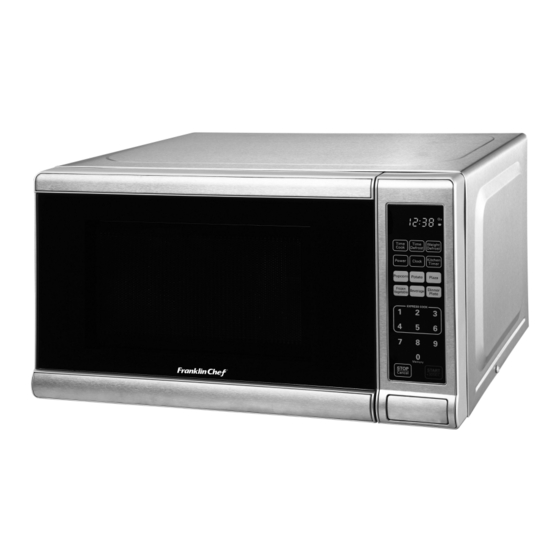

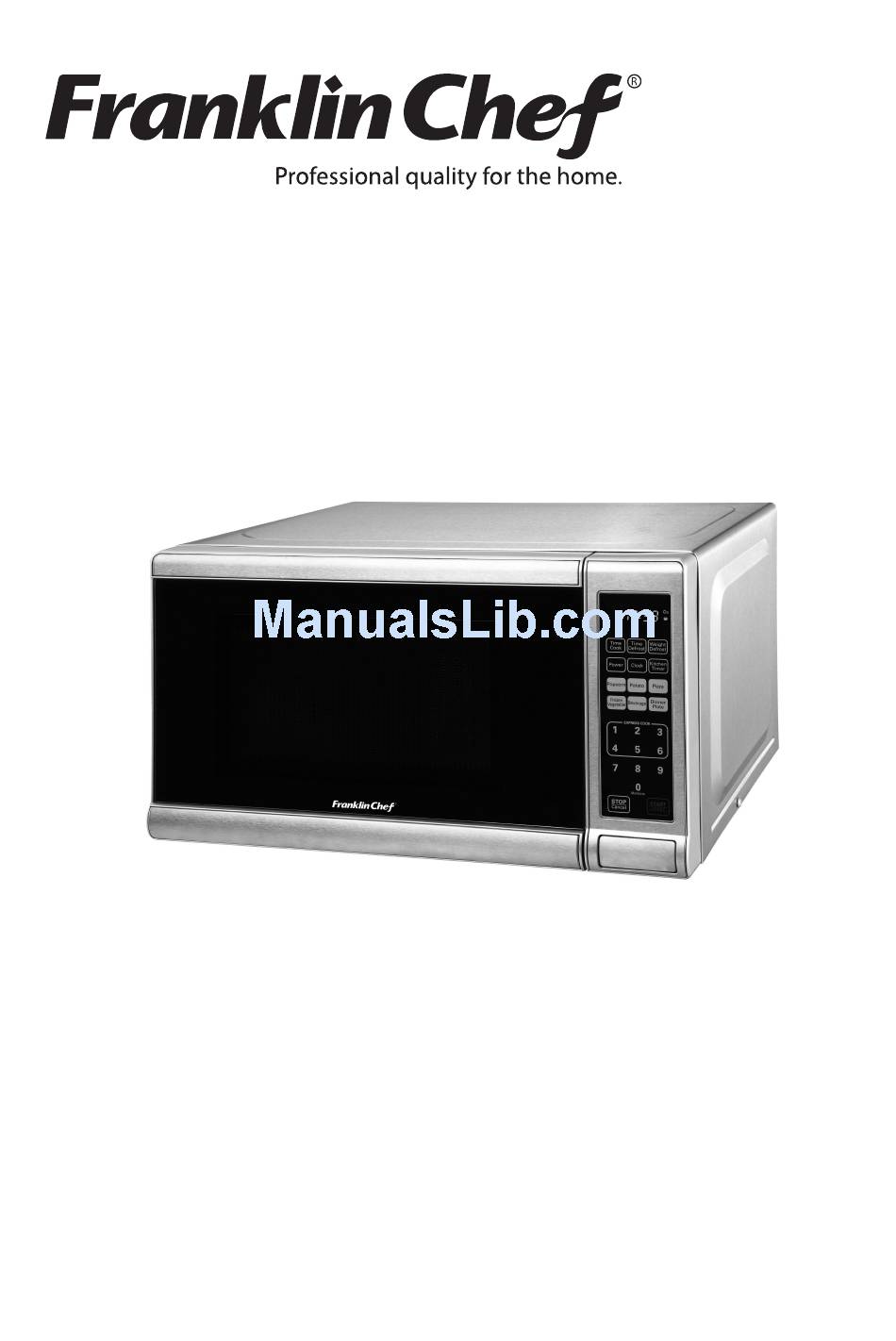

- Page 1 0.7 Cu. Ft. Countertop Microwave Model: FR787S Read these instructions carefully before using your microwave oven , and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. PN: 261800315541...
-
Page 2: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. -
Page 3: Important Safety Instructions Warning
IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of burns, electric shock, fire,injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic safety precautions, including the following: 8. Use this appliance only for its intended 1. -
Page 4: Grounding Instructions
19. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. -
Page 5: Radio Interference
1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. 2. Longer cord sets or extension cords are available and may be used if cared is exercised in their use. -
Page 6: Materials You Can Use In Microwave Oven
Materials you can use in microwave oven Utensils Remarks Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. -
Page 7: Setting Up Your Oven
SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly Instruction Manual A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window... -
Page 8: Countertop Installation
Countertop Installation Remove all packing material and accessories. Cabinet: Remove any protective film found Examine the oven for any damage such as on the microwave oven cabinet surface. dents or broken door. Do not install if oven is Do not remove the light brown Mica cover damaged. -
Page 9: Operation
OPERATION Control Panel and Features (11) (10) (1) Time Cook (2) Time Defrost (3) Power (4) Clock (5) Auto menu: Popcorn,Potato,Pizza,Fresh vegetable,Beverage,Dinner plate (6) Number Buttons:0-9 (7) Weight Defrost (8) Kitchen Timer function (9) Stop/Cancel: clears all previous setting pressed before cooking starts. During cooking: press once to stop oven;... - Page 10 OPERATION 1. Power Level 11 power levels are available. Level Power 100% Display PL10 2. Clock Setting (1) Press " CLOCK ", "00:00" will display. (2) Press the number keys and enter the current time. For example, time is 1 :1 now, please press "1, ,1, " in turn. (3) Press "...
- Page 11 Example: to cook the food with 50% microwave power for 15 minutes. a. Press "TIME COOK" once."00:00" displays. b.Press "1","5","0","0" in order. c.Press "POWER"once, then press "5" to select 50% microwave power. d.Press "START/+30SEC." to start cooking. Note:1) In the process of setting, if the " STOP/CANCEL" button is pressed or if there is no operation within 1 minute, the oven will go back to the former setting automatically.
-
Page 12: Frozen Vegetable
POPCORN a)Press " POPCORN " repeatedly until the number you wish appears in the display, "1.75","3.0","3.5" Oz will display in order. For example, press "POPCORN" once , "1.75" appears. b) Press "START/+30 SEC." to cook, buzzer sounds once. When cooking finishes, buzzer sounds five times and then turn back to waiting state. -
Page 13: Dinner Plate
BEVERAGE a) Press " BEVERAGE " repeatedly until the number you wish appears in the display, "1","2","3" cup will display in order. One cup is about 120ml. For example, press "BEVERAGE" once , "1" appears. b) Press "START/+30 SEC." to cook, buzzer sounds once. When cooking finish , buzzer sounds five times and then turn back to waiting state. - Page 14 15. Multi-stage cooking At most 2 stages can be set for cooking. In multi-stage cooking, if one stage is defrosting, then defrosting shall be placed at the first stage automatically. Note: Auto cooking cannot work in the multi-stage cooking. Example: if you want to cook with 80% microwave power for 5 minutes + 60% microwave power for 10 minutes.
-
Page 15: Maintenance
Maintenance Troubleshooting Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center. TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY a. Electrical cord for oven is a.
