MOVITEC SL-250 Service Manual

Hide thumbs Also See for SL-250:

Advertisement

Quick Links

Download this manual See also: User Manual
SERVICE MANUAL
V 2
SL-250

Advertisement

loading
Need help?

Need help?

Do you have a question about the SL-250 and is the answer not in the manual?

Questions and answers

Related Manuals for MOVITEC SL-250

Summary of Contents for MOVITEC SL-250

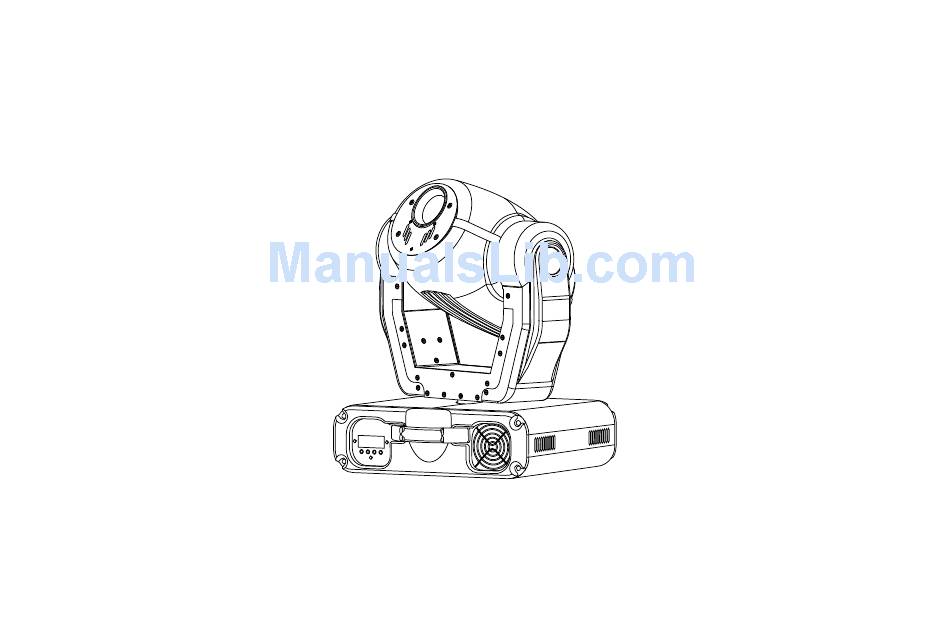

  • Page 1 SERVICE MANUAL SL-250...
  • Page 2 PCB7 208V 230V 60Hz 240V 50Hz PCB9 HAL506 HAL506 BALLAST AL 250M MSD200 TILT Toroid B64290 L 647 X 27 91'C D L N NAME: SL-250 423K TITLE: WIRING DIAGRAM 208-250V/50Hz ADJUSTABLE TRANSFORMER DOCUMENT: V 1.2 SIZE: DATE: 14.2.2001 SHEET:...
  • Page 3 6x2R2 220p 220p ARK500/2 R12 4K7 R46 R48 BZV55/11V R47 R49 T1.6A KBL06 IN 22V ARK500/2 1N4007 KBU8J 7805 NAME: SL-250 IN 11V T6.3A TITLE: EZ 662 - CIRCUIT DIAGRAM ARK500/2 100n 100n DOCUMENT: V 1.3 SIZE: DATE: 14.2.2001 SHEET:...
  • Page 4 20MHz VCC2 100n L293D 4x22n 74HC04 IN1A OUT1Y IN2A OUT2Y 74HC04 IN3A OUT3Y IN1A OUT4Y EI1,2 74HC04 EI3,4 VCC1 VCC2 L293D 7805 IN DC ARK500/2 NAME: SL-250 TITLE: EZ 670 - CIRCUIT DIAGRAM DOCUMENT: V 1.0 SIZE: DATE: 3.8.2000 SHEET:...
  • Page 5 RC6/AD6 RD6/AD14 RC7/AD7 RD7/AD15 RB0/CAP1 RE0/ALE RB1/CAP2 RE1/OE RB2/PWM1 RE2/WR 8x220R RB3/PWM2 RB4TCLK12 RA0/INT RB5/TCLK3 RA1/RT 100µF RA4/RX/TX OSC1 RA5/TX/CX OSC2/CLKO BC807 TEST MCLR 16MHz NAME: SL-250 TITLE: EZDN41 DISPLAY - CIRCUIT DIAGRAM DOCUMENT: V 1.0 SIZE: DATE: 14.2.2001 SHEET:...
  • Page 6 NAME: SL-250 TITLE: COVERS DOCUMENT: V 1.1 SIZE: DATE: 23.2.2001 SHEET:...
  • Page 7 8 12 28 26 25 NAME: SL-250 TITLE: BASE DOCUMENT: V 1.0 SIZE: DATE: 23.2.2001 SHEET:...
  • Page 8 NAME: SL-250 TITLE: AXE “X” DOCUMENT: V 1.1 SIZE: DATE: 23.2.2001 SHEET:...
  • Page 9 NAME: SL-250 TITLE: ARM OF HEAD DOCUMENT: V 1.1 SIZE: DATE: 23.2.2001 SHEET:...
  • Page 10 NAME: SL-250 TITLE: HEAD 1/4 DOCUMENT: V 1.1 SIZE: DATE: 23.2.2001 SHEET:...
  • Page 11 20 17 NAME: SL-250 TITLE: HEAD 2/4 DOCUMENT: V 1.1 SIZE: DATE: 23.2.2001 SHEET:...
  • Page 12 NAME: SL-250 TITLE: HEAD 3/4 DOCUMENT: V 1.1 SIZE: DATE: 22.2.2001 SHEET:...
  • Page 13 NAME: SL-250 TITLE: HEAD 4/4 DOCUMENT: V 1.1 SIZE: DATE: 23.2.2001 SHEET:...
  • Page 14 NAME: SL-250 TITLE: COLOURWHEEL DOCUMENT: V 1.1 SIZE: DATE: 23.2.2001 SHEET:...
  • Page 15 NAME: SL-250 TITLE: GOBOWHEEL DOCUMENT: V 1.1 SIZE: DATE: 23.2.2001 SHEET:...
  • Page 16 Rear Page Sheet 1 of 10 Page/Position Part number Part description Device 99010147 Cover of base with logo "Movitec" SL-250 11010211 Cover rear "4" SL-250 19010010 Cover of arm (plastic) "3" SL-250 19010009 Cover of head (plastic) "3" SL-250 11010210 Cover front "4"...
  • Page 17 Grip-black NOX 213 SL-250 2/28 13040050 Relay Type 40.61 16A/250V SL-250 2/29 12050022 Plexiglass f. display "2" SL-250 2/30 13040141 IC EEPROM 24C08 SL-250/E V 1.0/IC2 SL-250 2/31 19010008 Plastic part of base SL-250 2/32 11010210 Cover front "4" SL-250 2/33 11010188 Holder of steppermotor "X"...
  • Page 18 Rear Page Sheet 3 of 10 Page/Position Part number Part description Device 13040013 Hall-sensor 506 SL-250 12050833 Holder ball-bearing "X" 2 SL-250 13030019 PCB MAG-6 version "A" SL-250 13030024 PCB MHO version "A" SL-250 12050832 Pivot "X" axe 2 SL-250...
  • Page 19 Rear Page Sheet 4 of 10 Page/Position Part number Part description Device 13040020 IC L239D with cooler SL-250 13040139 IC PIC 16C57 SL 250 V 1.0/IC1/M SL-250 13030071 PCB MAG-4 version "B" SL-250 13030024 PCB MHO version "A" SL-250 13030052...
  • Page 20 Rear Page Sheet 5 of 10 Page/Position Part number Part description Device 13030017 PCB MAG-4 version "A" SL-250 13030058 PCB CNG-4 version "B" SL-250 11010031 Holder of head-main SL-250 11010038 Module prism "1" SL-250 11010037 Module gobo-rot. "1" SL-250 11010035 Module color "1"...
  • Page 21 Rear Page Sheet 6 of 10 Page/Position Part number Part description Device 12030011 Holder objectiv lens D70 "2" SL-250 11010212 Front overlay "4" SL-250 14040017 Lens D70 BCX +0+3,5 Antireflex SL-250 13030017 PCB MAG-4 version "A" SL-250 14050010 Prism lens D47/3...
  • Page 22 Rear Page Sheet 7 of 10 Page/Position Part number Part description Device 99010200 Lens wide-angle complet unit 18° SL-250 13050055 Plug male PCB PAWR 2,54/03 SL-250 13030073 PCB MAG-5 version "A" SL-250 13030072 PCB MAG-4 version "C" SL-250 18060023 Screw M5x6 knurled plastic...
  • Page 23 Rear Page Sheet 8 of 10 Page/Position Part number Part description Device 11010213 Rear overlay "4" SL-250 13050037 Lamp socket GY 9,5 LZN SL-250 14020011 Lens ASPH D52 BSC Antireflex SL-250 14040014 Lens D56 BCX +3+10 Antifeflex SL-250 13050034 Igniter 640041 MSD 200-575W...
  • Page 24 Rear Page Sheet 9 of 10 Page/Position Part number Part description Device 14070070 Dichro 26 LW 580 "orange" SL-250 14070066 Dichro 26 UV SW460 "kongo blue" SL-250 14070068 Dichro 26 LW 610 "red" SL-250 14070067 Dichro 26 SW 570 "cyan"...
  • Page 25 Rear Page Sheet 10 of 10 Page/Position Part number Part description Device 10/1 15010148 Gobo metal 27/48 SL-250 10/2 15010149 Gobo metal 27/49 SL-250 10/3 15010154 Gobo metal 27/54 SL-250 10/4 15010152 Gobo metal 27/52 SL-250 10/5 15040010 Gobo glass 11/536/26,8...
