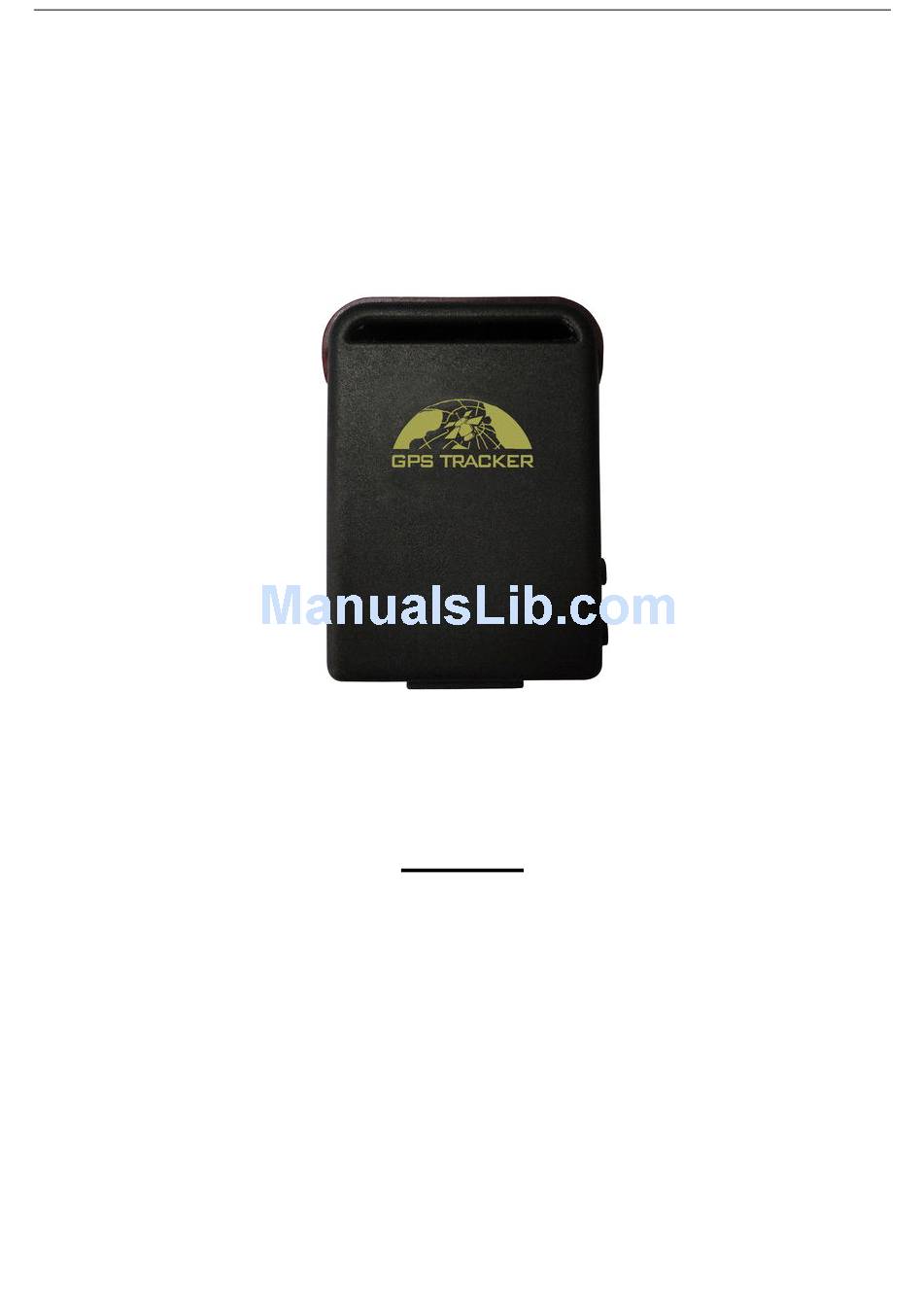

GSM/GPRS/GPS TRACKER
Device MANUAL
U
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device
smoothly and correctly. Make sure to read this manual carefully before using this product.
Please note that specification and information are subject to changes without prior notice
in this manual. Any change will be integrated in the latest release. The manufacturer
assumes no responsibility for any errors or omissions in this document.
1
Advertisement
Table of Contents
Related Manuals for Chinavision RX102
Summary of Contents for Chinavision RX102
- Page 1 GSM/GPRS/GPS TRACKER Device MANUAL Preface Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and correctly. Make sure to read this manual carefully before using this product. Please note that specification and information are subject to changes without prior notice in this manual.
-
Page 2: Table Of Contents
Content I. Function Introduction ......................3 1. Summary................................3 2. Applications ..............................3 3. Main Features ..............................3 4. Hardware Description In Figure; ........................4 5. Specifications ..............................4 6. SIM/SD CARD Installations ........................... 5 7. Battery and Charger ............................6 8. -
Page 3: Function Introduction
I. Function Introduction 1. Summary Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet. 2. Applications Vehicle rental / Fleet management etc; Protect child / the old / the disabled / pet etc; Provide peace-of-mind for businessmen;... -
Page 4: Hardware Description In Figure
4. Hardware Description In Figure; Front face Rear face Side face Indicator for signals. Can update device firmware, charge battery from there. SOS Button ON /OFF Button Built-in GSM/GPRS antennas Microphone GSM Card Slot Install the battery like this Interior 5. -
Page 5: Sim/Sd Card Installations
Quad-Band 850/900/1800/1900Mhz GPS chip UBLOX Chip GPS sensitivity -159dBm GPS accuracy Time To First Fix Cold status 27s Warm status 27s Hot status 1s Car charger 12—24V input / 5V output Wall charger － 2 20V input / 5V output Battery Chargeable changeable 3.7V 800mAh Li-ion battery Standby... -
Page 6: Battery And Charger
Lock the SD card to slot Lock the SIM card to slot 7. Battery and Charger Do charge the battery to capacity in 8 -12 hours for first time. Please use the battery and charger provided by the manufacturer. This tracker device adopts built-in Li-ion battery, and full battery can standby 80 hours. After first use, the battery usually should be charged fully in 3-5 hours. -
Page 7: Basic Functions
If the device is not install the SIM card, Press the SOS button Three seconds. The device will work in automatic track record mode. In this mode, device must be installed on the SD memory card. Please ensure that there is enough room in the SD card. -
Page 8: Locating
a SMS “add master ok”. After the first authorization, the other authorized numbers should be set by the first authorized phone. Sending a SMS “admin+password+space+mobile phone number” to set an authorized number, if the number is successfully authorized, the device will reply “admin OK with authorized number”. -
Page 9: Offline Voice Recording
Command: Send SMS "monitor +password" to the tracker device, it will enter the voice monitoring state, the device will reply "monitor ok". In this state the user could monitor the device’s environment sound/voice. After the device enters this state, when the users call the device using an authorized telephone, the device will no longer hang up the call or reply a short message including the real-time latitude and longitude information as usual, but connect the call from the phone. -
Page 10: Geo-Fence
will reply “timezone: ok with -8”。 9. Geo-fence: This command is to set an electronical fence. If this command has been set, an alarm will be reported to user when the device is out of the fence. Setup a Geo-fence: Command: The user can send SMS “stock+password+space +lat0,long0+space+lat1,long1”... -
Page 11: Tracking Trace Recording
Example: Send SMS “speed123456+80” to the device to set the speed limit to 80km/h. Response: The device will reply “Speed OK with 80km/h” to indicate overspeed alarm setting successfully. Another possible error response is “speed: error for no master set.” Alarm: When this command setting successfully, an overspeed alarm will be reported if the vehicle’s speed exceeds the speed limit. -
Page 12: External Power Supply Cut Off Alarm
[arm]: If present in the SMS means Arming turned on now; [speed] (val): If present in the SMS means overspeed alarm turned on; [shake] (val): If present in the SMS means vibration alarm turned on; [pspt]: If present in the SMS means external power supply alarm turned on now; [stock] : If present in the SMS means electronic fence alarm turned on now;... -
Page 13: Ip And Port Setup For Gprs Network Access
device to set the APN; If the local APN setting need no user name and password, send command "apn+password +apnname". Response: The device will reply a response SMS “apn: ok with apnName apnUser apn pass". If user receive the error response SMS “error for having already been connecting or connected to a Server”. -
Page 14: Gsm Base Station Positioning
Command: Send SMS command “ tracker+password” to order the device quit the tracking mode, disconnect to the GPRS monitor server and switch back to the SMS control mode. Example: Send SMS command "tracker123456" to the tracker device 19. GSM Base Station Positioning When no valid GPS signal received, the tracker device will try to locate itself by GSM/GPRS network. -
Page 15: Shock Sensor Alarm
This alarm is used to asking for help to all authorized users. It is always enabled, and will be triggered when: — the user presses the SOS button for 3 seconds, or When the alarm is triggered, it will be sent at a interval of 3 minutes, and can be stopped when: —... -
Page 16: Speed Alarm
— the device receives a command of “mask”, or — the devices returns to the range of the geo-fence. 7. Speed Alarm Alarm indication: “speed alarm!!” This alarm is enabled when: — the device receives command “speed”. This alarm is disabled when: —... -
Page 17: Cautions
5S/times GPRS Contact VI. Cautions Please comply with the instructions to extend the tracker device life: Keep the dry. Any liquid, i.e. rain, moisture, may destroy or damage the inside tracker device circuitry. Don’t use & store the in dusty places. tracker device Don’t put the in overheated or overcooled places.
