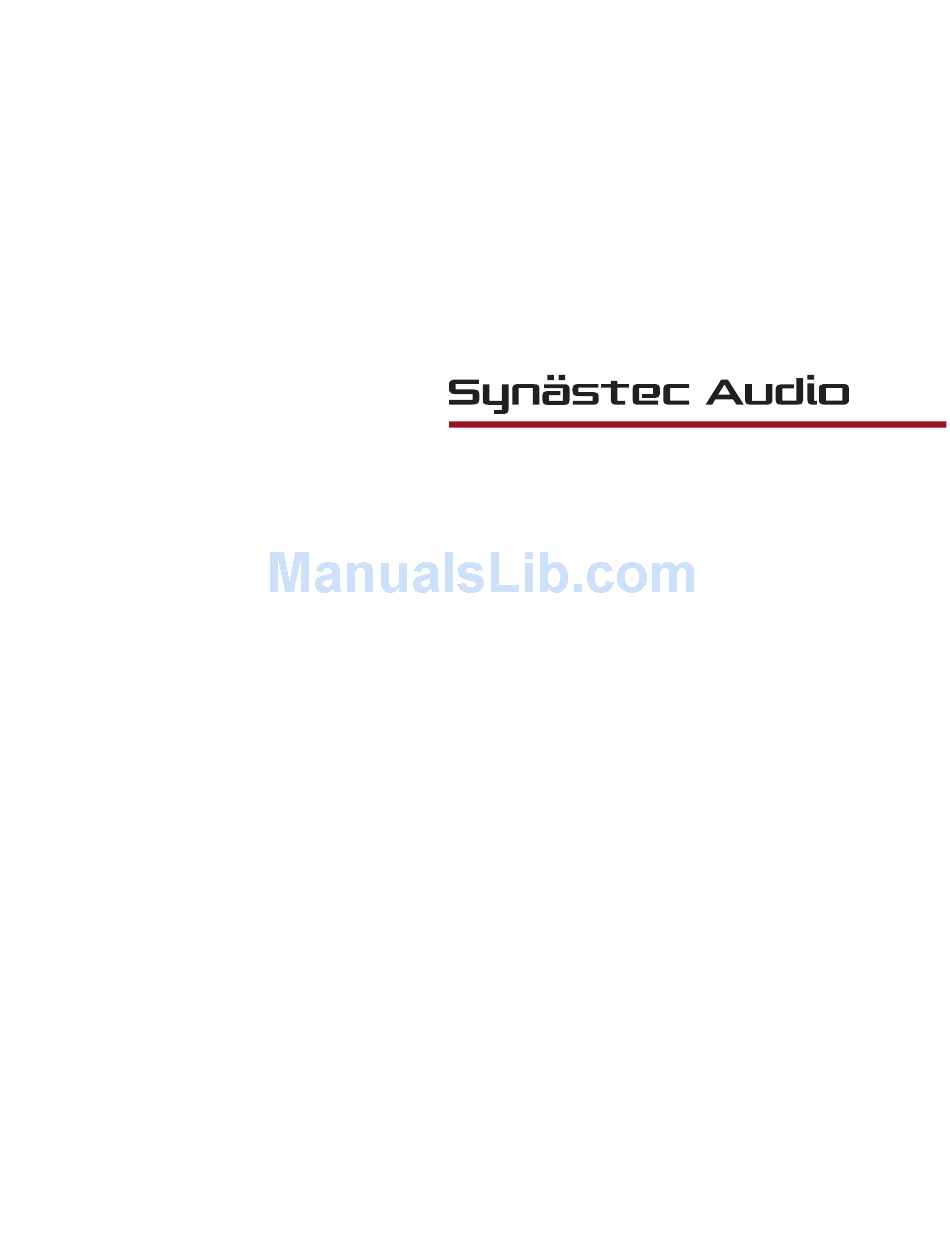

- Page 1 Volatus 200 Owner’s Manual ...
- Page 2 Dear Music Enthusiast, Thank you for purchasing Synaestec Audio Volatus 200, an ultra‐high‐precision power amplifier system combining cutting‐edge technology and the finest construction quality. You are about to experience a whole new level of realistic music reproduction. Please take some time to read this owner’s manual before using the equipment for the first time. You will find useful information that will enhance your listening pleasure. ...
-
Page 3: Table Of Contents
Contents Warning .............................. 3 Unpacking ............................... 3 Front view ............................... 4 Rear view .............................. 4 Preparations ............................ 5 Operation .............................. 6 Safety and Protection .......................... 7 Maintenance ............................ 8 Specifications ............................ 8 Warranty .............................. 8 2 ... -
Page 4: Warning
Warning To prevent the risk of electrical shock, DO NOT remove the cover of the amplifier. There are no user serviceable parts inside the Volatus 200 power amplifier. Unpacking You will find in the Volatus 200 packaging: ‐ A Volatus 200 monaural power amplifier ‐ An AC power cord ‐ This owner’s manual The Volatus 200 is machined from a solid block of aircraft grade aluminium, therefore it is much heavier than it looks. Lift the amplifier with great care, or ask for assistance when trying to remove it from the packaging. The packaging material is specially designed to well protect the Volatus 200. We recommend you to keep the original packaging in case you need to transport the amplifier in the future. 3 ... -
Page 5: Front View
Front view 1. Power button 2. LED (it can emit red or green light) Rear view T6.3A 3. IEC power inlet and main power on/off switch 4. Speaker output terminals 5. RCA unbalanced audio input 6. Balanced / unbalanced selector 7. XLR balanced audio input 4 ... -
Page 6: Preparations
Preparations The Volatus 200 is a monaural power amplifier. Each left and right audio channel is operated by a separate amplifier unit in order to achieve the best stereo channel isolation and audio playback. Install Volatus 200 on a rigid and stable platform. A vibration‐free platform will help to extract optimal sonic performance. Connect the Volatus 200 to the mains with an AC power cord. Always use an AC power cord with ground wire. The Volatus 200 must be earthed, both for safety and sonic reasons. To get the best sound quality, make sure that all your Hi‐Fi equipments are operated from one mains socket. To prevent accidental short circuit, connect and secure all audio cable and speaker cable before powering on the amplifier. ... -
Page 7: Operation
Operation Turn on the main power switch on the rear panel of the Volatus 200. After turning on the main power switch, the LED on the front panel will glow dim red. This indicates that the Volatus 200 has entered standby mode. Note that in the first few seconds just after power on, the Volatus 200 is starting up and will be on hold. Please be patient. After about 6 seconds, the startup will finish and there will be a very soft click sound. When you hear this, you can press the power button on the front panel to turn the Volatus 200 into operation mode. The green LED illuminates during operation. Now play your favorite music and enjoy. If the power amplifier has not been used for a few days, wait for 15 minutes after power up to get optimum sonic performance. When you finish listening, press the power button once more to toggle the Volatus 200 back into standby. The Volatus 200 consumes very little electricity under standby. If you plan to leave the Volatus 200 unused for a long period of time, use the main power switch on the rear panel to switch ... -
Page 8: Safety And Protection
Safety and Protection Clipping indicator When playing very loud music, the green LED may flash at the instant of loud passage. This means the audio output power is approaching the amplifier's maximum rating. The flashing green LED is only a reminder for you to turn down the volume control, in order to preserve optimum audio quality. When the volume is down, it will stop flashing. The Volatus 200 will not suffer from any damage even if it is driven to a power level in excess of rated output power. ... -
Page 9: Maintenance
Maintenance The Volatus 200 requires no adjustment and will remain in optimum condition for many years. Cleaning Clean the surface with a piece of soft dry cloth. Do not use any solvent or cleaning agent. Fuse replacement Always replace the supplied fuse with one with the same rating. For 220V AC electricity supply, use 6A delayed fuse. For 110V, use 12A delayed fuse. Specifications Power output: 200 W RMS, 8 ohm (THD < 1%) 400 W RMS, 4 ohm (THD < 1%) Frequency response: 10 Hz to 45 kHz (+0/‐3 dB) Voltage gain: 26 dB (+/‐ 0.5d B) THD + N: < 0.01% (10 Hz to 20 kHz) Intermodulation distortion: 0.0085% (2nd order) 0.0018% (3rd order) Signal to Noise ratio: > 115 dBA (A Weighting) Damping factor: > 400 (10 Hz to 1 kHz) Input impedance: 100 kOhm asymmetrical 200 kOhm symmetrical Power consumption: 550 Watt maximum 8 Watt standby Dimension: 400 mm x 307 mm x 87 mm (W x D X H) Weight: 18.3 kg net (per channel) ... - Page 10 Volatus 200 Monaural Power Amplifier Owner’s Manual (English, Rev. 1.1) Synästec Audiosysteme GmbH, Veilchenweg 1, 72479 Straßberg, Deutschland Website: www.synaestec‐audio.de, E‐mail: info@synaestec‐audio.de Tel: +49 (0) 7434 532 496, Fax: +49 7434 532 626 ...
