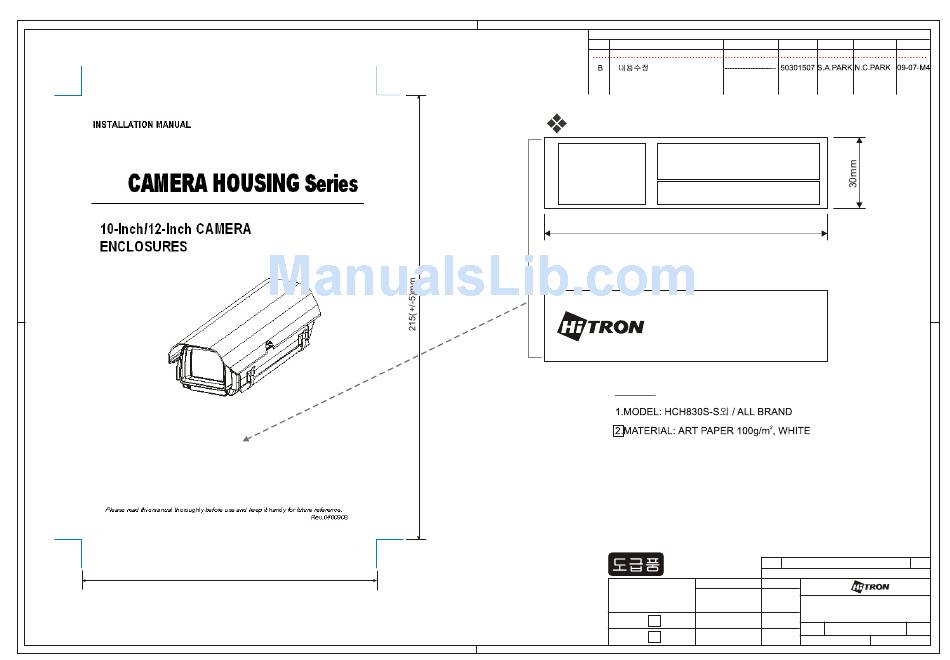

-------------------- 50301507 S.A.PARK Y .W.YOON 05-02-M2
(Label: 50201073)
BUYER BRAND TYPE
MODEL No.
BRAND
ADDRESS
120mm
ex) HITRON TYPE
HCH830M-2HBS
Model No.:
AC/CA 24V ~ 60Hz Max. 25W
HITRON SYSTEMS INC.
109-19 MAJEON-RI, SAMJUK-MYEON,
ANSUNG-CITY, KYUNGKI-DO, 456-881 KOREA
NOTES
BIND : STAPLES-2
3.FINISH: -------------------
4.COLOR: TEXT-BLACK
5.SIZE: 140(+/-5)mm x 215(+/-5)mm R: 0.0
6.ANY CHANGE OR ALTERNATION MUST BE
APPROVED BY HITRON ENGINEERING.
50301507
APPROVALS
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS ARE IN MM.
- TOLERANCE
LABEL
+/- 1.5
MANUAL
+/- 3.5
N.C.PARK
ANGULAR +/- 0.5
MATERIAL
CHKED
2
FINISH
DRAWN
3
S.A.PARK
PARTS No. BY
DATE
DWG No
CHK
ITEM
DESCRIPTION/MATERIAL
PARTS LIST
DATE
TITLE
09-07-M4
MANUAL INSTRUCTION
SIZE
DWG No
REV.
A4
----------------------------
09-07-M4
P/ N
SCALE
50301507
DO NOT SCALE
QTY
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCH830M-2HBS and is the answer not in the manual?

Questions and answers

Related Manuals for Hitron HCH830M-2HBS

Summary of Contents for Hitron HCH830M-2HBS

  • Page 1 109-19 MAJEON-RI, SAMJUK-MYEON, ANSUNG-CITY, KYUNGKI-DO, 456-881 KOREA NOTES BIND : STAPLES-2 3.FINISH: ------------------- 4.COLOR: TEXT-BLACK 5.SIZE: 140(+/-5)mm x 215(+/-5)mm R: 0.0 6.ANY CHANGE OR ALTERNATION MUST BE APPROVED BY HITRON ENGINEERING. 50301507 ITEM DESCRIPTION/MATERIAL PARTS LIST 140(+/-5)mm APPROVALS DATE UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE IN MM.
  • Page 2 INSTALLATION MANUAL CAMERA HOUSING CAMERA HOUSING CAMERA HOUSING CAMERA HOUSING Series Series Series Series 10-Inch/12-Inch CAMERA ENCLOSURES Please read this manual thoroughly before use and keep it handy for future reference. Rev.0400908...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. CAMERA HOUSING SERIES INTRODUCTION PURPOSE ................1 FEATURES................1 2. HOUSING INSTALLATION INTRODUCTIONS CONTENTS OF PACKAGE …………………………………. 2 PREPARATION FOR INSTALLATION …………………….. 2 INSTALLATION OF OPTIONAL COMPONENTS ………... 4 2.3-1 Blower Kit Installation ………………………………………… 4 2.3-2 Heater Kit Installation …………………………………………...

  • Page 4: Camera Housing Series Introduction

    1. CAMERA HOUSING SERIES INTRODUCTION PURPOSE The camera housing series are stylishly and functionally designed enclosures for 1/2" and 1/3" CCD cameras with fixed focal length or small zoom lenses. This manual describes how to assemble the housing and its optional components, affix the camera, and mount the assembly to a suitable surface.

  • Page 5: Housing Installation Introductions

    2. HOUSING INSTALLATION INSTRUCTIONS CONTENTS OF PACKAGE Remove the camera housing from the carton and verify that it was not damaged in shipment. The package includes: 1. Camera housing (including screws and washers) 2. Optional accessories and hardware (varies by specific model purchased.) 3.
  • Page 6 PREPARATION FOR INSTALLATION 2. If applicable, move the sunshield by sliding it forward on the main housing unit. Set the sunshield aside until needed. 3. Unlatch the lid and open the upper body. OPEN UNLATCH 4. Before closing the housing, remove the desiccant bag from the protective packaging and place the desiccant bag inside the housing to absorb moisture.

  • Page 7: Installation Of Optional Components

    INSTALLATION OF OPTIONAL COMPONENTS 2.3-1 BLOWER KIT INSTALLATION 1. Mount the blower unit located two on the rear of the housing. Align the hole and secure using the small Philips panhead screw. BLOWER UNIT SMALL PHILIPS PANHEAD SCREWS 2. Mount the blower circuit board located on the lower body. Align the holes and keep the wiring on the same side.

  • Page 8: Heater Kit Installation

    INSTALLATION OF OPTIONAL COMPONENTS 3. Connect the external power supply (not included) to the circuit board. The recommended power supply is 24Vac, 50VA. (B+) 24Vdc Out to Blower (Ground) Ground Ground 24Vac Power 24Vac Power Supply Input Supply Output 24Vac Out to Heater 4.
  • Page 9 INSTALLATION OF OPTIONAL COMPONENTS 2. Mount the heater circuit board on the lower body. Align the holes and keep the wiring on the same side. Use the small Phillips panhead screws to secure the assembly. SMALL PHILIPS PANHEAD SCREWS 3. Connect the external power supply (not included) to the circuit board.

  • Page 10: Blower Kit With Heater Kit

    INSTALLATION OF OPTIONAL COMPONENTS 2.3-3 BLOWER KIT WITH HEATER KIT 1. Follow steps detailed previously to install the Blower Kit. 2. Using a small screwdriver, disconnect the wiring to the J1 and J5 ports on the heater circuit board. DISCONNECT WIRING TO J1 AND J5 PORTS...
  • Page 11 INSTALLATION OF OPTIONAL COMPONENTS BLOWER CIRCUIT BOARD 4. Connect the heater wiring harness to the blower circuit board as shown. Connect the external power supply (not included) to the circuit board. The recommended power supply is 24 V ac, 50 VA. (B+) 24Vdc Out to Blower...

  • Page 12: Camera Mounting

    CAMERA MOUNTING This section contains comprehensive instructions for installing a camera into any one of the camera housing series. If you are installing optional equipment, such as a heater/blower kit, please consult instructions detailed previously for installation of optional components. Continue with mounting the camera only when instructed.
  • Page 13 CAMERA MOUNTING 5. Return the mounting plate to its original position and secure the assembly by tightening the Philips panhead screw through the mounting plate into the lower body. 6. Insert the camera cable through the compression glands and make all of the necessary electrical connections as described in the camera instructions.

  • Page 14: Sunshield Installation

    SUNSHIELD INSTALLATION This section contains instructions for installing the sunshield for the camera housing series. The sunshield is sold as an optional component and is also available in a pre-assembled package. The MODEL A(B) is the pre-assembled camera housing and sunshield combination.

  • Page 15: Maintenance

    WALL BRACKET MOUNTING 4. Adjust the moveable arm of the wall bracket to attain the desired position. Once it is in place, tighten the bolt located at the pivot point of the movable arm and tighten set screw. 2" MAINTENANCE Regularly scheduled maintenance prolongs the operational life and appearance of equipment.

  • Page 16: Specifications

    3. SPECIFICATIONS CAMERA HOUSING SERIES SPECIFICATIONS Dimensions (WxHxL): (with sunshield) MODEL A 5.8 x 4.6 x 14.0 in (147 x 118 x 356 mm) MODEL B 5.8 x 4.6 x 16.0 in (147 x 118 x 406 mm) Weight: MODEL A 4.9 lbs.

  • Page 17: Sunshield (Optional)

    SUNSHIELD (OPTIONAL) Dimensions: (sunshield only) MODEL A 5.83 x 2.36 x 14.0 in (148 x 60 x 356 mm) MODEL B 5.83 x 2.36 x 16.0 in (148 x 60 x 406 mm) Weight: MODEL A 0.88 lbs (0.4 kg) MODEL B 1.23 lbs (0.5 kg) HEATER (OPTIONAL)
