Ecomist E6 Instruction Booklet

Ecomist 6 Instructions for use
Your Ecomist 6 kit contains
• 1 Ecomist Electronic Aerosol Dispenser
• 4 AA type Alkaline batteries
• Screw for installation of dispenser onto plaster board.
• Instructions
Aerosol can of choice sold separately.
Installation
Where to install
Do:
• Install in a location where air currents will circulate the
aerosol spray to areas where it is most required.
• Mount dispenser about 2 meters above the floor preferably
where there is a clear area between the dispenser and
the floor.
Don't:
• Install near or next to an open window or extractor fan as
aerosol spray will be lost.
Caution: Do not install over appliances or furniture, e.g.
Refrigerators, items made of plastic or polished surfaces.
Mounting Dispenser
• Fit screw to wall, do not screw all the way in but leave a gap
of approx 8mm between screw head and wall.
• To hang, slot screw head into slot on wall mounting bracket in
the back of the dispenser.
Batteries
Alkaline batteries must be used to ensure correct & long life
operation of dispenser.
• Make sure power switch is in OFF position.
• Install the 4 Alkaline type AA batteries. Ensure that the
battery polarities are correct as shown in dispenser.
Aerosol Can
• Turn the dispenser OFF.
• Remove old aerosol can by unscrewing anticlockwise.
• Remove spray nozzle from the top of the new aerosol can.
• Screw the can into the solenoid valve clockwise until finger
tight ensuring a complete seal. Do not over-tighten.
• Face the dispenser away from you and turn the power switch
ON, the dispenser will spray once.
Caution: If accidentally sprayed in eyes flush immediately
with water.
Dispenser Program Settings
• Dispenser is set to factory settings of 7 min and 60mg.
Circuit Board
Insert can in here and
screw clockwise to
tighten
• To adjust amount dispensed, turn the knob
anti-clockwise to decrease and clockwise to
increase.
• Frequency can be adjusted using the switch
OFF
between 1 min (recommended for outdoors) and
7 min (recommended for indoors).
Outdoor Operation
ON
• Place unit in an up breeze location. Be aware that dispenser
effectiveness may be reduced as breeze increases.
• Switch unit onto 1 min setting and turn on. It is suggested
to start dispenser 10 mins before you wish to use the area to
clear it of insects.
Caution: Aerosol contains flammable gas, DO NOT use close
to naked flames. Keep dispenser dry. Keep dispenser away
from children.
Wall mounting bracket
Solenoid Valve

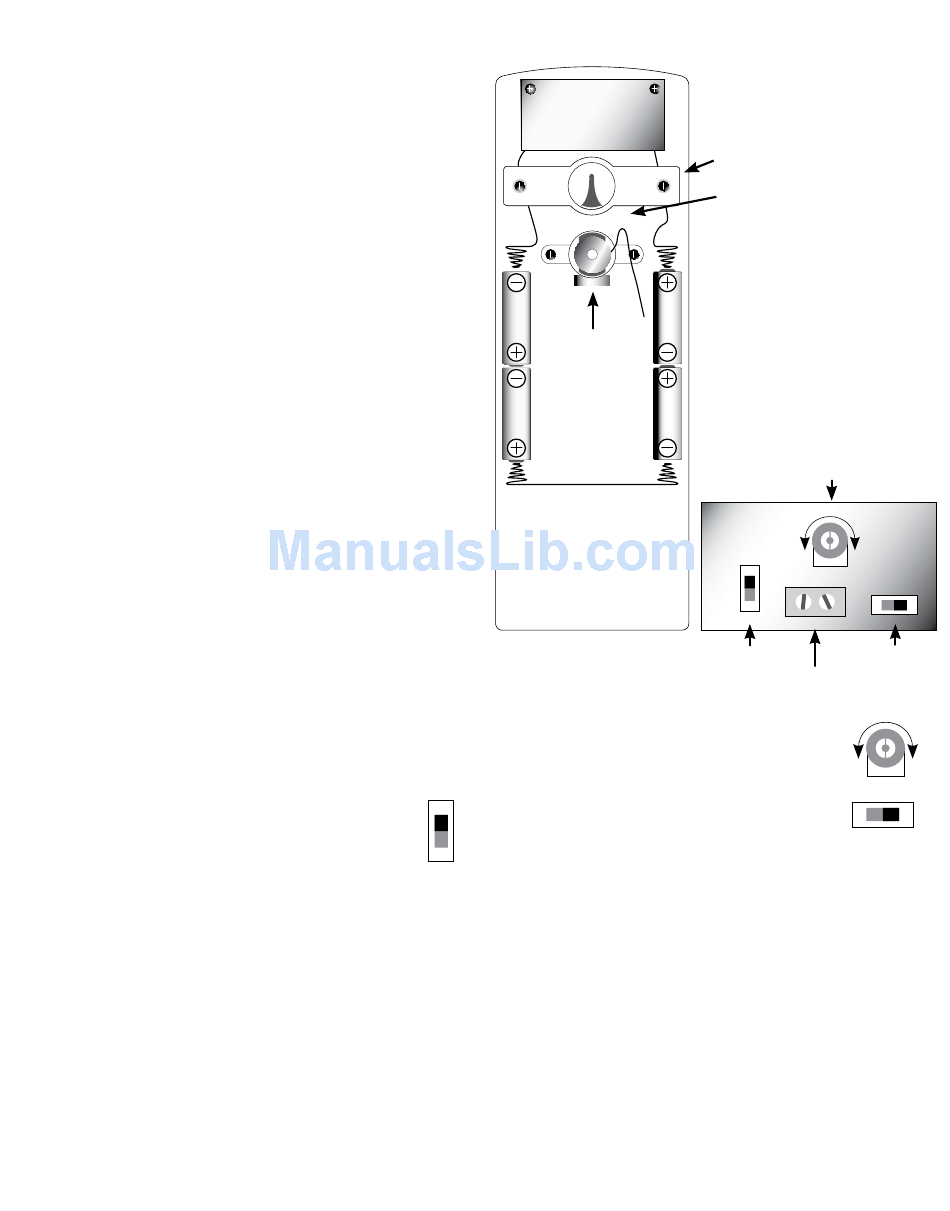

Enlarged diagram of circuit board
Dispense quantity
adjustment
Dispenser Quantity
OFF 30mg 90mg
Low High
ON
1 MIN
Remote
Dispense time
ON/OFF Switch
adjustment switch
Remote screw terminal
Dispenser Quantity
30mg
Low
1 MIN
7 MIN
90mg
High
7 MIN
