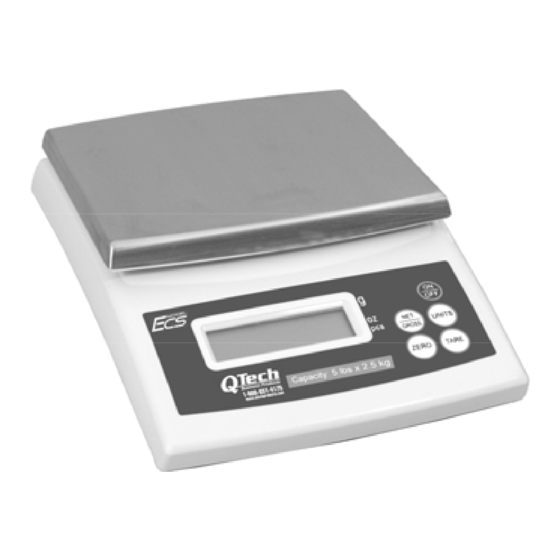

ECS Series
The Perfect
Counting Scale
for
Any Application
129 Cramer Road, Jewett, New York 12444 USA
800-831-4175 • 518-734-6514 • Fax: 518-734-6497
Email: info@QTechScales.com • Web Site: www.QTechScales.com
Copies of this manual are available in Adobe Acrobat PDF format on our website.
Instructions
5,10, or 20 lb. Capacity
•
Counting
•
Weighing
•
Shipping
•
Inventory Control
•
Batching
Installation
Operating
and
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for QTech ECS Series
Summary of Contents for QTech ECS Series
- Page 1 Installation Operating Instructions ECS Series 5,10, or 20 lb. Capacity The Perfect • Counting • Weighing Counting Scale • Shipping • Inventory Control Any Application • Batching 129 Cramer Road, Jewett, New York 12444 USA 800-831-4175 • 518-734-6514 • Fax: 518-734-6497 Email: info@QTechScales.com •...
-
Page 2: Preparing The Scale For Use
CAUTION: The AC adaptor supplied with the scale is a proprietary design. If it should ever fail, replace only with a QTech unit. The use of any other adaptor may result in scale and/or battery damage as well as voiding your warranty. - Page 3 FUNCTION: How to Sample Sampling is the process of “teaching” your scale to calculate a unit weight or “weight per 1000” pieces. Once the scale knows the unit weight, it can quickly provide a count by dividing the weight on the scale by the unit weight. This is the most critical step in the entire counting process.
- Page 4 COIN SAMPLING: Item Type Sampling Procedure Press the NET/GROSS key to cycle through the Coins or Tokens available samples sizes and select: C100 FUNCTION: Counting COUNTING: Once the Unit Weight has been determined through the sampling process you may begin adding additional pieces to the scale.
- Page 5 "electronic drift". If you need to count over-size sheets of paper (11x17”, 12x18", etc.) QTech offers a sturdy “expansion” (oversized) platter for sale. You can make a temporary expansion platter out of any suitable material such corrugated cardboard.
-
Page 6: Calibration Instructions
CALIBRATION: Calibration Instructions NOTE: The ECS scale does not need to be calibrated for normal use. Calibration is required only for ISO certification. Procedure: Turn the scale on. Press the UNITS key repeatedly until scale displays, “lbs.” Turn the scale off and turn it upside down. You will see a small black switch in a hole on the underside of the scale. - Page 7 Other Counting Solutions from QTech Low-cost, with Exceptionally High Resolution for Small Parts Counting, Postal Verification, and Ink Mixing Capacities: Resolution: 3 lbs. - X-RES-3 1 Part in 300,000 12 lbs. - X-RES-12 QCS Series Our Most Popular and Versatile Model...
- Page 8 About QTech Business Products… QTech Business Products is dedicated to providing cost effective solutions to your counting, ink mixing, weighing, and shipping scale needs. Our goal is to provide quality products and exceptional service and support. At QTech you can always expect: ...
