Summary of Contents for Canoga Perkins 1040

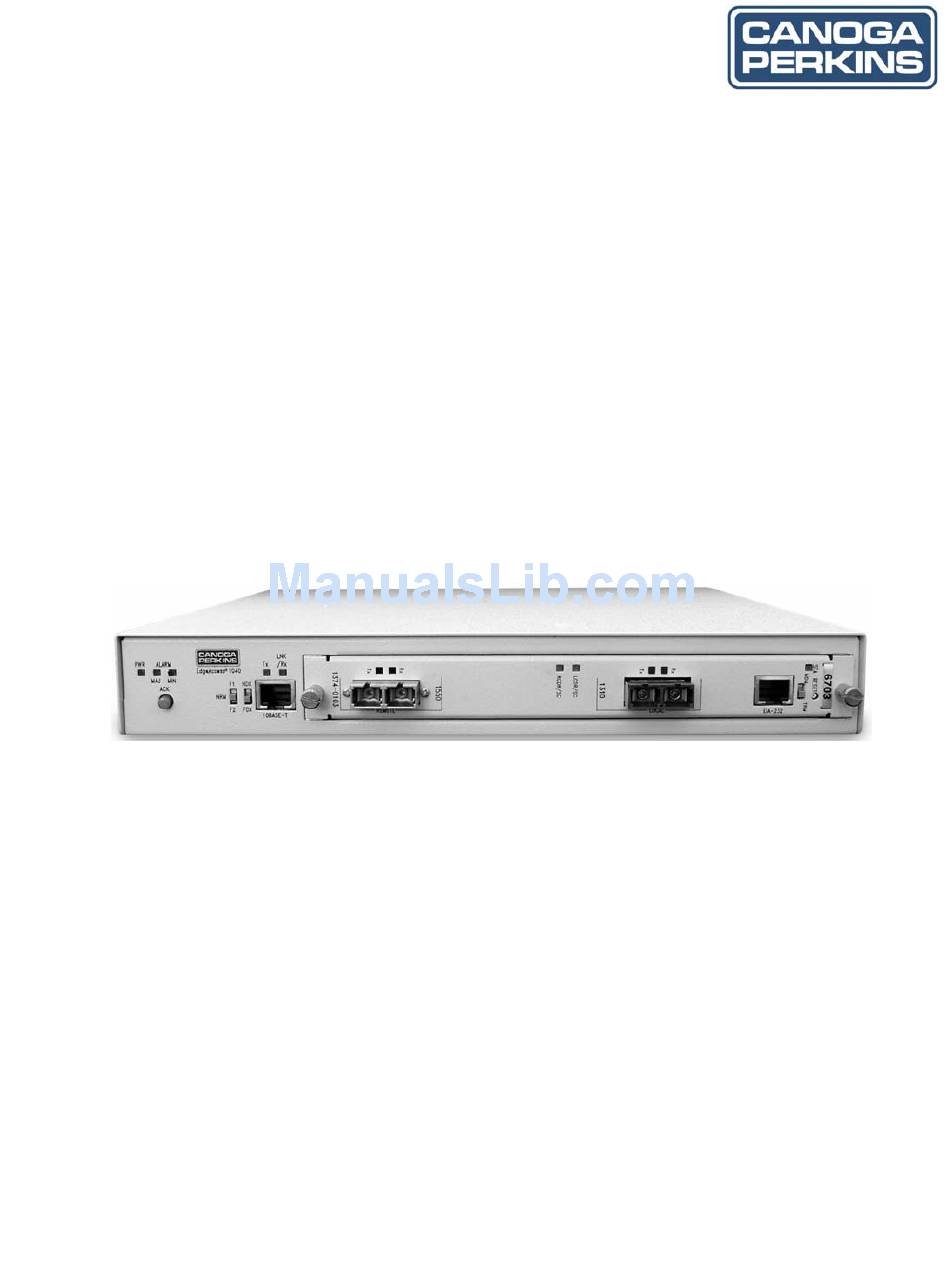

- Page 1 Model 1040 Standalone Enclosure User Manual...
- Page 2 Perkins and any unauthorized use or disclosure of such drawings, specifications and information is prohibited. Canoga Perkins reserves the right to change or update the contents of this manual and to change the specifications of its products at any time without prior notification. Every effort has been made to keep the information in this document current and accurate as of the date of publication or revision.
- Page 3 Model 1040 Standalone Enclosure User Manual The Model 1040 standalone enclosure, shown in Figure 1, supports one 5U-sized managed module. Figure 1. Model 1040 Standalone Enclosure The front provides two switches, five LEDs, one connector, and a slot for a module. The back includes an AC power cord socket and the ALM IN and ALM OUT connectors.
-
Page 4: Installing And Using The 1040 Enclosure
4. At ALM IN, on the rear panel, connect devices to supply alarm information; see Figure 2. Connect cabling from the + output on the device to IN+ on the 1040 and from the - output to IN- on the 1040; the internal alarm sense circuit is optically protected. Connect an optional Frame or Chassis Ground to FGND. -
Page 5: Warranty Information
Warranty Information Current Warranty information is available on-line in the Client Login Area of the Canoga Perkins web site (www.canoga.com) or by contacting Technical Support at 800-360-6642 (voice) or fiber@canoga.com (email). EdgeAccess Model 1040... - Page 6 CANOGA PERKINS CORPORATION 20600 Prairie Street Chatsworth, California 91311-6008 USA Phone: (818) 718-6300 FAX: (818) 718-6312 Web Site: www.canoga.com Email: fiber@canoga.com...
