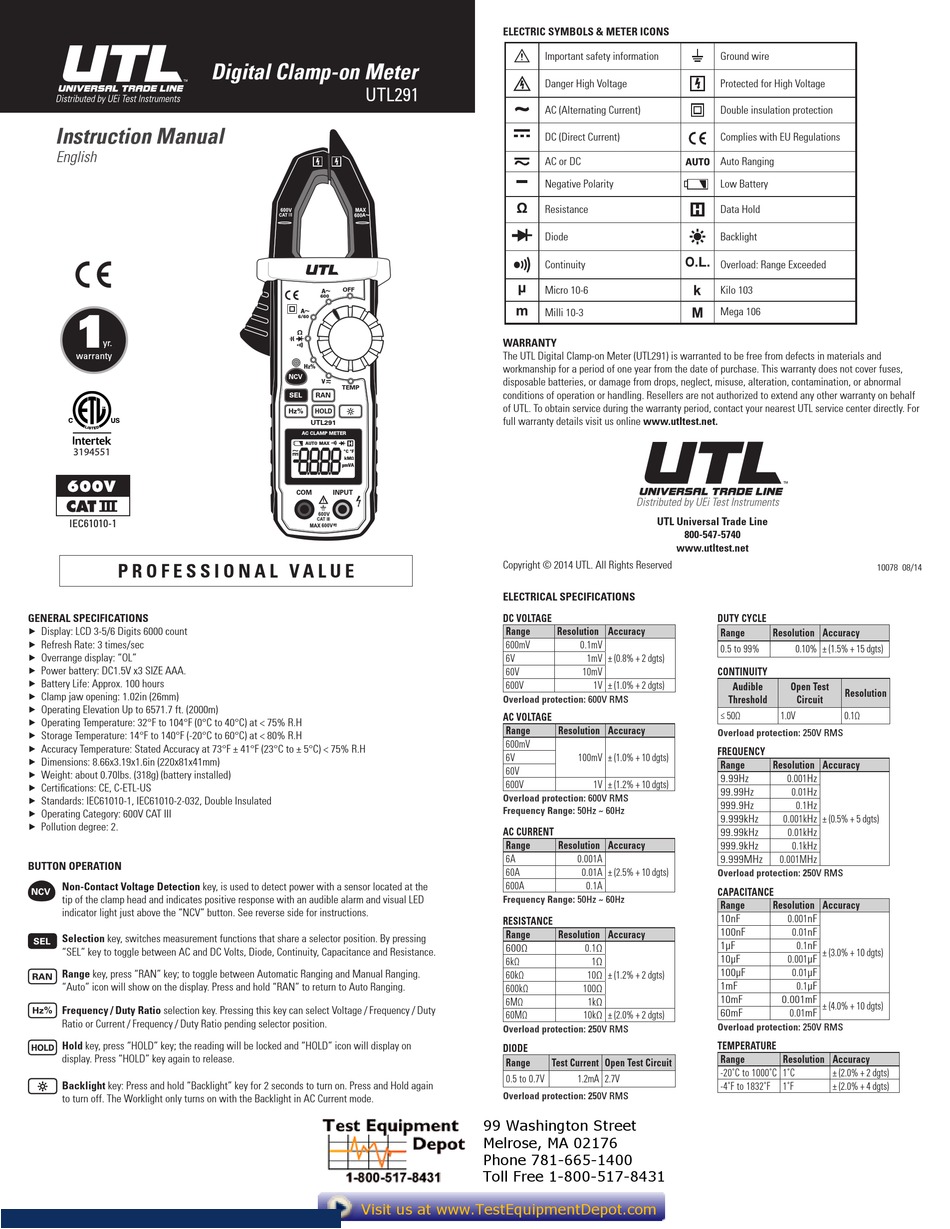

UTL UTL291 Instruction Manual

Instruction Manual

English
1
yr.

warranty

IEC61010-1
P R O F E S S I O N A L V A L U E
GENERAL SPECIFICATIONS
▶ Display: LCD 3-5/6 Digits 6000 count
▶ Refresh Rate: 3 times/sec
▶ Overrange display: "OL"
▶ Power battery: DC1.5V x3 SIZE AAA.
▶ Battery Life: Approx. 100 hours
▶ Clamp jaw opening: 1.02in (26mm)
▶ Operating Elevation Up to 6571.7 ft. (2000m)
▶ Operating Temperature: 32°F to 104°F (0°C to 40°C) at < 75% R.H
▶ Storage Temperature: 14°F to 140°F (-20°C to 60°C) at < 80% R.H
▶ Accuracy Temperature: Stated Accuracy at 73°F ± 41°F (23°C to ± 5°C) < 75% R.H
▶ Dimensions: 8.66x3.19x1.6in (220x81x41mm)
▶ Weight: about 0.70lbs. (318g) (battery installed)
▶ Certifications: CE, C-ETL-US
▶ Standards: IEC61010-1, IEC61010-2-032, Double Insulated
▶ Operating Category: 600V CAT III
▶ Pollution degree: 2.

BUTTON OPERATION

Non-Contact Voltage Detection key, is used to detect power with a sensor located at the
tip of the clamp head and indicates positive response with an audible alarm and visual LED
indicator light just above the "NCV" button. See reverse side for instructions.
Selection key, switches measurement functions that share a selector position. By pressing
"SEL" key to toggle between AC and DC Volts, Diode, Continuity, Capacitance and Resistance.
Range key, press "RAN" key; to toggle between Automatic Ranging and Manual Ranging.
"Auto" icon will show on the display. Press and hold "RAN" to return to Auto Ranging.
Frequency / Duty Ratio selection key. Pressing this key can select Voltage / Frequency / Duty
Hz%
Ratio or Current / Frequency / Duty Ratio pending selector position.
Hold key, press "HOLD" key; the reading will be locked and "HOLD" icon will display on
display. Press "HOLD" key again to release.
Backlight key: Press and hold "Backlight" key for 2 seconds to turn on. Press and Hold again
to turn off. The Worklight only turns on with the Backlight in AC Current mode.
Digital Clamp-on Meter
UTL291
OFF
A
600
A
6/60
Hz%
NCV
V
TEMP
SEL RAN
Hz% HOLD
UTL291
AC CLAMP METER
AUTO MAX
°C °F
kM
µmVA
COM INPUT
Visit us at www.TestEquipmentDepot.com
ELECTRIC SYMBOLS & METER ICONS
Important safety information
Danger High Voltage
AC (Alternating Current)
DC (Direct Current)
AC or DC
Negative Polarity
Resistance
Diode
Continuity
Micro 10-6
Milli 10-3
WARRANTY
The UTL Digital Clamp-on Meter (UTL291) is warranted to be free from defects in materials and
workmanship for a period of one year from the date of purchase. This warranty does not cover fuses,
disposable batteries, or damage from drops, neglect, misuse, alteration, contamination, or abnormal
conditions of operation or handling. Resellers are not authorized to extend any other warranty on behalf
of UTL. To obtain service during the warranty period, contact your nearest UTL service center directly. For
full warranty details visit us online www.utltest.net.
UTL Universal Trade Line
Copyright © 2014 UTL. All Rights Reserved

ELECTRICAL SPECIFICATIONS

DC VOLTAGE
Range Resolution Accuracy
600mV 0.1mV
6V 1mV ± (0.8% + 2 dgts)
60V 10mV
600V 1V ± (1.0% + 2 dgts)
Overload protection: 600V RMS
AC VOLTAGE
Range Resolution Accuracy
600mV
6V 100mV ± (1.0% + 10 dgts)
60V
600V 1V ± (1.2% + 10 dgts)
Overload protection: 600V RMS
Frequency Range: 50Hz ~ 60Hz
AC CURRENT
Range Resolution Accuracy
6A 0.001A
60A 0.01A ± (2.5% + 10 dgts)
600A 0.1A
Frequency Range: 50Hz ~ 60Hz
RESISTANCE
Range Resolution Accuracy
600Ω 0.1Ω
6kΩ 1Ω
60kΩ 10Ω ± (1.2% + 2 dgts)
600kΩ 100Ω
6MΩ 1kΩ
60MΩ 10kΩ ± (2.0% + 2 dgts)
Overload protection: 250V RMS
DIODE
Range Test Current Open Test Circuit
0.5 to 0.7V 1.2mA 2.7V
250V RMS
Overload protection:
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Ground wire
Protected for High Voltage
Double insulation protection
Complies with EU Regulations
Auto Ranging
Low Battery
Data Hold
Backlight
Overload: Range Exceeded
Kilo 103
Mega 106
800-547-5740
www.utltest.net
DUTY CYCLE
Range Resolution Accuracy
0.5 to 99% 0.10% ± (1.5% + 15 dgts)
CONTINUITY
Audible Open Test
Resolution
Threshold Circuit
≤ 50Ω 1.0V 0.1Ω
Overload protection: 250V RMS
FREQUENCY
Range Resolution Accuracy
9.99Hz 0.001Hz
99.99Hz 0.01Hz
999.9Hz 0.1Hz
9.999kHz 0.001kHz ± (0.5% + 5 dgts)
99.99kHz 0.01kHz
999.9kHz 0.1kHz
9.999MHz 0.001MHz
Overload protection: 250V RMS
CAPACITANCE
Range Resolution Accuracy
10nF 0.001nF
100nF 0.01nF
1μF 0.1nF
± (3.0% + 10 dgts)
10μF 0.001μF
100μF 0.01μF
1mF 0.1μF
10mF 0.001mF
± (4.0% + 10 dgts)
60mF 0.01mF
250V RMS
Overload protection:
TEMPERATURE
Range Resolution Accuracy
-20˚C to 1000˚C 1˚C ± (2.0% + 2 dgts)
-4˚F to 1832˚F 1˚F ± (2.0% + 4 dgts)
10078 08/14
