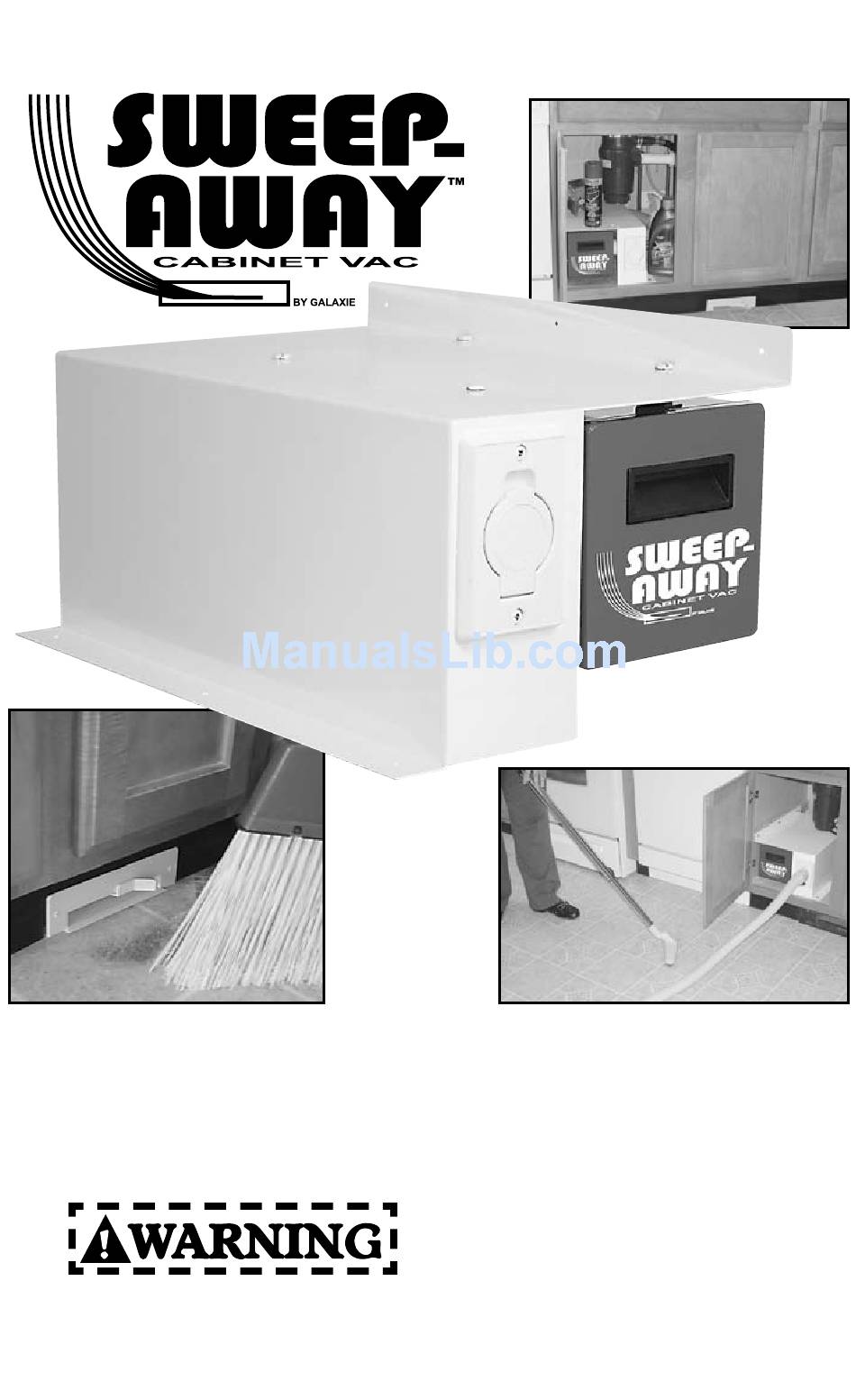

OWNER'S MANUAL
Read Manual Before Operating System
To The Owner:
Read the owner's manual thoroughly to ensure the most
efficient use of your Sweep Away Cabinet Vac System
DO NOT USE ON WET RUG OR FLOOR!
Please be sure this manual / installation information is left with the
power unit or customer when installation is completed.
Electric Shock could occur if
used on wet sufaces

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWEEP AWAY and is the answer not in the manual?

Questions and answers

Summary of Contents for CVC SWEEP AWAY

  • Page 1 OWNER’S MANUAL Read Manual Before Operating System To The Owner: Read the owner’s manual thoroughly to ensure the most efficient use of your Sweep Away Cabinet Vac System Electric Shock could occur if used on wet sufaces DO NOT USE ON WET RUG OR FLOOR! Please be sure this manual / installation information is left with the power unit or customer when installation is completed.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM SYSTEM When using an electrical appliance, basic precautions should always be followed, including the following: To reduce the risk of fire, electric shock or injury: • Unplug and disconnect power before servicing. • Electric shock could occur if used on wet surfaces. • Do not allow to be used as a toy. Close attention is necessary when used by o r near children. • Use only as described in this manual. Use only manufacturers recommend attachments.

  • Page 3: Changing Bag

    If motor brushes or bearings are worn out, SweepAway dealer and ask for bag #1000 the thermal protector will trip off again Or contact after a short period of time. If this happens, CVC Incorporated service for this and any other servicing 16-18 Ballard Road should be performed by an an authorized Lawrence, Massachusetts 01843 1-800-238-2294 service representative.

  • Page 4: Tools Required For Installation

    SWEEP AWAY INSTALLATION INSTRUCTIONS This unit must be installed in an accessible area with proper ventilation. TOOLS REQUIRED FOR INSTALLATION • Drill • Phillips Screw Driver • Keyhole or Reciprocating Saw • Standard Screw Driver • 2 ½’’ Hole Saw • Wire Strippers • 1/8” Drill Bit • Tape Measure Check proper clearance of cabinet door Select a location in a cabinet near a hinges and / or face frame of cabinet. grounded electrical receptacle for easy plug-in connection Use 1” x 2” spacer of motor cord. Route (provided) if needed cord so that it doesn’t to allow for proper rest against sharp edges removal of bag cover. or pinch point. Unit requires a 120 a.If spacer is required, volt electrical receptacle. mount spacer to flange See grounding instructions on page 2. on unit shelf using the (2) ½’’screws that are provided. Position unit allowing for proper...
  • Page 5 Attach low Remove unit from cabinet. voltage wire along flex hose with wire Using a 1/8’’drill bit, tie wraps (3) drill marked locations for provided. screw holes in the base of the cabinet. Feed flex hose through hole drilled in step # 10 through slot in toe kick. Drill a 2 ½’’ hole in the floor of the cabinet approximately the same distance off the side wall of the cabinet and directly behind the unit. Use the measurement you took in Fig.7. Attach flex hose to spigot adapter and fasten with hose clamp provided. Note: The vacpan can be installed in the toe kick of the cabinet without using the trim plate, by gaining access through the cabinet floor.
  • Page 6 Slide vacpan into mounting slot with Note: vacpan trim plate. Installation Without Faceplate On the toe kick of the cabinet, mark and cut out a 6 3/4” x 1/34” high slot. The vacpan can be installed in the toe kick of Then screw to toe kick with # 6 screws the cabinet without using the trim plate, by provided.

  • Page 7: Parts List

    PARTS LIST #4928 #6678 #7758 #4929 #8728 # 1000 #8404 #4962-03 #1000 #7760 # 7759 #FTW #4926-04 #4934 #2478-03 #7455 #7464 #7064-02 #7599-01 #UE20N50W0 #7655-01 #7090 #FASSY #FEC #7064-02 #GRCC #Spacer 1/2” Screw #VPTP 1 1/4” Screw #F90SP #CVS #VPV #SAM Part # Description Part # Description 7090 Relay Assembly...

  • Page 8: Limited Warranty

    LIMITED WARRANTY Your SWEEP AWAY which has been manufactured and inspected in accordance with carefully specified engineering requirements, is warranted to be free from defects in materials and workmanship for three years. This warranty is however, subject to the following qualifications, conditions and limitations which are set forth to provide users of CVC Incorporated / Galaxie Central Vacuum products with information concerning the duration, extent, availability and applicability of this SWEEP AWAY Limited Warranty, the procedure to be taken for warranty work and other information concerning the SWEEP AWAY warranty policy. DURATION OF WARRANTY AND TO WHOM EXTENDED CVC Incorporated / Galaxie Central Vacuum Systems warrants to the original customer, the SWEEP AWAY equipment and accessories manufactured or supplied by CVC Incorporated / Galaxie Central Vacuum Systems to be free from defects in material and workmanship under normal use and when properly installed and operated, for a period of three years from the date of purchase by the original purchaser. EXCEPTIONS AND LIMITATIONS ON WARRANTY Defects, malfunctions, failures or damage caused by improper use or repair while warranted parts are in the possession of the consumer are excluded from the warranty. The warranty does not cover unauthorized repair of the motor assembly. IMPLIED WARRANTY OF MERCHANDISE FOR A PARTICULAR PURPOSE ARE LIMITED TO A PERIOD OF THREE (3) YEARS FROM THE DATE OF PURCHASE BY THE ORIGINAL CONSUMER. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may be void where prohibited by law. WE NEITHER ASSUME NOR AUTHORIZE ANY PERSON TO ASSUME FOR US ANY LIABILITY IN CONNECTION WITH THE SALE OR SERVICE OF THIS SWEEP AWAY EQUIPMENT OTHER THAN HEREIN ABOVE PROVIDED. PROCEDURE TO BE TAKEN FOR WARRANTY WORK To secure repair of any warranted parts under this warranty, the following procedure should be taken: The warranted parts, together with satisfactory evidence of the purchase date, must be delivered, with shipping and delivery charges prepaid, to one of the following: (1) the Distributor/Dealer from whom purchased; or (2) CVC Incorporated/Galaxie Central Vacuum Systems, 16-18 Ballard Road, Lawrence, Massachusetts 01843.
