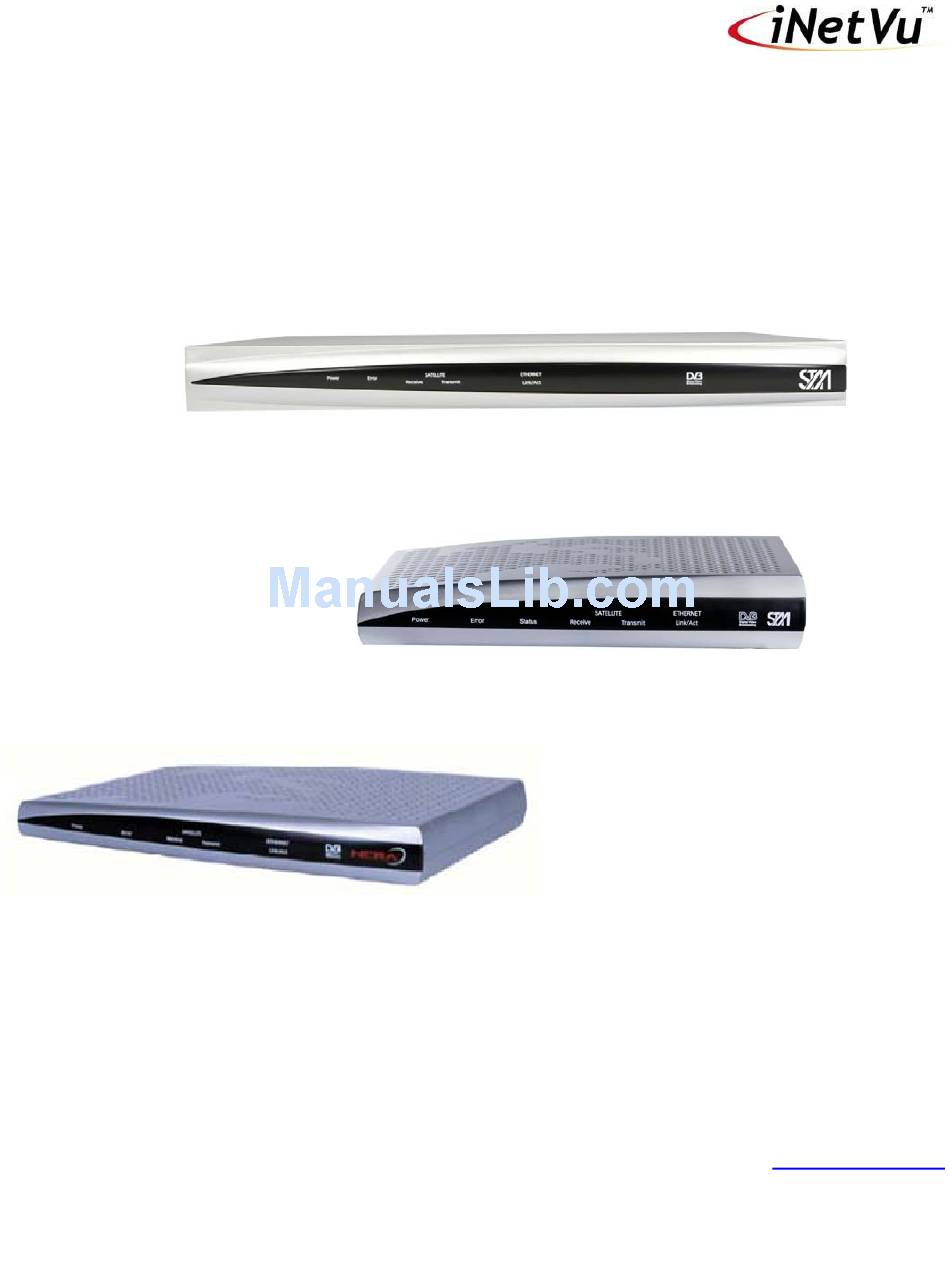

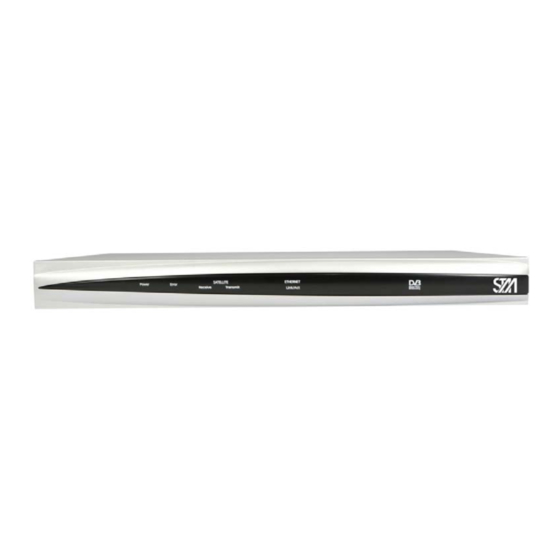

- Page 1 Nera/STM and the iNetVu® 7000 Series Controller STM Satlink 2900 STM Satlink 2000 Nera Satlink 1000 / STM Satlink 1910 1-877-iNetVu6 www.c-comsat.com Revision 3.0 May 25, 2015...
- Page 2 INETVU® MOBILE SYSTEM QUICK START – NERA & STM This page is intentionally left blank. C-COM Satellite Systems Inc. Page 2...
-
Page 3: Safety And Warning Information
For your safety and protection the following important safety information should be reviewed before installation, configuration and use of the iNetVu Satellite Platform System and Modem equipment. It is also recommended to read the manual in its entirety prior to setup and operation. -
Page 4: System Overview
DSL do not exist. It provides two-way, high-speed data communications over satellite. iNetVu™ empowers mobile users with the ability to stop anywhere there is Satellite coverage and access Internet at broadband speeds. The iNetVu™ Mobile application consists of the iNetVu™ Mobile software 7000 software (for the 7000 Series Controller) iNetVu™... -
Page 5: Pre-Configuration Check List
INETVU® MOBILE SYSTEM QUICK START – NERA & STM Pre-Configuration Check List Prior to installing IMS and configuring your system, verify that you are using the minimum requirements listed below. Note: Please contact C-COM if you require more information about modem compatibility as these may change without further notice. - Page 6 INETVU® MOBILE SYSTEM QUICK START – NERA & STM Define an access type with the name ―PUBLIC, with read-write maximum access rights and on the SNMP request‘s modem IP address and net mask. 6. Type the following into the command line “device snmp community PUBLIC rw “modem IP”...
- Page 7 INETVU® MOBILE SYSTEM QUICK START – NERA & STM System Wiring with STM Service USB Interface Connection – Satlink 1910 System Wiring Motor Control Cable Sensor Cable RG6 Coaxial Cable USB Cable Network Cable Antenna Power Cable Sensor Cable STM Satlink 1910...
- Page 8 INETVU® MOBILE SYSTEM QUICK START – NERA & STM USB Interface Connection – Satlink 2900 System Wiring Motor Control Cable Sensor Cable RG6 Coaxial Cable USB Cable Network Cable Antenna Power Cable Sensor STM Satlink 2900 SAT OUT Cable LAN 1...
- Page 9 INETVU® MOBILE SYSTEM QUICK START – NERA & STM Network Interface Connection – System Wiring Motor Control Cable Sensor Cable RG6 Coaxial Cable USB Cable Network Cable Antenna Power Cable Sensor Cable STM Satlink 1910 SAT OUT *Ground RX IN...
- Page 10 INETVU® MOBILE SYSTEM QUICK START – NERA & STM Modem Serial Connection – System Wiring Diagram Motor Control Cable Sensor Cable RG6 Coaxial Cable USB Cable Network Cable Power Cable Sensor Antenna Cable STM Satlink 1910 SAT OUT *Ground RX IN...
- Page 11 The 7000 Controller may be configured via the Software Application / Web Interface / LCD interface. Only one is necessary for complete configuration. iNetVu® Software Application (preferred method) First time user should use the iNetVu Wizard which is imbedded into the iNetVu software for guidance in configuring your system. ...
-
Page 12: Tips And Recommendations
Override Compass can be selected without selecting Full Search but this does not hold true for the vice-versa. Refer to Controller User Manual for more information on using the iNetVu Controller and options associated with your system. C-COM Satellite Systems Inc. - Page 13 INETVU® MOBILE SYSTEM QUICK START – NERA & STM 1.11 Software Setup and Initial Configuration Procedure with STM Service 1. If you are using the network interface to communicate with the 7000 Controller, set the PC/Notebook to the same network as the 7000 Controller.
- Page 14 INETVU® MOBILE SYSTEM QUICK START – NERA & STM 5. Set the 7000 Controller to the same network as the PC and VSAT Modem. *Note: The controller IP should be set in the controller through the LCD interface prior to entering it into the software tool for proper PC to Controller Communication through network interface.
-
Page 15: Software Installation And Configuration
Please Note: Do not connect the Controller via USB until the drivers and software have been installed 1. If you are installing from the USB flash drive or have downloaded from the C-COM FTP/KB, run the iNetVu7000Setup.exe file. 2. Install the iNetVu 7000 Software and close when complete. C-COM Satellite Systems Inc. Page 15... - Page 16 INETVU® MOBILE SYSTEM QUICK START – NERA & STM 3. Install the FTDI USB Drivers and iNetVu USB Drivers. Both are required. Click “Extract” Click “Next” Click “Finish” 4. Continue through the USB Driver Installation Wizard. Click “Next” Click “Finish”...
- Page 17 INETVU® MOBILE SYSTEM QUICK START – NERA & STM 5. Now that the drivers and software package has been installed, connect the iNetVu 7000 Controller via USB to your PC. 6. Windows XP users will have to follow the new hardware wizard and let windows automatically install the drivers.
- Page 18 INETVU® MOBILE SYSTEM QUICK START – NERA & STM 1.13 iNetVu Setup Wizard 1. The first screen you will see is the new iNetVu Setup Wizard. You can choose to continue using the wizard or click NO to proceed to the iNetVu Mobile 7000 software.
- Page 19 4. You may wish to continue through the wizard to complete the controller configuration or verify the settings. You can switch to the iNetVu software at any time by right clicking and selecting Controls. C-COM Satellite Systems Inc.
- Page 20 INETVU® MOBILE SYSTEM QUICK START – NERA & STM 5. Configure the Platform Type, Version and Serial No. If no changes are needed press “Next” to continue. Platform Type: Antenna Model Version: Antenna Version Serial No: Antenna Serial Number It is important that this information be correct or will result in undesired antenna behavior.
- Page 21 INETVU® MOBILE SYSTEM QUICK START – NERA & STM 6. Complete the Service Information section, set to STM as the Service Type. Select the Interface method you wish to use and configure accordingly. Mouse over each selection for a detailed description.
- Page 22 INETVU® MOBILE SYSTEM QUICK START – NERA & STM 7. Complete the Satellite Parameters, DVB Settings and Search Method. Mouse over each selection for a detailed description. Click Finish when complete. Satellite Parameters: Longitude: Satellite you will be searching on...
- Page 23 9. Congratulations you have configured your iNetVu Controller. You can now find satellite by pressing the FIND SAT button from the front panel or by launching the iNetvu Software. *For more detailed information on the iNetVu® 7000 Controller Software, refer to the iNetVu® 7000 Controller Manual C-COM Satellite Systems Inc.
