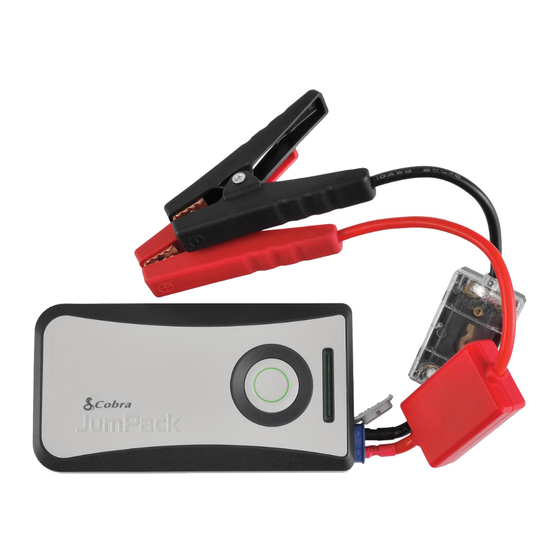

Jumpack jump starter portable powerpack

Advertisement

IMPORTANT SAFETY INSTRUCTIONS

Charge the JumPack fully prior to use.
WARNING: Keep the unit clear of fire and water.
WARNING: Shock Hazard. Keep away from children. Do not
CPP8000
insert foreign objects into the jumper cables port/jack, the
USB output port, or the USB input jack. Do not expose this
User Manual
product to water, rain, snow, condensation, or spray. Do not
open the JumPack to replace the internal battery. No user
replaceable parts are inside the JumPack.
WARNING: Explosion Hazard. Do not use this product where
there are flammable fumes or gases, such as an inadequately
vented bilge of a boat, or near propane tanks. Do not use this
product in an enclosure containing automotive-type lead-acid
batteries.
The jump start cable clamps must be connected positive to
positive (red clip to battery (+)) and negative to negative
(black clip to battery (-)). A reverse polarity connection
(positive to negative) may cause damage to the JumPack
and/or create a sparking/explosion hazard.
WARNING: Fire Hazard
Do not crush or puncture the JumPack. Never allow the jump start
Portable Power - Anytime, Anywhere!
cables' red and black clamps' metal contacts to touch each other
Thank for purchasing the Cobra CPP8000 JumPack
jump
or another common metal conductor. This could cause damage to
starter portable PowerPack. Before using this product,
the unit and/or create a fire hazard. Always disconnect the jump
please read these instructions carefully to learn about the
start cables from the JumPack after each use and store separately.
features and capabilities of the JumPack and how you can
The jump start feature is designed for short term operation only.
get the best out of it.
Turn the ignition key for no more than 3 seconds at a time.
Note: Please charge your CPP8000 JumPack completely
Operating the jump start feature for more than 3 seconds may
prior to using it for the first time.
cause damage to the unit. Allow the JumPack to cool down for
at least 1 minute after each jump start attempt.
©2015 Cobra Electronics Corp. Part No. 480-1024-P Printed in China Version A

Caution: Operating temperature

Do not expose the JumPack to temperatures over +113° F (+45° C) or
under -14° F (-10° C). Using the JumPack at high or low temperatures
may reduce the internal battery capacity and shorten the battery life.
Note: In extreme cold weather conditions, please bring the JumPack
indoors for best results.
Precautions when working with batteries
WARNING: Explosion and fire hazard
1. Follow all instructions published by the battery manufacturer and
the manufacturer of the equipment in which the battery is installed.
2. Make sure the area around the battery is well-ventilated.
3. Never smoke or allow a spark or flame in the vicinity of the
engine or batteries.
4. Be careful not to drop a metal object on the battery or allow a
metal tool to simultaneously touch the positive and negative
cable ends or battery terminals.
5. Remove personal metal items such as rings, bracelets,
necklaces, and watches when working with batteries. Batteries
produce a short-circuit current high enough to weld a ring or
other similar objects to metal, causing a severe burn.
6. If you need to remove a battery, always remove the negative
terminal from the battery first. Make sure all accessories are
off so you don't cause an arc.
7. Someone should be within range of your voice, or close
enough to come to your aid when you work near batteries.
8. Have plenty of fresh water, soap and a supply of baking soda on
hand in the area of the batteries in case of contact with battery
acid. Baking soda neutralizes lead acid battery electrolyte.
9. The JumPack is supplied with a rechargeable Li-Cobalt battery.
This battery is self-contained and not consumer replaceable. Battery
must be disposed of properly when it no longer holds a charge.
Proper charging practices will increase the life of the batteries.For
information on battery recycling call toll free 800-822-8837.
1
2
Product:

Check Battery Capacity:

Battery Status Indicator Light Bar
USB 5V 1.8
USB 5V
2.4
To check the battery capacity of the JumPack press the
Amp Input
Amp Output
Power/Flashlight/Battery
Power/Flashlight button on the top of the unit with no device
Capacity Button
connected. The green lightbar will show the remaining
INPUT
INPUT
OUTPUT
5V 2.4A
battery capacity:
5V 1.8A
14V 1A
Jump Starter Cable Input
DC
14V Charge Input
Jumper cable
Micro USB to
with clamps
Standard USB
Car adaptor
Cable
Operation:
Recharging the JumPack:
The CPP8000 JumPack can be recharged with the supplied 13.8V
DC vehicle charger or with the supplied micro USB to standard USB
cable connected to a 5V, 1A USB source, laptop or USB output AC
adapter (not included).
When the CPP8000 is charging; the light bar will show the current
battery life. The last section of the light bar that is lit will blink to
show that the JumPack is charging. When the JumPack is fully
charged the light bar will turn off automatically.
For best battery performance the JumPack should be fully
Note: When charging a device the section light may decrease
recharged every 3 months.
while the JumPack is in use. The battery capacity indicator
cannot accurately measure the capacity during rapid
charging. To confirm the real battery capacity, disconnect
the device being charged and press the power/flashlight/
capacity button.
3

Checking the Fuse:

The jump cables are designed with an in-line fuse to protect the
jumpack in the event of an over-load condition. The jump cables
include a clear case to use in checking to be sure the in-line
fuse is intact:
Battery Status Indicator Light Bar
1st Section on: 10%-40% charge
2nd Section on: 40%-65% charge
3rd Section on: 65%-85% charge
4th Section on: 85%-100% charge
Open or Damaged Fuse
CAUTION: Do not use the jump cables if the fuse appears
to opened or damaged. Please go to www.cobra.com for more
information.
4
Fuse Intact
5
