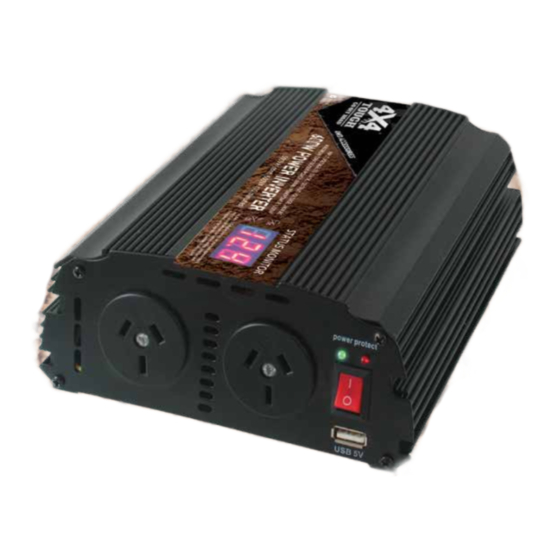

600W
POWER INVERTER
USER GUIDE
• 1 x 600W Power Inverter
• 1 x Set Power Cables with Battery
Clamps
• 1 x USB Port Compatible Multi Adapter
• 1 x Portable Power Bank (1800 Li-ion
Battery)
• 1 x USB Charging Lead for Portable
Power Bank
• 1 x User Guide
• 1 x Warranty Card
(For Indoor Use Only)
Version 2
June, 2015
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for 4x4 TOUGH GO OFF ROAD
- Page 1 600W POWER INVERTER USER GUIDE (For Indoor Use Only) • 1 x 600W Power Inverter • 1 x Set Power Cables with Battery Clamps • 1 x USB Port Compatible Multi Adapter • 1 x Portable Power Bank (1800 Li-ion Battery) •...
-
Page 2: Table Of Contents
Contents Page WARRANTY DETAILS ............................3 REPAIR AND REFURBISHED GOODS OR PARTS NOTICE ..............3 GENERAL INFORMATION ..........................4 INTENDED USE..............................4 CONTENTS ................................4 PORTABLE POWER BANK ..........................4 IMPORTANT SAFEGUARDS ..........................5 SAFETY FEATURES ............................6 OPERATING ENVIRONMENT .......................... 6 CONTROL FUNCTIONS ............................ -
Page 3: Warranty Details
600W Power Inverter Warranty Details The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. -
Page 4: General Information
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE USE. UNLESS DIRECTIONS ARE FOLLOWED PHYSICAL INJURY OR PROPERTY DAMAGE MAY RESULT. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. GENERAL INFORMATION Congratulations on the purchase of your compact portable power inverter. From a 12V DC battery source, the power inverter will efficiently and reliable power a wide variety of household AC appliances. -
Page 5: Important Safeguards
IMPORTANT SAFEGUARDS Incorrect installation or misuse of the power inverter may result in danger to the user or create hazardous conditions. We urge you to pay special attention to all CAUTION and WARNING statements. CAUTION statements identify conditions or practices that may result in damage to the power inverter or to other equipment. WARNING statements identify conditions that may result in personal injury or loss of life. -
Page 6: Safety Features
SAFETY FEATURES • Input protections: Reverse polarity (fuse)/over and under voltage/low battery alarm & shut down. • Power ON/OFF switch and LED indicator. • Input and output fully isolated. • Output protections: Short circuit/overload/over temperature. • Low power consumption (standby). OPERATING ENVIRONMENT For safe and optimum performance, install the power inverter in a location that is: •... -
Page 7: Led Power Indicator
Please note - The 4X4 TOUGH 600W Power inverter does offer the feature of an automatic battery cut off. If the battery usage is being depleted the unit has a safety device to eliminate the battery going flat. -
Page 8: Instructions For Use
INSTRUCTIONS FOR USE FIGURE 1. Power inverter Position of the Power Inverter • No liquid may be allowed to enter the unit. • The ambient temperature should be between -10 degrees and +40 degrees C. Do not place on or directly adjacent to a heat source. •... -
Page 9: Connecting An Appliance
• Overheating protection - If the internal temperature of 65°C is exceeded, the unit switches off automatically. After a cool-down period of approx. 15 minutes, the unit can be switched on again. Precautions • If connected directly to a battery or similar unit, please check that the battery clamps are connected with the correct polarity - Red terminal is positive (+) and black terminal is negative (-). -
Page 10: Maintenance & Cleaning
MAINTENANCE & CLEANING We recommend that only qualified persons perform maintenance and servicing on the Power Inverter. NOTE: Always disconnect and ensure the power switch is turned off before attempting any type of maintenance. Wait for the unit to cool before servicing. •... -
Page 11: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE RECOMMENDATION Low outgoing voltage. The power inverter is overloaded Reduce the outgoing output. Note: Only use RMS voltmeters to Incoming voltage is below 10 volt. Ensure adequate incoming voltage of over 10 measure the outgoing voltage. volt. Battery power is too low. - Page 12 4x4 TOUGH GO OFF ROAD is a trademark of Natural Product Solutions Pty Ltd Unit 3, 60 Box Road, Taren Point NSW 2229 Phone: 1300 883104. www.4x4tough.com.au | sales@4x4tough.com.au...
