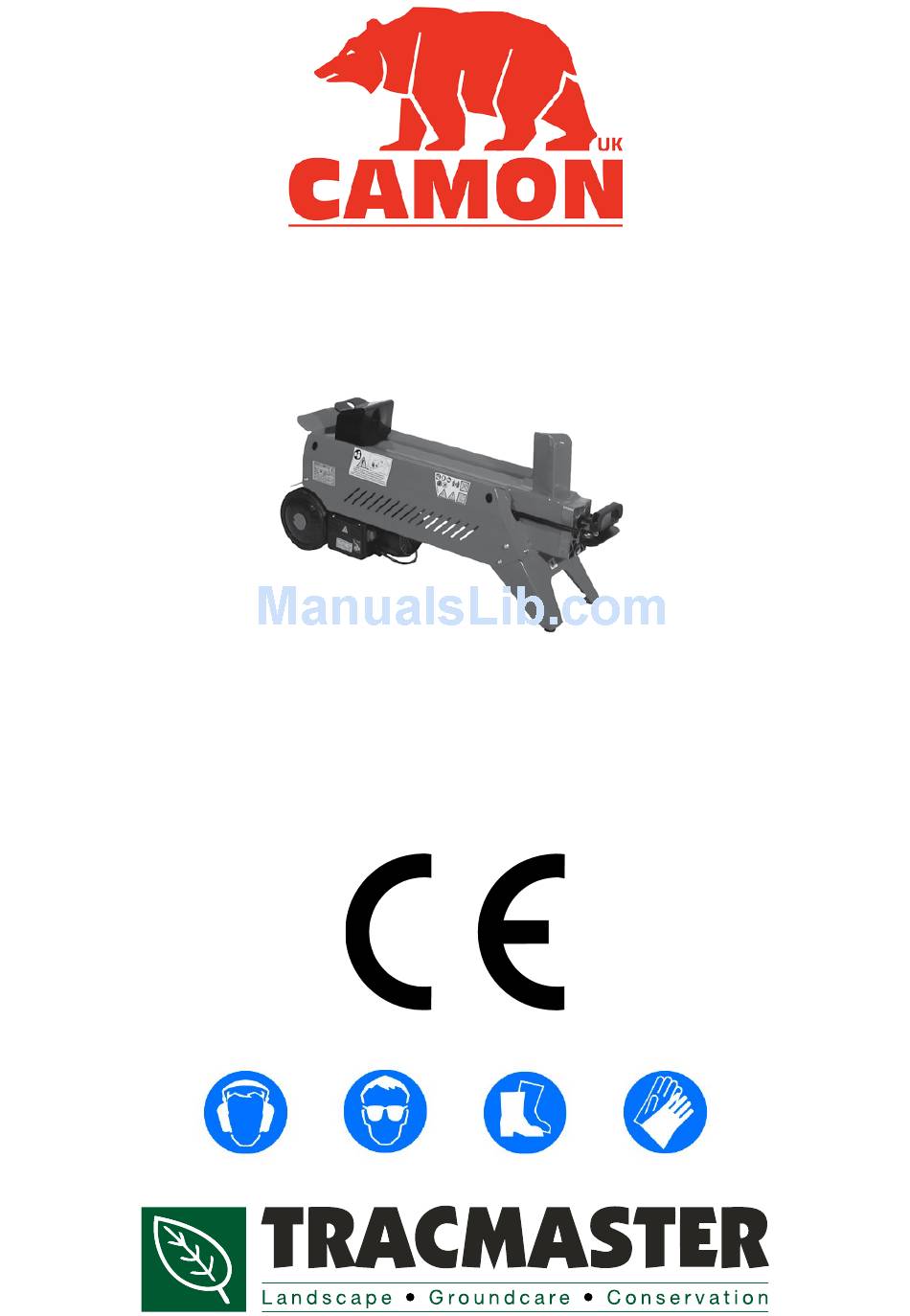

- Page 1 Turbo 7 Log Splitter Operating Instructions Before commissioning the machine, read operating instructions and observe warning and safety instructions.
-
Page 2: Table Of Contents
Turbo 7 Log Splitter Contents Pages 3-5 Description of Machine & Illustrations Page 6 Introduction Page 7 Explanation of Symbols Used Page 8 Technical Data Pages 9-11 Safety Page 12 Operating the Machine Page 13 Pages 14-15 Routine Maintenance Pages 16-17... - Page 3 Turbo 7 Log Splitter Description of the Machine The CAMON Turbo 7 is a portable horizontal log splitter equipped with its own electric motor. The various parts of the machine are shown in fig. 1 below. Fig. 1 Wedge Oil tank...
- Page 4 Turbo 7 Log Splitter Illustrations Fig. 2 Fig. 3 Fig. 4 Fig. 6 Fig. 5 Page 4 Turbo7/0213...
- Page 5 Turbo 7 Log Splitter Illustrations Fig. 7 Fig. 8 Fig. 9 Fig. 10 Page 5 Turbo7/0213...
-
Page 6: Introduction
Log Splitter. The CAMON Turbo 7 Log Splitter has been designed and manufactured in compliance with the most recent European safety regulations with particular reference to the EN 609-1 and CEI EN 60204-1 standards. -
Page 7: Explanation Of Symbols Used
Turbo 7 Log Splitter Explanation of Symbols Used Standard graphic symbols are used on all machines in order to ensure complete safety of all parts of the Log Splitter. As these symbols are very important, read the information below carefully. -
Page 8: Technical Data
Turbo 7 Log Splitter Technical Data Length ~ 1070mm Width ~ 300mm Height ~ 530mm Weight ~ 65kg Max force ~ 7 tonnes Max log capacity ~ 520mm Hydraulic oil capacity ~ 6 litres Supply 240V 50Hz 1-phase Absorption Power 2hp - 1.5KW... -
Page 9: Safety
WARNING: The CAMON Turbo 7 Log Splitter has been designed and manufactured to split logs of the sizes recommended on page 4, fig. 2 only. - Page 10 Turbo 7 Log Splitter Safety General safety regulations The machine must always be used by one operator only. Do not use the machine outdoors when it is raining or snowing. Nobody must be allowed to use the Log Splitter unless they have read the instruction manual and have been instructed in the regulations to follow for correct and safe use.
- Page 11 Turbo 7 Log Splitter Safety Do not force the blade by pushing the log on the upper part (fig. 9, page 5) as this can cause the blade to break or damage the body of the machine. Always set the log on the guides.
-
Page 12: Operating The Machine
Turbo 7 Log Splitter Operating the Machine The Log Splitter, in compliance with standard EN 609-1, is activated with a two hand control. One hand is used to press the motor drive button (fig. 6, no. 1, page 4) while the second activates the lever of the hydraulic control (no. - Page 13 Turbo 7 Log Splitter Connect the Log Splitter to the power supply. Never pass the power cable over the log pusher, close to the wedge or anywhere where it may be damaged or severed. Position the log on the beam as shown in fig. 6, page 4. The supporting guides (9 in fig. 1, page 3) help to keep the log at the centre of the wedge.
-
Page 14: Routine Maintenance
Routine Maintenance This chapter describes routine maintenance, i.e. operations carried out by the operator, on the Turbo 7 Log Splitter to keep it in perfect working order and therefore reliable for continuous, long- term use. All routine maintenance operations must be carried out with the machine off and in the case of log splitters with electric motor with the power cable disconnected. -
Page 15: Sharpening The Wedge
Turbo 7 Log Splitter Routine Maintenance Refilling the hydraulic oil Periodically check the oil level, which must be between the two notches on the oil cap dipstick (fig. 7/D, page 5). If the level is low, refill using the recommended types of oil on page 8. -
Page 16: Troubleshooting
Turbo 7 Log Splitter Troubleshooting How to free a jammed log Release both controls: the log pusher will be fully retracted. Insert a triangular block of wood under the jammed log and activate the Log Splitter until the wedge is pushed completely under the piece of wood (fig. 8, page 5). - Page 17 Turbo 7 Log Splitter Troubleshooting Problem Probable Cause Corrective Action Log fails to split Incorrect positioning of the Position the log correctly. log. Log exceeds permitted di- Try to cut a small part or use mensions or the wood is too...
-
Page 18: Scrapping & Disposal Of The Machine
Turbo 7 Log Splitter Scrapping & Disposal of the Machine The machine must be scrapped in compliance with all safety regulations for the prevention of personal injury and damage to the environment and animals. All parts of the machine must be scrapped and disposed of in accordance with applicable legislation in the place of scrapping. -
Page 19: Parts Diagrams
Turbo 7 Log Splitter Parts Diagrams Page 19 Turbo7/0213... - Page 20 Turbo 7 Log Splitter Parts Diagrams Page 20 Turbo7/0213...
- Page 21 Turbo 7 Log Splitter Parts Diagrams Page 21 Turbo7/0213...
- Page 22 Turbo 7 Log Splitter Parts Diagrams Page 22 Turbo7/0213...
-
Page 23: Part Numbers
Turbo 7 Log Splitter Part Numbers Part No. Part No. Part No. Part No. D02103230 E26560518 E87300085 E25850070 B62100230 E26515072 E87300080 E26620248 B62100090 B50010090 D02100073 B72150070 B66125910 D30580020 E78000010 B60840021 B62100100 D02100085 E87400200 B82030100 B62100110 B22300150 D17120100 B82030080 B62100120 B41000490... - Page 24 © Tracmaster Ltd 2013. Specifications are subject to change without prior notice. Tracmaster Ltd, Sovereign Centre, Victoria Road, Burgess Hill RH15 9LR T: +44 (0) 1444 247689 F: +44 (0) 1444 871612 W: www.tracmaster.co.uk E: info@tracmaster.co.uk...
