Summary of Contents for TimoLabs AMOY I
-

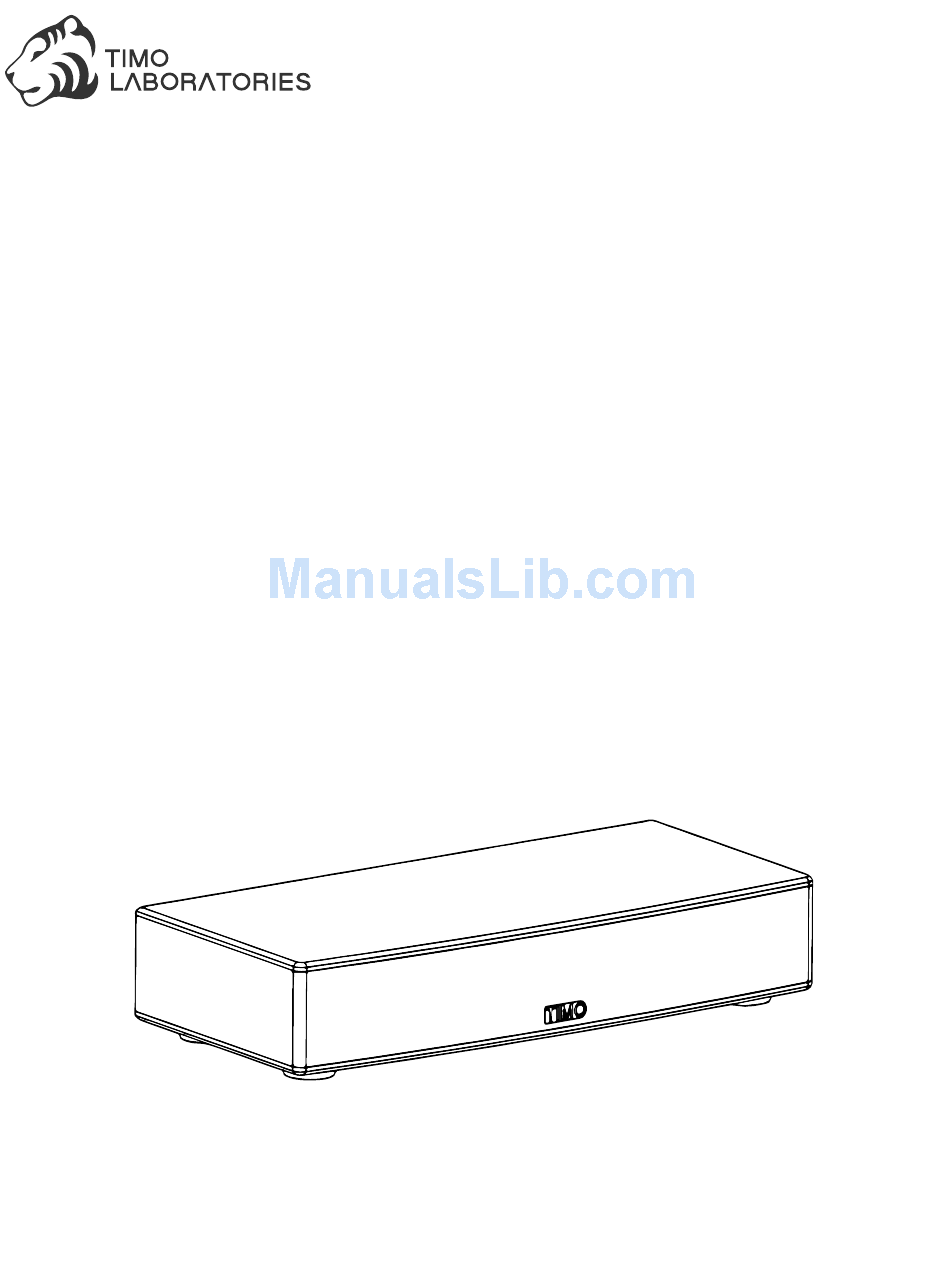

Page 1: Quick Start Guide
TimoLabs AMOY I, Model# TM-SS2020BT Soundbase/Sound Stand SYSTEM with BLUETOOTH Quick Start Guide... -
Page 2: Getting Started
TimoLabs directly. Important Carefully read the set-up instructions on page 4 and safety guidelines on page 11 before you set-up and use your AMOY I soundbase/sound stand sound system.To download the specifications for your sound system please visit www.timolabs.com/support.html... -
Page 3: Placement Guidelines
SETUP SOUND STAND SYSTEM The AMOY I soundbase/sound stand system is de- signed for TVs or Monitors that weigh no more than 40lb (18kg) and have bases no wider than 20” (508mm) and no deeper than 10 1/4” (260mm). Most 42”... - Page 4 SETUP SOUND STAND SYSTEM If the TV base is too large to fit on top of the system, place the sound system in another location such as an open shelf under the TV, but keep it close to your TV so the audio cable will reach.
-
Page 5: Setup Bluetooth Connection
Switch on your AMOY I by pushing the Power button on the remote. Then push the Bluetooth button on the remote. The red LED display on the AMOY I will display ‘BL ’ indicating that the speaker is ready for pairing. - Page 6 SETUP SOUND STAND SYSTEM...
- Page 7 SETUP SOUND STAND SYSTEM Plug the other end of your selected audio ca- ble into the corresponding audio input on your sound system. If you wish, you may slide the cable into the built in cable clip.
- Page 8 SETUP SOUND STAND SYSTEM Plug one end of the included power cord into the DC input connector and the other end into a wall outlet. A moment fter turning the system on, the system emits two tones indicating that it is ready to use.
-
Page 9: Turn System On
TURN SYSTEM ON 1. Press the power button you your remote 2. Turn on your TV 3. Turn off your TV’s built-in speakers To enjoy the full benefit of hearing TV Audio through your SS2020BT, the internal speakers on your TV should be turned off. -
Page 10: Care And Safety
CARE AND SAFETY Important Safety Instructions 1. Read these instructions 2. Keep these instructions 3. Heed all warnings 4. Follow all instructions 5. Do not use this apparatus near water 6. Clean only with a dry cloth 7. Do not block any ventilation openings 8. -
Page 11: Fcc Notice
CARE AND SAFETY FCC Notice This equipment has been tested and found to comply with the lim- its for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 12 It will help you set-up and operate your system properly and enjoy its advanced features. Save this guide for future reference. All TimoLabs products must be used in accordance with local, state and federal regulations. The lighting flash with arrowhead symbol within an equilateral...
- Page 13 CARE AND SAFETY WARNING: This product contains magnets which can be harmful to pacemak- er wearers. WARNING: Contains small parts which may be a choking hazard. Not suitable for children under age 3. WARNING: Never place the equipment in an unstable location, it may fall, causing serious personal injury or death.
- Page 14 CARE AND SAFETY WARNING: • To reduce the risk of fire or electrical shock, do not expose the product to rain or moisture. • Do not expose this apparatus to dripping or splashing and do not place objects filled with liquids, such as vases, on or near the apparatus.
- Page 15 CARE AND SAFETY NOTE: • The product must be used indoors. It is neither designed nor tested for use outdoors, in recreational vehicles, or on boats. • The product label is located on the bottom or back of the product. •...
-
Page 16: Troubleshooting
TROUBLESHOOTING TV Base is too large to place on the system • Place the sound system in another location such as an open shelf under the TV. • If possible mount your TV on the wall above the sound system No Sound •... - Page 17 • If the sound system is connected to a TV output labeled VARIABLE (VAR) reduce the TV volume. Sound is coming from the TV • Turn off your TV’s internal speakers, or • Turn the TV volume all the way down. Red power indicator • System error. Contact TimoLabs customer service.
-
Page 18: Replacing The Remote Battery
REPLACING THE REMOTE BATTERY When the remote stops operating or its range seems reduced, it is time to change the remote battery. 1. Using a coin, turn the battery cover slightly counter-clockwise. 2. Remove the cover and insert the new battery (CR2032 or DL2032) flat side up, with the plus (+) symbol in view. -
Page 19: Power Rating
CLEANING • You may clean the surface of the speaker with a soft, dry cloth. • Do not use any sprays near the speaker. Do not use any solvents, chemicals or cleaning solutions containing alcohol, ammonia or abrasives. • Do not allow liquids to spill into any openings. •... -
Page 20: Warranty
*stated below. The parts or products that are replaced become the prop- erty of TimoLabs. In the USA to obtain service under this limited warranty, contact support@timolabs.com for the name of the Authorized Service Center (ASC). - Page 21 WARRANTY TimoLabs is not responsible for damage to inbound product that was not properly packaged. TimoLabs will pay for the return shipment charges within the USA, but is NOT responsible for any costs shipping across international borders. If the unit is found not to be defective, the unit will be shipped back at the owner’s expense.
- Page 22 STRICT LIABILITY, OR OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL TimoLabs BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT OR OTHER INDIRECT, INCIDENTAL, OR CON- SEQUENTIAL DAMAGE.
