Summary of Contents for Mode Machines CerebelUSB
-

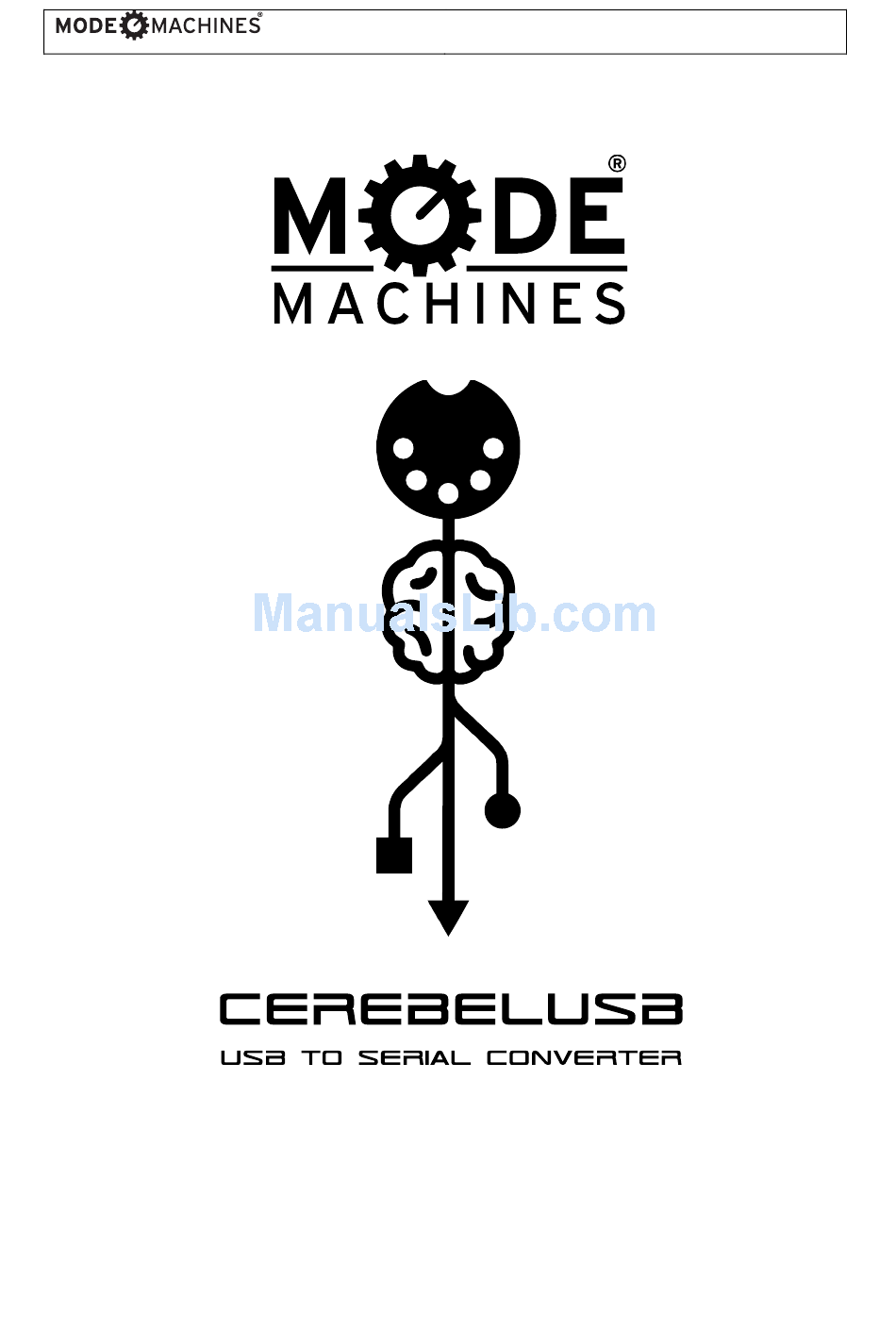

Page 1: User Manual
CerebelUSB USB MIDI HOST User manual 2015 www.modemachines.com... - Page 2 8. Specifications. 9. Warranty. 10. Final notes. 1. Overview Congratulations on the purchase of your Mode Machines CerebelUSB. Please make sure you read this manual completely before making use of the device. Main features and uses of CerebelUSB: • Converts any USB MIDI Class compliant device in to Standard MIDI Out DIN.
-
Page 3: Hardware Description
Many USB devices are powered through their USB connection so any different voltage might cause damage to the devices attached in the USB Host port. There is a protection circuitry inside the CerebelUSB to protect against reverse polarity and over-voltage, but these are not guaranteed to prevent damage to any attached USB device. - Page 4 This opens up a whole new world of possibilities for the user. CerebelUSB uses a Max32 Chip for the host functionality. It shares a compatible Pinout with most Arduino USB Host Shields on the market. This makes easy to use new firmwares already available on the internet.
