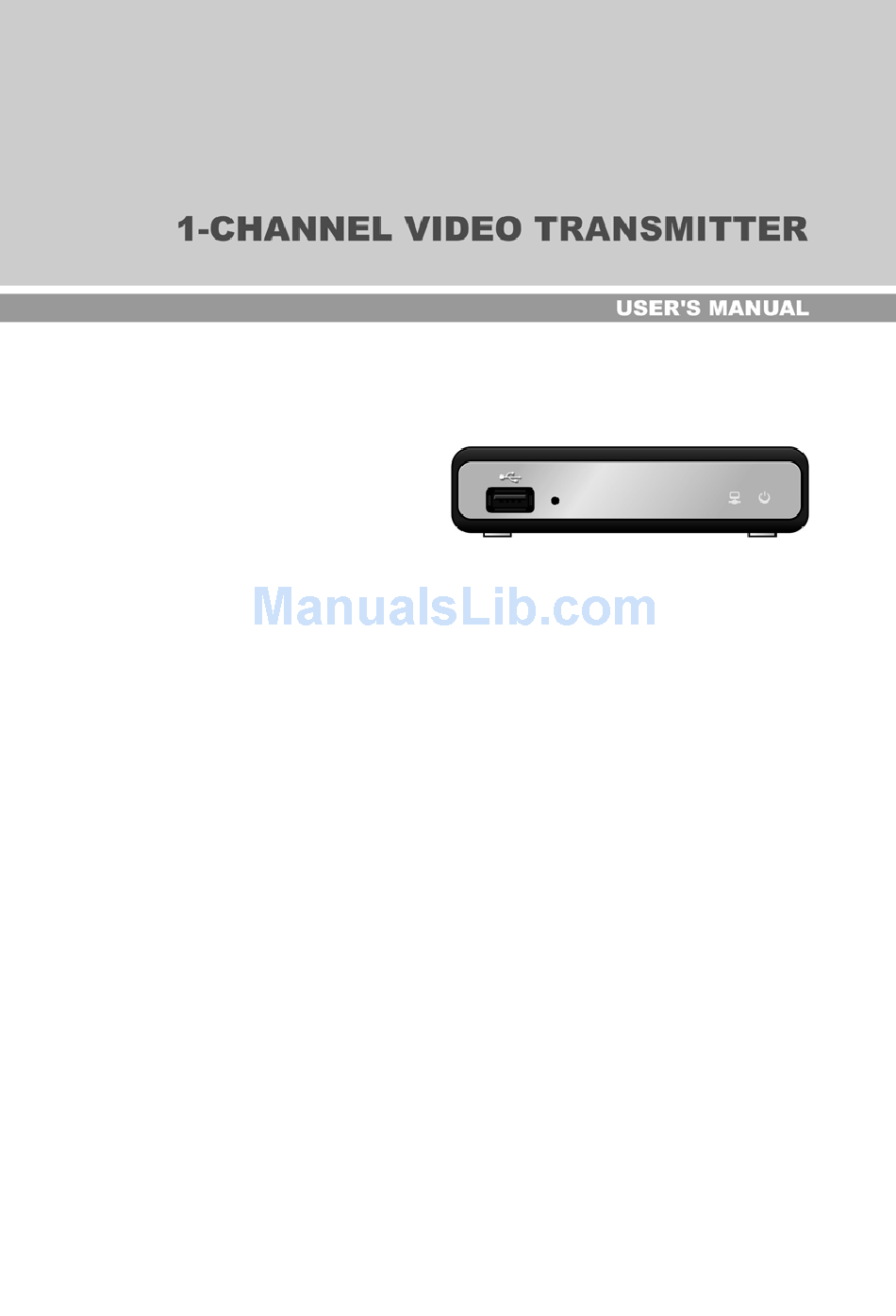

Costar CR1000INT User Manual

One-channel network video transmitter

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR1000INT and is the answer not in the manual?

Questions and answers

Summary of Contents for Costar CR1000INT

  • Page 3 One-Channel Video Transmitter WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. COMPLIANCE NOTICE OF FCC: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
  • Page 4: Important Safeguards

    User’s Manual Important Safeguards 1. Read Instructions 13. Damage requiring Service All the safety and operating instructions should be read before the Unplug this equipment from the wall outlet and refer servicing to appliance is operated. qualified service personnel under the following conditions: A.
  • Page 5: Table Of Contents

    One-Channel Video Transmitter Table of Contents Chapter 1 — Introduction ................. 1 1.1 In This Manual ..................1 1.2 Features ....................1 1.3 Typical Applications ................2 Chapter 2 — Installation ................... 5 2.1 Package Contents ................. 5 2.2 Front Panel .................... 5 Factory Reset ..................
  • Page 6 User’s Manual...
  • Page 7: Chapter 1 - Introduction

    One-Channel Video Transmitter Chapter 1 — Introduction 1.1 In This Manual This manual is intended for users of the one-channel network video transmitter (network video encoder) and includes instructions for using and managing the transmitter on the network. 1.2 Features This network video transmitter compresses live video from analog cameras and transmits the video over Ethernet connections.
  • Page 8: Typical Applications

    User’s Manual 1.3 Typical Applications Remote Monitoring (I) Remote Monitoring (II)
  • Page 9 One-Channel Video Transmitter Remote Recording Webcasting...
  • Page 10 User’s Manual Control Center...
  • Page 11: Chapter 2 - Installation

    One-Channel Video Transmitter Chapter 2 — Installation 2.1 Package Contents  Network Video Transmitter  DC Adapter (12V)  Power Cord  Installation CD (INIT, RASplus and iNEX Basic software, iNEX Basic User’s Manual)  User’s Manuals (Transmitter, INIT, RASplus) ...
  • Page 12: Rear Panel

    User’s Manual 2.3 Rear Panel Network Port Audio Out Audio In Video In Video Termination Resistance Switch RS485 Port DC 12V Out Alarm Output Alarm Input Power In  Network Port: Connect a Cat5 cable with an RJ-45 connector. Refer to the INIT User’s Manual for details about network connection setup.
  • Page 13 One-Channel Video Transmitter CAUTIONS:  The transmitter restarts after the power adaptor is disconnected from the transmitter when switching the power source from 12 VDC or 24 VAC to PoE.  The network connector is not designed to be connected directly with cable or wire intended for outdoor use.
  • Page 14: Chapter 3 - Remote Setup

    User’s Manual Chapter 3 — Remote Setup Remote Setup allows you to change all settings of the transmitter. Run the INIT program, select a transmitter and click the Setup icon on the Main screen. Select Remote Setup from the Setup menu and the Remote Setup screen appears.
  • Page 15: System

    One-Channel Video Transmitter 3.2 System You can change a transmitter’s system information, import or export all settings, and add users or groups. General  Language: Choose the language to be used during remote setup.  Name: Enter the transmitter’s name (up to 31 characters including spaces).
  • Page 16: Date/Time

    User’s Manual Date/Time  Date/Time: Change the system date/time, date/time format and time zone and turn daylight saving time on or off by checking the box. Clicking the Apply button applies the changes immediately.  Time Sync − Automatic Sync: Check the box to automatically synchronize the time with a time server.
  • Page 17: Network

    One-Channel Video Transmitter – Alarm-Out Control: The user can reset the output during an alarm. – System Check: The user can view and check the remote system status. 3.3 Network You can change the network settings, set up DVRNS and security functions and control the network bandwidth.
  • Page 18: Dvrns

    User’s Manual DVRNS Check the DVR Name Service box to use the DVRNS function.  DVRNS Server: Enter the IP address or domain name of the DVRNS server.  Port: Set up the port number of the DVRNS server.  Use NAT: Check the box when using NAT (Network Address Translation).
  • Page 19: Bandwidth Control

    One-Channel Video Transmitter CAUTIONS:  When changing the port settings, you must change the port settings on remote programs too.  When using the HTTPS protocol, the ONVIF protocol might not work. Bandwidth Control You can control the network bandwidth by limiting the network bandwidth depending on the network traffic.
  • Page 20: Video

    User’s Manual 3.4 Video You can set camera features and image transmission parameters for both remote monitoring and webcasting. Camera  PTZ Product / ID: Select a PTZ camera connected to the transmitter and assign an ID to the PTZ camera. ...
  • Page 21: Webcasting

    One-Channel Video Transmitter CAUTION: Remote recording is not available when in the single streaming mode. Webcasting You can stream live video from the transmitter to a website. Copy the HTML Code displayed on the screen and paste it in your web page code. NOTE: To use the webcasting service, you must check the Allow Anonymous Login option during 3.2 System –...
  • Page 22: Input/Output

    User’s Manual Input/Output  Audio In: Check the box to enable audio in and select the proper audio-in device. You can also adjust the volume.  Audio Out: Check the box to enable audio out. You can also adjust the volume. NOTE: The transmitter does not have amplified audio output, so you need to use a speaker with an amplifier.
  • Page 23: Motion Detection

    One-Channel Video Transmitter Motion Detection Check the Motion Detection box to set up a motion detection event. When the transmitter detects a motion in a configured motion detection zone, it considers the motion as an event.  Sensitivity: Set the motion sensitivity for daytime and nighttime independently.
  • Page 24: Video Loss

    User’s Manual Video Loss When the transmitter has lost video, it considers the video loss as a video loss event.  Event Action: Check the box for each action the transmitter will take whenever it detects a video loss event. −...
  • Page 25: System Event

    One-Channel Video Transmitter System Event Check the System Event box to set up a system event. The transmitter checks and reports the system and alarm-in status.  System: Select the check interval. The transmitter sends an email when the system is operating. ...
  • Page 26: Chapter 4 - Web Monitoring

    User’s Manual Chapter 4 — Web Monitoring You can monitor live video images from the transmitter on the web browser by using the WebGuard program. Computer system requirements for using WebGuard are: ® ® ® ®  Operating System: Microsoft Windows XP x86 (32 Bit) (Service Pack 3) or Microsoft Windows...
  • Page 27 One-Channel Video Transmitter NOTES:  There might be a problem with screen display or screen update caused by low image transmission ® ® speed when using the Microsoft Windows Vista operating system. In this situation, it is recommended that you disable the Auto Tuning capability of your computer. Run the Command Prompt with elevated administrator permissions (Go to the Start Menu, and Accessories, and then Command Prompt →...
  • Page 28 User’s Manual Setup: Click to set up the image drawing mode and OSD display. You can adjust the display ⑨ speed by changing the image drawing mode, and select OSD information to be displayed on the screen. Save Image: Click to save the current image as a bitmap or JPEG file format.
  • Page 29: Appendix

    One-Channel Video Transmitter Appendix LED Indicators LED Status Description Unlit No power connected to the unit. Flicker The unit is booting. Power LED The unit is operating. Network LED The unit is connected to a network. Flicker The unit is upgrading the software. sequentially Power LED &...
  • Page 30: Map Of Screens (Remote Setup)

    User’s Manual RS485 Connector Master Unit Slave Unit → To → TX+/RX+ – → To → TX-/RX- Map of Screens (Remote Setup)
  • Page 31: Specifications

    One-Channel Video Transmitter Specifications VIDEO Signal Format NTSC or PAL (auto detect) Input Composite: 1 input, 1 Vp-p, switch-terminating, 75 Ohms Input Resolution Composite: 720x480 (NTSC), 720x576 (PAL) Compression Algorithm H.264, MPEG-4, M-JPEG (Four levels) NTSC: 704x480, 704x240, 352x240 Compression Resolution PAL: 704x576, 704x288, 352x288 NTSC: 30 ips/30 ips @ 4CIF (MPEG-4, M-JPEG) 15 ips/15 ips @ 4CIF or 30 ips/0 ips @ 4CIF (H.264)
