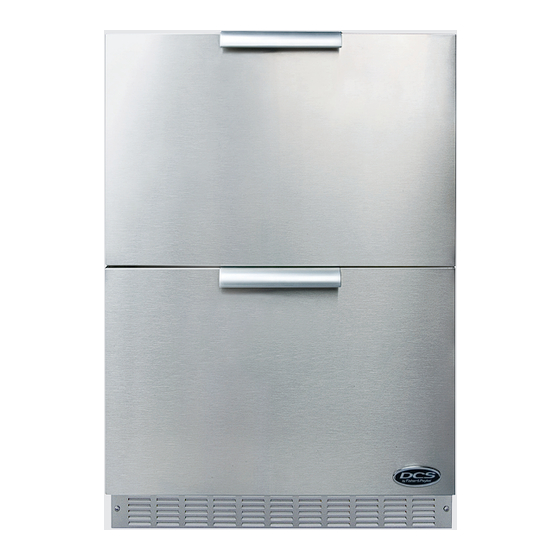

DCS RF24D Service Manual

Dcs refrigerated drawers
Hide thumbs Also See for RF24D:
Table of Contents

Advertisement

Quick Links

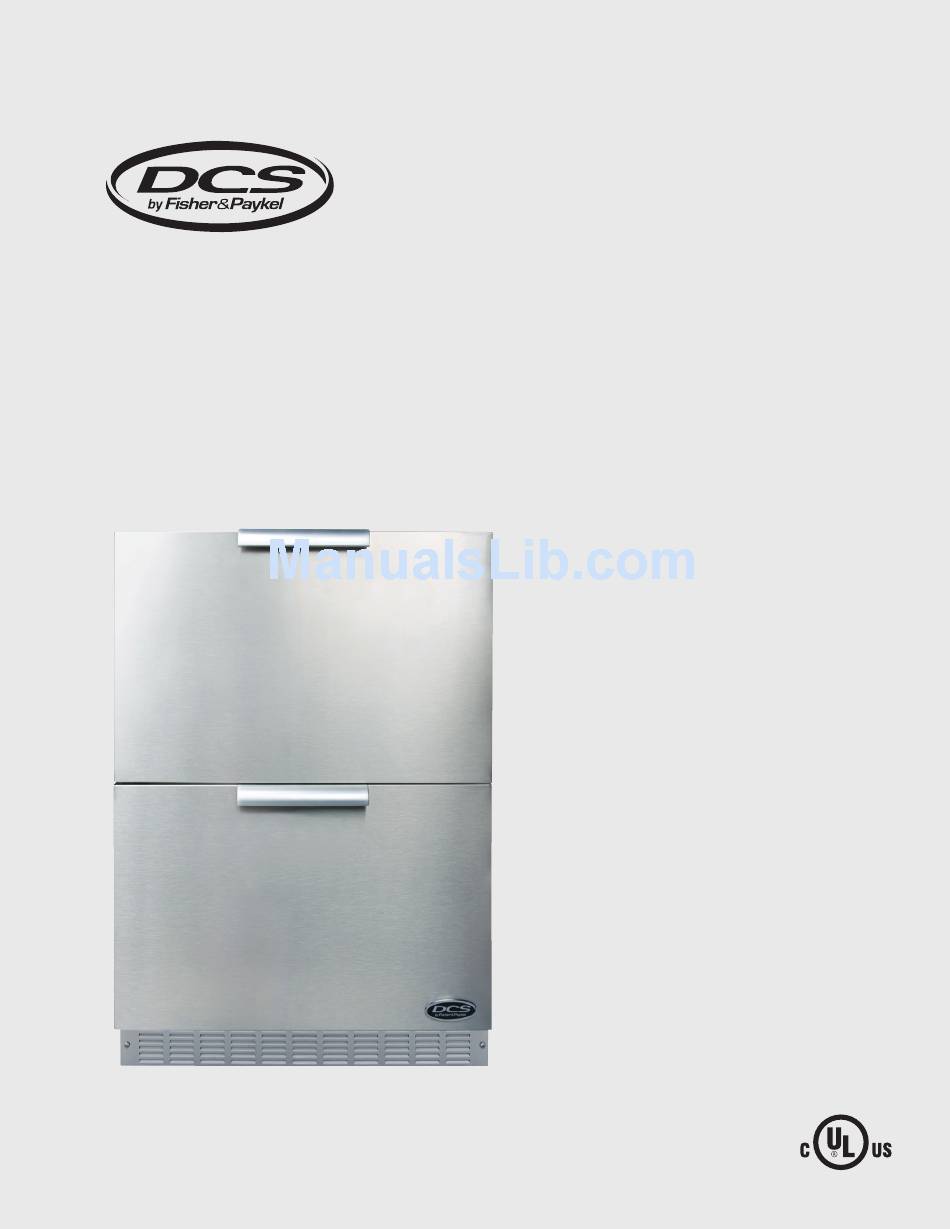

DCS REFRIGERATED DRAWERS
SERvICE mAnuAl
moDEl
RF24D
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF24D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DCS RF24D

Summary of Contents for DCS RF24D

  • Page 1 DCS REFRIGERATED DRAWERS SERvICE mAnuAl moDEl RF24D...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Introduction 1.1 Unit Specifications 1.2 Serial Nameplate 1.3 Before Servicing 1.4 Basic Refrigeration Tools 1.5 Installation 1.6 Electrical Requirements 2. Installation 2.1 Essential Requirements -Power 2.2 Essential Requirements -Select Location 2.3 Essential Requirements -Cabinet Clearance 2.4 Essential Requirements -Stability 2.5 Essential Requirements -Before Placing Food in the Fresh Food Compartments 2.6 Electrical Connection 2.7 Grounding Method...
  • Page 4 TABLE OF CONTENTS 7. Interior Components 7.1 Lights 7.2 Drawers (for Refrigerated Drawers) 7.3 Glides (for Refrigerated Drawers) 7.4 Divider/Center Section (for Refrigerated Drawers) 7.5 Heater Strip (for Refrigerated Drawers) 7.6 Circulation Fan Assembly 8. Wiring Diagram 9. Ordering Parts 10.

  • Page 5: Introduction

    1.3 Before Servicing • Always disconnect power to any DCS product before attempting to service it. Always verify that power has been disconnected. If the unit has been running, use caution around the condenser, compressor, and copper tubing. These areas •...

  • Page 6: Basic Refrigeration Tools

    INTrOduCTION 1.4 BaSic refrigeration toolS The following list contains some of the tools required for basic refrigeration repairs: Hoses with R-134a couplers (must meet standards for handling R-134a refrigerant) Approved and certified recovery system for R-134a Manifold gage set for R-134a Charging cylinder with R-134a Weight scale (preferably in ounces to the nearest tenth of an ounce) Access valves...

  • Page 7: Essential Requirements -Power

    INSTALLATION – ESSENTIAL rEQuIrEMENTS 2.1 power The appliance must be installed so the power plug is accessible. • To ensure that the appliance is not accidentally switched off, connect your refrigerated drawer to its own power point. • Do not plug in any other appliance at this power point or use extension cords, or double adapters, as the combined weight of both power cords can pull the double adapter from a wall outlet socket.

  • Page 8: Essential Requirements -Before Placing Food In The Fresh Food Compartments

    INSTALLATION – ESSENTIAL rEQuIrEMENTS See anti- tip bracket installations (page 9 and 10). • 2.5 Before placing food in the freSh food compartmentS Remove all packaging. Ensure that all transit tape is removed from the refrigerated drawer. • Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transporta- •...

  • Page 9: Installation

    INSTALLATION HOW TO INSTALL YOur OuTdOOr rEFrIGErATEd drAWEr 2.6 electrical connection Check serial plate for correct power supply. Use only electrical power supply as specified on your appliance serial nameplate. Do not use an extension cord! WARNINg! Do not splash or spray water from a hose onto the refrigerated drawer! Doing so may cause an electrical shock, which may result in severe injury or death.

  • Page 10: Select Location

    INSTALLATION HOW TO INSTALL YOur OuTdOOr rEFrIGErATEd drAWEr 2.9 Select location The proper location will ensure peak performance of your appliance. Choose a location where the unit will be out of direct sunlight, away from heat sources and moisture. Units with fan cooled condensers can be built in. Unit should be operated in a properly ventilated area with ambient temperatures above 40 degrees and below 100 degrees Fahrenheit.

  • Page 11: Anti-Tip Installation - Floor Mount

    INSTALLATION ANTI-TIP INSTALLATION INSTruCTIONS A free standing refrigerated drawer must have an anti-tip device installed as per these instructions. If the drawer is removed from its location for any reason, make sure that the device is properly engaged when you push the drawer back into the original location.

  • Page 12: Anti-Tip Installation - Wall Mount

    INSTALLATION ANTI-TIP INSTALLATION INSTruCTIONS 2.14 wall moUnt To Drawer 1. Remove the bracket from its original shipping position on the back of the Refrigerator unit (Fig. 2.9 and 2.10). 2. Reattach the bracket to the back of the unit using the existing screws from the unit’s back panel (Fig 2.11).

  • Page 13: Sealed System

    Use a leak detection system that will detect R-134a refrigerant. Leaks need to be found on any leaking system BE- FORE the repair takes place. The drier must be replaced anytime the sealed system is opened. Always use a DCS drier. Failure to do so may cause repeated system failure in the future.

  • Page 14: Evaporator Frost Pattern

    SEALEd SYSTEM 3.6 evaporator froSt pattern Checking the evaporator frost pattern is a good way to quickly diagnose simple sealed system problems. This can be done by allowing the unit to run (at least 10 minutes) with the door open for at least 5 minutes. This will help speed up the normal frosting of the evaporator plate.

  • Page 15: Re-Charging

    SEALEd SYSTEM If low side pressure is below pressure in Table B, check for the following: A system leak Capillary tube or evaporator is restricted Insufficient compressor (does not pump properly) If low side pressure is above pressure in Table B, check for the following: Restricted air flow Dirty condenser coil Overcharged system...

  • Page 16: Sealed System Components

    SEALEd SYSTEM COMPONENTS 4.1 gaining acceSS to mechanical BaSeplate The mechanical baseplate is located in the rear of the unit. Most major mechanical and electrical components on the unit mount directly to the baseplate. This creates easy access for servicing of the sealed system and mechanical/electri- cal components.

  • Page 17: Compressor

    SEALEd SYSTEM 4.2 compreSSor The compressor is the heart of the refrigeration system (see Figure 4.4). However, it relies on other parts of the system to function. Make certain that the other parts of the system are functioning correctly before determining that the compressor is faulty. Compressor Drier Figure 4.4...
  • Page 18 SEALEd SYSTEM Installing the Compressor: Install the four rubber grommets in the bottom of the new compressor and install the three sleeves where the carriage bolts will be located. Mount the new compressor and install the three washers and lock nuts and tighten to 45 in-lbs. DO NOT REMOVE THE RUBBER PLUGS AT THE TUBE STUBS ON THE COMPRESSOR AT THIS TIME.

  • Page 19: Condenser

    SEALEd SYSTEM 4.3 condenSer The condenser is a steel tube serpentine with copper alloy fins that removes heat from hot, high pressure vapor from the com- pressor (see Figure 4.8). The most common trouble is lack of airflow from either a restricted intake or exhaust opening in the front of the unit.

  • Page 20: Evaporator

    (see Figures 4.9). The RF24D uses a vertical right angle evaporator plate. It is normal for the evaporator to frost up during its run cycle. This frost will dissipate once the unit reaches its “cut out” tempera- ture and the compressor and fan stop.

  • Page 21: System Components

    SYSTEM COMPONENTS 5.1 condenSer fan The condenser fan is used to force air over the condenser coil. The fan will cycle on and off with the compressor which means that when the compressor is running so is the fan and when the compressor is not running neither is the fan (see Figure 5.1). Figure 5.1 To check the condenser fan: •...

  • Page 22: Thermistors

    SYSTEM COMPONENTS 5.2 thermiStorS The refrigerated drawers utilize two thermistors: one is known as the evaporator thermistor and the other as the display thermis- tor. Each thermistor has a different function for input to the electronic control. Evaporator thermistor: The evaporator thermistor turns the unit on and off. It is secured to the evaporator or cabinet liner. Display thermistor: The display thermistor is connected to the LED display and displays the temperature inside the unit on the display panel.
  • Page 23 SYSTEM COMPONENTS Removing the Evaporator Thermistor: Disconnect power. Remove back panel and lower shroud. Disconnect the evaporator thermistor connector at the electronic controller. Remove evaporator thermistor by removing the screw securing it. Feed the thermistor wire out through the opening in the back of the unit. Installing the Evaporator Thermistor: Reverse the removal procedure for installation (see above).

  • Page 24: User Interface And Control System Refrigeration Monitor

    6.1 introdUction DCS’s control system refrigeration monitor governs the intuitive user interface panel. The control system informs you if the unit is not working properly through both visual and audible alerts. The LED display panel displays a steady green light when the control system is enabled.

  • Page 25: Holiday Mode

    uSEr INTErFACE PANEL ANd CONTrOL SYSTEM rEFrIGErATION MONITOr 6.6 holiday mode The unit is equipped with a Holiday Mode of operation. When Holiday Mode is enabled, the displays, audible alarms, lights, and all options are disabled. The user interface buttons remain enabled with audible key tones disabled. Enabling Holiday Mode: Press and hold the “SET”...

  • Page 26: Show Room Mode

    uSEr INTErFACE PANEL ANd CONTrOL SYSTEM rEFrIGErATION MONITOr 6.9 Show room mode Show Room Mode is used mainly by salespersons and distributors. When the unit is in Show Room Mode, it will operate as if func- tioning normally; however, the internal components will not run. Enabling Show Room Mode: To enable Show Room Mode, press and hold the “ON/OFF”...
  • Page 27 uSEr INTErFACE PANEL ANd CONTrOL SYSTEM rEFrIGErATION MONITOr After entering Service Mode, the first number that you will see indicates the software model number for the particular unit you are servicing. Model Description Software Model Number RF242D 24 inch Refrigerated Drawers The second number you will see indicates the software version release.

  • Page 28: Interior Components

    INTErIOr COMPONENTS 7.1 lightS For Refrigerated Drawers: The refrigerated drawers are equipped with two lights: one on the inside top of the drawer and one in the divider. Replacing the Top Light: Loosen the screws to the control housing. You do not need to remove them. Pull the control housing forward out of the screw slots.

  • Page 29: Heater Strip (For Refrigerated Drawers)

    INTErIOr COMPONENTS 7.5 heater Strip The refrigerated drawers ship from the factory with the heater strip unplugged. If the drawers develop condensation on the divider, the heater option can be turned on to stop this from happening. Turning on the Heater Strip: Remove the front grill.

  • Page 30: Wiring Diagram

    WIrING dIAGrAM...

  • Page 31: Ordering Parts

    Model and serial number located on the serial nameplate (see Section 1.2, Serial Nameplate) Color of the model Metal or plastic grill Type of door To order parts, call or write: Fisher & Paykel Appliances, Inc. Attention: DCS Customer Care 5900 Skylab Road Huntington Beach, CA 92647 phone: 888.936.7872 www.dcsappliances.com...

  • Page 32: Troubleshooting Guide

    TrOuBLESHOOTING GuIdE PROBLEM POSSIBLE CAUSE CORRECTION 1. The unit is unplugged. Plug in the unit. Unit does not operate. 2. Did not hold the “ON/OFF” button Press and hold the “ON/OFF” button long enough on the display panel. for five seconds. 1.
  • Page 33 LED indicates Control System disabled. Software model number does not match 1. Wrong unit software in- Call DCS Customer Service to obtain new the unit purchased, i.e. - 11 should cor- stalled. user interface. respond to a 24 in. wine cellar.

  • Page 34: Warranty

    This warranty extends to the original purchaser and any succeeding owner of the Product for products purchased for ordinary single-family home use. All service under this Limited Warranty shall be provided by Fisher & Paykel Appliances Inc. or its Authorized DCS Service Agent during normal business hours.
  • Page 35 Please read this Use and Care guide. If you then have any questions about operating the Product, need the name of your local DCS Authorized Service Agent, or believe the Product is defective and wish service under this Limited Warranty, please contact your dealer or call us at: TOLL FREE 1-888-936-7872 or contact us through our web site: www.dcsappliances.com...
  • Page 36 NOTES...
  • Page 37 NOTES...
  • Page 38 NOTES...
  • Page 40 Fisher & Paykel Appliances, Inc. 5900 Skylab Road, Huntington Beach, CA 92647 Customer Care: 888.936.7872 Fax: 714.372.7003 www.dcsappliances.com As product improvement is an ongoing process, we reserve the right to change specifications or design without notice. P/N 243199 Rev. A Litho in USA 10/2008...
