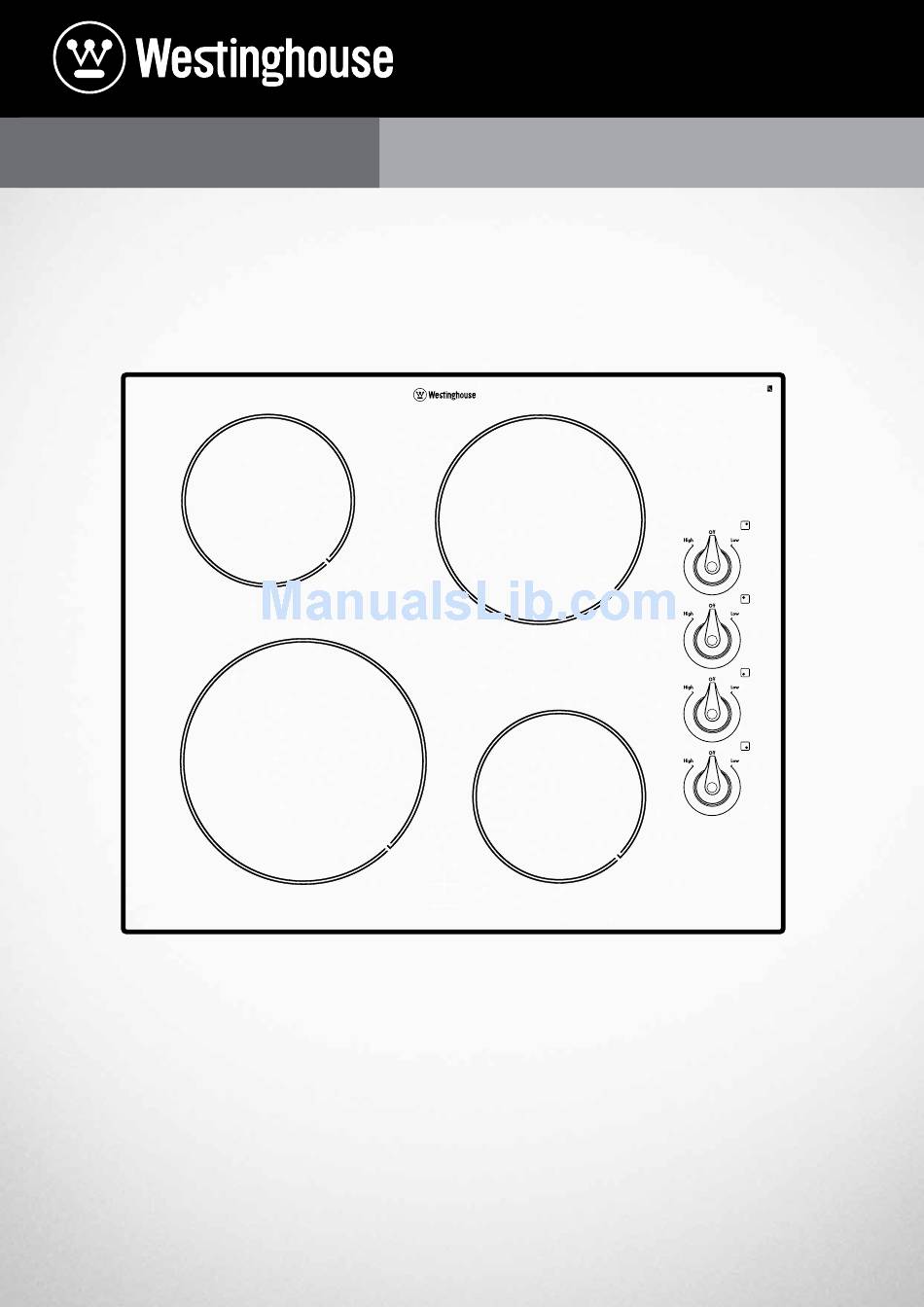

- Page 1 USER MANUAL CERAMIC HOBS WHC642BA, WHC742BA, WHC644SA, WHC942BA, WHC322BA...
-
Page 2: Table Of Contents
Important safety instructions ............3 Congratulations and thank you for choosing our cooktop. Product description ................4 WHC642BA We are sure you will find it a pleasure to use. Before you WHC742BA use the cooktop, we recommend that you read through... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read the user manual carefully and store in a handy • Ensure that all electrical cables are kept well clear of place for later reference. the appliance during use. • Overheated fats and oils can ignite very quickly. When cooking with fat or oil do not leave the TIPS &... -
Page 4: Product Description

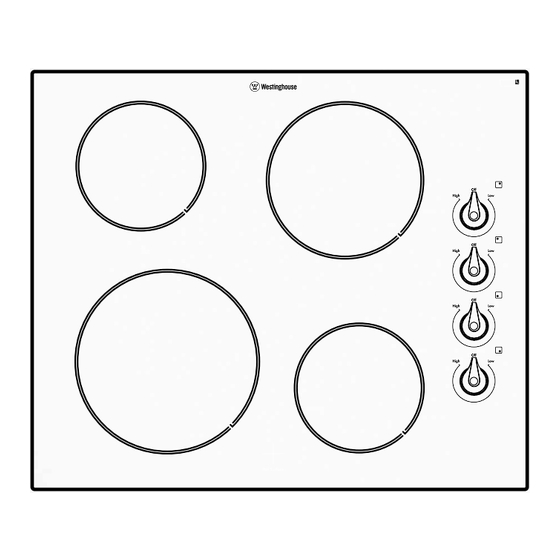

PRODUCT DESCRIPTION WHC642BA WHC742BA Single 180mm diameter cooking zone 1800W Single 145mm diameter cooking zone 1200W Single 210mm diameter cooking zone 2300W Single 145mm diameter cooking zone 1200W hob cooking zone control knobs residual heat indicator WHC644SA Single 180mm diameter cooking zone 1800W... -
Page 5: Whc942Ba
WHC942BA residual heat hob cooking indicator zone control knobs Double 210mm diameter cooking zone 750/2200 Single 145mm diameter cooking zone 1200W Single 145mm diameter cooking zone 1200W Single 180mm diameter cooking zone 1800W WHC322BA Single 200mm diameter cooking zone 1800W Single 165mm diameter cooking zone 1200W hob cooking zone control... -
Page 6: Using Your Cooktop
OPERATING YOUR APPLIANCE Controlling the temperature - dual zone TIPS & INFORMATION IMPORTANT By switching the outside ring on and off, the effective When a cooking zone is switched on it may hum briefly. heating surface can be matched to the size of the This is a characteristic of all ceramic glass cooking zones cookware. -
Page 7: Cleaning Your Cooktop
CARE AND CLEANING Cookware General cleaning For optimal results use good quality cookware with a heavy flat base. Cookware made of enamelled or with WARNING WARNING aluminium or copper bottoms can leave discolourations Ensure that the appliance is turned off and all residual on the glass ceramic surface which are difficult or heat has dissipated before attempting to clean the impossible to remove. -
Page 8: Troubleshooting
WARNING CAUTION If the appliance has been wrongly operated or installed, service calls may not be covered under the Warranty. TECHNICAL DATA MODEL WHC642BA WHC742BA WHC644SA WHC942BA WHC322BA 949 163 180 949 163 179 949 163 181... -
Page 9: Installing Your Cooktop
INSTALLING YOUR APPLIANCE Electrical connection WARNING WARNING Before connecting, check that the nominal voltage of the To avoid any potential hazard, you must follow our appliance stated on the rating plate, corresponds to the instructions when you install your appliance. Failure available supply voltage. - Page 10 INSTALLING YOUR APPLIANCE (CONTINUED) Applying the seal • Clean the worktop around the cut-out area. • Stick the single-sided adhesive sealing tape provided around the outside edge of the underside of the hob, ensuring that it is not stretched. The 2 ends of the tape should join in the middle of one side.
- Page 11 WHC642BA WHC644SA 600mm WHC742BA 560 + 1mm 490 + 1mm R5mm INSTALLATION...
- Page 12 INSTALLING YOUR APPLIANCE (CONTINUED) WHC942BA 600mm 880 + 1mm 490 + 1mm R5mm INSTALLATION...
- Page 13 WHC322BA 600mm 75mm 490mm 300mm R5mm INSTALLATION...
- Page 14 INSTALLING YOUR APPLIANCE (CONTINUED) min. 25mm min. 20mm Installation above cupboards or drawers Under hob access must be restricted by the addition of a board mounted at least 20mm from the underside of the hob. min. 25mm min. 20mm Installation above an appliance The hob must be mounted at least 20mm from the top of an appliance.
-
Page 15: Warranty
Warranty FOR SALES IN AUSTRALIA AND NEW ZEALAND APPLIANCE: BUILT-IN OVEN, COOKTOP AND FREESTANDING COOKERS This document sets out the terms and conditions of the product 7. You may not make a claim under this warranty unless the defect claimed warranties for Electrolux Appliances. - Page 16 Westinghouse. We are part of the Electrolux family. Share more of our thinking at www.electrolux.com , and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license. All Rights Reserved. P/No A02346001 Issue A ECN-36240 ©...
