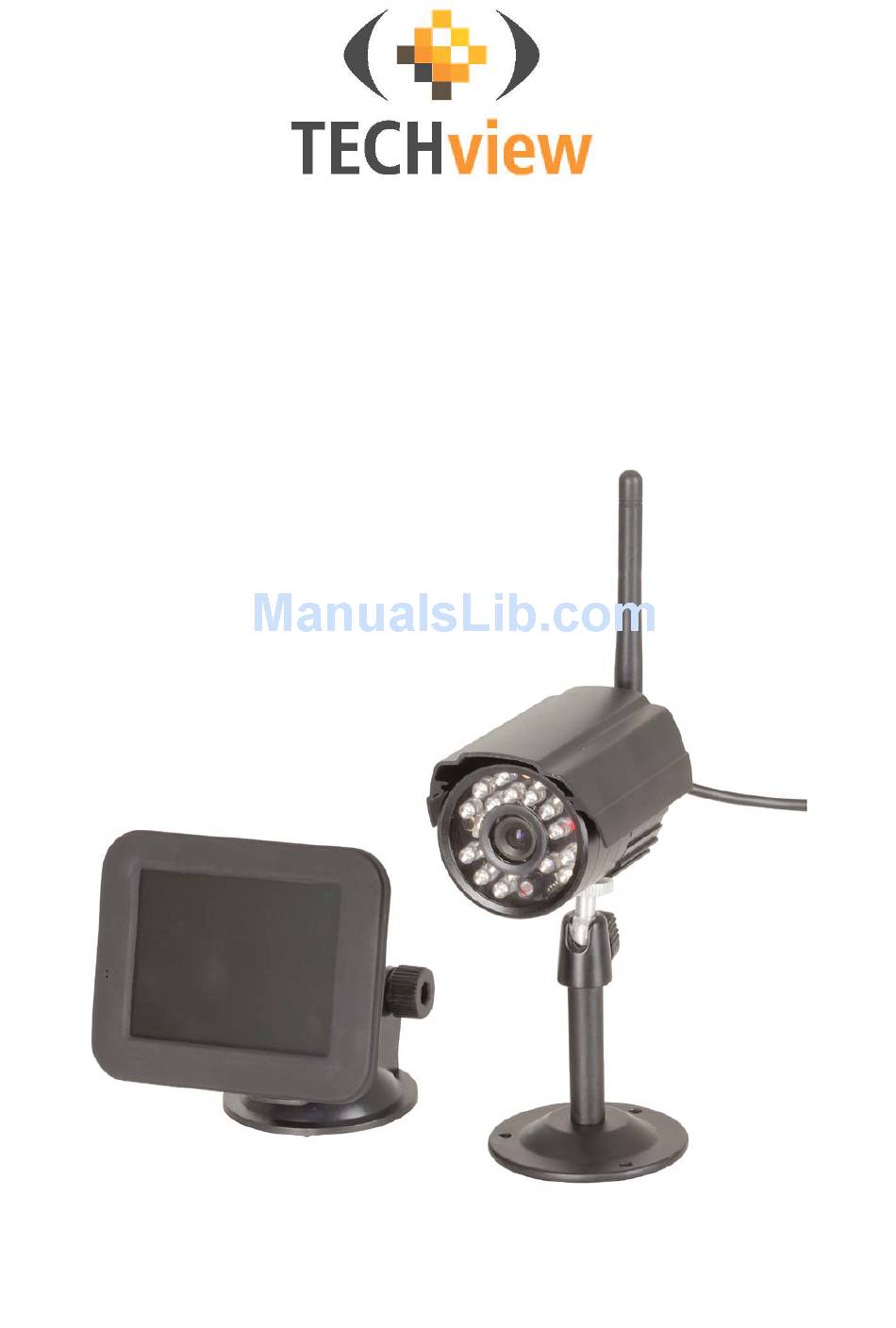

- Page 1 2.4GHz Digital Wireless 3.5”LCD & Camera Kit QC3673...
- Page 2 Introduction Thank you for purchasing our product QC-3673. Through this 2.4Ghz wireless digital video kit, you can see the image and voice of the surroundings to help monitor the baby, elderly and the environment. Please don't fully count on the unit as it is just a supplementary device.
- Page 3 Diagrams: Monitor Side view Front view: Recharge LED 3.5” LCD Power LED Stand with suction cap...
- Page 4 Camera Side view...
- Page 5 Front view...
- Page 6 Operation: On/Off Mode Monitor Press the power key 3 seconds to turn on /off unit Turn on the monitor after the adaptor connects to the camera and the monitor(you also can use them when the monitor’s battery is full). Signal strength /Battery Status will show on the LCD monitor .Meanwhile, the monitor can receive the video from the camera.
- Page 7 Pairing: Normally, the units are well paired in the factory. Users don't need to do any pairing other than some special occasions. If so, you just follow several easy steps to pair the units as below: 1) Press and hold the power button on the parent unit until the power light flashing 2) Press the camera pairing button at the end of the power cord covering by the silicone cap.
-
Page 8: Troubleshooting
Signal Indicators: Signal Strength Indicators Description Perfect signal Low signal No signal Troubleshooting Problem Solution Check whether the camera is well connected with the power supply. No video Make sure the camera and monitor is in the effective range. Check whether the camera is in the dark The image is in black and white area.
