Summary of Contents for Wireless Joey Dish

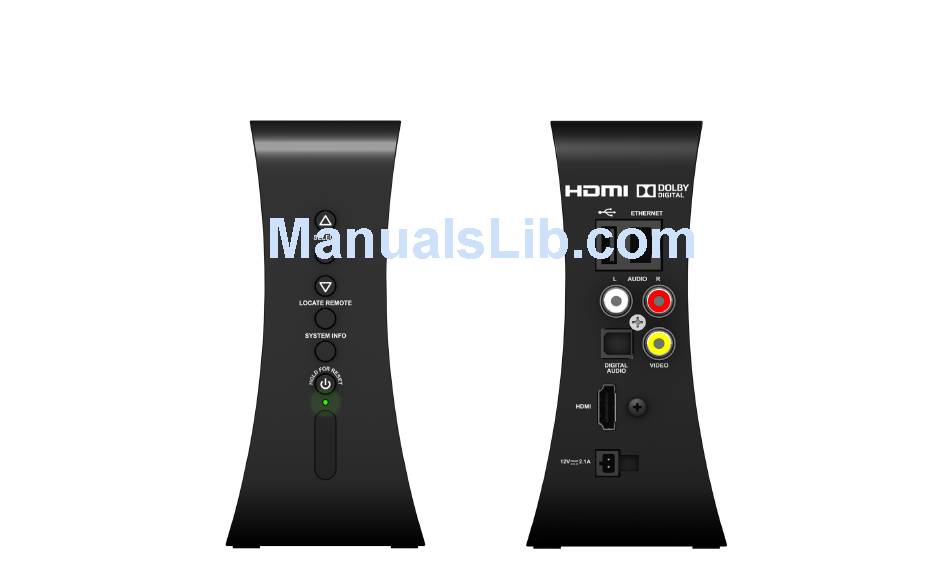

- Page 1 Wireless Joey High/Standard Definition • Uses Wireless Joey Access Point Receivers | Wireless Joey...
- Page 2 Wireless Joey diagrams in the Installation Diagrams chapter. Note: A Wireless Joey receiver uses its own wireless network that does not impact the performance of an existing home network. 1. Check the mode switch: On the back panel of the Wireless Joey Access Point, verify that the mode switch is set to Access Point, as shown below.
- Page 3 Three (3) Joey receivers per Hopper receiver model. • A combination of four (4) Joey, Virtual Joey, and Wireless Joey receivers when no Super Joey receiver is installed. A total of four Joey receiver models requires two Hopper receiver models.
- Page 4 Warning: Do not cover the vents or stack anything on the Wireless Joey receiver. Doing so can cause heat buildup and may damage the receiver. 6. Turn on the TV: Power on the TV and the Wireless Joey receiver. If necessary, change the TV input to the source for the Wireless Joey receiver.
- Page 5 Installation Rules | Installing a Whole-Home System 7. Start the Setup Wizard for the Wireless Joey: When the Setup Wizard displays, press SELECT on the front panel of the Wireless Joey to begin the connection process to the Wireless Joey Access Point, as shown below.
- Page 6 9. Complete the Setup Wizard: Complete all steps in the Setup Wizard, which will guide you in positioning the Wireless Joey and Wireless Joey Access Point to produce an optimal signal. Note: Performance may vary depending on environmental factors, such as building materials and objects that interfere with the video signal.
- Page 7 Creates its own wireless network that does not impact the performance of a home network. • Serves video and data wirelessly to a Wireless Joey. The Wireless Joey Access Point connects via Ethernet cable to a Hopper receiver model or Hopper Internet Connector.
- Page 8 Wireless Joey: 4-TV Installation 2 Wireless Joeys, 1 Wireless Joey Access Point, 1 Hopper with Sling, 1 Joey Joey Wireless Joey Solo Node Wireless Joey Wireless Joey Cables Access Satellite Hopper with Sling 950–2150 MHz Point MoCA 650–875 MHz Satellite...
- Page 9 Installation Diagrams | Wireless Joey: 6-TV Installation Wireless Joey: 6-TV Installation 4 Wireless Joeys, 2 Wireless Joey Access Points, 2 Hopper with Slings, 1 Joey Hopper with Sling Wireless Joey Access Point Wireless Joey Wireless Joey Duo Node DUO NODE 185836 EchoStar Technologies L.L.C.
- Page 10 Installation Diagrams | Super Joey and Wireless Joey: 5-TV Installation Super Joey and Wireless Joey: 5-TV Installation 1 Super Joey, 1 Wireless Joey, 1 Wireless Joey Access Point, 1 Hopper with Sling, 2 Joeys Joey 3-Way Splitter Joey Solo Node...
- Page 11 Installation Diagrams | Super Joey, Wireless Joey, and Virtual Joey: 5-TV Installation Super Joey, Wireless Joey, and Virtual Joey: 5-TV Installation 1 Super Joey, 1 Wireless Joey/Access Point, 1 Virtual Joey, 1 Hopper with Sling, 1 Joey Joey 3-Way Virtual Joey Display Splitter H.I.C.
- Page 12 Wireless Joey and Virtual Joey: 6-TV Installation 2 Wireless Joeys, 1 Wireless Joey Access Point, 1 Virtual Joey, 2 Hopper with Slings, 1 Joey Hopper with Sling Wireless Joey Wireless Joey Wireless Joey Duo Node H.I.C. Access Point DUO NODE 185836 EchoStar Technologies L.L.C.
-
Page 13: Access Point
The Wireless Joey Access Point Does Not Turn On If the green power LED on the Wireless Joey Access Point does not light up after plugging in the device to power, verify that there is power from the electrical outlet. - Page 14 The Wireless Joey Receiver Does Not Display Video • Check the Wireless Joey Access Point’s connection to the Hopper receiver model, as well as all the cable connections from the dish to the Wireless Joey, ensuring that they are secure and hand-tightened. •...
- Page 15 If the signal indicator shows a strong signal, reset the Wireless Joey receiver by pressing and holding its POWER button. • If the signal indicator shows a weak signal, move the Wireless Joey receiver and the Wireless Joey Access Point closer together, positioning them into a line of sight as much as possible.
- Page 16 1 Joey, 3 Wireless Joeys (1 Wireless Joey Access Point) (1 Wireless Joey Access Point) • 1 Joey, 1 Virtual Joey, 1 Wireless Joey • 2 Joeys, 2 Wireless Joeys (1 Wireless Joey Access Point) (1 Wireless Joey Access Point) •...
- Page 17 Receivers | Joey Receiver Models – Quick Comparison Joey Receiver Models – Quick Comparison Hardware Technical Specification Super Joey Wireless Joey Virtual Joey Joey MPEG-2 and MPEG-4 connects through 0; connects through Satellite Inputs connects through Wireless Joey broadband MoCA...
- Page 18 Hardware (continued) Technical Specification Super Joey Wireless Joey Virtual Joey Joey Channel 3-4 Modulated Output USB 2.0 Ports Through host Ethernet Port device eSATA Port Yes, through Yes, through Yes, through Broadband network bridging or network bridging or network bridging or...
- Page 19 Technical Specification Super Joey Wireless Joey Virtual Joey Joey PrimeTime Anytime and AutoHop DISH Anywhere (IPTV) DISH Explorer On Demand (VOD) Up to 9 days Up to 9 days Up to 9 days Up to 9 days EPG Length Picture-in-Picture...
- Page 20 Remote Control Technical Specification Super Joey Wireless Joey Virtual Joey Joey UHF-2G or host Remote Type UHF-2G UHF-2G UHF-2G device’s remote Two-Way and IR Learning Locate Remote Feature Optional Features and Accessories Technical Specification Super Joey Wireless Joey Virtual Joey...
Need help?
Do you have a question about the Dish and is the answer not in the manual?
Questions and answers
how do you pair a Dish 54.0 remote to a wireless Joey
To pair a Dish 54.0 remote to a Wireless Joey:
1. On the remote, press and hold the SAT button until all mode lights turn on.
2. Then, press and hold the Home and Guide buttons together for about 10 seconds to unpair the remote manually.
3. Try pairing the remote to the Wireless Joey again.
This answer is automatically generated
