Getting Started
Landscape-Outdoor Lighting (Relay) Starter Kit
Model DKIT-05
TM
Simply Automated Pre-Configured SimplySmart
Series
TM
Utilizes SimplySmart
technology to make installation a breeze.
No computer programming required!
Simple-n-easy, ready to use lighting control.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DKIT-05 and is the answer not in the manual?

Questions and answers

Related Manuals for Simply Automated DKIT-05

Summary of Contents for Simply Automated DKIT-05

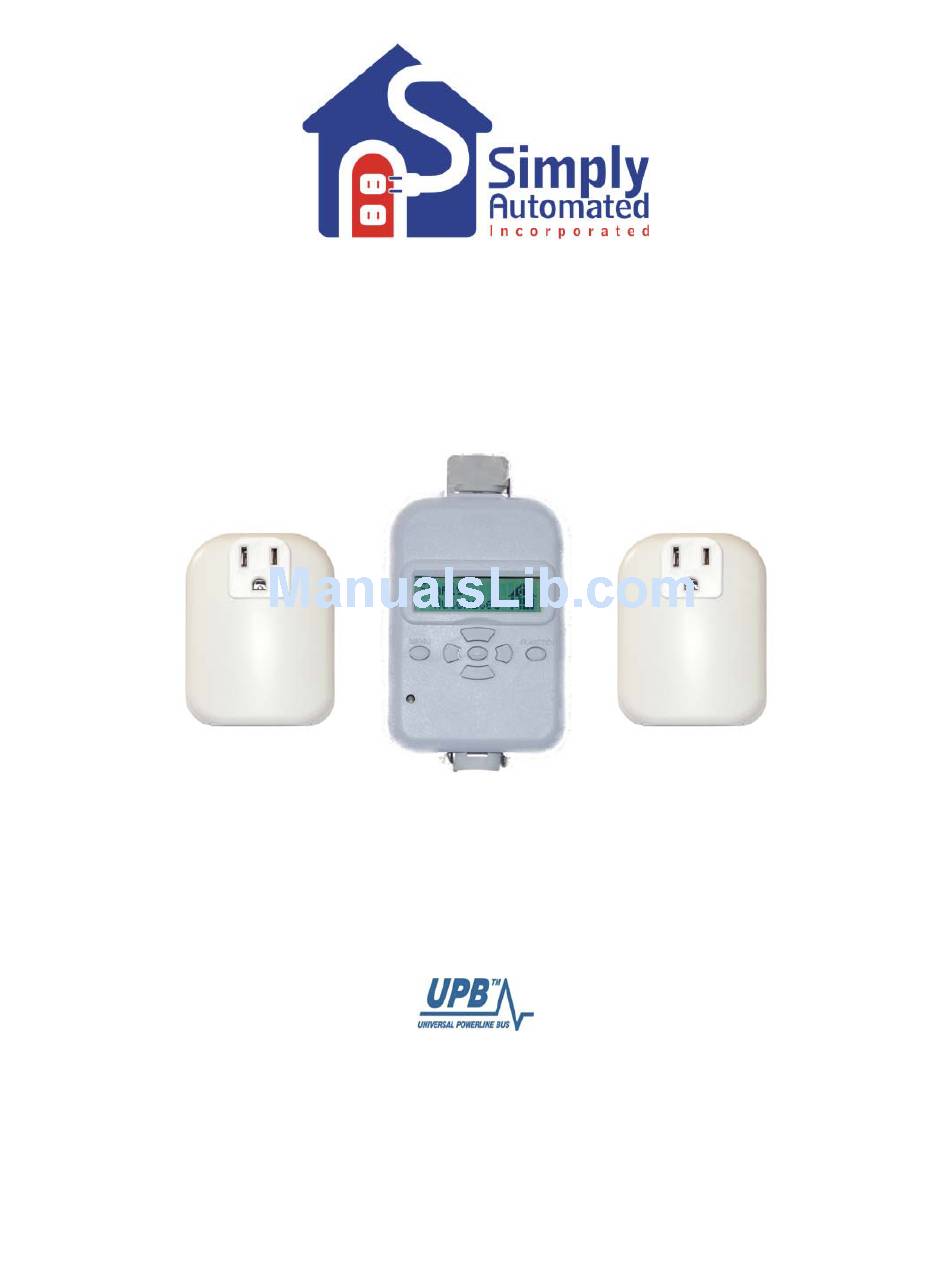

  • Page 1 Getting Started Landscape-Outdoor Lighting (Relay) Starter Kit Model DKIT-05 Simply Automated Pre-Configured SimplySmart Series Utilizes SimplySmart technology to make installation a breeze. No computer programming required! Simple-n-easy, ready to use lighting control.
