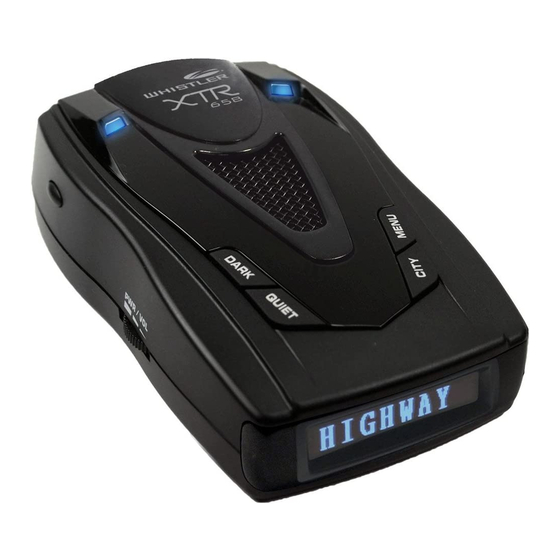

Whistler XTR-658 Owner's Manual

POP ™ MODE ALERTS VG-2 ALERTS
VG-2 Audio/Visual Alerts
POP ™ Mode Alerts
Note: You must turn this feature on before it
Because POP ™ Mode radar utilizes the same
K or Ka band frequencies, POP ™ Mode Alerts
will detect VG-2.
will be displayed as regular radar alerts.
When a VG-2 signal is detected, the detector
LASER/RADAR ALERTS
"hides" its own radiated signal and becomes
undetectable by the VG-2. Every 30 seconds, the
Speed Radar Audio/Visual Alerts
detector checks for a VG-2 signal. If a VG-2 signal
When X, K, or Ka is detected, the band ID and is still present, the unit continues to hide and
signal strength is displayed. The audio alert repeats the VG-2 alert. If no signal is detected,
is continuous and has a pattern like a geiger two beeps are provided, indicating an "all clear"
counter. The faster the beep, the closer or condition. During a VG-2 Alert X, K, and Ka band
stronger the radar source.
signals cannot be received (see pg. 22).
Laser Audio/Visual Alerts
When a laser signal is detected the audio alert is
ALERT PRIORITY
continuous for a minimum of 3 seconds.
When two or more signals are received at the
• The Display Shows:
same time, the alert priority is:
1. Laser
Pulse Protection
®
2. VG-2
Pulse (or instant-on) radar is more difficult
3. Speed Radar
to detect than conventional radar because it
4. SWS
remains 'off' until activated to measure the
speed of a targeted vehicle.
Example: If X band is alerting, then suddenly a
VG-2 signal is detected, the VG-2 warning will
When a pulse type transmission is detected,
override the X band alert.
your Whistler detector sounds an urgent
3-second audio warning and the display shows:
After the 3-second pulse alert, the standard
alert pattern continues for as long as the signal
is present.
It is important to respond promptly to a pulse
alert, since warning time may be minimal.
15
SPEED MONITORING SPEED MONITORING
Laser Tips Note: Having a radar detector capable of
If you are the targeted vehicle, a laser gun can detecting the VG-2 may alert you to the presence
often determine your speed within a few of a speed trap.
seconds after you receive an alert. In this situation,
The newest tool Police have to detect radar
there is generally no time to safely adjust your
detectors is called Spectre. Spectre can
speed. However, if you are traveling near or
detect the majority of undetectable (VG-2)
behind the targeted vehicle and receive an alert,
laser/radar detectors on the market.
response time should be sufficient. Any laser alert,
It is the responsibility of the individual radar
regardless of duration, requires immediate action!
detector owner to know and understand the
Other Speed Detection Systems
laws in your area regarding the legality of
Several techniques other than radar or laser
the use of radar detectors.
are used to measure vehicle speeds. When
these methods are being used, no detector can
WARRANTY INFORMATION
provide a warning. These techniques include:
Consumer Warranty
• Pacing - A patrol car drives behind you and
This Whistler product is warranted to the original
matches your driving speed.
• Vascar/Aircraft - The police measure the purchaser for a period of one (1) year from the date of
original purchase against all defects in materials and
time it takes your vehicle to travel a known
workmanship, when purchased from an authorized
distance. Whistler retailer. This limited warranty is void if the unit
is abused, misused, modified, installed improperly,
Radar Detector Detectors: VG-2, Spectre
or if the housing and/or serial numbers have been
removed. There are no express warranties covering
The Interceptor VG-2 or simply VG-2, is one
type of microwave receiver used by Police to this product other than those set forth in this warranty.
All express or implied warranties for this product
detect signals radiated by the local oscillator
are limited to one (1) year. Whistler is not liable for
of a radar detector. Because its purpose is to
damages arising from the use, misuse, or operation of
identify persons driving with radar detectors,
this product including but not limited to loss of time,
these devices are known as a "radar detector
inconvenience, loss of use of your product or property
detector" (RDD).
damage caused by your product or its failure to work, or
any other incidental or consequential damages including
An RDD is the primary tool used by the police
personal injury.
to identify radar detector equipped vehicles. If
DO NOT RETURN ITEM TO STORE WHERE PURCHASED.
caught in a state or country where detectors are
FOR WARRANTY INFORMATION, CONTACT WHISTLER
illegal (see page 19), drivers risk losing their radar
CUSTOMER SERVICE AT 1-800-531-0004.
detector and receiving a fine. In addition, instant-on
radar is almost always used in combination with an
Representatives are available to answer your questions
RDD, leaving unsuspecting motorists vulnerable
Monday – Friday
to receive two tickets - one potential for speeding,
from 8:00 a.m. to 5:00 p.m. CT
and the other for possession of a detector.
22
RESET FEATURES
All user features can be reset to factory settings.
• Unplug the Power Cord from the unit.
• Press and hold the Quiet button.
• Plug the Power Cord into the unit.
• Wait for 2 beeps.
• Release the Quiet button.
Unit is now reset to the following features and
settings.
Default factory settings are:
1. HIGHWAY Mode
2. Dim/Dark Mode to full illumination of display
3. Auto Quiet Mode OFF
4. VG-2 Detection Mode OFF
5. SWS OFF
6. Vehicle Battery Saver ON
7. Full Power Up sequence
8. Default TONE 3
9. POP OFF
10. Voice ON
11. LED Periscope to BLINK
12. Default Filter
13. TFSR OFF
16 17
WARRANTY INFORMATION
Service Under Warranty
During the warranty period, defective units will be
repaired or replaced (with the same or a comparable
model), at Whistler's option, without charge to the
purchaser when returned prepaid, with dated proof of
purchase to the address below. Units returned without
dated proof of purchase will be considered out of
warranty and therefore are not covered by the described
Limited Warranty. (Refer to Service Out of Warranty
section.)
Due to the specialized equipment necessary for testing
Whistler products, there are no authorized service centers
other than Whistler. When returning a unit for service
under warranty, please follow these instructions:
1. Ship the unit in the original carton or in a suitable
sturdy equivalent, fully insured, with return receipt
requested to:
Whistler Repair Dept.
1412 South 1st St.
Rogers, AR. 72756
Please allow 3 weeks turnaround time.
IMPORTANT: Whistler will not assume responsibility for
loss or damage incurred in shipping. Therefore, please
ship your unit insured with return receipt requested.
CODs will not be accepted!
2. Include with your unit the following information,
clearly printed:
• Your name and physical street address for shipping
(no PO Boxes), a daytime telephone number, and an
email address (if applicable).
• A detailed description of the problem (e.g.,"device
will not Power ON").
• A copy of your dated proof of purchase or bill
of sale.
3. Be certain your unit is returned with its serial
number. Units without serial numbers are not
covered under warranty.
23 24
TROUBLESHOOTING CARE AND MAINTENANCE
Care And Maintenance
Your Whistler detector is expertly engineered
and designed to exacting quality standards to During the summer months, avoid prolonged
provide you with reliable, trouble-free operation. exposure to direct sunlight by removing your
If your unit has been correctly installed following unit from the dash when your vehicle is parked
the guidelines in this manual, but is not operating for an extended period of time. Do not spray
optimally, please refer to the troubleshooting water, cleaners, or polishes directly onto the unit.
guide below. The spray may penetrate through the openings
and damage the unit. Also, do not use any
PROBLEM: No display or audio.
abrasive cleaners on the unit's exterior.
• Check the fuse in the plug; replace if
necessary with a 2 amp, 3AG type.
ARE DETECTORS LEGAL?
• Check the fuse for lighter socket; replace if
necessary.
In Most States YES!
• Make sure the lighter socket is clean.
Laser-Radar detectors are legal in every state
PROBLEM: Unit alarms when vehicle hits bumps.
(except Virginia and Washington, D.C., which
• Check for a loose lighter socket; tighten have local regulations restricting the use of
and clean. radar receivers in any vehicle) when used in
• Check the connections at both ends of the automobiles or light trucks (under 10,000 lbs.).
power cord. Substitute another cord to
determine if the cord is defective. Return the The Federal Highway Administration (FHWA)
defective cord to the factory. issued a regulation, effective January, 1994 which
prohibits radar and laser detector use in vehicles
PROBLEM: Audio alerts are not loud enough.
over 10,000 lbs. Prior to the FHWA regulation,
• Cancel Auto Quiet Mode or City Mode. laws existed in New York restricting the use of
• Check audio level setting (see pg. 9). radar detectors in trucks over 18,000 lbs. and in
Illinois in trucks over 26,000 lbs.
If difficulties occur which cannot be solved by
information in this Troubleshooting Guide, please
call Whistler Customer Service at 1-800-531-0004
or visit our FAQ page at www.whistlergroup.com,
before returning your unit for service.
18
WARRANTY INFORMATION SPECIFICATIONS
IMPORTANT: To validate that your unit is within the Laser Wavelength:
warranty period, make sure you keep a copy of your
905 ± 50 nanometers (nm)
dated proof of purchase. For warranty verification
purposes, a copy of your dated store receipt must
Radar Frequencies:
accompany any Whistler product sent in for warranty work.
10.500 - 10.550 GHz (X Band)
Service Out of Warranty
24.050 - 24.250 GHz (K Band )
33.400 - 36.000 GHz (Ka Superwideband)
Units will be repaired at "out of warranty" service rates
when:
Operating Temperature Range:-10 C to +70 C
• The unit's original warranty has expired.
(+14 F to +158 F)
• A dated proof of purchase is not supplied.
• The unit has been returned without its serial
Power Requirements:
number.
Operational 12 to 15 volts DC, 250mA nominal
• The unit has been misused, abused, modified,
Vehicle Battery Saver, 30mA nominal.
installed improperly, or had its housing removed.
These U.S. patents apply:
The minimum out of warranty service fee for your
Whistler detector is $55.00 (U.S.). If you require out of
#5,666,120, #7,215,276
warranty service, please return your unit as outlined in
the section "Service Under Warranty" along with a
cashier's check or money order in the amount of $55.00.
Payment may also be made by MasterCard, VISA or POP™ Mode is a trademark of MPH Industries, Inc.
American Express. Personal checks are not accepted.
SWS™ is a trademark of Safety Warning System L.C.
In the event repairs cannot be covered by the
minimum service fee, you will be contacted by a
Specifications are subject to change without notice.
Whistler technical service specialist who will outline
options available to you.
IMPORTANT: When returning your unit for service, be
certain to include a daytime telephone number and an
email address (if applicable).
Customer Service
If you have questions concerning the operation of your
Whistler product, or require service during or after the
warranty period, please call Customer Service at
1-800-531-0004.
Representatives are available to answer your questions
Monday - Friday from 8:00 a.m. to 5:00 p.m. (CT) or
visit the F.A.Q.'s at www.whistlergroup.com.
25
FCC INFORMATION
FCC ID : HSXWH21
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful i nterference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
Important: FCC (Federal Communications
Commission) requirements state that changes
or modifications not expressly approved by
Whistler could void the user's authority to
operate the equipment.
SPEED MONITORING
Radar Facts
A radar gun operates by transmitting radio
waves at certain frequencies which reflect off
objects and are picked up by the radar gun's
receiving section. When a radar beam reflects
off a moving target, a measurable frequency
shift occurs. The radar unit converts this shift
into miles per hour to determine your vehicle's
speed. Currently, the FCC permits operation
of traffic radar guns at X Band (10.500 - 10.550
GHz), K Band (24.050 - 24.250 GHz), and Ka
Band (33.400 - 36.000 GHz).
Note: A radar detector will only alarm if an
officer is transmitting on any one of the above
radar bands.
19
20
ACCESSORIES
These and other accessories can be ordered directly
1-800-531-0004
from Whistler by calling or visiting
our online store at www.whistlergroup.com
Order # Description
202151 Windshield Bracket Kit $9.95
206552 Straight Power Cord (5') $14.95
206880 Hardwire Kit (10' ) $9.95
(for wiring to fuse box)
206666 Modular* Cord Package $17.95
(includes coiled and straight
cords, and power adapter)
159032 Package of 8 Suction Cups $2.95
402080 Non Skid Dash Pad $6.95
* Modular: Interconnecting pieces cord and plug.
Shipping and handling (per order) $5.00. Prices
are subject to change without notice.
______________________________________________
write serial number in the space provided
26 27
SPEED MONITORING
POP™ Mode
POP™ Mode is a feature on some newer radar
guns operating on K and Ka bands. When the
gun is in POP™ Mode and activated, a brief
burst of energy, less that 1/15 of a second, is
transmitted and the vehicle's speed is quickly
acquired. A detector without POP™ Mode
detection capability cannot respond to this brief
transmission.
Laser Facts
It's well documented that many radar guns cannot
reliably provide the speed of a targeted vehicle
that is traveling in a group of vehicles. In contrast, a
laser gun can target a specific vehicle out of a line
of traffic and determine its speed. The advantage
of laser over radar in terms of target identification
is the result of the laser gun's narrow beam. A
radar gun's transmission can cover more than
a four-lane highway at a distance of 1,000 feet,
compared with a laser gun's transmission which
covers about 3 feet at the same distance. For best
protection, keep these points in mind:
• Because the vehicle's license plate or headlights
are the laser gun's primary targets, mounting
the Whistler detector on the dashboard can
improve laser detection at short range.
• Do not follow closely behind any vehicle. If
you can't see past a vehicle ahead of you,
chances are your detector won't either.
• The receiving range of your laser detector will
not be the same as a radar detector. Laser
guns are most often used at short range.
Whistler Laser-Radar detectors receive all current
laser guns which operate at a laser wavelength of
905 +/- 50nm.
21
OWNER'S MANUAL
XTR-658
Price
Total Band Protection
™
LASER-RADAR
DETECTOR
The Whistler Group Corporate Headquarters
1716 SW Commerce Dr. Ste. 8
PO Box 1760 Bentonville, AR 72712
Toll Free (800) 531-0004
TEL (479) 273-6012 FX (479) 273-2927
Customer Return Center
1412 South 1st St. Rogers, AR 72756
Customer Service Tel (800) 531-0004
Email: info@whistlergroup.com
www.whistlergroup.com
P/N 260035 08B14 © 2014 The Whistler Group, Inc.
