Inakustik Referenz AC-A3016 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AC-A3016
Referenz
Operating Manual

Advertisement

Table of Contents
loading

Related Manuals for Inakustik Referenz AC-A3016

Summary of Contents for Inakustik Referenz AC-A3016

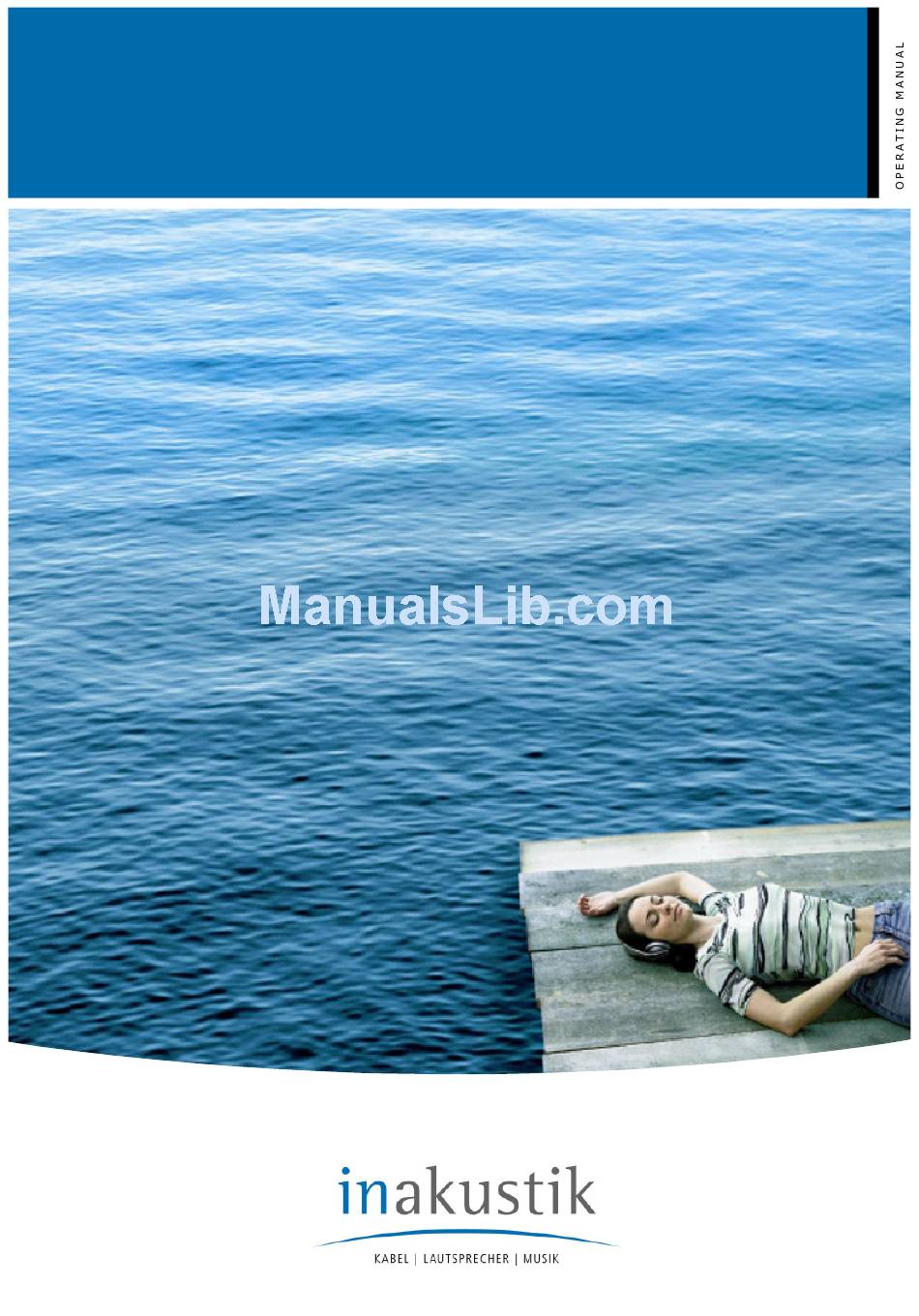

  • Page 1 AC-A3016 Referenz Operating Manual...
  • Page 2 Operating manual AC-A3016 REFERENCE EXCELLENCE Reference – the in-akustik class for Excellence – the in-akustik class for discerning tastes. The finest materials, perfectionists. The benchmark for uncompromising sound experience. World outstanding workmanship. With passion leading value and price/performance ratio. for High-End Audio enjoyment. Gets under your skin.

  • Page 3: Table Of Contents

    AC-A3016 Operating manual ongratulations on your purchase of an AC-A3016 active power distributor. This high-tech product was developed drawing on the latest technological advancements and is equipped with the most up-to-date technological features. So that you can enjoy your new product from the very beginning, we ask that you carefully read the following operating manual.

  • Page 4: Safety Instructions

    Operating manual AC-A3016 Safety instructions 1. General Please read, observe and follow the following safety instructions. Please save the operating manual. Observe all the warning notices on the device and in the operating manual. 2. Proper use Connect the product as indicated in the operating manual. Only use the cables and accessories provided by the manufacturer.
  • Page 5 AC-A3016 Operating manual 6. Grounding / Earthing Caution! The decoupling filters of the AC-A3016 cause increased heat losses. For this reason, the device must only be plugged into sockets (grounded/earthed outlets) with a properly functioning protective earth! 7. Connection The device may only be connected to the mains voltage which is indicated on the device (pos.

  • Page 6: Scope Of Delivery

    Operating manual AC-A3016 10. Fuses All necessary fuses have been integrated in the device. These fuses may only be changed by qualified service technicians. In doing so, all specified fuse values must be observed. If the replaced fuse blows immediately, the device should be handed in to be serviced.

  • Page 7: View Of Device

    AC-A3016 Operating manual Front- and Rearview Display black&white AC-A3016 Power Driver Preset INAKUSTIK Menu REFERENZ-AC-A3016 Indicator Stand By On / Stand By (4A max.!) (4A max.!) (4A max!) (16A max!) MADE IN GERMANY Type: Ser-No.: Main Power The Phase of the AC-sockets is always on the side of the AC power cable (on the left –...

  • Page 8: Connection

    Operating manual AC-A3016 Connection CAUTION: The active power distributor is equipped with safety features (see pages11- 12) which may cause all connected components to be switched off suddenly! In certain circumstances, this could damage components or result in the loss of data. It is IMPERATIVE that table 1 on page 10 is observed in order to determine which components may not be suitable for use with the device or which may be at risk of being damaged.

  • Page 9: Power Rating

    AC-A3016 Operating manual Power rating The active power distributor was developed for the operation of hi-fi and video devices. Its core component is a sophisticated power controller, which stabilises the voltage to the plug sockets (pos. 7 – 10). In principle, the controller (group A) regulates outputs of up to 3600 W / 16A.

  • Page 10: Intended Use

    Operating manual AC-A3016 Intended use The active power distributor is exclusively designed to power consumer electronics / AV equipment. This function is linked to maximum continuous output and safety aspects. The following table provides information about devices which may and may be operated with the active power distributor:.

  • Page 11: Operation

    AC-A3016 Operating manual Operating After you have made all connections and inspected them, switch-on the AC-A3016 active power distributor at the main switch (pos. 5). The device is now in stand-by mode and the red LED (pos. 2) is lit. Activate the power distributor by pressing the stand-by button (pos. 1), the red LED goes out.
  • Page 12 Operating manual AC-A3016 3. Under-voltage protection: If the mains voltage from the wall socket is too low over a prolonged period (< 215V), thus compromising the performance of the active power distributor, the device will switch off the plug sockets (pos. 7 – 10). The message "Mains voltage too low" appears in the display (item 11).

  • Page 13: Display

    AC-A3016 Operating manual Display Über das Display können verschiedene Parameter wie unten beschrieben abgerufen werden. IN-AKUSTIK Standard Startanzeige. REFERENZ AC-A3016 Display PRESET # AKTIV Zeigt an welches Preset derzeit aktiv ist. Display NETZSPANNUNG Zeigt die aktuelle Netzspannung an. 2##V Display AUSGANGSSPANNUNG Zeigt die aktuelle Ausgangsspannung an den Steckdosen an.
  • Page 14 Operating manual AC-A3016 Programming 1. Socket groups - Setting filters The diagram below shows how filters are set for socket group A. The same approach applies to groups B to D. To save these settings, follow the instructions on page 16 and 17. Auswahl übernehmen und zurück...
  • Page 15 AC-A3016 Operating manual 2. Switching socket groups on/off For example, the diagram below shows how socket group A is switched on and off. The same approach applies to groups B to D. To save these settings, follow the instructions on page 16 and 17.
  • Page 16 Operating manual AC-A3016 3. Saving settings There are a total of 8 memory spaces (presets #1 to #8) to save the current settings of all groups; these can be called up with the Preset button (see page 17). In the example below, the settings are saved to preset #2.
  • Page 17 You can store the current settings as the start configuration. The settings are automatically called up each time the AC-A3016 is started (preset 0). To do this, proceed as follows: MENU IN-AKUSTIK MENU REFERENZ AC-A3016 PROGRAMMIEREN The settings are stored as the start EINSTELLUNGEN...

  • Page 18: Basic Settings

    Operating manual AC-A3016 Basic settings 1. Select a language The menu language of AC-A3016 can be set as follows: MENU MENU PROGRAMMIEREN EINSTELLUNGEN SPEICHERN GRUNDEINSTELLUNG MENU SPRACHE SPRACHE DEUTSCH GRUNDEINSTELLUNG Auswahl MENU GRUNDEINSTELLUNG SPRACHE übernehmen ENDE RESET ENGLISH und zurück GRUNDEINSTELLUNG SPRACHE ZURUECK...
  • Page 19 AC-A3016 Operating manual 4. Reset The AC-A3016 is delivered with the following factory settings Menusprache = Deutsch Start Set up Gruppe A = Ein Filter = Power Start Set up Gruppe B = Ein Filter = Analog Start Set up Gruppe C = Ein Filter = Digital Start Set up Gruppe D...

  • Page 20: Care

    Operating manual AC-A3016 Care The active power distributor may NOT be cleaned with aggressive or caustic cleaning agents. Remove dust and dirt with a soft cloth or brush. Please observe the safety instructions. Troubleshooting The red stand-by LED (pos. 3) is not lit and the device will not switch on. Check the mains connection (pos.

  • Page 21: Example Configuration

    AC-A3016 Operating manual Example configuration The table shows an example of multiple uses for the AC-A3016. The devices are grouped and filters set here in such a way as to achieve the highest performance with each different application - for pure analogue audio, digital audio and, of course, home cinema. You can also use the various filter settings to make targeted changes to the sound properties of your system.

  • Page 22: Configuration Table - Device Connection

    Preset 0 Preset 1 Preset 2 Preset 3 Preset 4 Preset 5 Preset 6 Preset 7 Preset 8 Gruppe Gerät EIN/AUS FILTER EIN/AUS FILTER EIN/AUS FILTER EIN/AUS FILTER EIN/AUS FILTER EIN/AUS FILTER EIN/AUS FILTER EIN/AUS FILTER EIN/AUS FILTER...

  • Page 23: Active Screening/Phase Tester

    AC-A3016 Operating manual Active screening/phase tester Phase test: Plug the tip of screening tester into both of the holes (alternately) in the plug socket and then let go of the screening tester. The hole in which the screening tester lights up (LED) is the phase.
  • Page 24 AC-A3016 Operating manual Bedienung AC-A2016 in-akustik GmbH & Co. KG Untermatten 12-14 D-79282 Ballrechten-Dottingen +49 (0) 7634-5610-0 Tel.: Fax.: +49 (0) 7634-5610-80 E-Mail: mailto@in-akustik.com Web: www.in-akustik.com Note: All product illustrations are approximate. Specifications subject to change without notice...
