Summary of Contents for Water Control Brassmaster Plus+

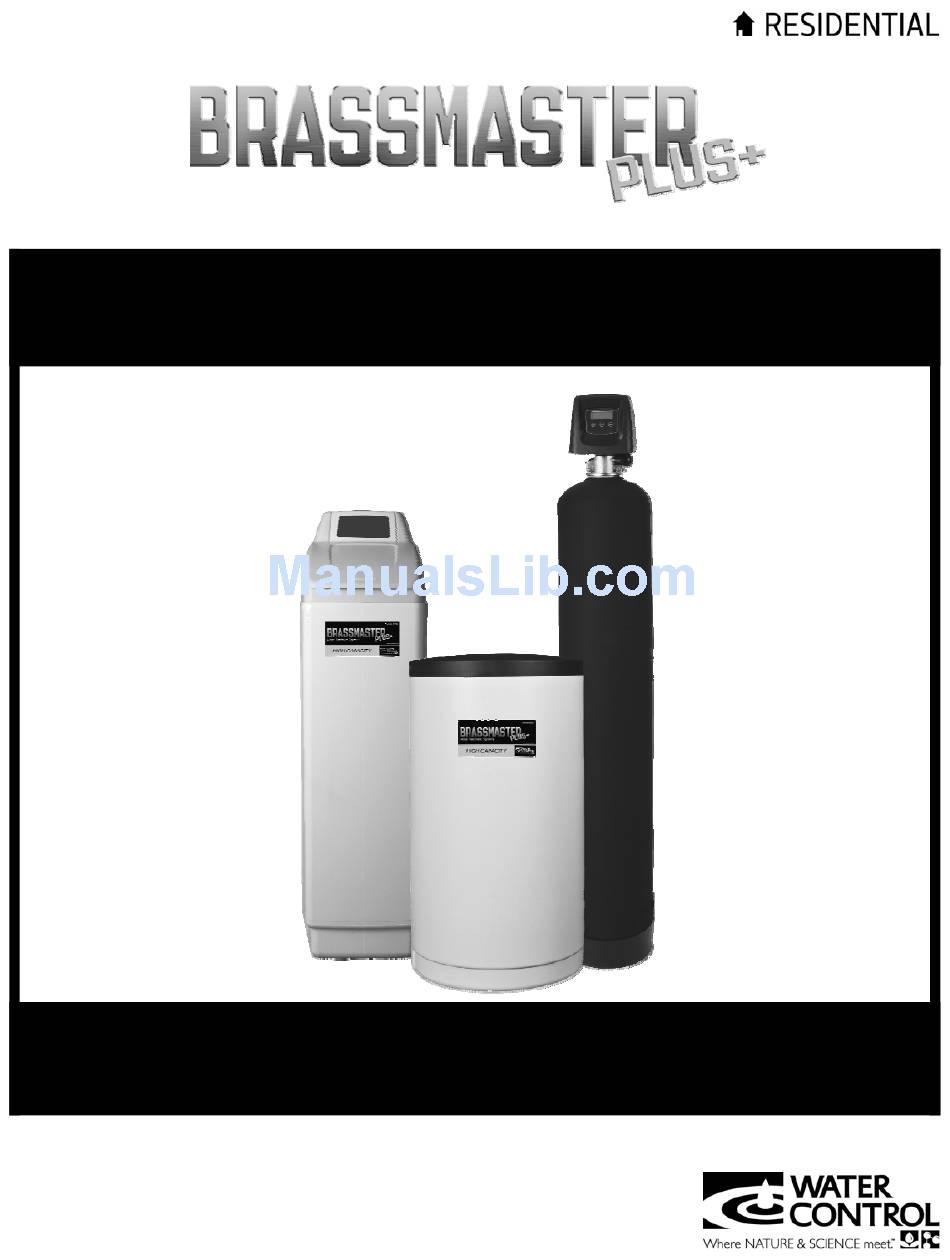

- Page 1 Water Softening Systems Operation & Maintenance Manual ...
-
Page 2: Specifications
Specifications Feedwater ! Do not use this system on water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. ! Minimum inlet pressure: 20 psig Maximum outlet pressure: 125 psig Minimum water temperature: 34 degrees F Maximum water temperature: 110 degrees F Power Voltage: 120VAC... -
Page 3: Softener Operation
Softener Operation As water enters the softener, it passes over a resin bed in a special tank. The resin consists of tiny beads of a plastic called styrene. These beads attract and hold sodium ions and exchange the sodi- um for hardness ions when encountered. Over time, the resin becomes saturated with hardness ions and no longer removes hardness materials. - Page 4 Service Cleaning Iron Out of the Water Softening System The BrassMaster Plus Water Treatment system is designed to remove minerals like calcium and magnesium from household water. BrassMaster Plus Water Treatment recommends periodic resin bed cleaning if your iron rating is high. Clean the bed at least every six months, or more if iron ap- pears in the soft water between cleanings.
-
Page 5: Troubleshooting
Troubleshooting 1. Softener Fails To Regenerate. A. Electrical service to unit has been A. Assure permanent electrical service (check fuse, interrupted. plug, pull chain or switch). B. Timer programming bad (improper B. Check programming and reset as needed. ... - Page 6 plate ensure refill water is over it. C. Resin fouling. Future fouling. C. Call Water Control Corp, find out how to confirm it, clean the resin and prevent. D. Poor distribution, channeling D. Call Water Control Corp. Check distributors and ...
-
Page 7: Water Softener System Parts List
Water Softener System Parts List Please contact Water Control Corpora on or your dealer for parts availability. 7 ... - Page 8 Part No. Description WFLET5800 Electronic Control Valve BT1833 Brine Tank (Two-Tank models) BC1235 Brine Tank (Cabinet Models) 15135-1 36523211 Brine Well 60002 Air Check RT935 Resin Tank (Model WBP27) RT940 Resin Tank (Model WBPT27) RT1035 Resin Tank (Model WBP35) RT1044...
Need help?
Do you have a question about the Brassmaster Plus+ and is the answer not in the manual?
Questions and answers
When I plug in the power cord to my Brass master plus unit, water flows into the salt storage tank and a "E" appears on the monitor screen. I have turned off the water control valve on the unit to keep the tank from overflowing. I'm unable to reset the control module to get the unit to operate properly. What can I do?
The "E" issue refers to hardness in the hot water tank. To resolve it, repeatedly flush the hot water tank.
For the problem of insufficient water flowing into the salt (brine) storage tank, check the brine tank fill time and clean the brine line if it is plugged.
This answer is automatically generated
