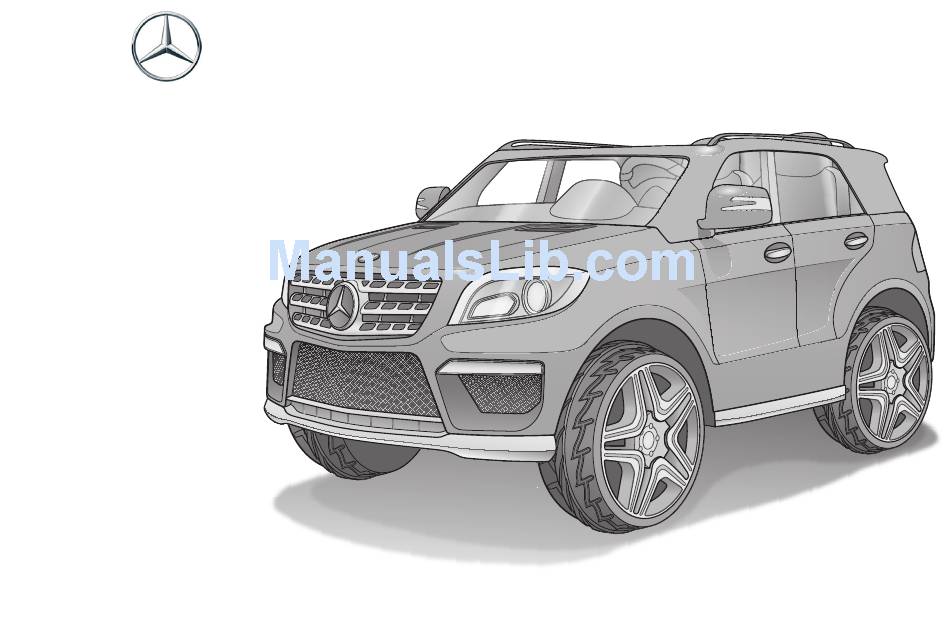

Mercedes ML
Ride-on Toy Car
5F60AD7
Styles and colors may vary.
Made in China
OWNER'S MANUAL
The owner's manual contains assembly, use and maintenance instructions. The vehicle must be assembled by an adult who has read
and understands the instructions in this manual. Keep the packaging away from children and dispose of all packaging before use.
Keep instructions for future reference.
Advertisement
Table of Contents
Related Manuals for KidTrax Mercedes ML 5F60AD7
Summary of Contents for KidTrax Mercedes ML 5F60AD7
- Page 1 Mercedes ML Ride-on Toy Car 5F60AD7 Styles and colors may vary. Made in China OWNER’S MANUAL The owner’s manual contains assembly, use and maintenance instructions. The vehicle must be assembled by an adult who has read and understands the instructions in this manual. Keep the packaging away from children and dispose of all packaging before use. Keep instructions for future reference.
- Page 2 Thank You For purchasing Mercedes ML ride-on toy car. Features include; Power Trax™ rubber traction strips on the tires, a 12 volt Kid Trax battery, working radio with MP3 player jack, lights, horn and engine sounds, opening doors with hatch and Mega-loud™ ported speaker system.
-
Page 3: Table Of Contents
Contents 1 SAFETY ..........4 5 MAINTENANCE . -
Page 4: Safety
Safety WARNING! The following safety hazards may result in serious injury or • Using the vehicle in unsafe conditions such as snow, rain, death to the user of the vehicle: loose dirt, mud, sand or fine gravel may result in •... -
Page 5: Battery Warnings
Do not give water or milk if the patient is overheating, fire or explosion. Never use the vomiting or has a decreased level of alertness. Do KidTrax Toys 12V rechargeable battery and charger not induce vomiting. with another product. -
Page 6: User Requirements And Warnings
USER REQUIREMENTS AND WARNINGS CARE WARNINGS WARNING! Age Range 3 - 5 years (maximum) Weight Range No more than 130 lb (59 kg) • Park the vehicle indoors or cover it with a tarp to protect it from wet weather. Before using the vehicle the child should understand the vehicle •... -
Page 7: Parts
Parts Important! Check that you have all parts before assembly. Rear window assembly Seat (2) Steering wheel Steering wheel Vehicle body Includes: Mirror screw and nut nut and screw 12 volt battery, two (1 per mirror) working doors, lights and dashboard Rear body screws (6) Mirror (2) Gear box (2) -
Page 8: Assembly
Assembly ATTACH THE GEAR BOXES ATTACH THE REAR BODY ❶ Carefully turn the vehicle body and the rear body assembly ❶ Insert the two square tabs of the rear assembly into the over so the underside is facing up. Figure 3.1 slots of the rear body. - Page 9 ❷ Insert a screw into each screw hole, and tighten the screws. ❸ Insert the rear bracket into the slot at the front of the rear Figure 3.3 assembly. The slotted end of the rear bracket will fit into the inset located near the rear axle. ❹...
-
Page 10: Attach The Rear Window Assembly
ATTACH THE REAR WINDOW ASSEMBLY ❺ Carefully turn the vehicle body over to the upright position. ❻ Insert a screw into the four screw holes located on the rear ❶ Connect the wires coming from the bottom of the rear assembly, and tighten the screws. -
Page 11: Attach The Wheels
ATTACH THE WHEELS ❸ Insert the outside washer onto each axle until it stops at the wheel. ❶ Slide the inside washer onto the axle until it meets the stop on the axle. Note: the rear wheels do not get an inside ❹... -
Page 12: Attach The Steering Wheel
ATTACH THE STEERING WHEEL ❹ Completely align the holes at the end of the steering rod with the holes in the steering wheel base. Figure 3.9 ❶ Remove the screw and nut from the steering wheel. Figure 3.8 ❺ Insert the screw through the hole in the steering wheel and steering rod. -
Page 13: Attach The Mirrors
ATTACH THE MIRRORS ❶ Remove the screw and nut from the mirrors. ❷ Place the mirror over the mirror bracket on the dashboard. Be sure to align the hole on the mirror with the hole on the mirror bracket. Figure 3.10 ❸... -
Page 14: Use
CHARGING THE BATTERY Important! Before using the vehicle for the first time the battery needs to be charged for at least 24 hours. Only an adult who has read and understands the safety warnings should handle, charge or recharge of the battery. First charge 24 hours. -
Page 15: Operating The Vehicle
OPERATING THE VEHICLE ❶ Rear View Mirrors: Adjustable mirrors for viewing behind the vehicle Figure 4.2 ❷ Steering wheel: Use to steer the vehicle right or left. Hold onto the steering wheel at all times. a. Press right steering wheel button for horn sounds. b. - Page 16 ❿ Shift Handle: Changes the direction the vehicle moves from forward to reverse. Press and hold the lever in the down position for reverse. High Speed Tip! Remove the small screw at the base of the shift Lock out Screw handle for higher speeds.
-
Page 17: Re-Charge Interval And Time
RE-CHARGE INTERVAL AND TIME BATTERY STORAGE Important! Do not leave the battery connected in the vehicle for long period of times while not being used. This may drain the battery • Damage to the battery may occur if it is allowed to drain completely and cause permanent damage. -
Page 18: Battery Replacement And Disposal
BATTERY REPLACEMENT AND DISPOSAL ❻ Replace the battery with a Kid Trax Toys 12V 12Ah battery. The Kids Trax Toys 12V 12Ah battery will eventually lose the ❼ Reconnect the blue battery connectors. ability to hold a charge. Depending on the amount of use, and varying conditions, the battery should operate for one to three ❽... -
Page 19: Maintenance
Water will damage the motor, electrical system and battery. • KidTrax Toys recommends that you take the vehicle to an authorized service center for periodic maintenance and service. Call Kid... -
Page 20: Troubleshooting Guide
Troubleshooting Guide The following are examples of potential problems. Completely read through this manual and the troubleshooting guide table before calling Kid Trax Toys Consumer Relations. If you still need help resolving the problem please call 877-741-6154. Kid Trax Toys recommends that you take the vehicle to an authorized service center for periodic maintenance and service. Call the number listed above for the closest center to you. - Page 21 Problem Possible Cause Remedy Vehicle does not run very Battery is old Replace battery (see Battery: Replacement and long Disposal Vehicle runs sluggishly or Battery low on power Recharge battery (see Battery: Recharge Interval beeping occurs and Time) Battery is old Replace battery (see Battery: Replacement and Disposal Vehicle is overloaded...
- Page 22 Problem Possible Cause Remedy 12V Battery will not Battery connector or adapter connector is loose Check that battery connectors are firmly recharge plugged into each other Charger not plugged in Check that battery charger is plugged into a working wall outlet Charger is not working (lights not glowing) Call Consumer Relations at 877-741-6154 for an authorized service center...
-
Page 23: Services, Repairs And Parts
Services, Repairs and Parts Do not return this product to the place of purchase. If your vehicle needs service, repairs or replacement parts, call: KidTrax Toys Consumer Relations Hours: 8:00 am – 5:00 pm (CST) Monday - Friday Phone: 877-741-6154 Email: customerservice@kidtraxtoys.com... -
Page 24: Warranty
1-800-858- 2800, 24 hours a day; write to KidTrax Consumer Relations Department, KidTrax Toys, P.O. Box 344 Olney, IL 62450 or call 1-877-741- 6154 from 8 a.m. -
Page 26: Contact Information
Contact Information If you have any questions or comments please contact us at: In U.S.A. © 2013 Pacific-Cycle Inc. 4902 Hammersly Rd. Madison, WI 53711 Customer Service: 877-741-6154 customerservice@kidtraxtoys.com www.kidtraxtoys.com...
